Automatic Squidly Plus Multi Size Cubing System

Automatic Squidly Plus Multi Size Cubing System



Description

Automatic cubing system for multi-length tumbled rectangular and square pavers.

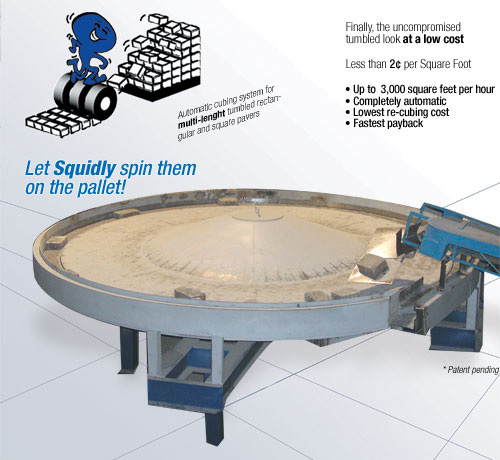

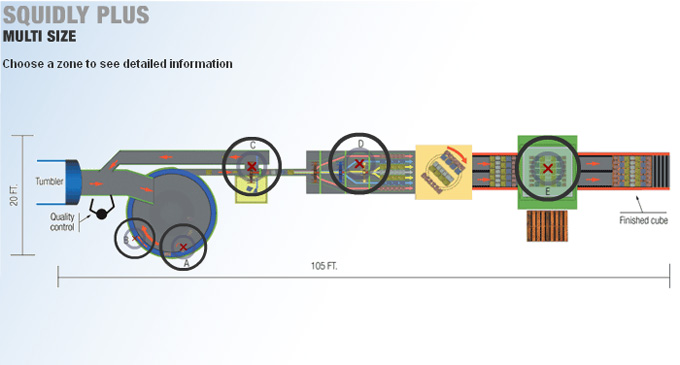

Squidly Plus is a revolutionary high-capacity fully automatic paver recubing system. It utilizes the synergy between two principles of aligning rectangular pavers on their longest edge along rotating tables. Once aligned, the pavers leave the table on a narrow conveyor to be then sorted by size to make a pattern. Finally, they are recubed on our proven down stacking cuber.




Spécifications

Turn tables

  • Top: 11 feet diameter with adjustable rings for different pavers widths.
  • Bottom: 12 feet diameter driven slower and independently.

Bi-Directional paver pusher wheels

  • 3 feet diameter aluminium wheel with 15 inches wide bar pushers.
  • Servo motor driven.

Paver layer turntable

  • 6 feet diameter.

Downstacking cuber

  • Complete with pallet magazine and exit cube conveyor.
  • Incorporates a paver stabilization top deadweight plate to prevent any pavers from sticking out in a layer.
  • Cycle time: 13 seconds.

Quality control and round table feed conveyor

  • 30 inches wide by 15 feet in length.
  • Variable speed.


Cost & Payback Comparison

Cubing Systems Men required Hourly rate Cost/
shift
Sq.ft.
shift
Cost/
sq.ft.
Savings per shift Number of months before breakeven*
Manual 6 $18 $864 7,200 $0.12 n/a n/a
Squidly semi-automatic using single length pavers 2 $20 $320 8,000 $0.04 $640 5 to 7
Squidly semi-automatic using multi-length pavers 2 $20 $320 6,400 $0.05 $448 7 to 9
Squidly Plus automatic using single length pavers 2 $20 $320 16,000 $0.02 $1,600 5 to 8
Squidly Plus automatic using multi-length pavers 2 $20 $320 16,000 $0.02 $1,600 7 to 10
* Based on 16 hours daily production.

The cost associated with automatic cubing of single size pavers is six times less than manual cubing and half the cost of semi-automatic cubing.

Get the uncompromised look of tumbling without the labor involved to recube.



Option

To re-cube single length pavers, refer to Squidly Plus for single length pavers.
