Drum Tumbling Aging System

Tumbling Options

Dino Continuum model 60R and 5-12

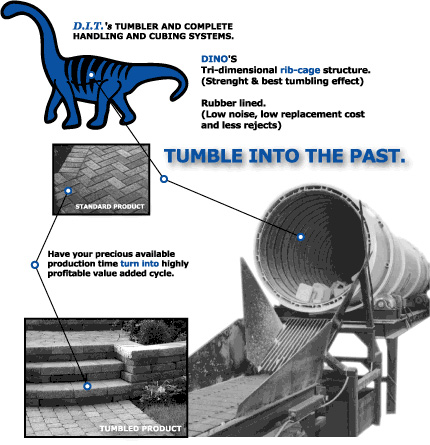

Dino Tumbler Overview



Spécifications

  MODEL 60R MODEL 5-12
Drum diameter (ft): 5' 5'
Height (ft): custom (7' to 13') custom (7' to 13')
Width (ft): 6' 6'
Length (ft): 22' 12'
Weight (approx): 16000 lbs 9000 lbs
Drive: hard steel wheels on hard steel bands hard steel wheels on hard steel bands
Electrical power: 2 x 10 HP motors 2 x 5 HP motors
Speed: 4 to 15 RPM 4 to 15 RPM
Production rate: up to 30 cubes/hr up to 15 cubes/hr
Controls: PLC with frequency variator PLC with frequency variator

Description

Model 60R: umbler drum 5-ft x 22-ft long mounted on a heavy-duty frame complete with a 0 to 12 inches adjustable inclination mechanism. The drum is rubber lined and driven by 2 hard steel wheels powered by 2 X 10 HP variable speed motors, for different products and finish.

Model 5-12: tumbler drum 5-ft x 12-ft long mounted on a heavy-duty frame complete with a to 4 inches adjustable inclination mechanism. The drum is rubber lined and riven by 2 hard steel wheels powered by 2 X 5 HP variable speed motors, for different products and finish.

Special features

  • DINO CONTINUUM Tumbler is a continuous tumbling process allowing constant end product look (providing that the feeding is constant).
  • The drum is maintained in position by a special conical long life trunnion wheel.It is also secured by a second trunnion wheel. Model 5-12 is secured by especially designed angular grooved wheels.

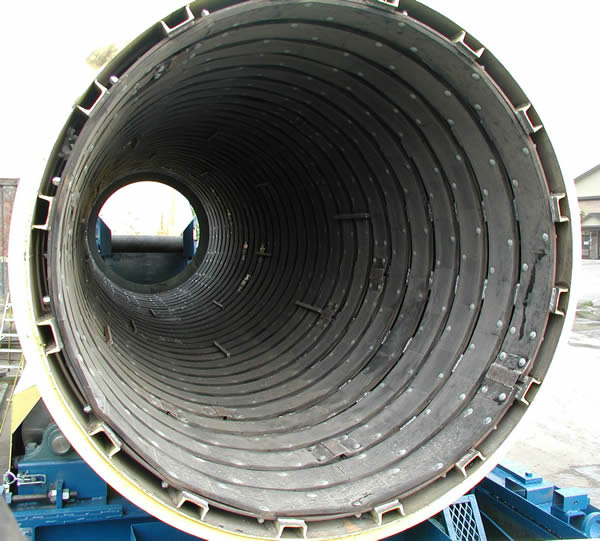

  • The heavy-duty steel drum is lined with a series of ribs 6" x 3/8" x 56" diam. mounted on longitudinal channels. These ribs are spaced (2") so that the cuttings can be evacuated at the end of the drum. These ribs are lined with a high impact replaceable rubber.
  • Specially engineered lifting bars are distributed in spiral through the length of the drum.


Advantages

  • Tri-dimensional rib-cage structure allowing:
    • Strong drum rigidity for large concrete products.
    • The best tumbling effect after two years of movements engineering studies.
    • The least amount of rejects thanks to the jumping, lifting and rumbling on each other rather than lifting and falling.
  • Noise reduction (rubber liners).
  • Impact resistant tumbler mechanisms including rubber lined ribs on channels, heavy duty roller bearings to support specially engineered steel wheels and hard steel rolling bands.





Options

  • Grizzly options: To evacuate the cutting, we offer either a regular grizzly in a slope made of abrasion resisting steel or a integrated grizzly inside the last portion of the tumbler
  • Dust collection option: Hoods and curtains to cover tumbler dust sources, dust collector bag house, 3000 CFM fan and dust pan.
