Used equipment

Block Machines Only (American type)

Manufacturer Bulldog Sparts International
Model 3 at a time
Year of Manufacturing 2012
Category Block Machines Only (American type)
Equipment Number 10298
Condition Very good

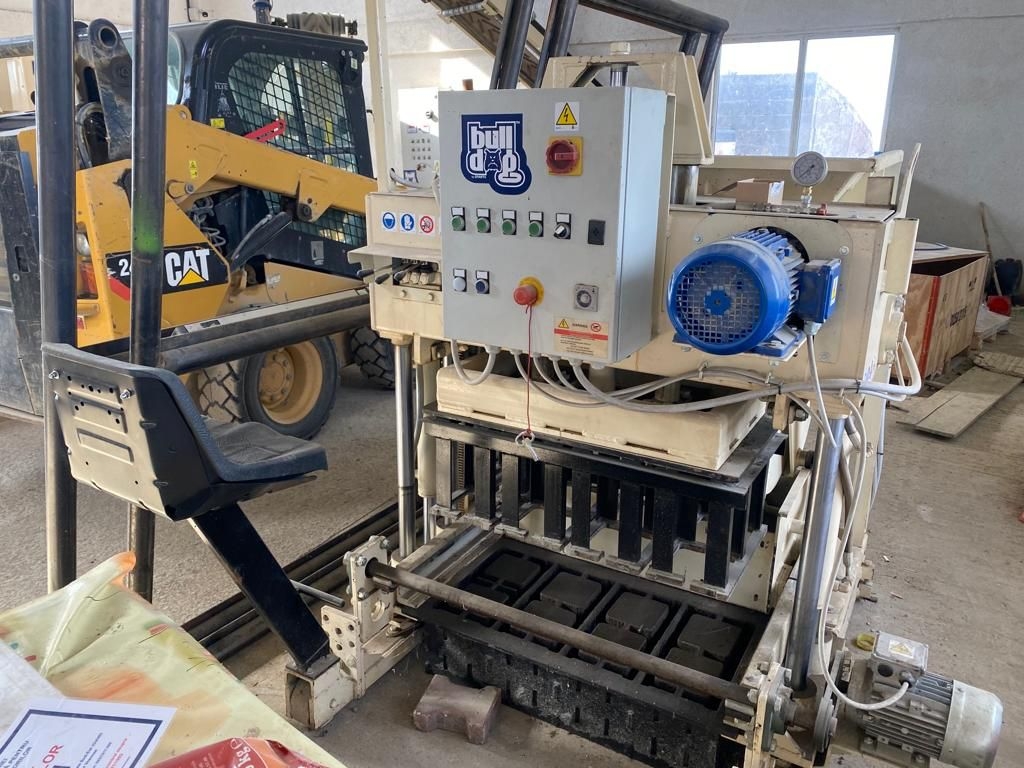

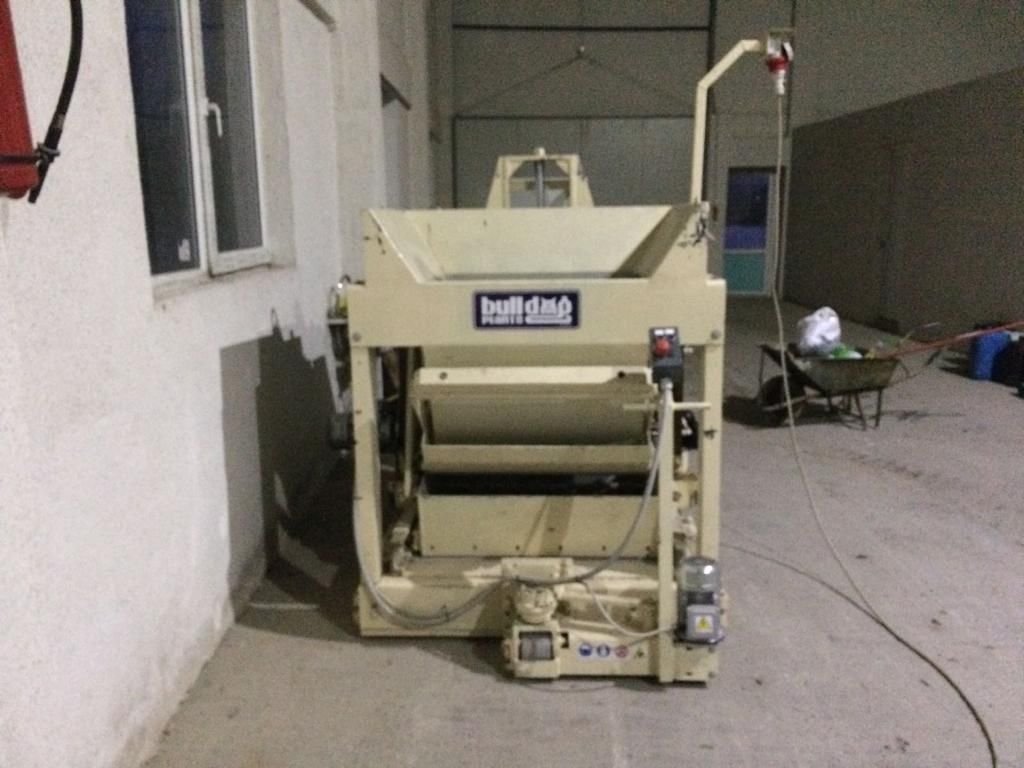

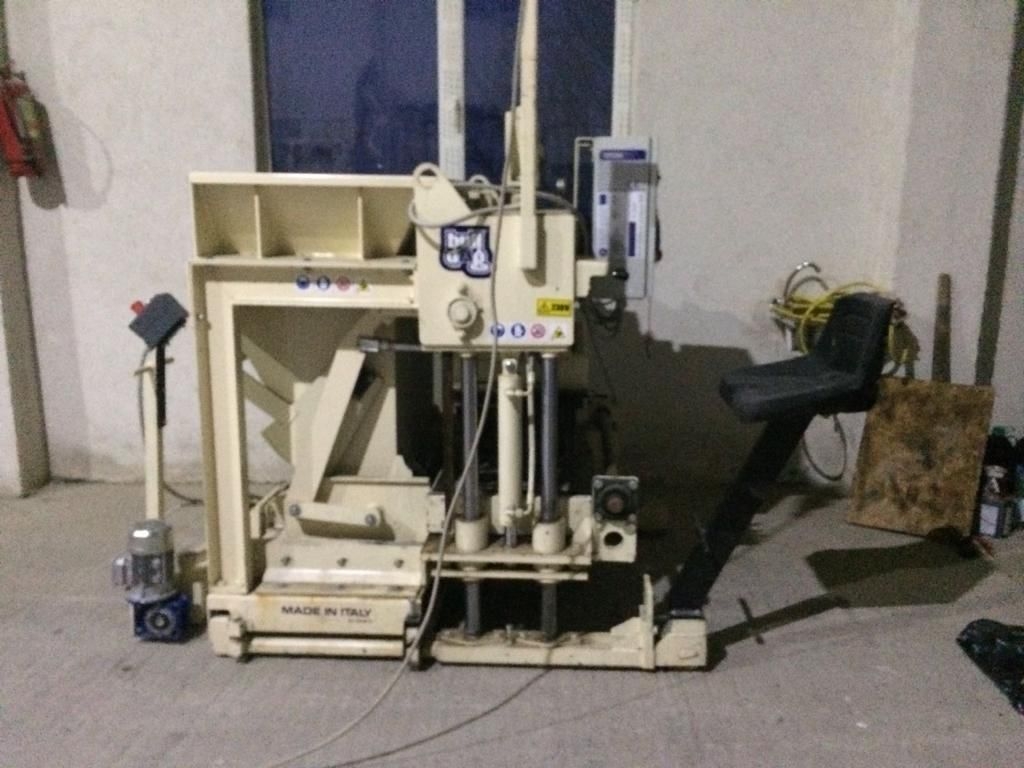

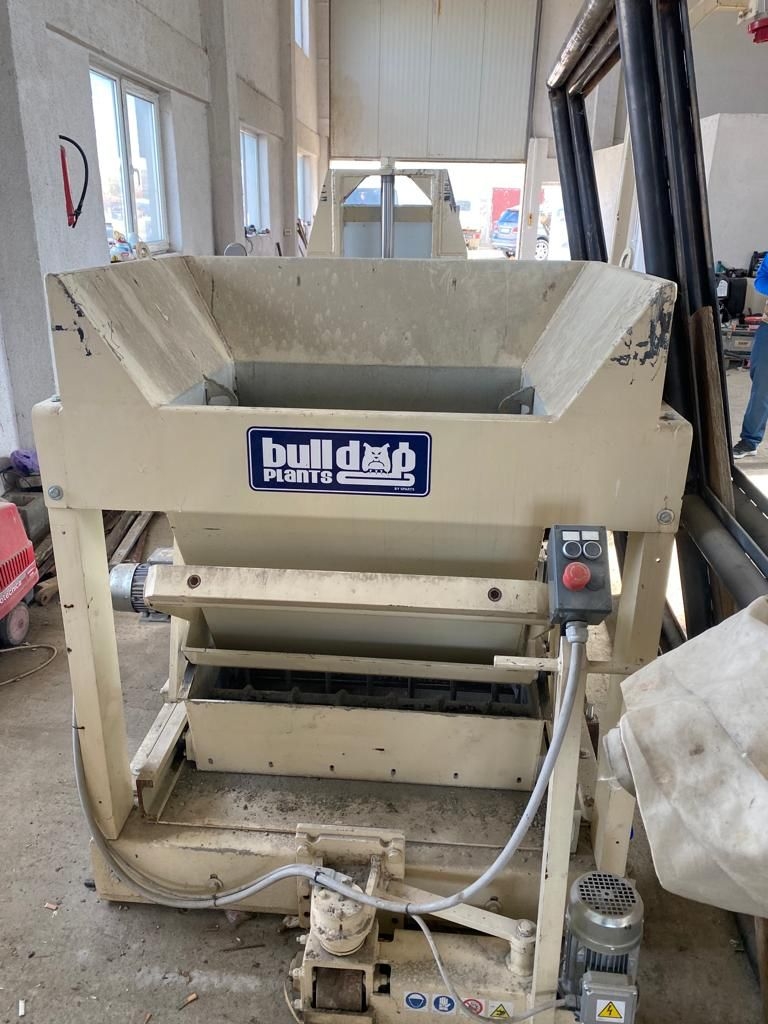

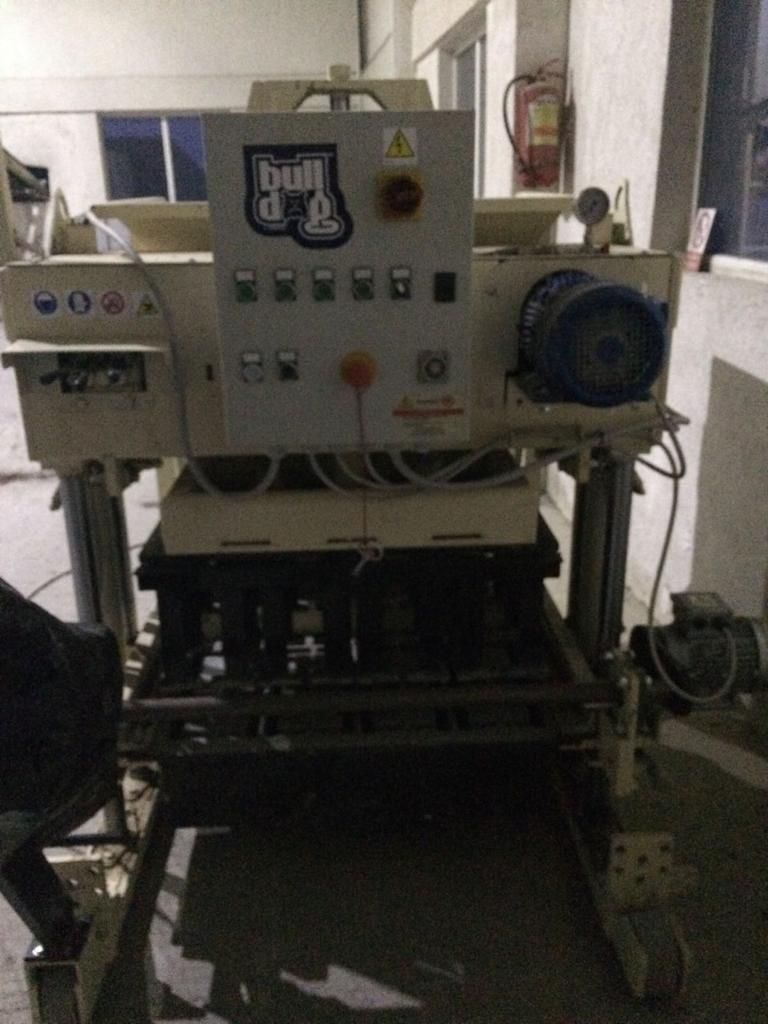

Used 3 at a time block making machine which produce wall blocks, floor blocks, kerbs and paving stones.
The production line is manufactured by Bulldog Sparts International, December 2012 production year and is in an excellent condition.
Characteristics of the product:
Hour production: 300/350 standard block cm. 20x40x20
Product height: variable from 5 to 30 cm
Dimension table: cm. 70x50 SP=4
Max. product dimensions : cm. 50x40x20 h
Cycle times : 120
Number of standard block per mold : 3
Electric installed power : 8 kW (11 hp) - 380 V - 50÷60 hz
Machine dimension : cm. 500x150x280 h
Machine weight : 3000 kg ÷

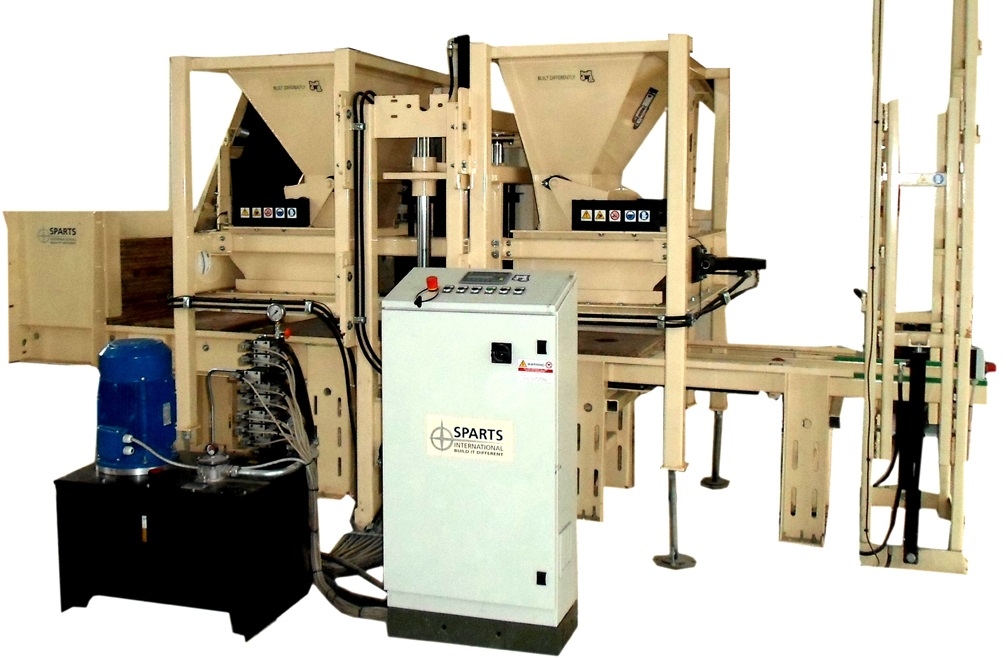

The 2FCA350 line is fully automated, consisting of:

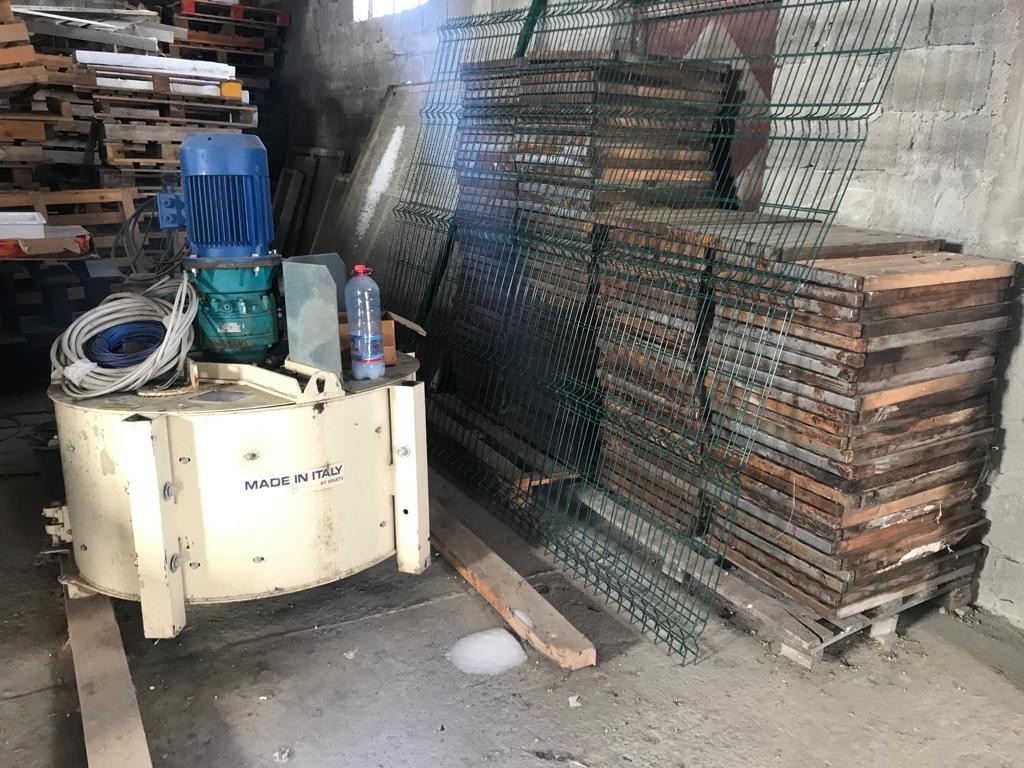

 -2 Mixers casing of hardox
 -2 Conveyor belts with motors 380V
 - Pallet Loader
 -Transporte pallets

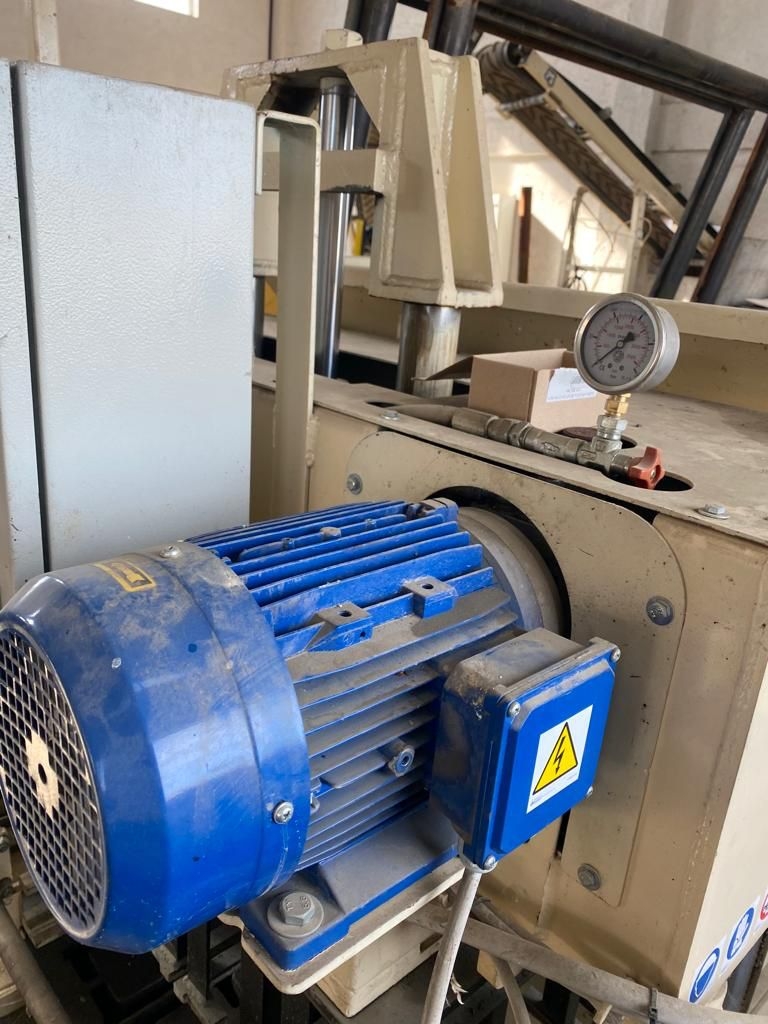

 -Pressure vibrant with two vibrating motors (two on top and two on the vibrating table mold)
 -Extraction of pallets
 -Lift for four pallets with lock sensor at full capacity
 -Tank oil hidrailic with  distributor

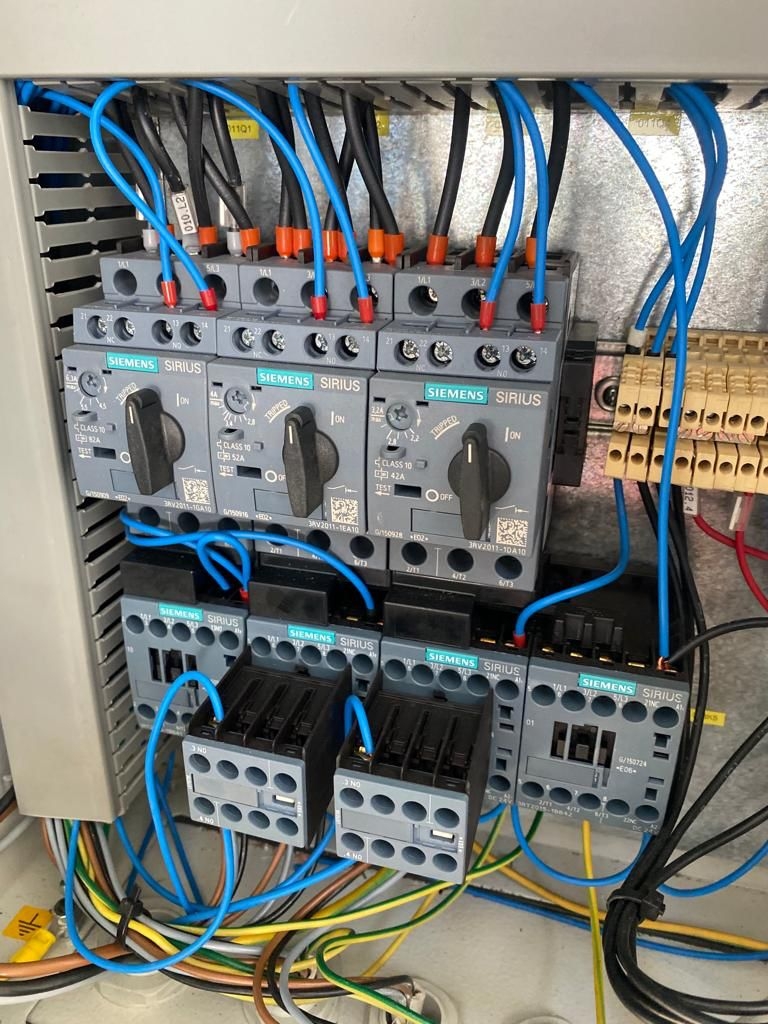

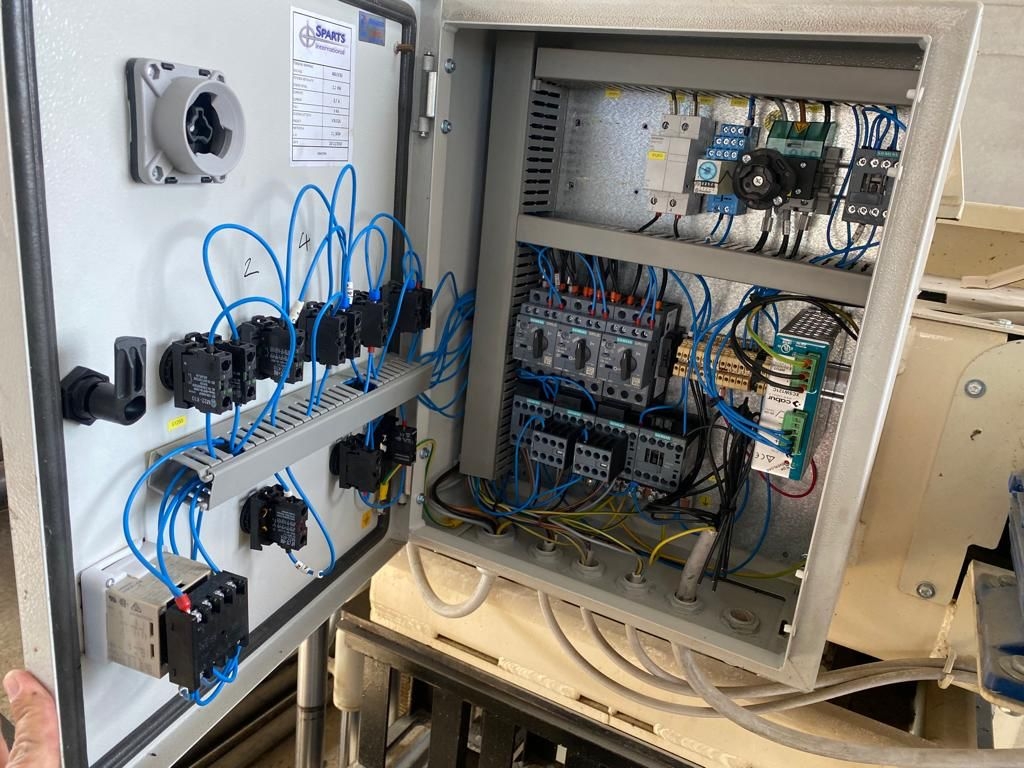

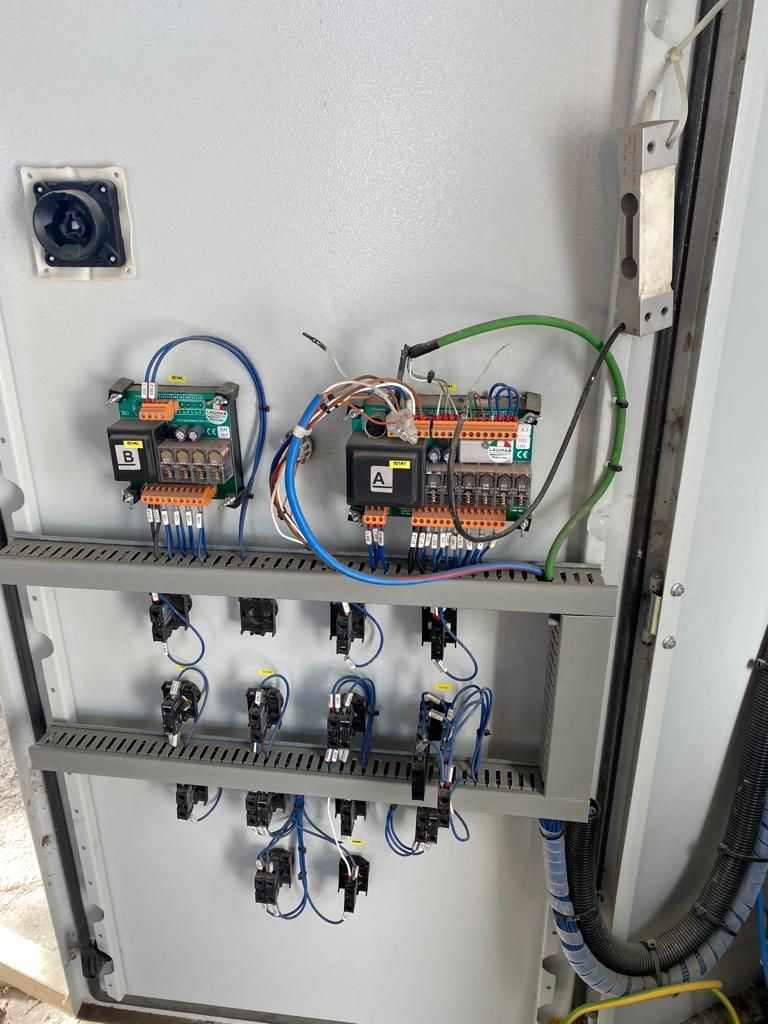

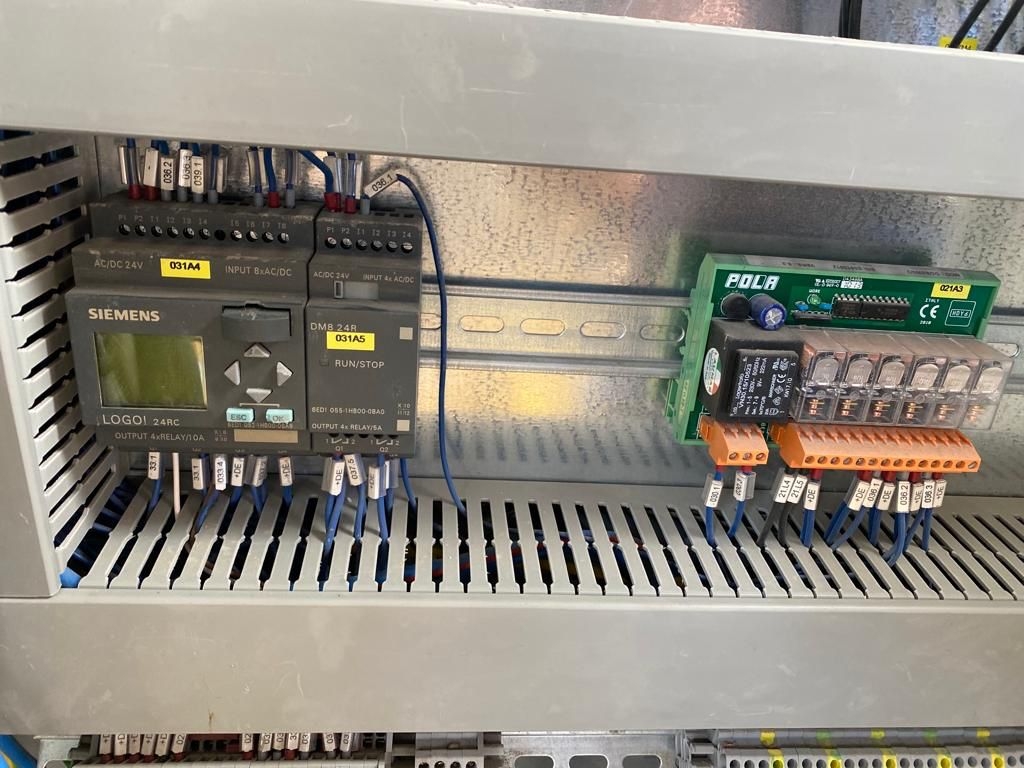

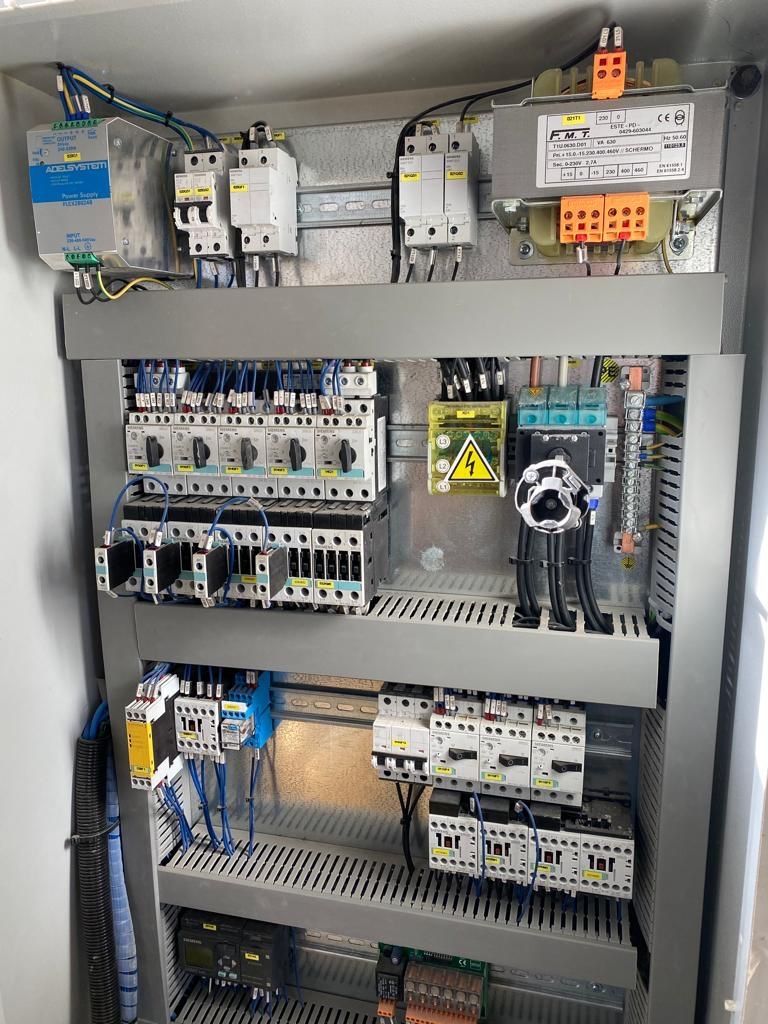

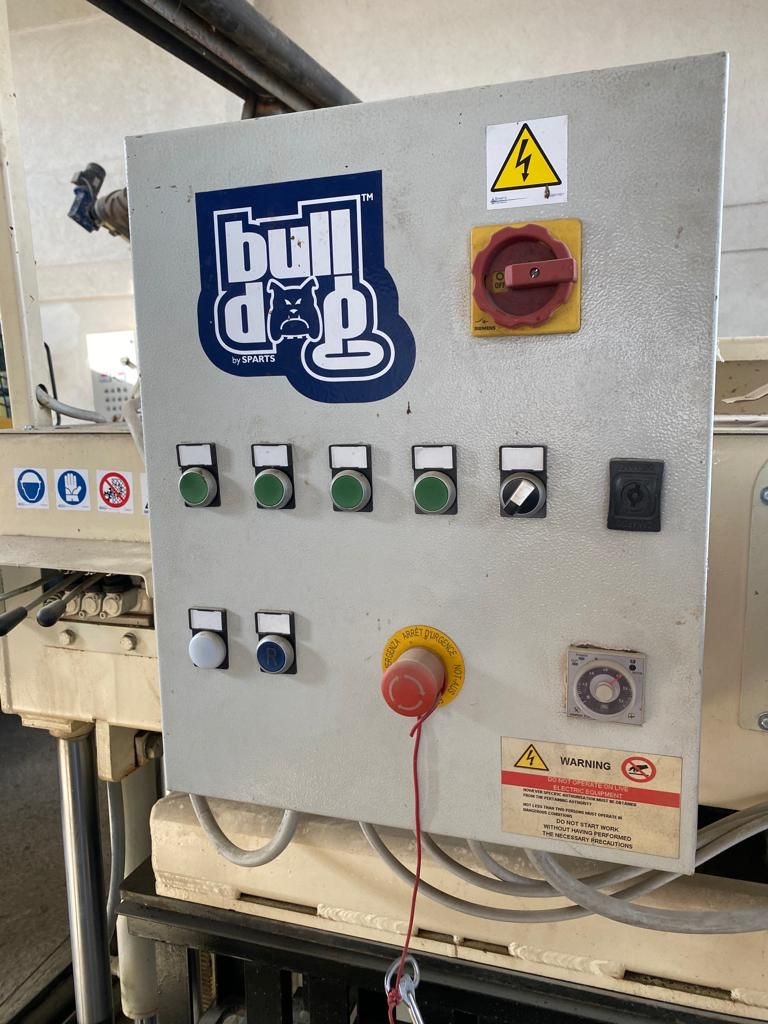

 -Control panel, which has connectors and computer SIMENS
 -2 Molds paving 6 cm and 8 cm
The press was not working than a year after it was totally refurbished and upgraded in 2016.
It was repainted all, have added two engines on top of the mold vibrant changed all hydraulic hoses, sensors, and added a grid in the box to the underlying layer, which kneaded concrete to not react until reaching the press. It has come an improvement software.

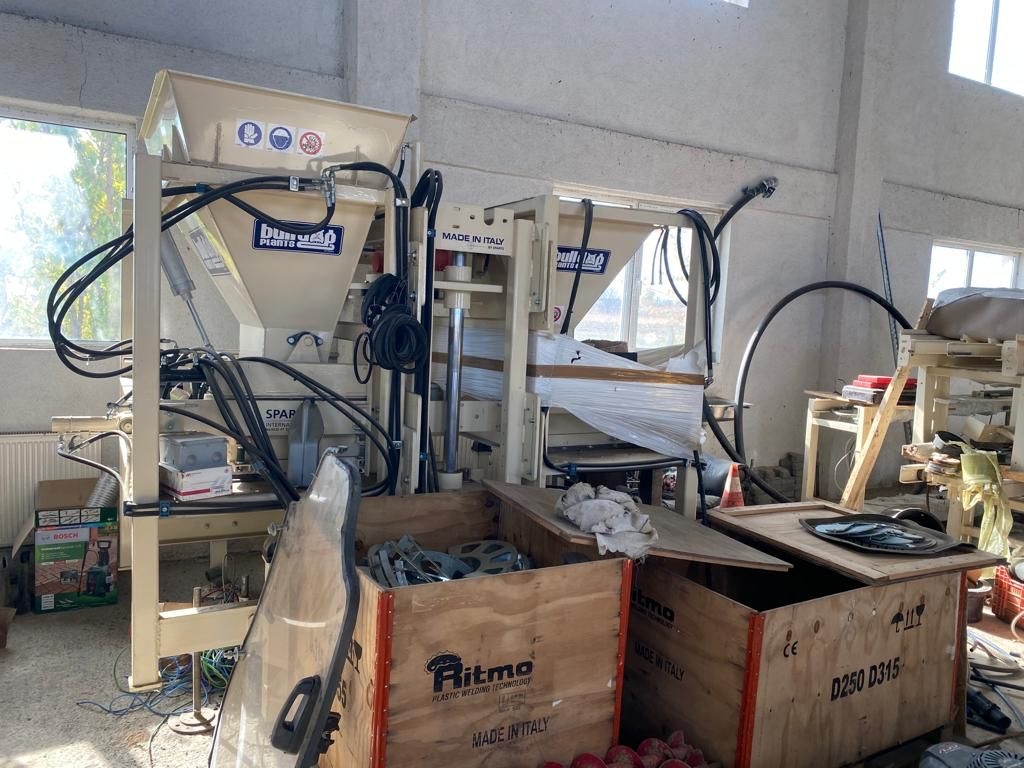

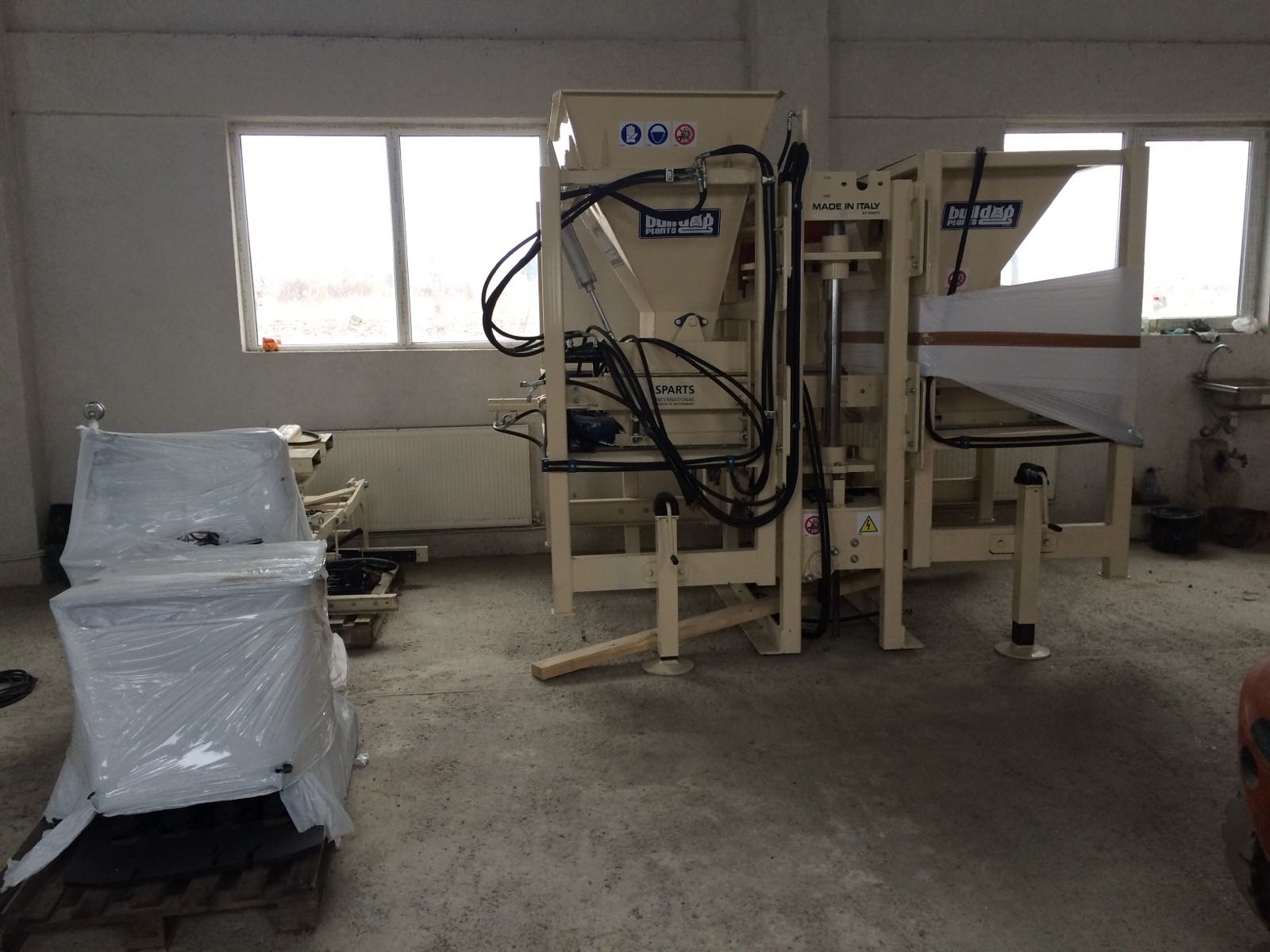

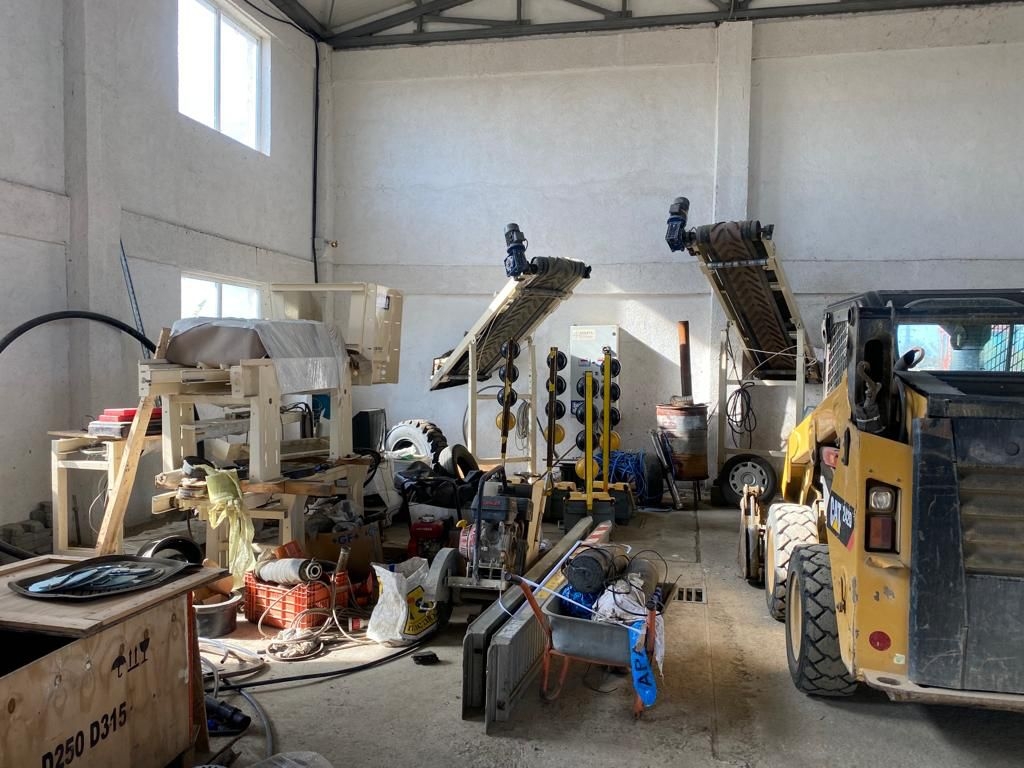

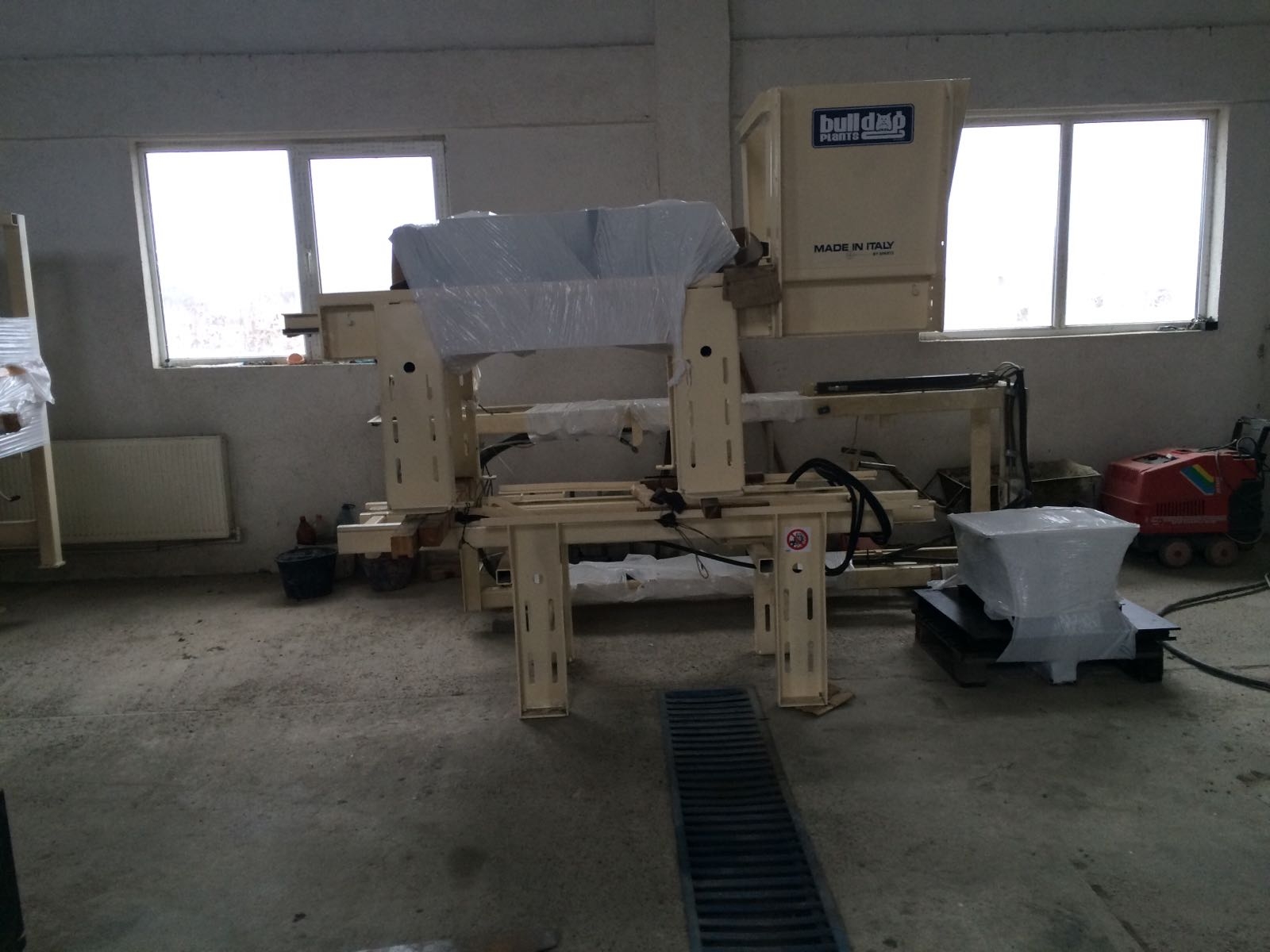

It is disassembling and packed as shown in pictures.
The line fits in a container of 40 feet and can organize transport
