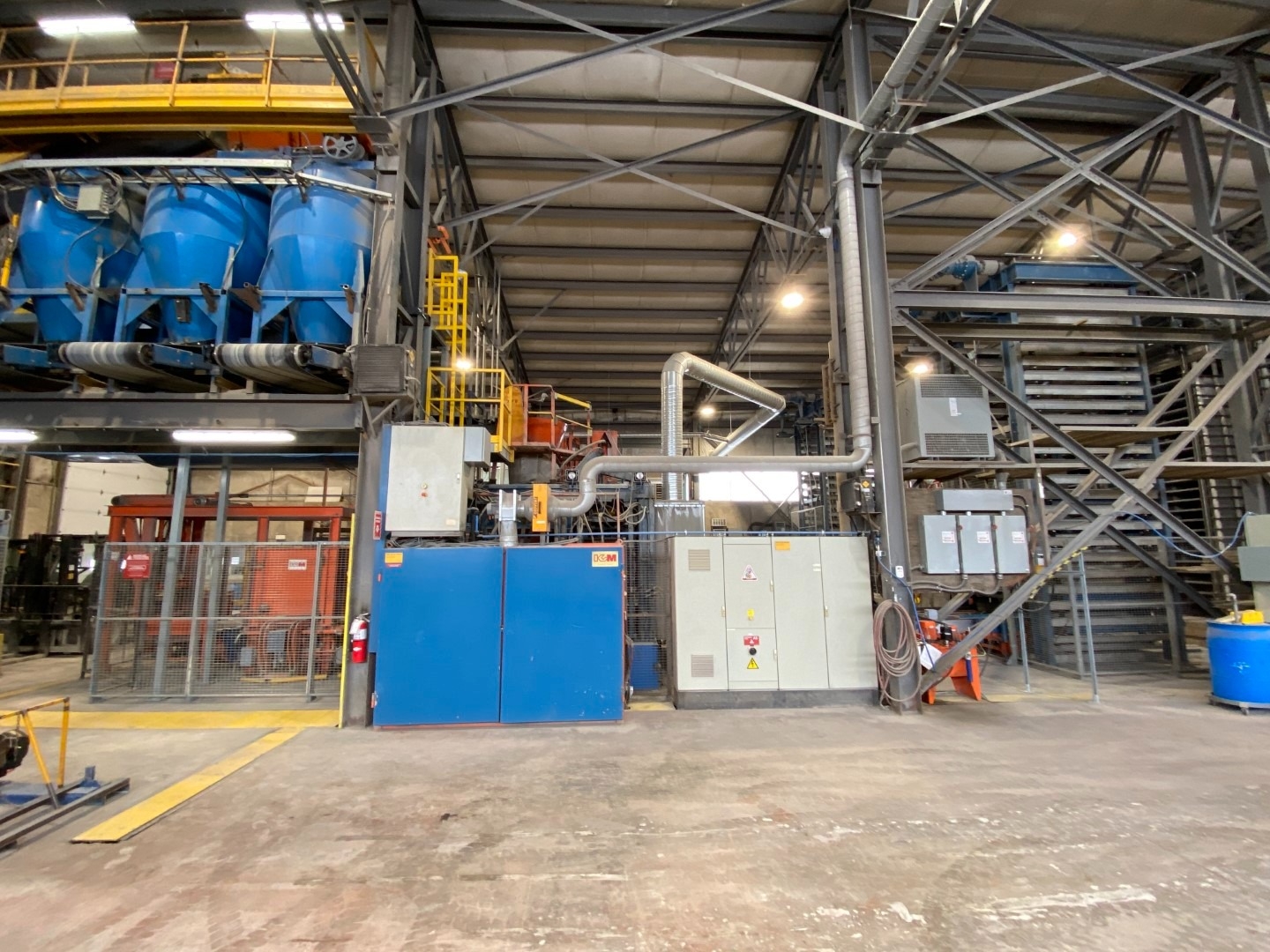

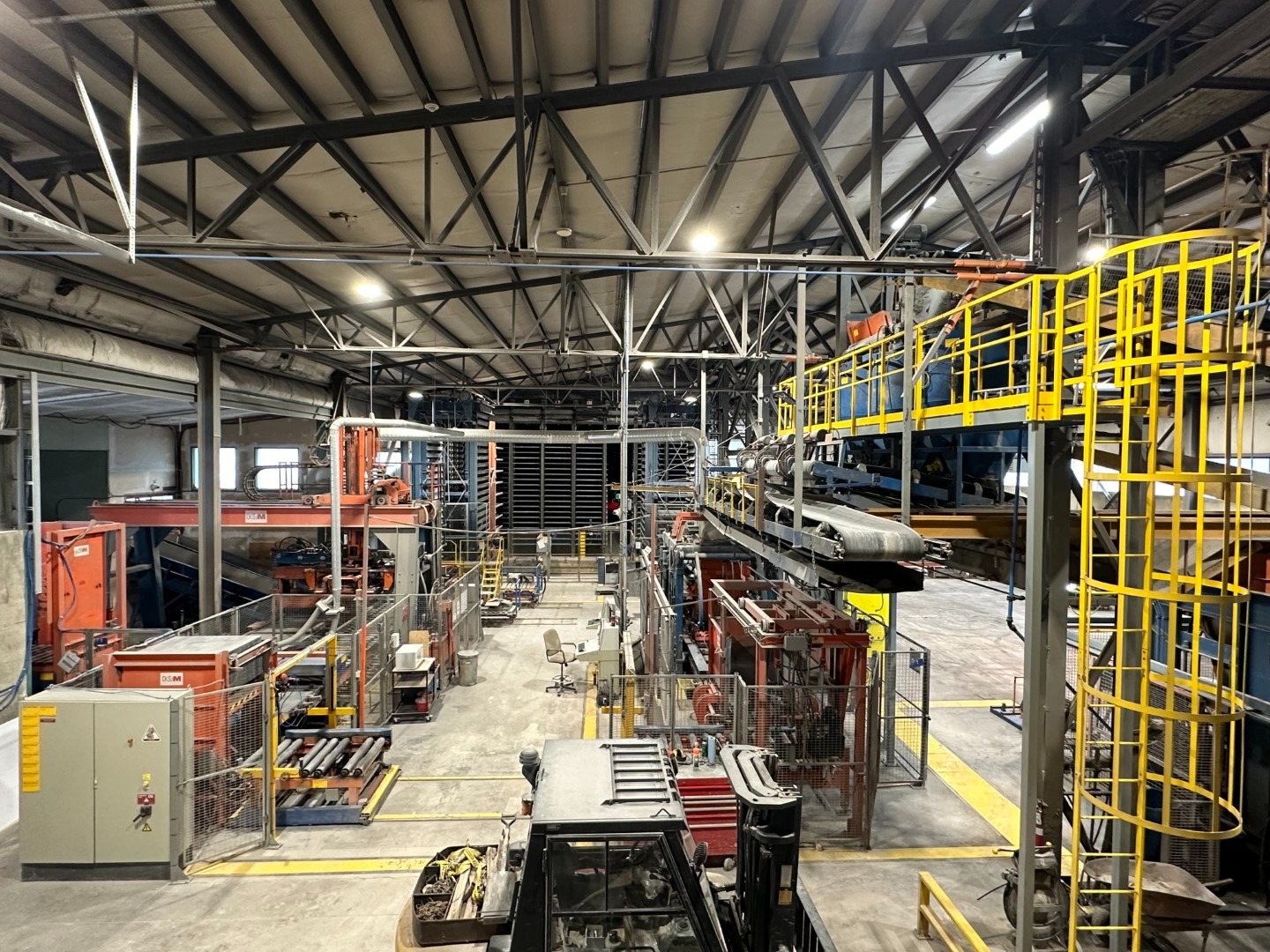

Update: Complete paver plant available including land and building in Quebec, Canada.
Used 2003 KVM 1200x1000 Single-layer dry cast press for pavers, SRW and concrete blocks
Excellent condition
Comes with:
3 V-Belt conveyors: 24" x 15' (For cleanup)
24" x 33' (From mixer to the 3 concrete hoppers)
18" x 17' (From the 3 concrete hoppers to KVM machine hopper)

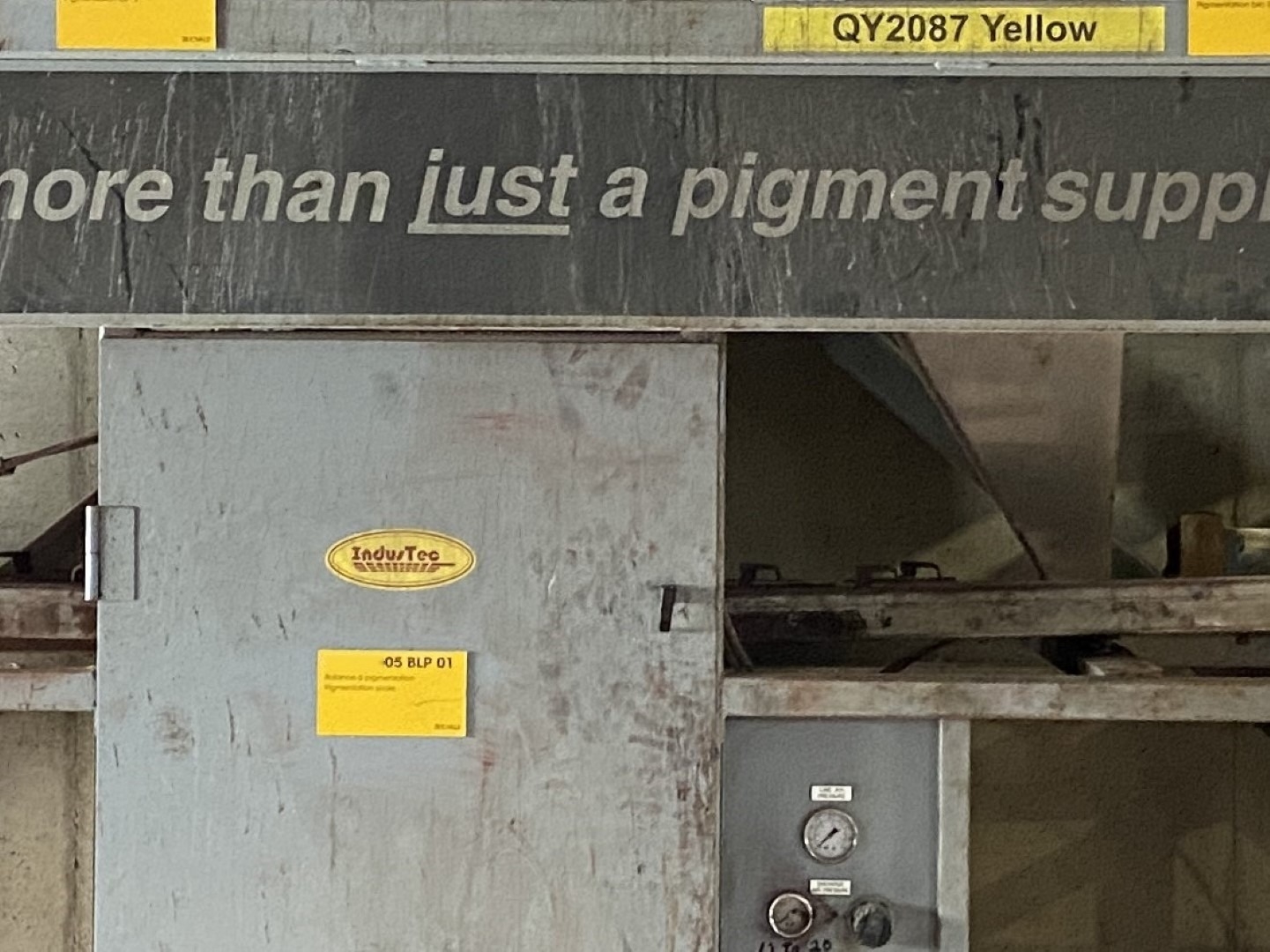

Elementis color distribution system (powder type pigments) with 4 pneumatic stations Weigh-Tronix balance for pigments model DS2424A with Telemecanique PLC controls.

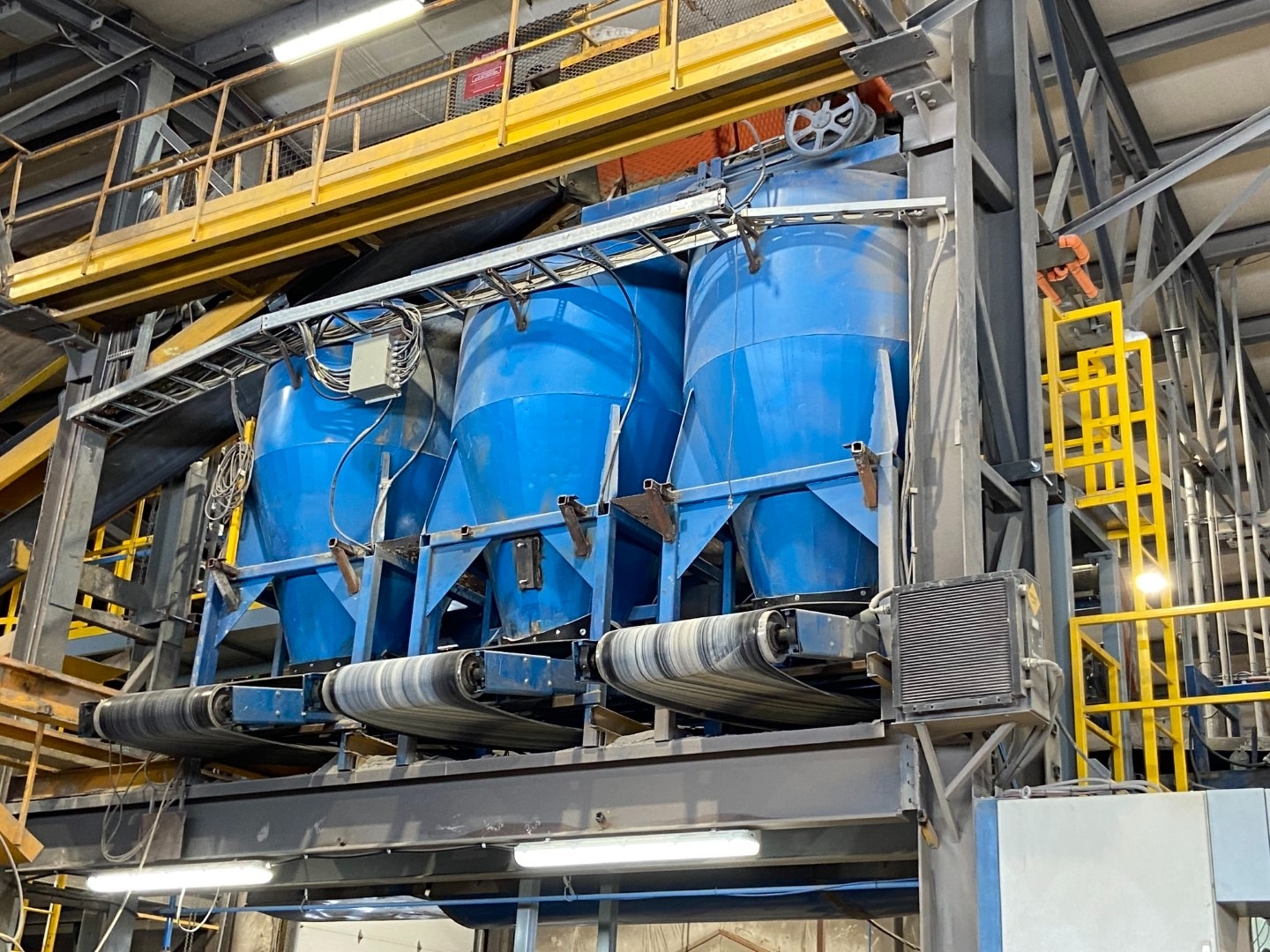

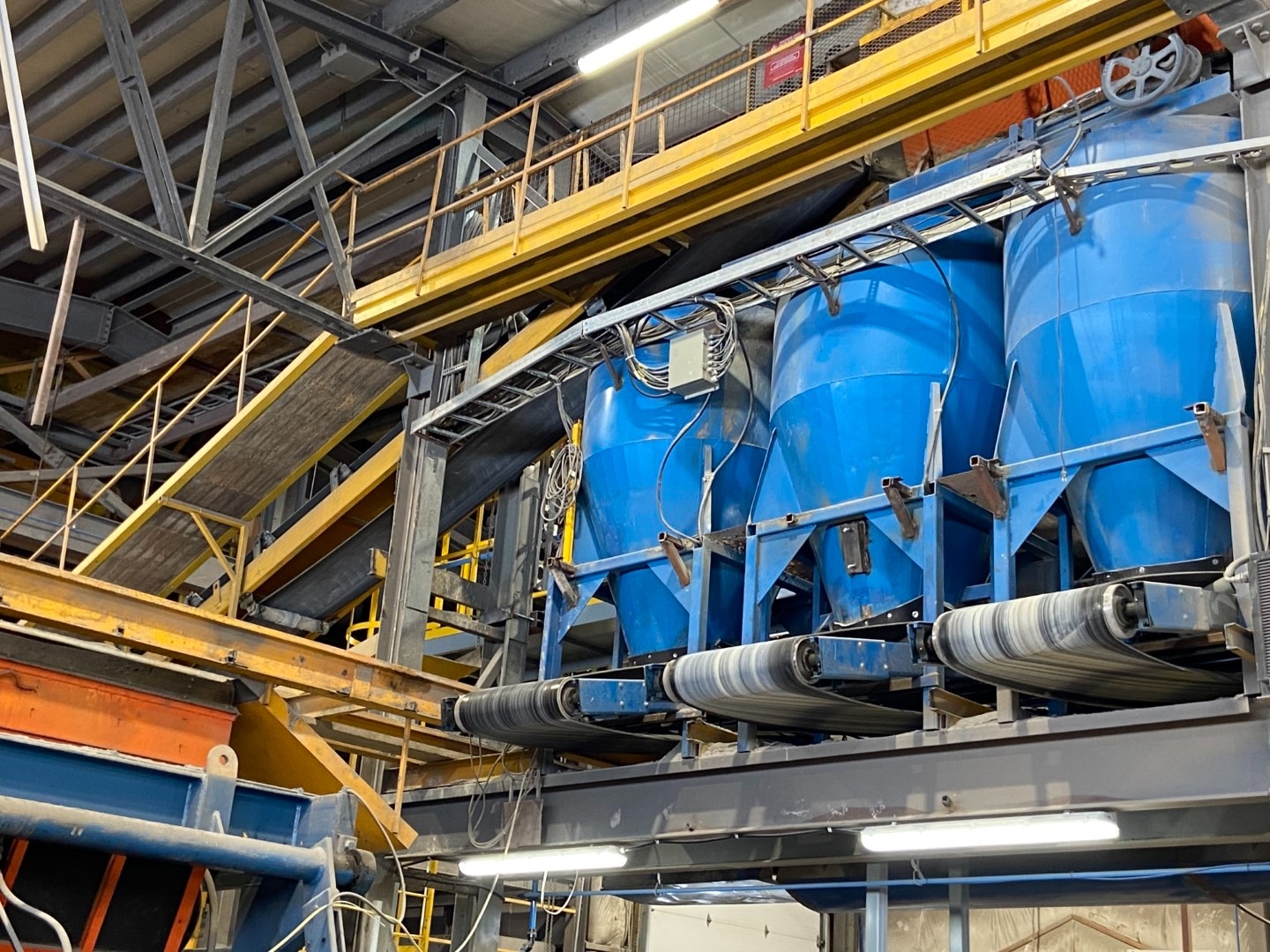

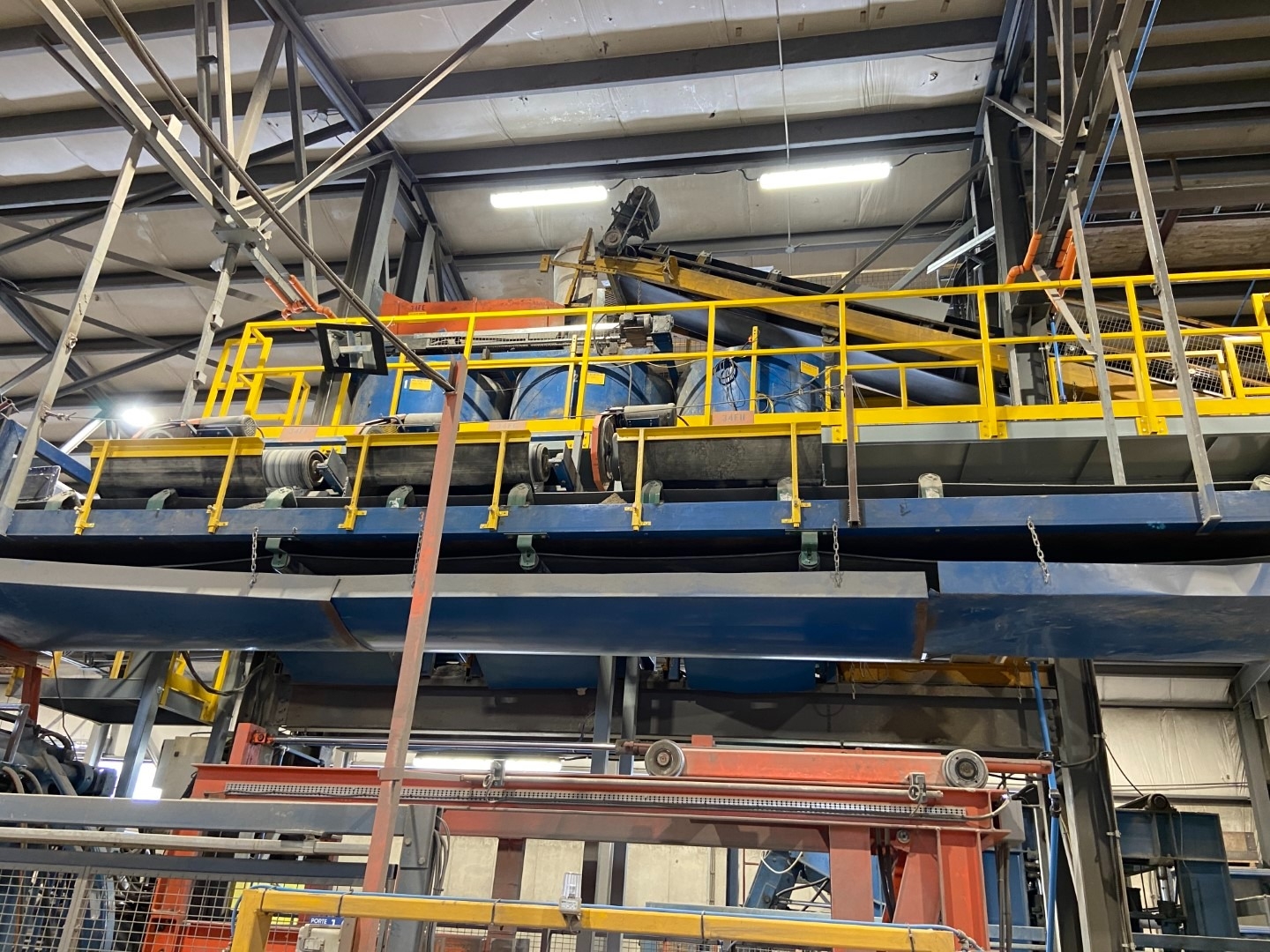

3 concrete hoppers with feeding distribution system from single mixer (mixer not included) with Computerized Control panels to make color blends. Each bin has a small belt conveyor underneath to feed the 18" x 17' V belt conveyor to KVM machine hopper.

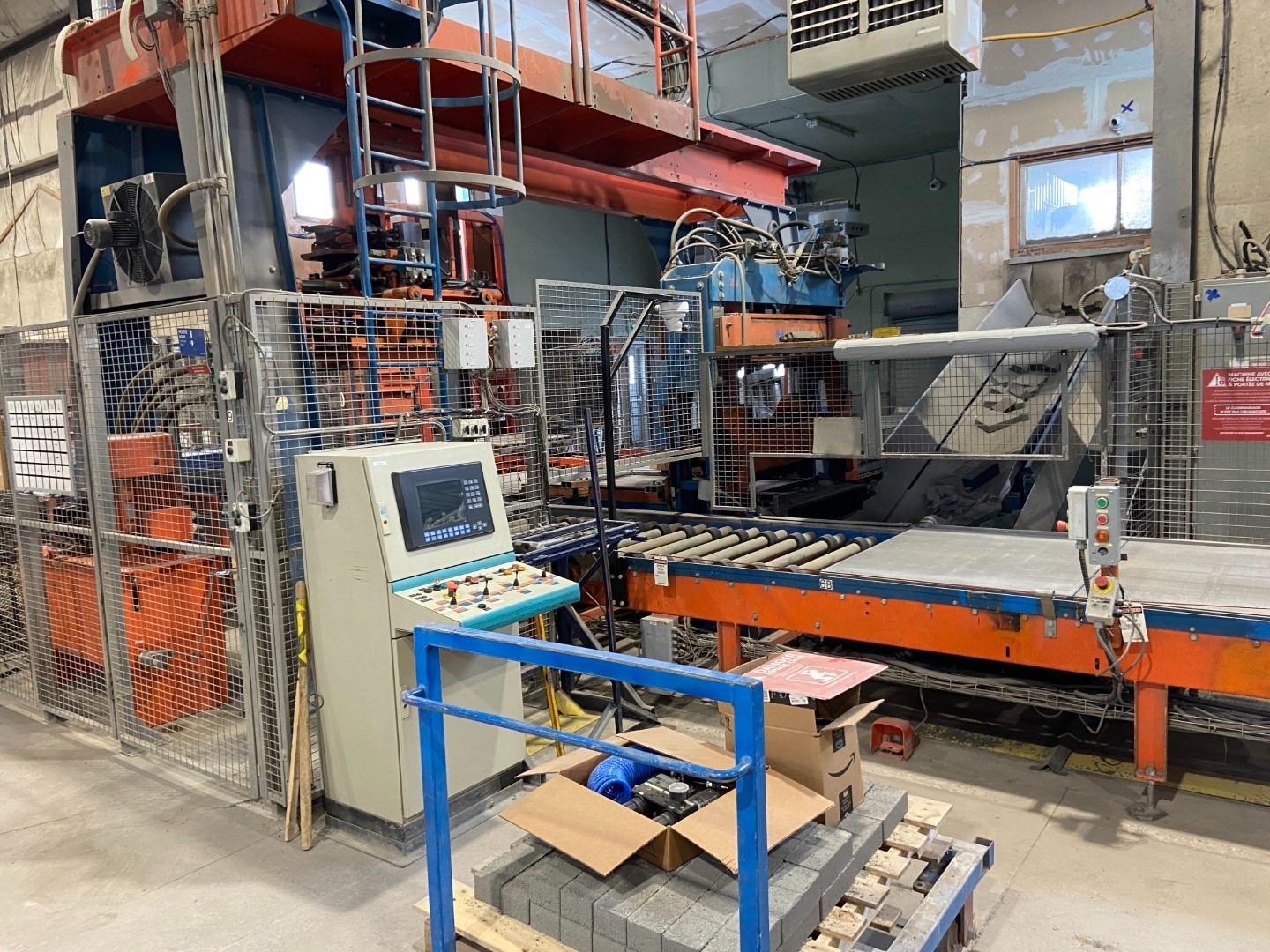

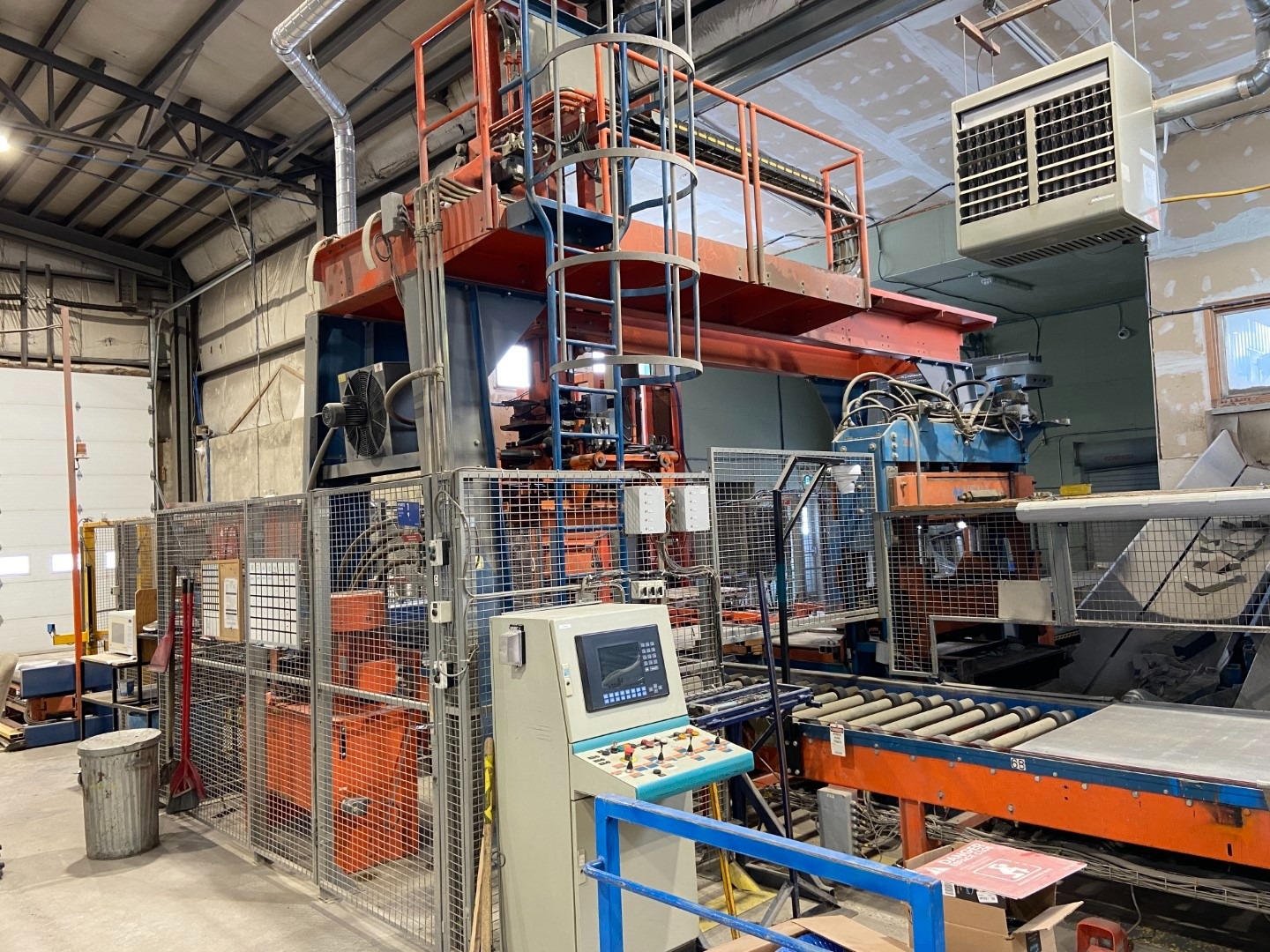

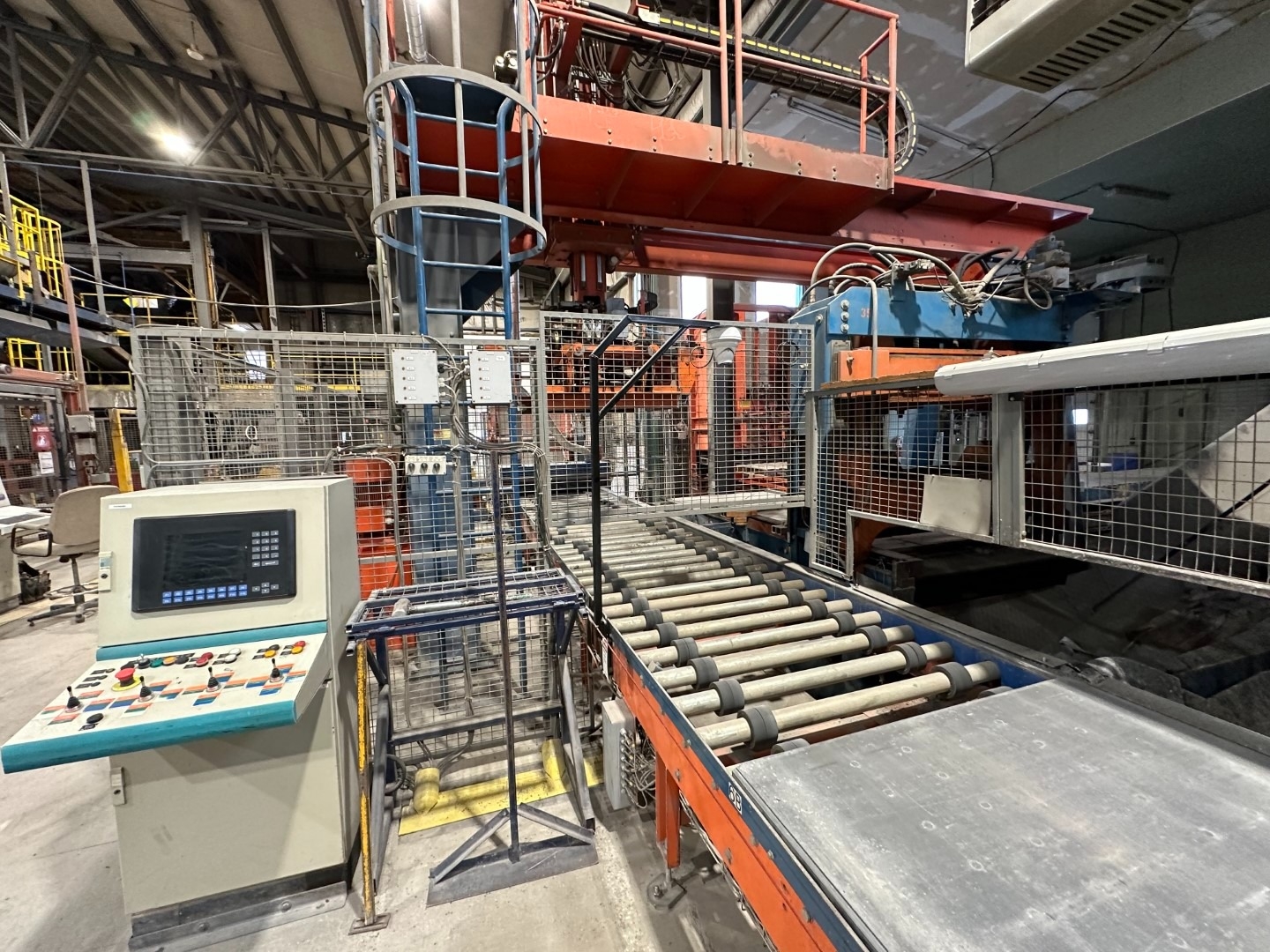

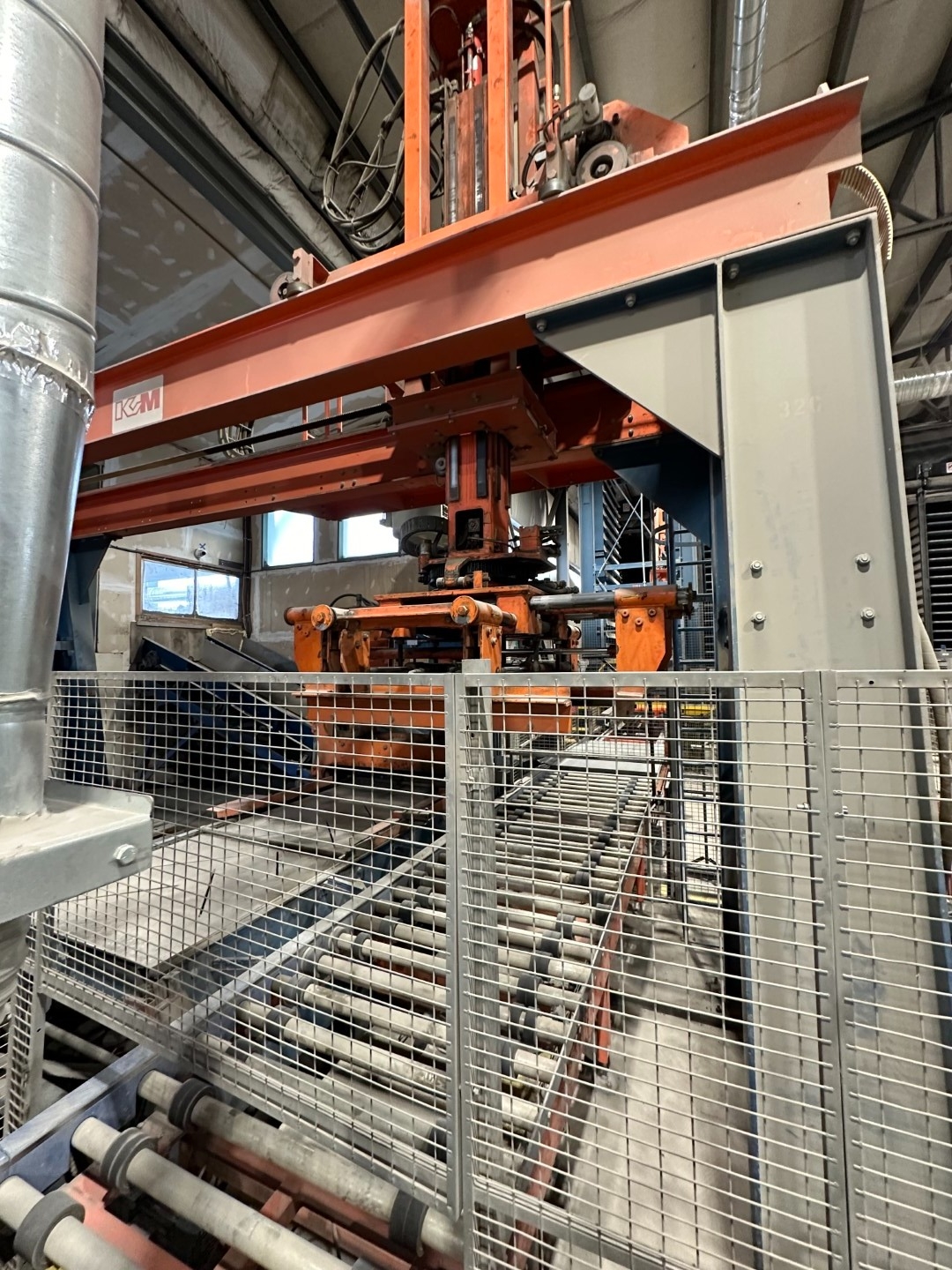

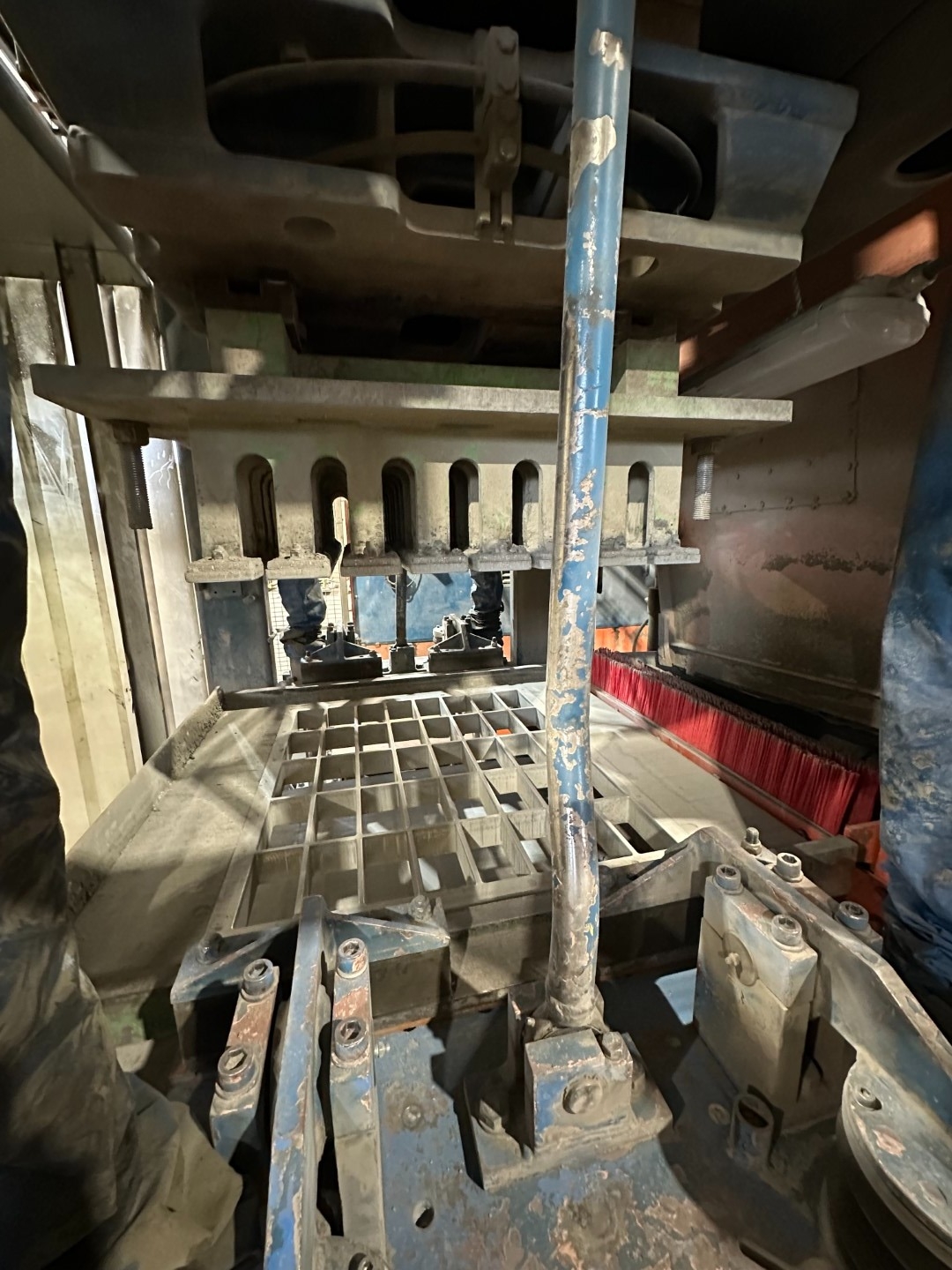

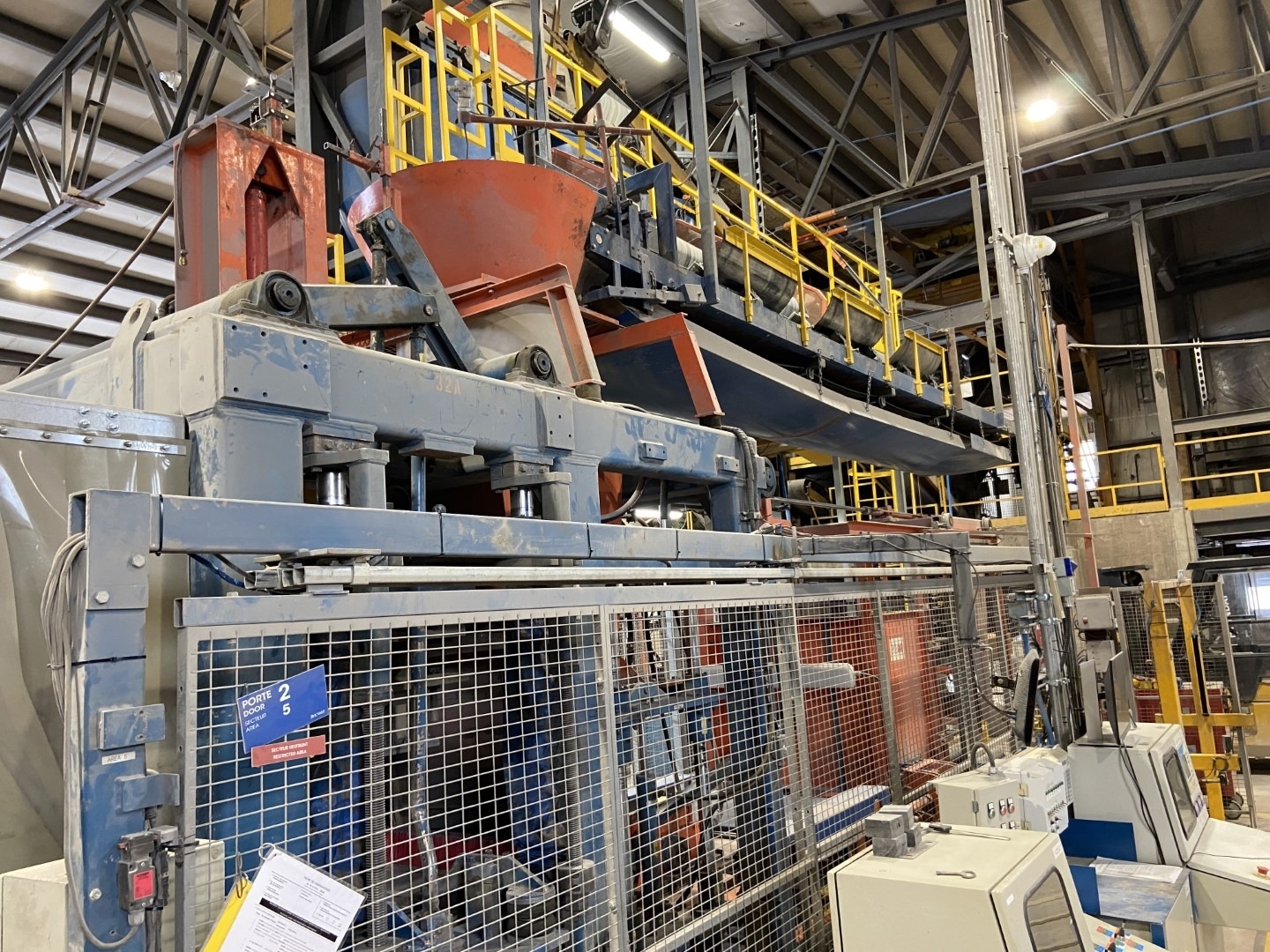

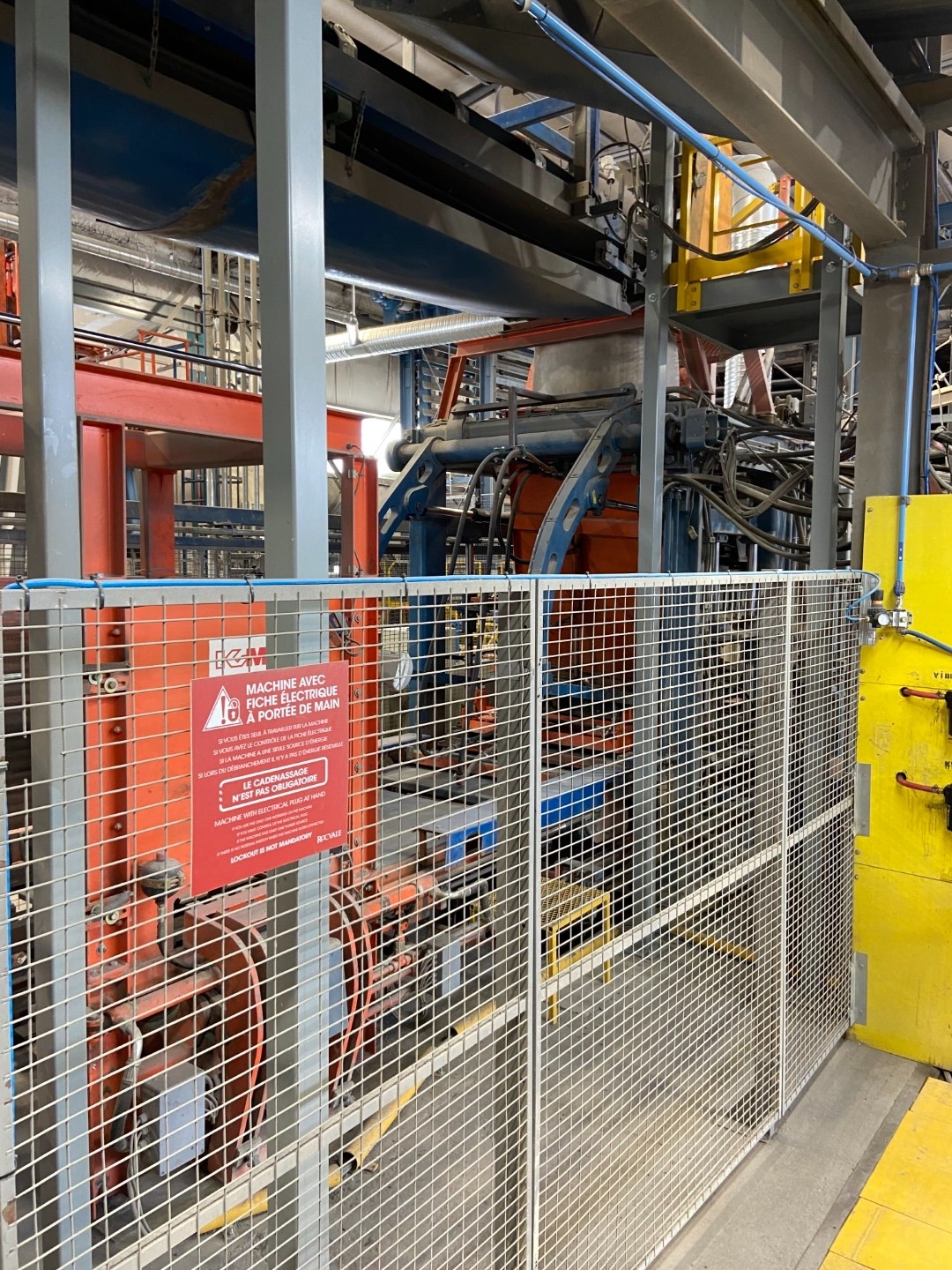

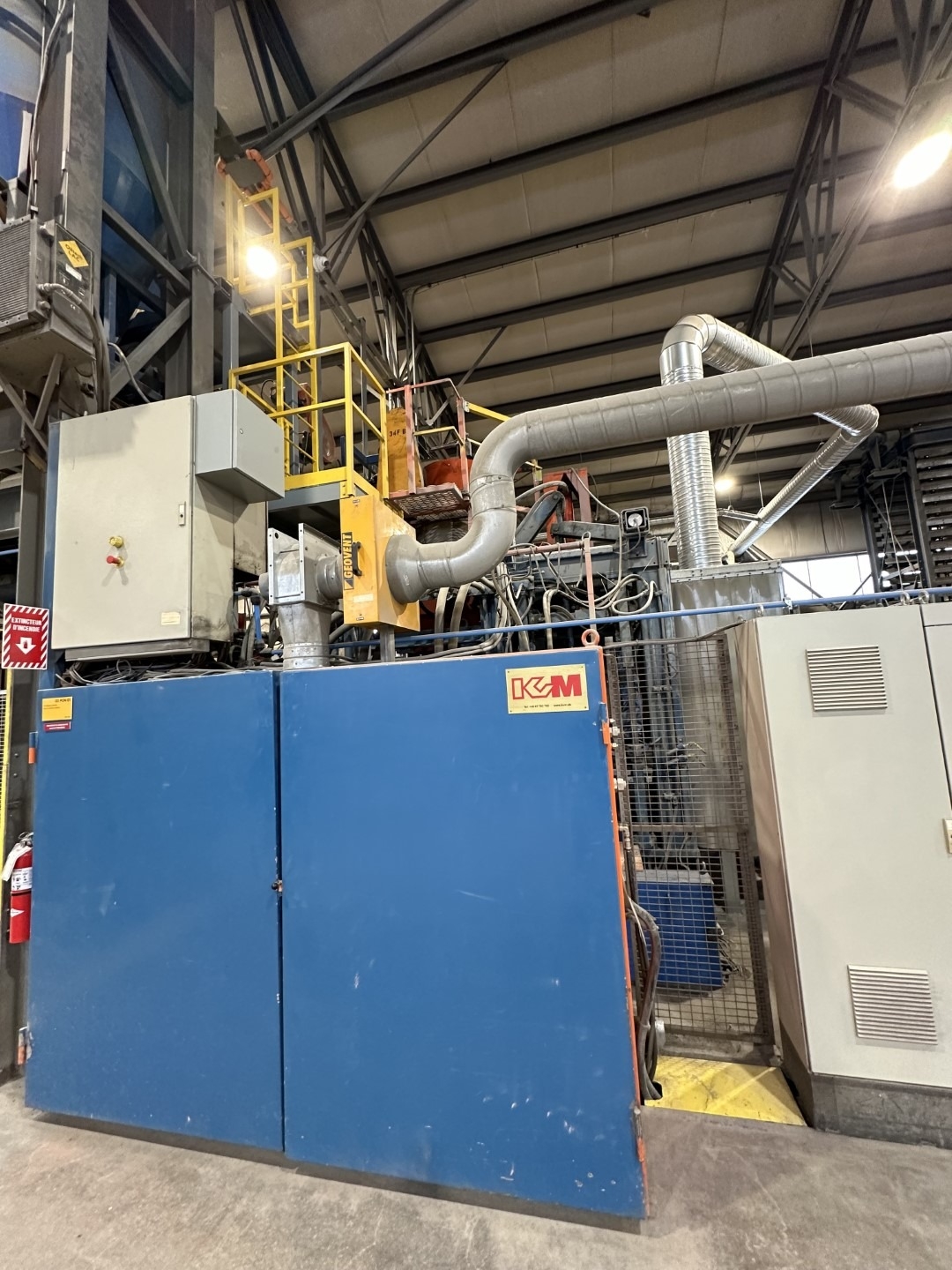

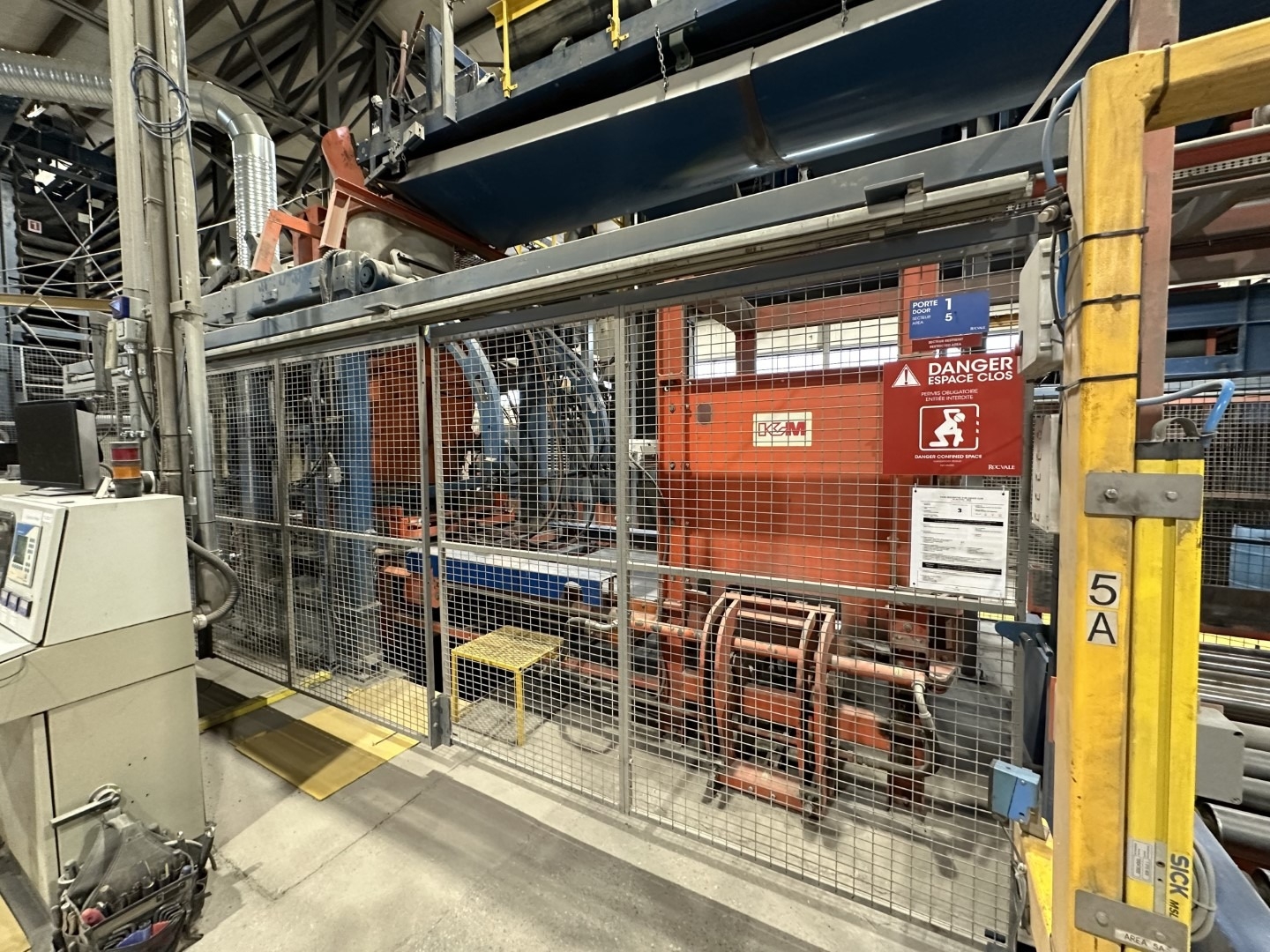

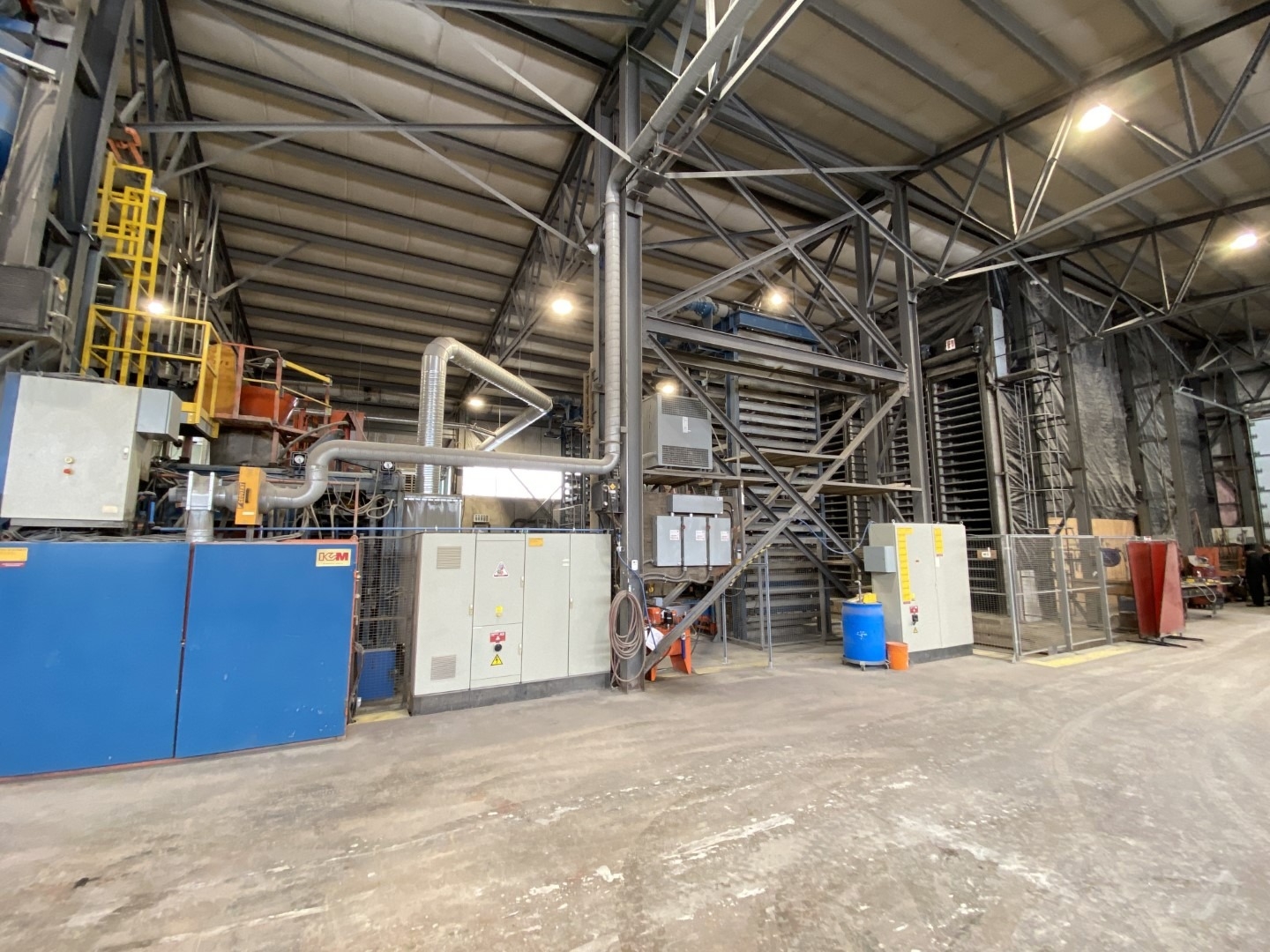

2003 KVM Model 1200 90/105 block and paver concrete dry cast press.

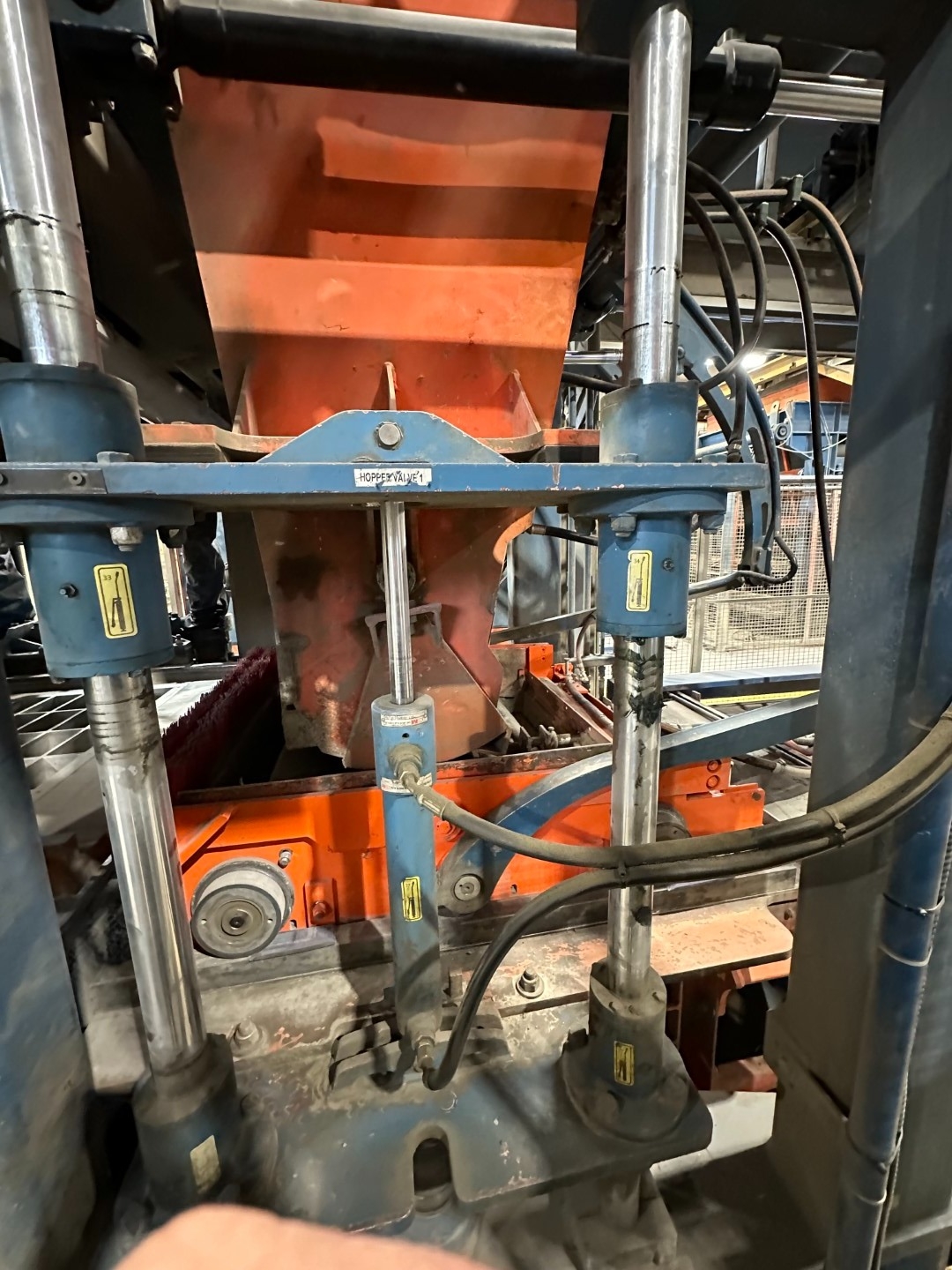

New feeding drawer installed in 2021. Integral frame, never cracked or repaired.
Facemix not included but could be added by KVM.
Max Recommended Demolding Area: 1,080 x 960 mm (42-1/2 x 37-3/4 in)
Estimated Product Height range: 50 to 300mm (2 to 12in)
Estimated Press cycle:
Pavers 4'' x 8'' - 60mm (40 units) – 13-16sec. 248 average cycles/hr at 14.5sec. Represents 2,202 sq.ft./hrs (204.5 sq.m./hrs)
Blocks 6’’ x 8'' x 16'' (14 units) – 13-16sec. 248 cycles/hr average at 14.5sec. Represents 3,472 blocks/hrs

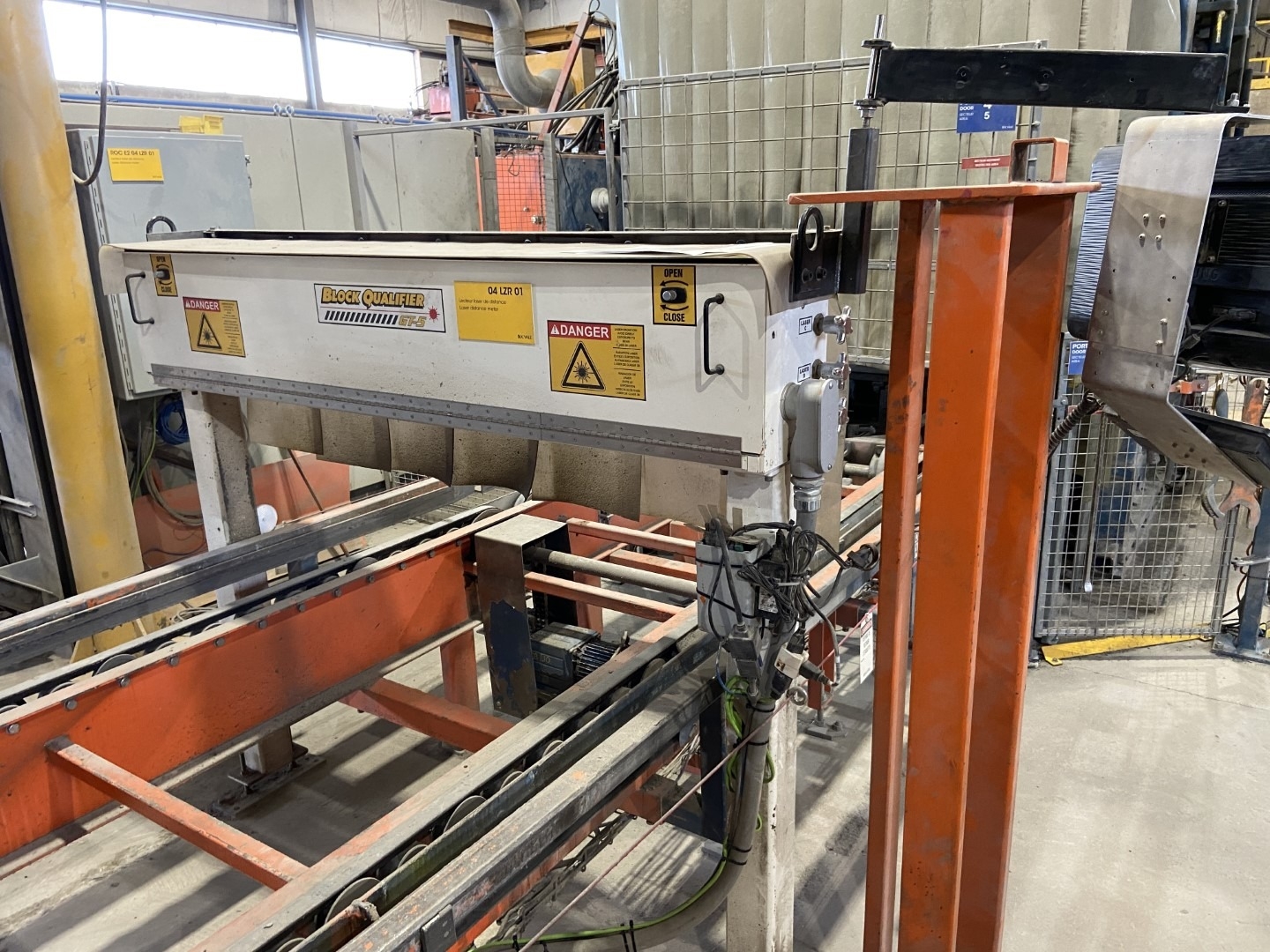

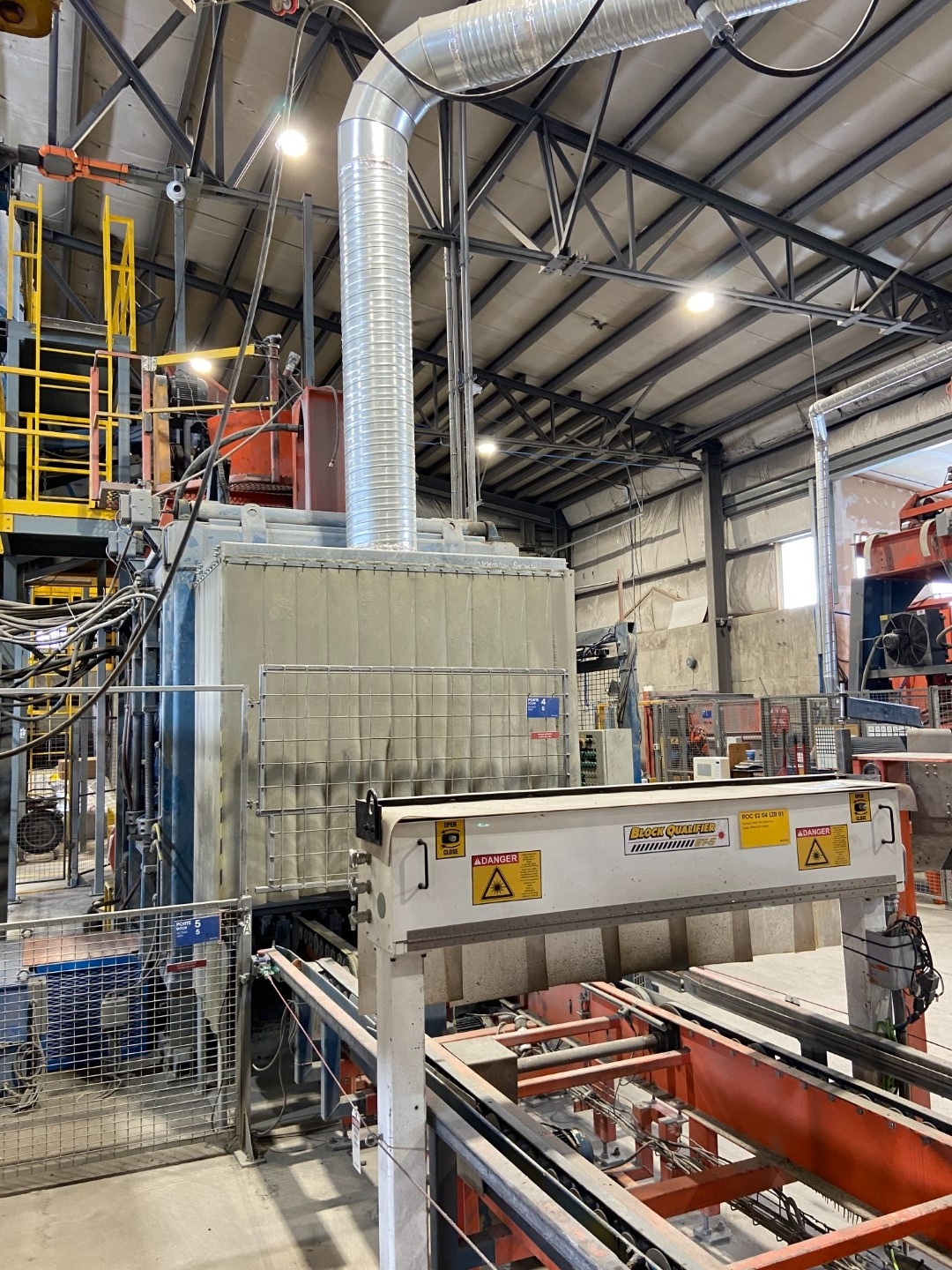

Block Qualifier Automated laser product height measuring system model GT-5 with controls.

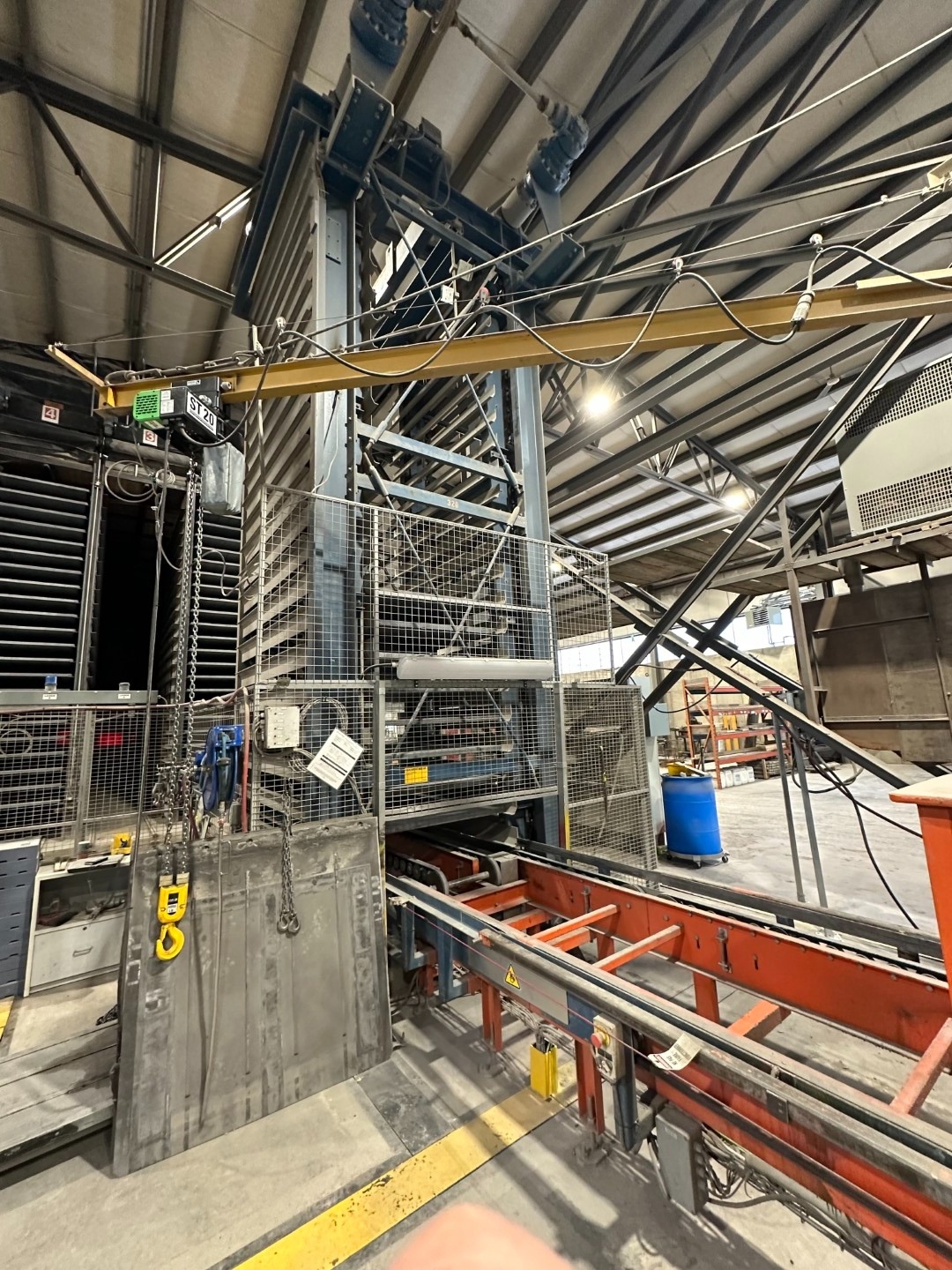

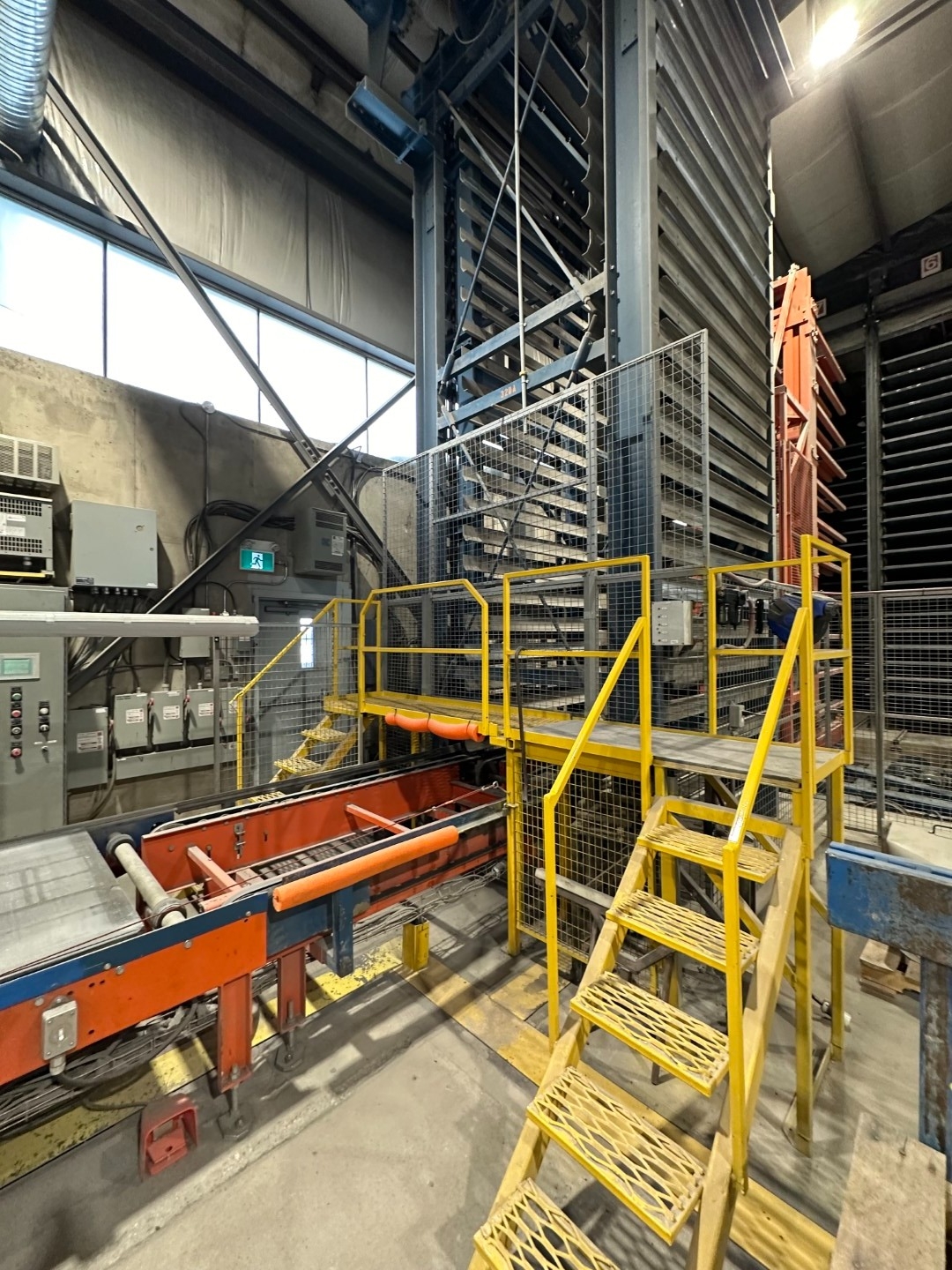

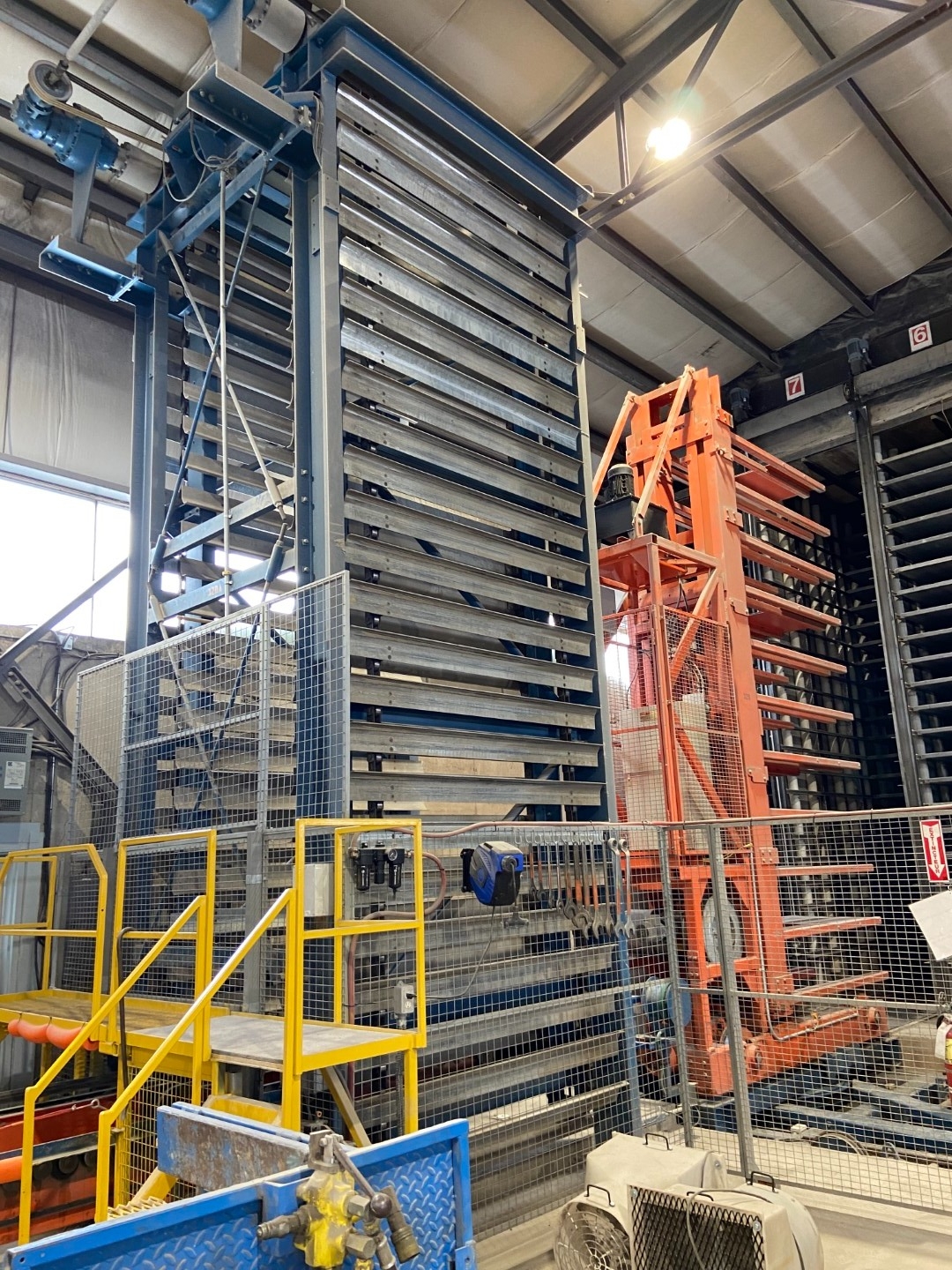

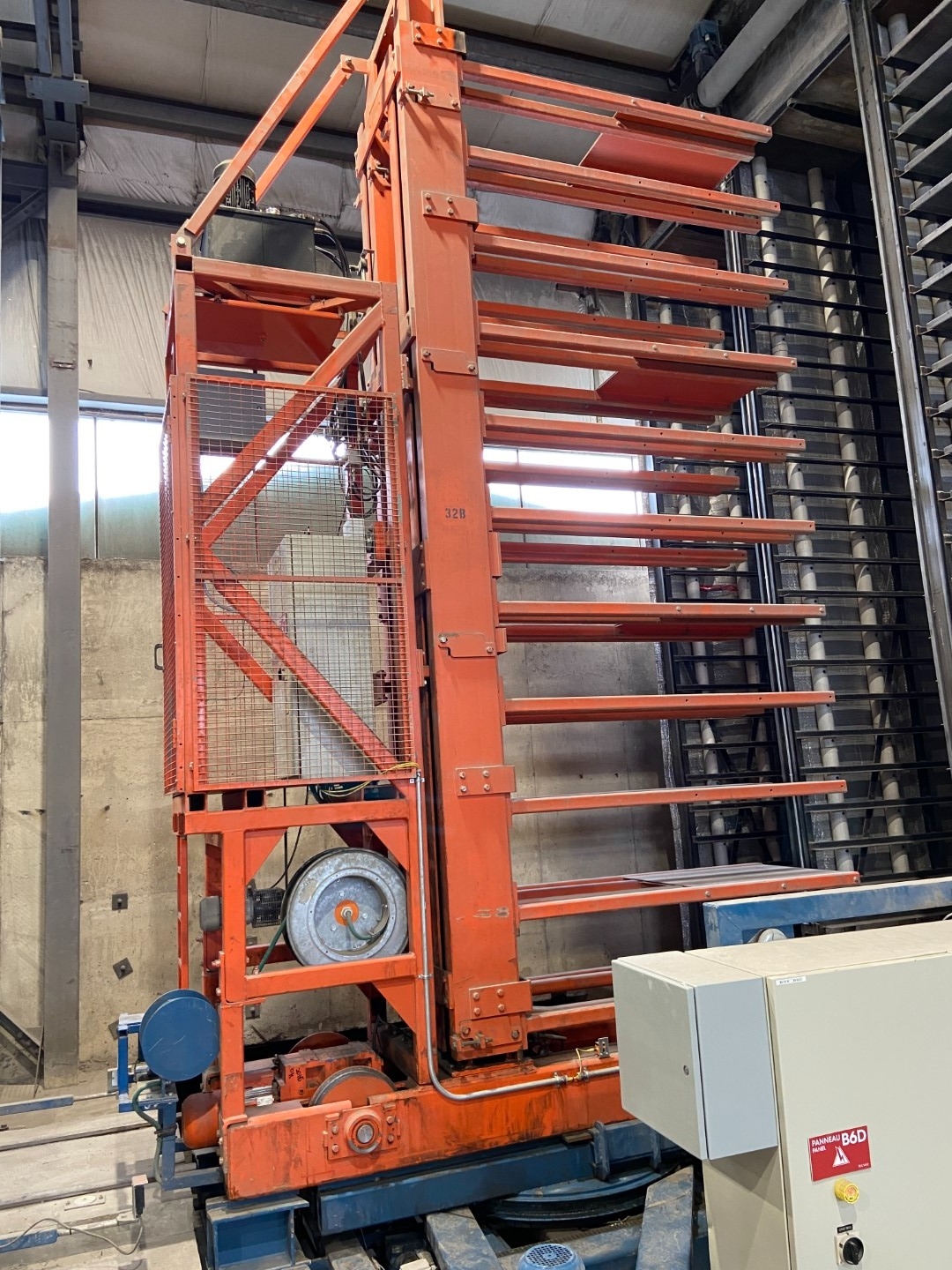

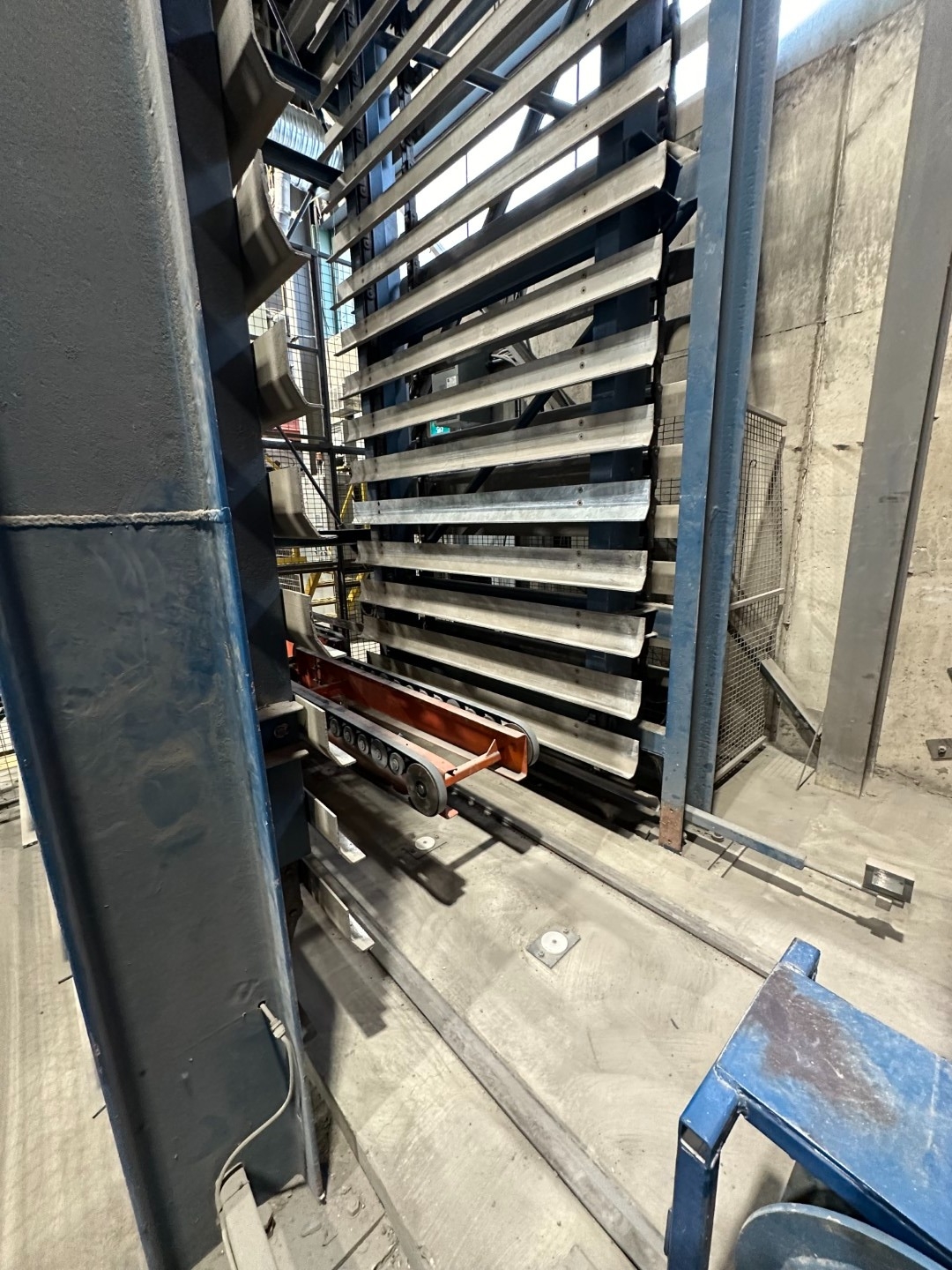

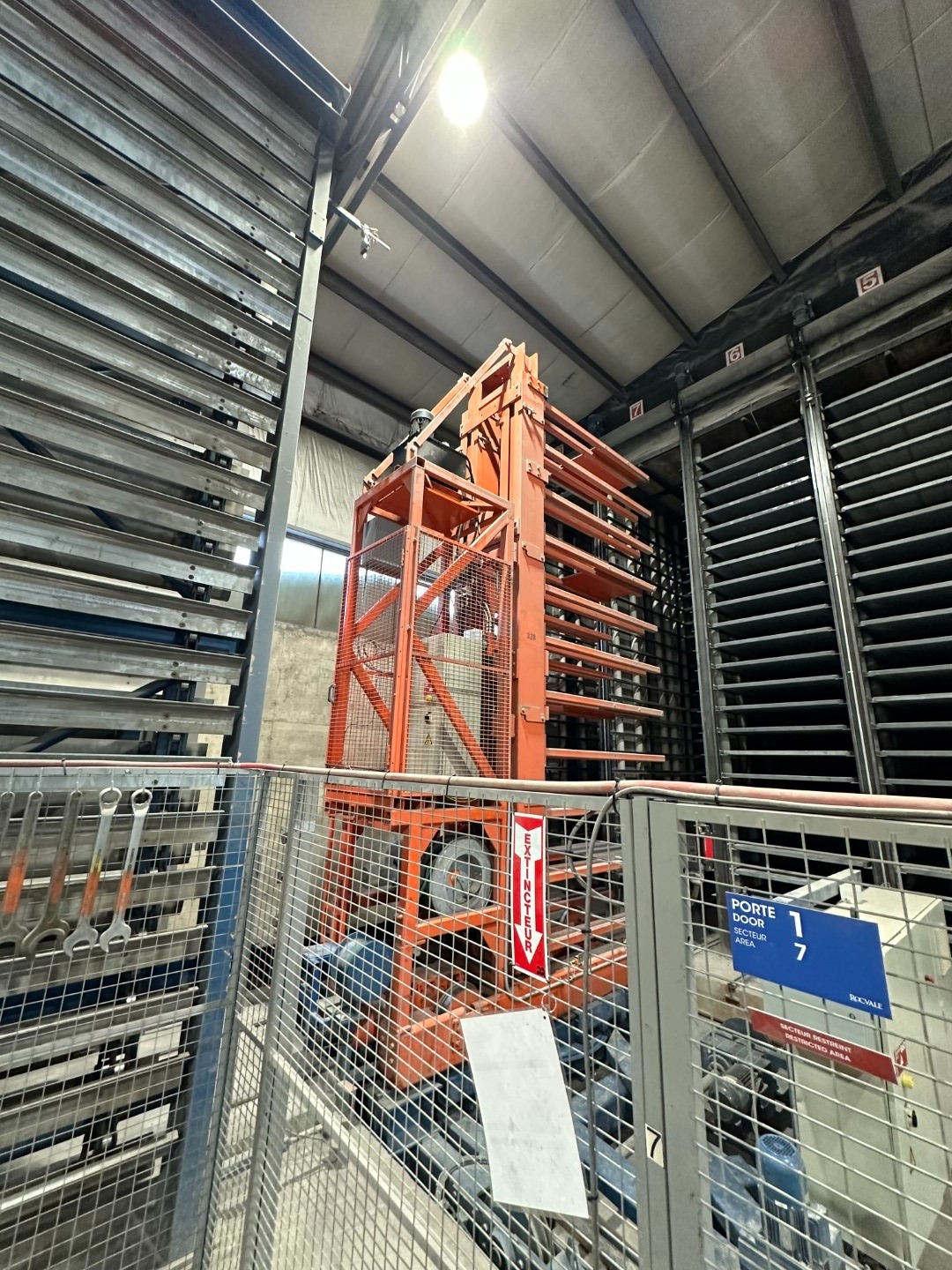

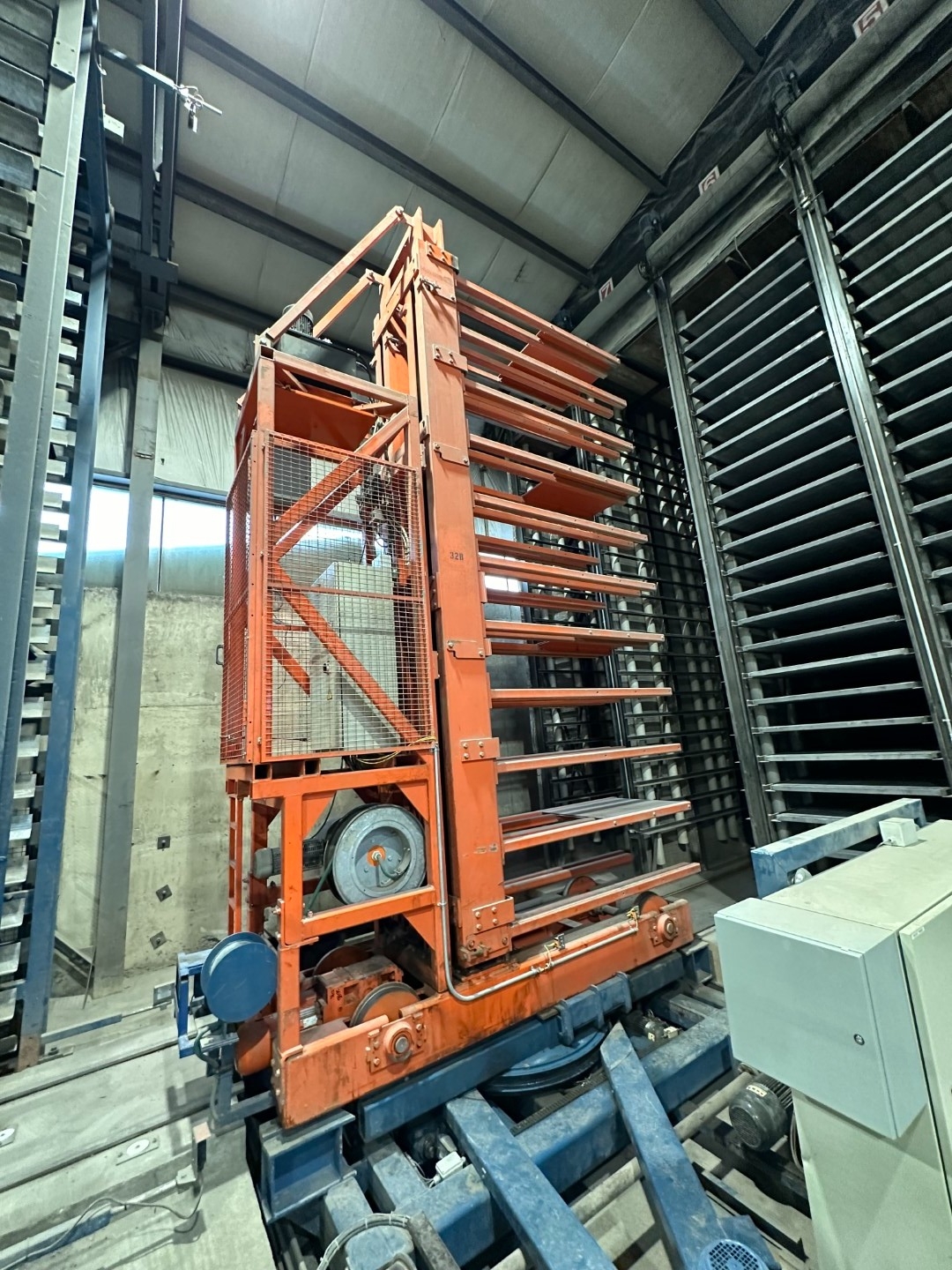

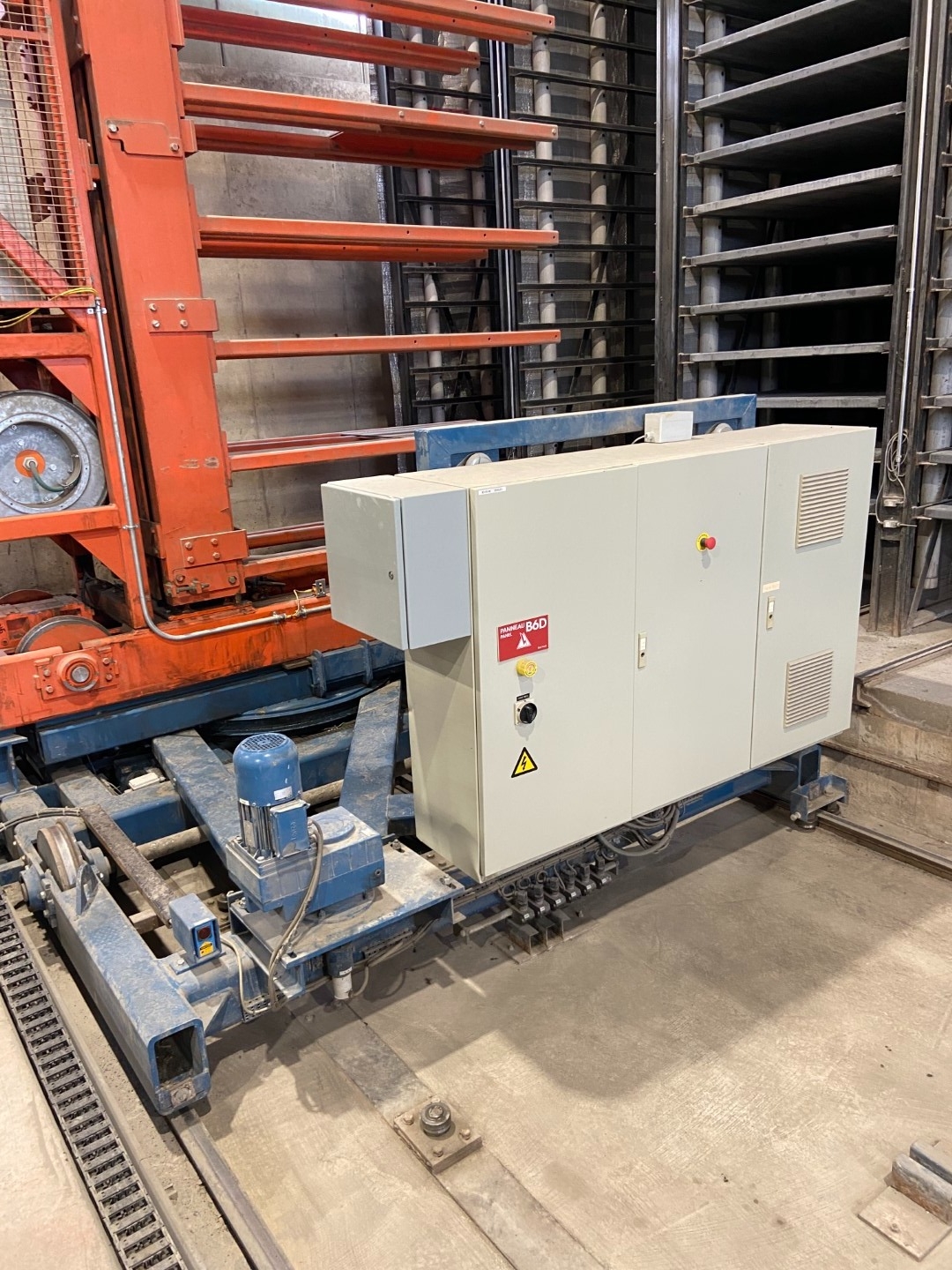

KVM Automatic Elevator and Lowerator with transfer car handling system 22 high for wet and dry product handling system.
Can handle thin products 22 boards high or thicker 90 mm and more high product 11 high.

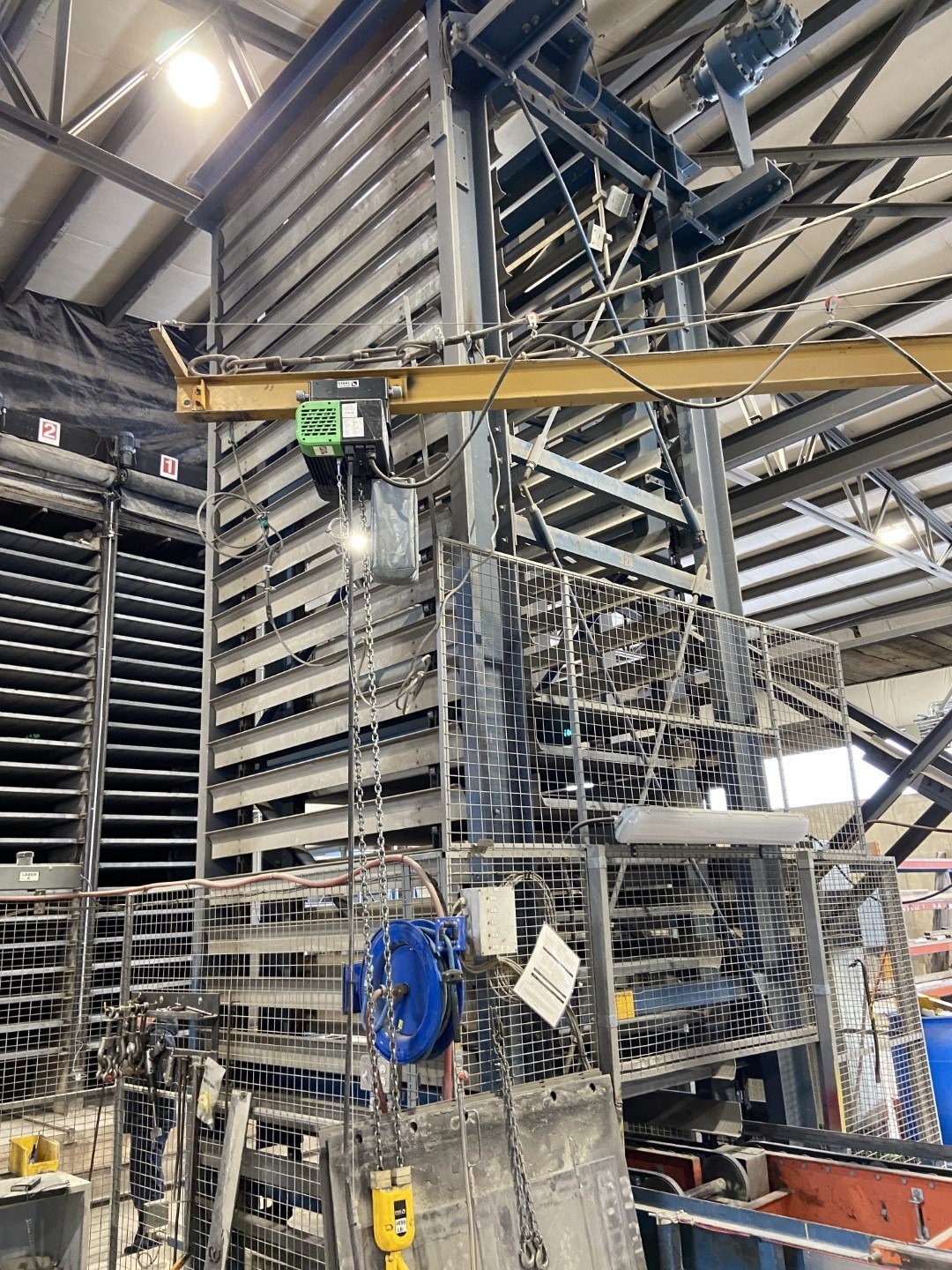

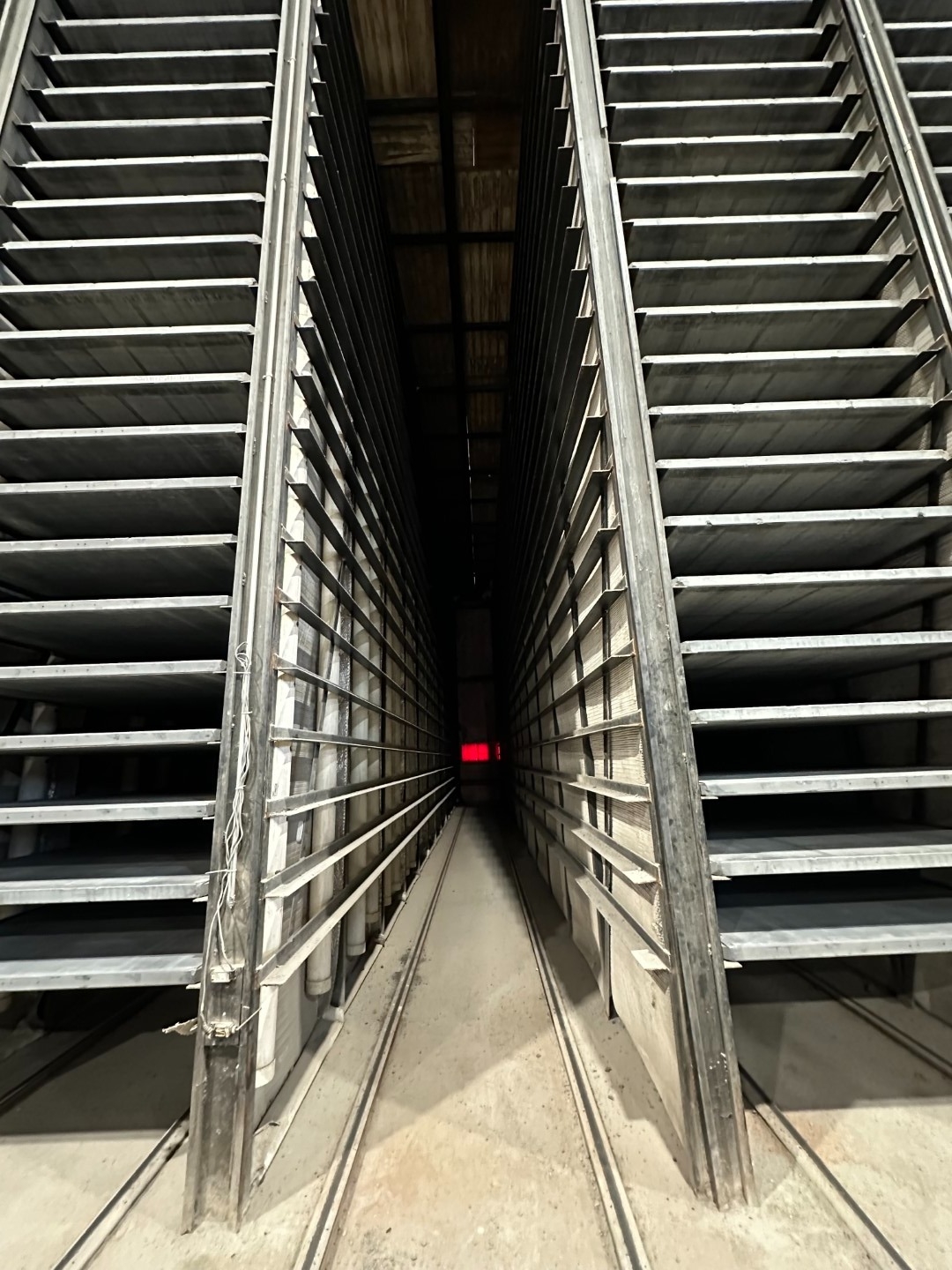

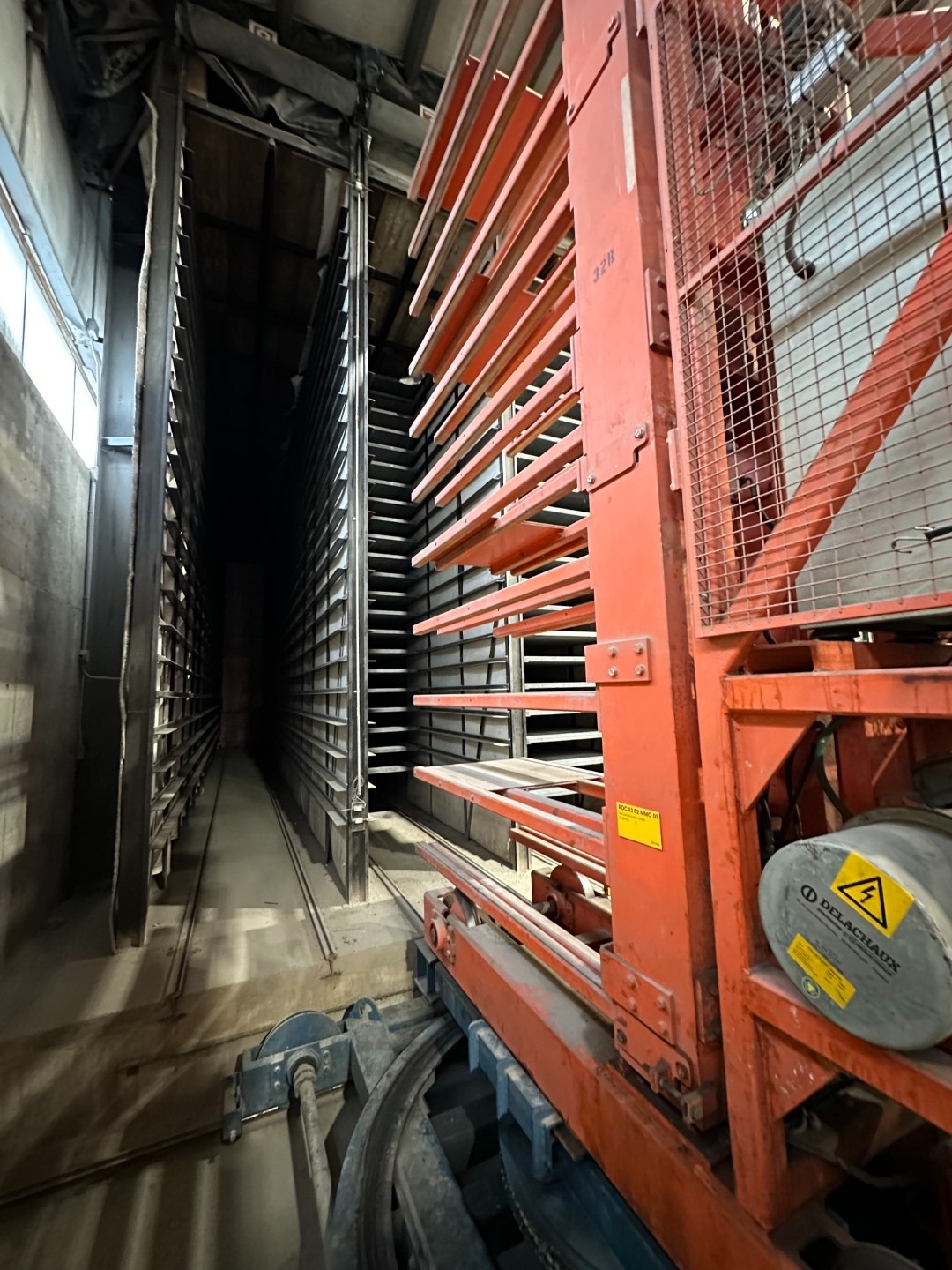

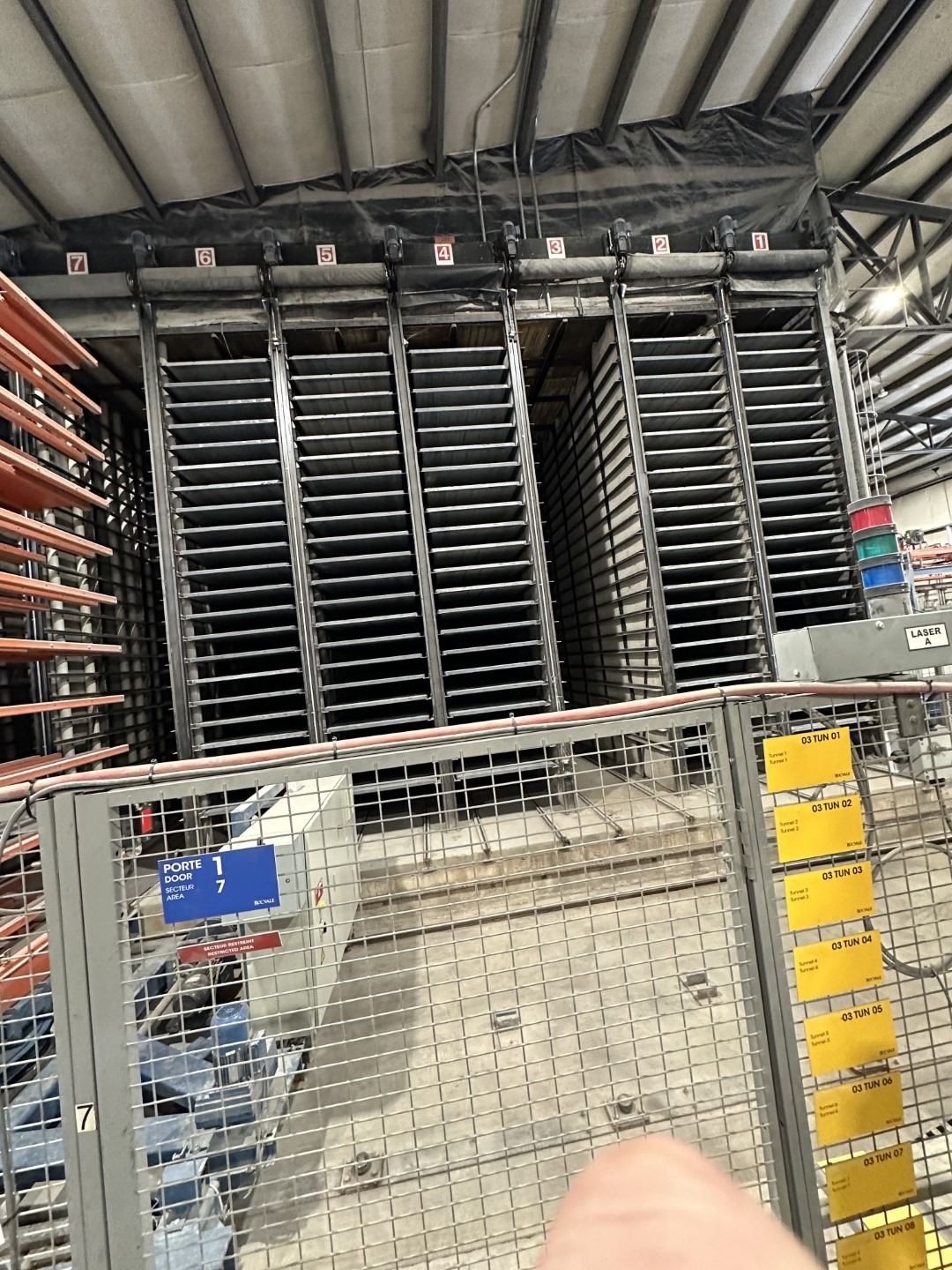

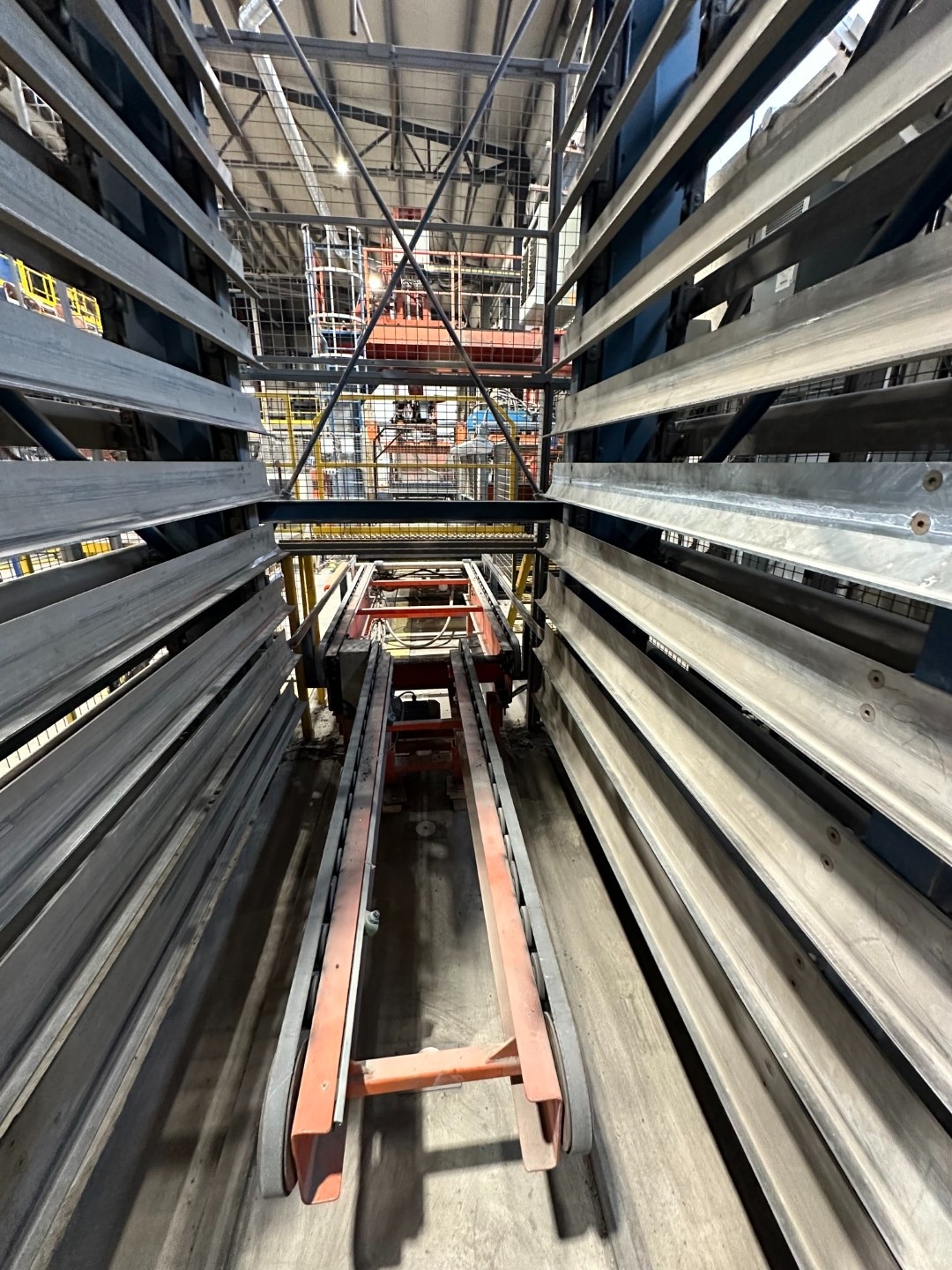

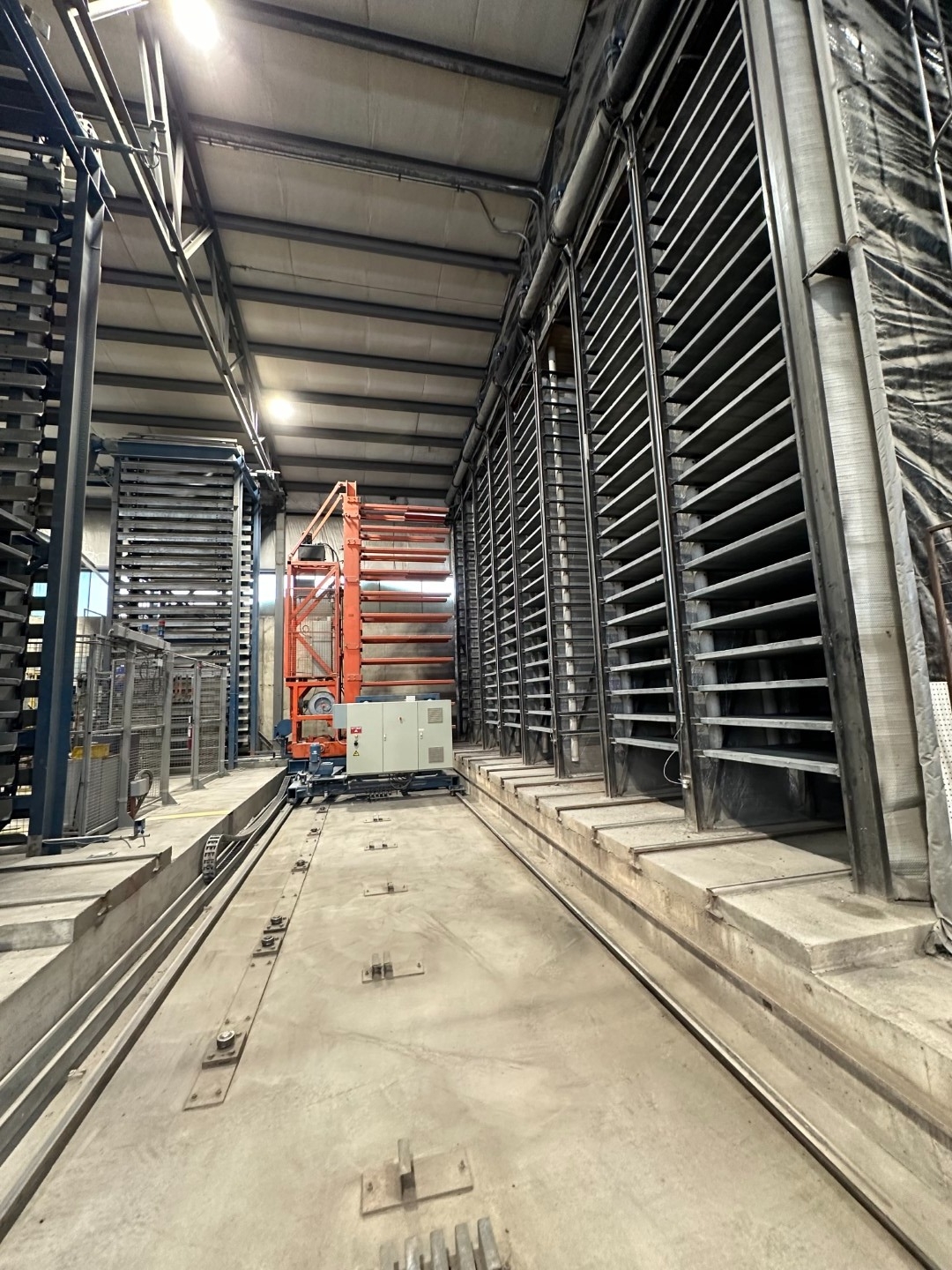

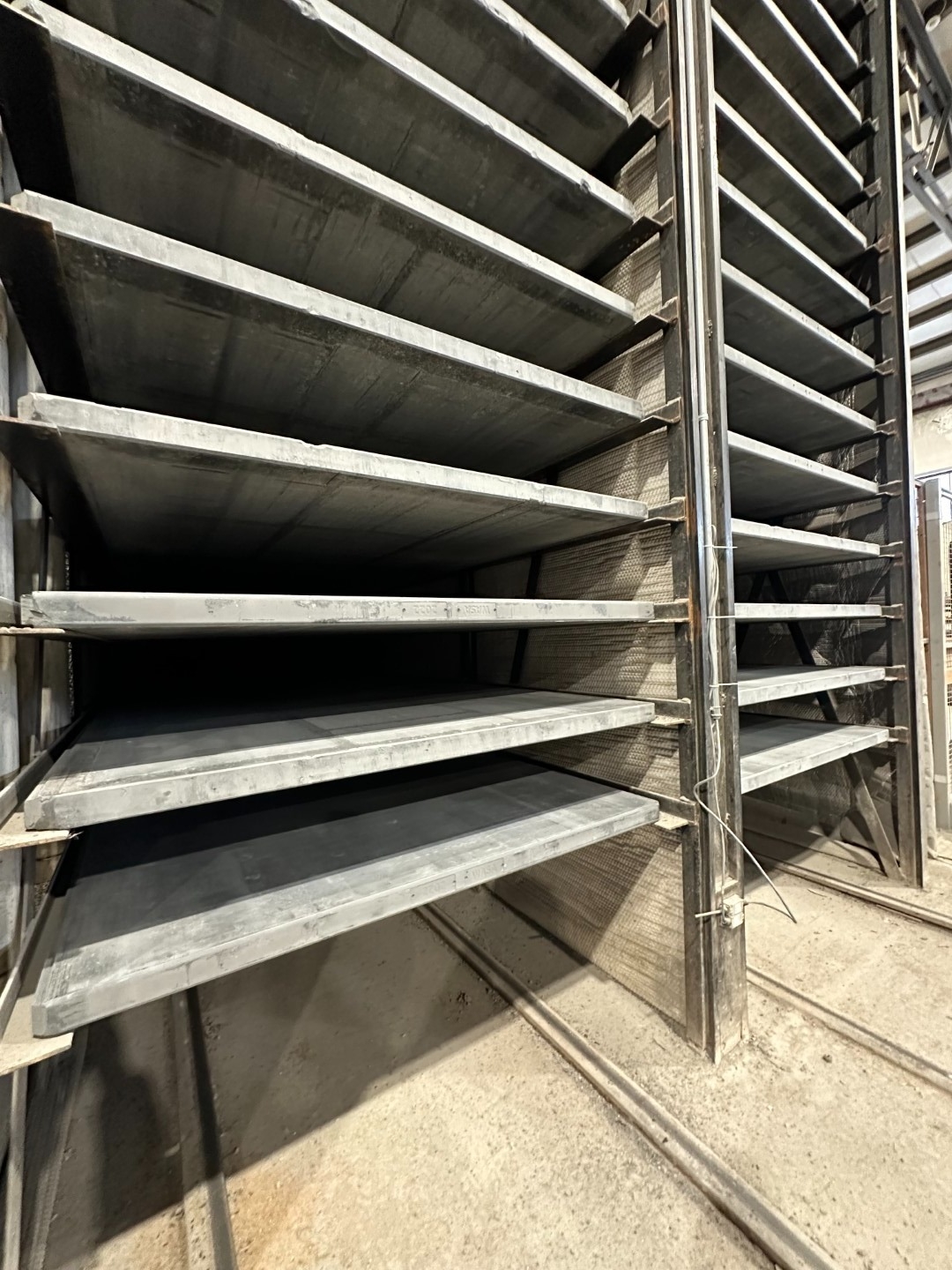

Curing chamber 8 tunnels, 22 levels x 12 deep.

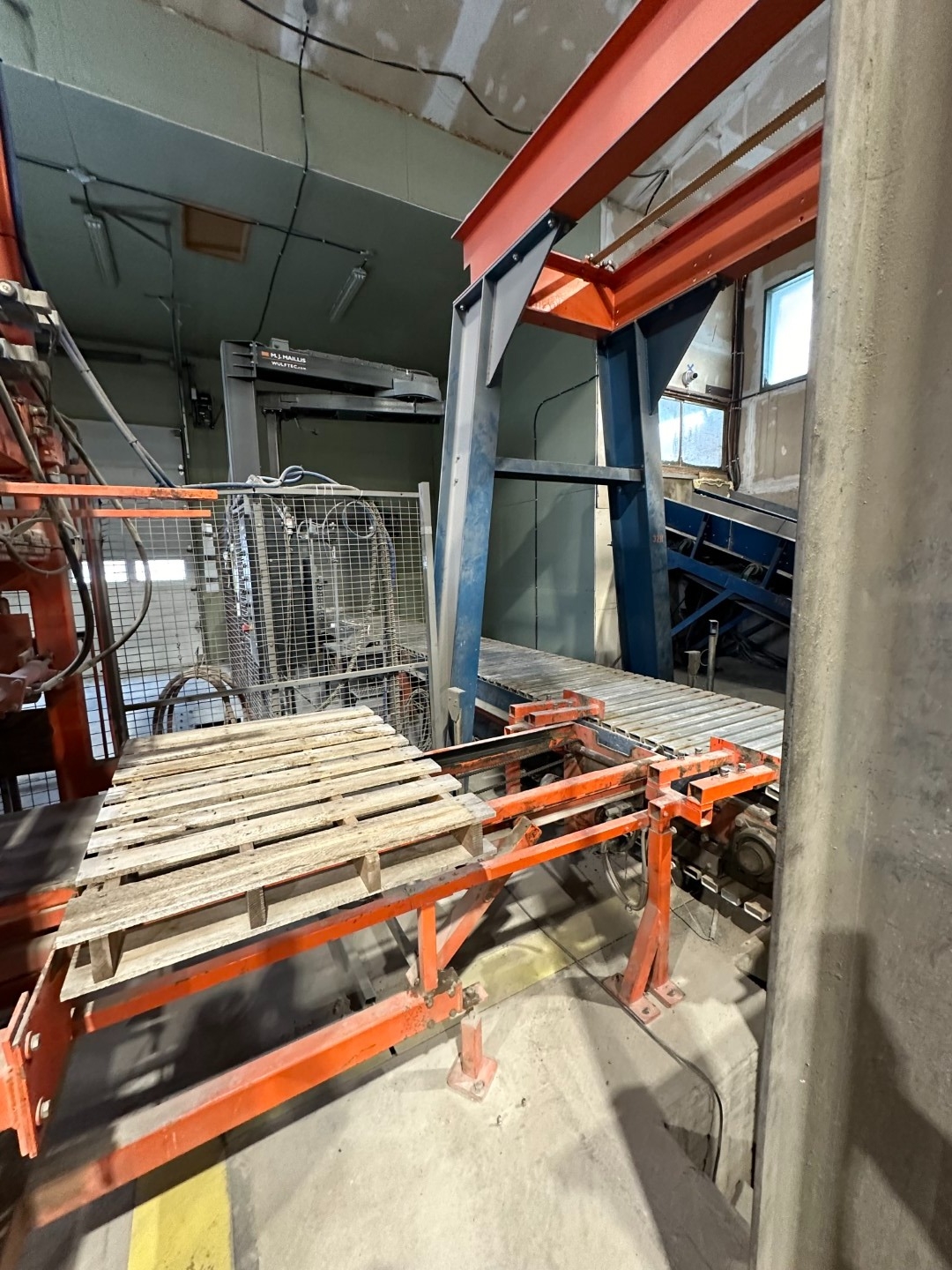

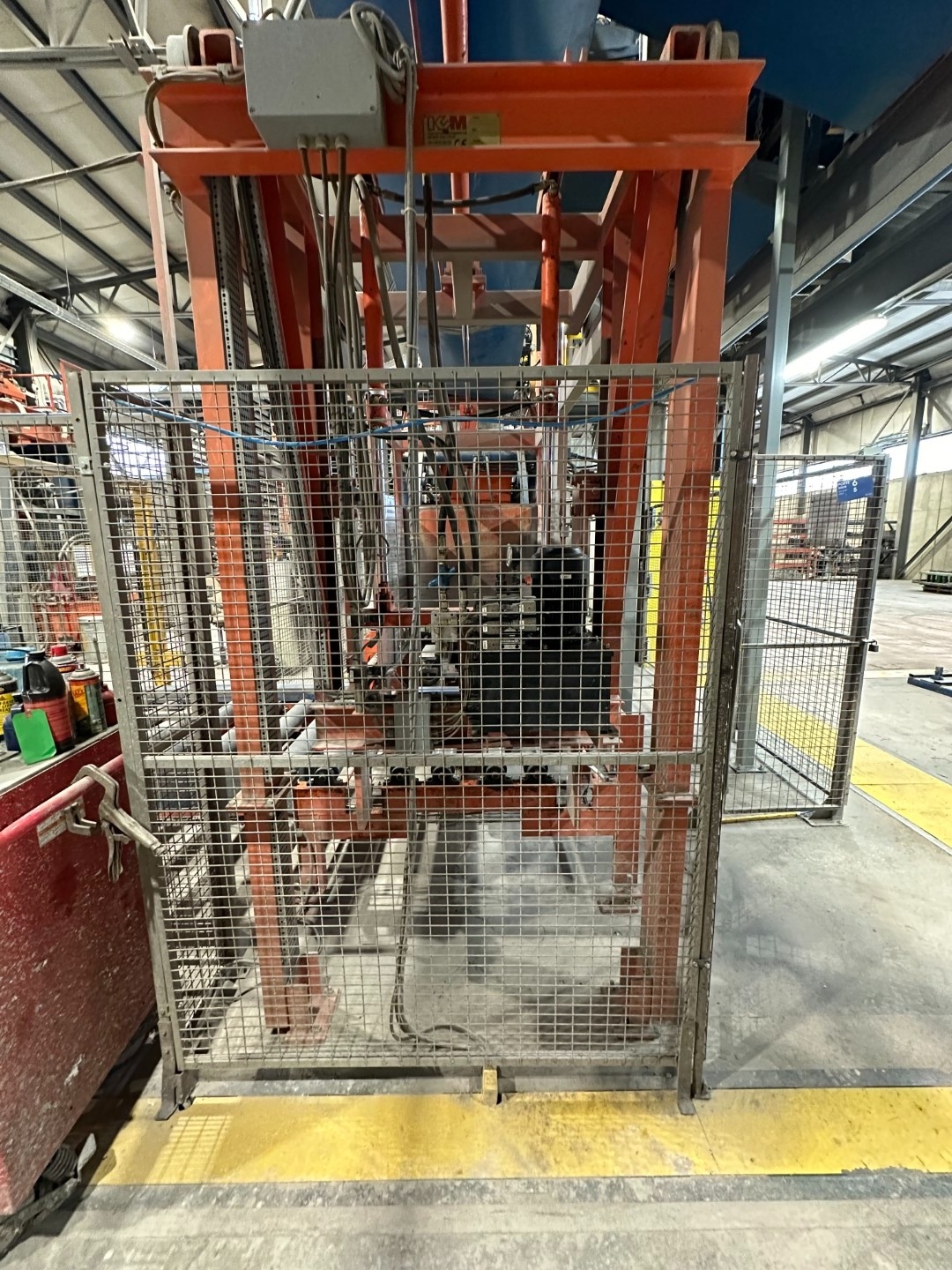

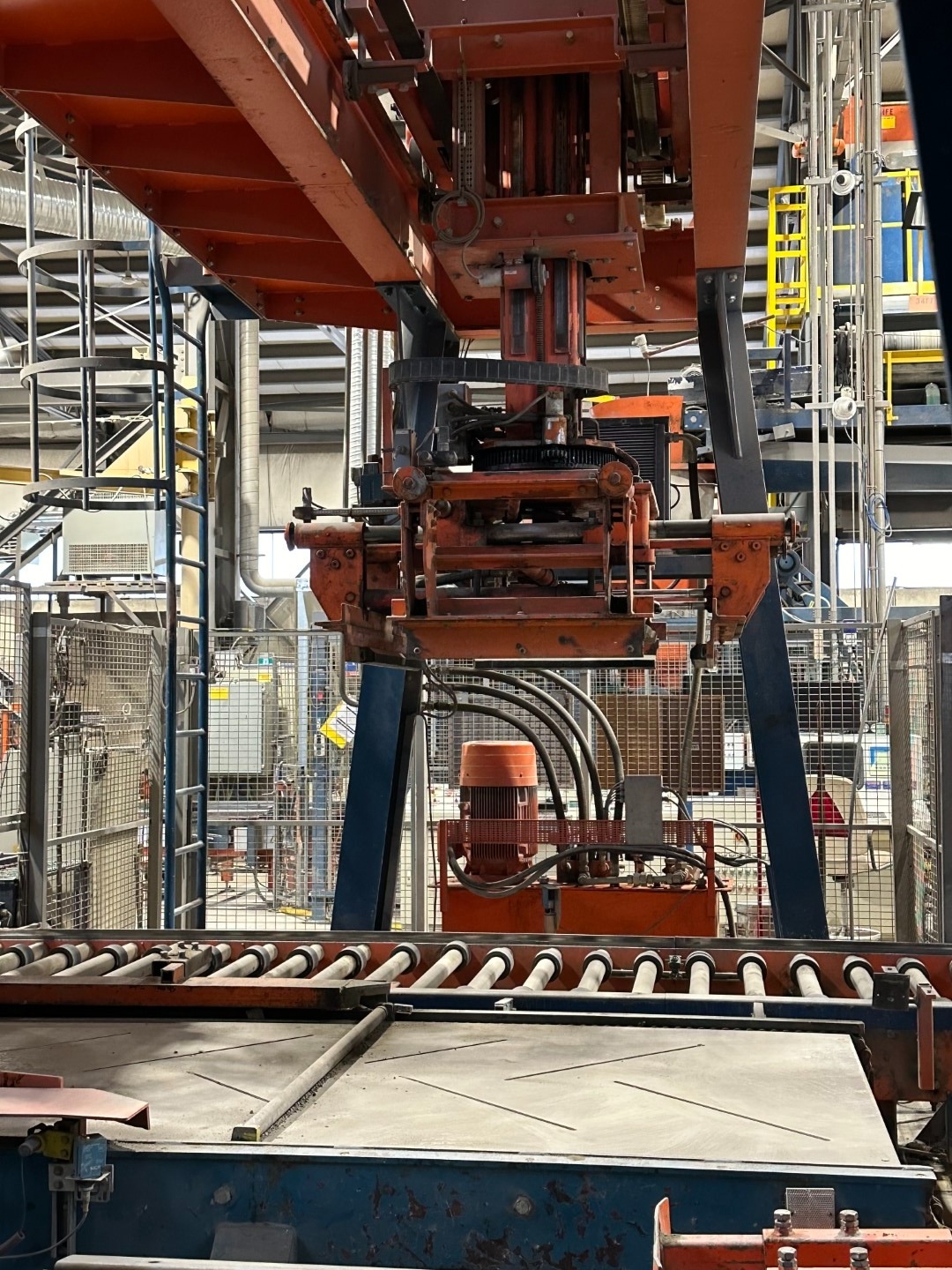

KVM palletizer clamp Cuber system that can rotate to cross layers with wooden pallet magazine.

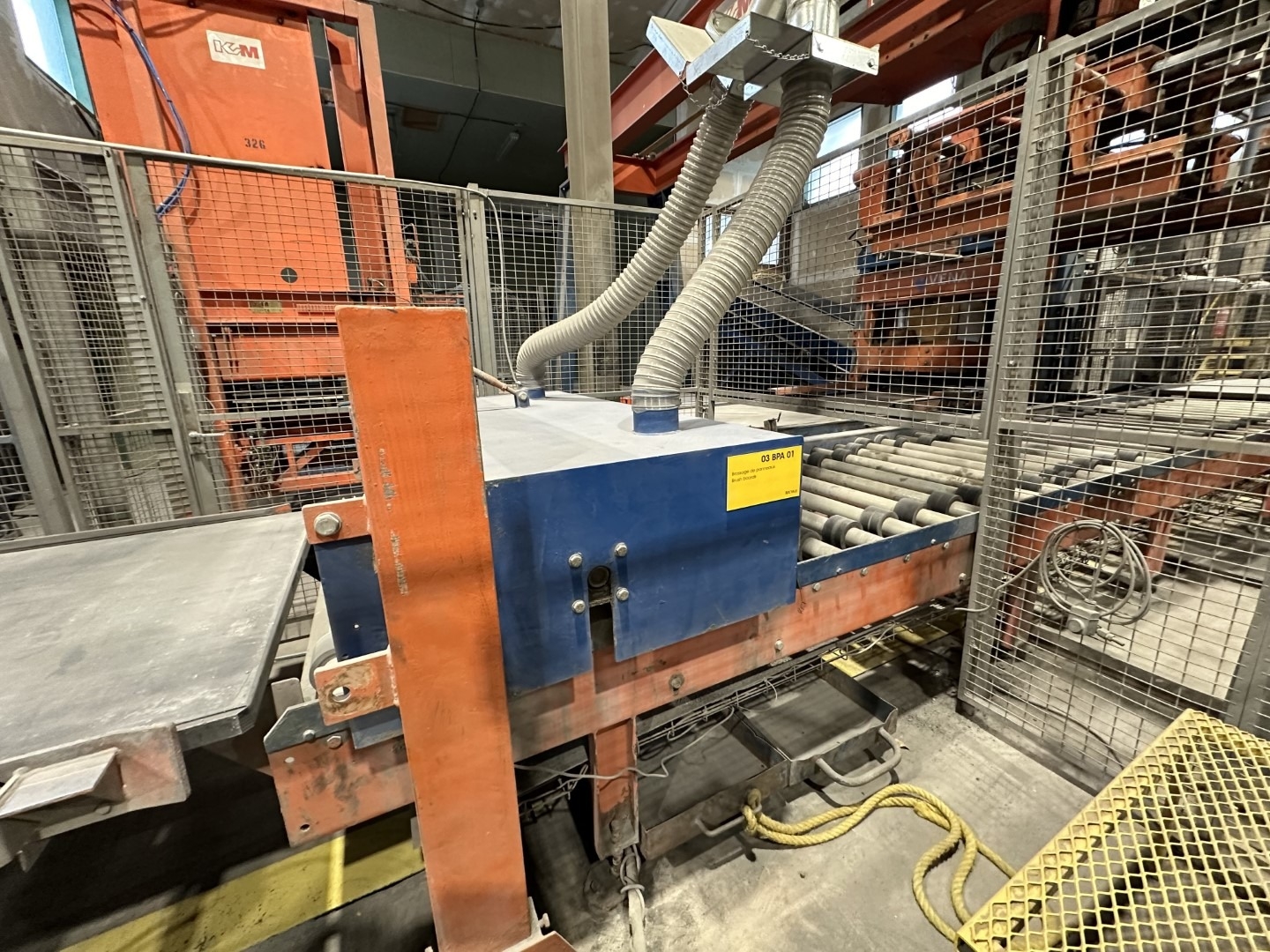

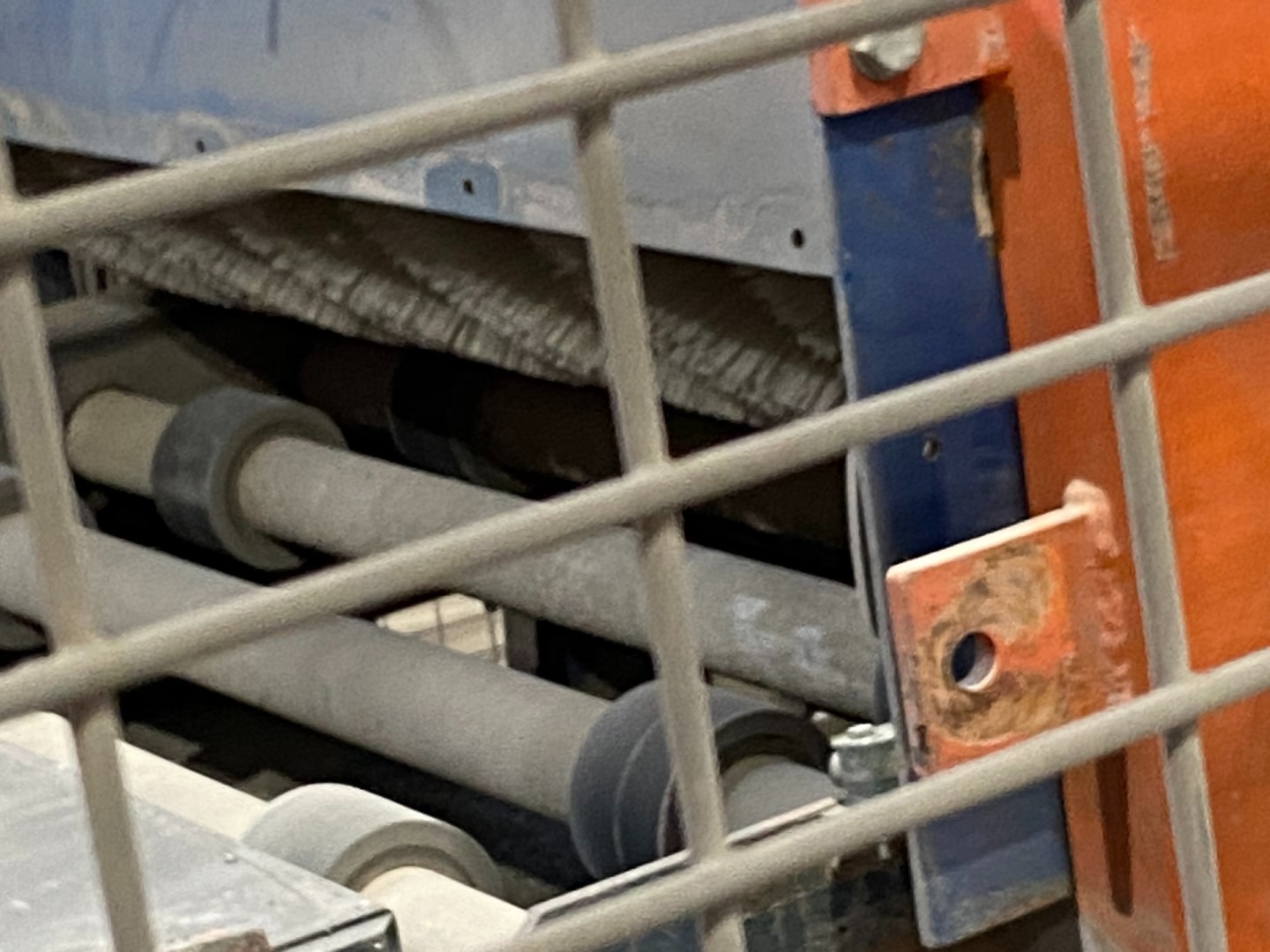

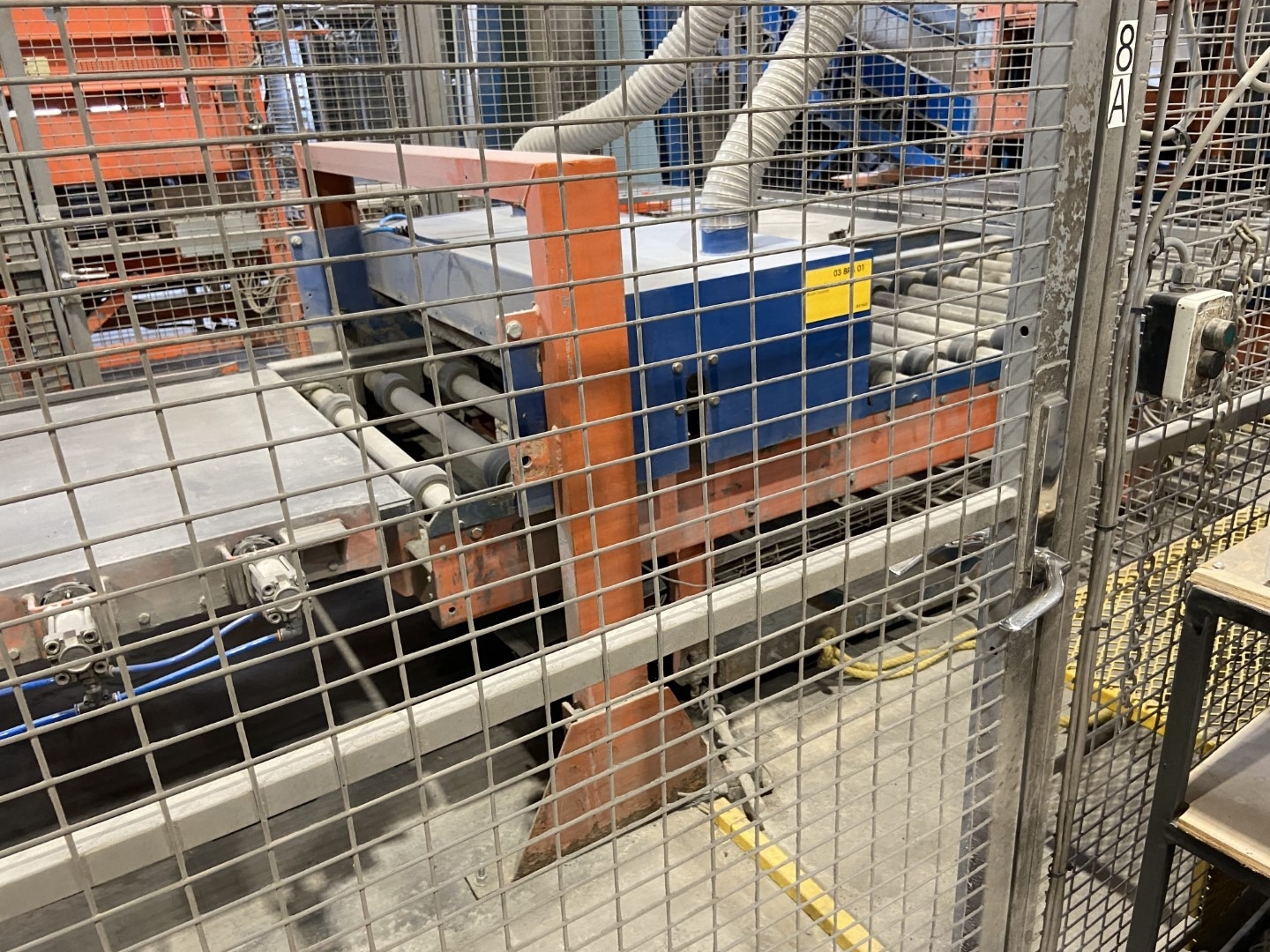

Board brushing and oiling station.

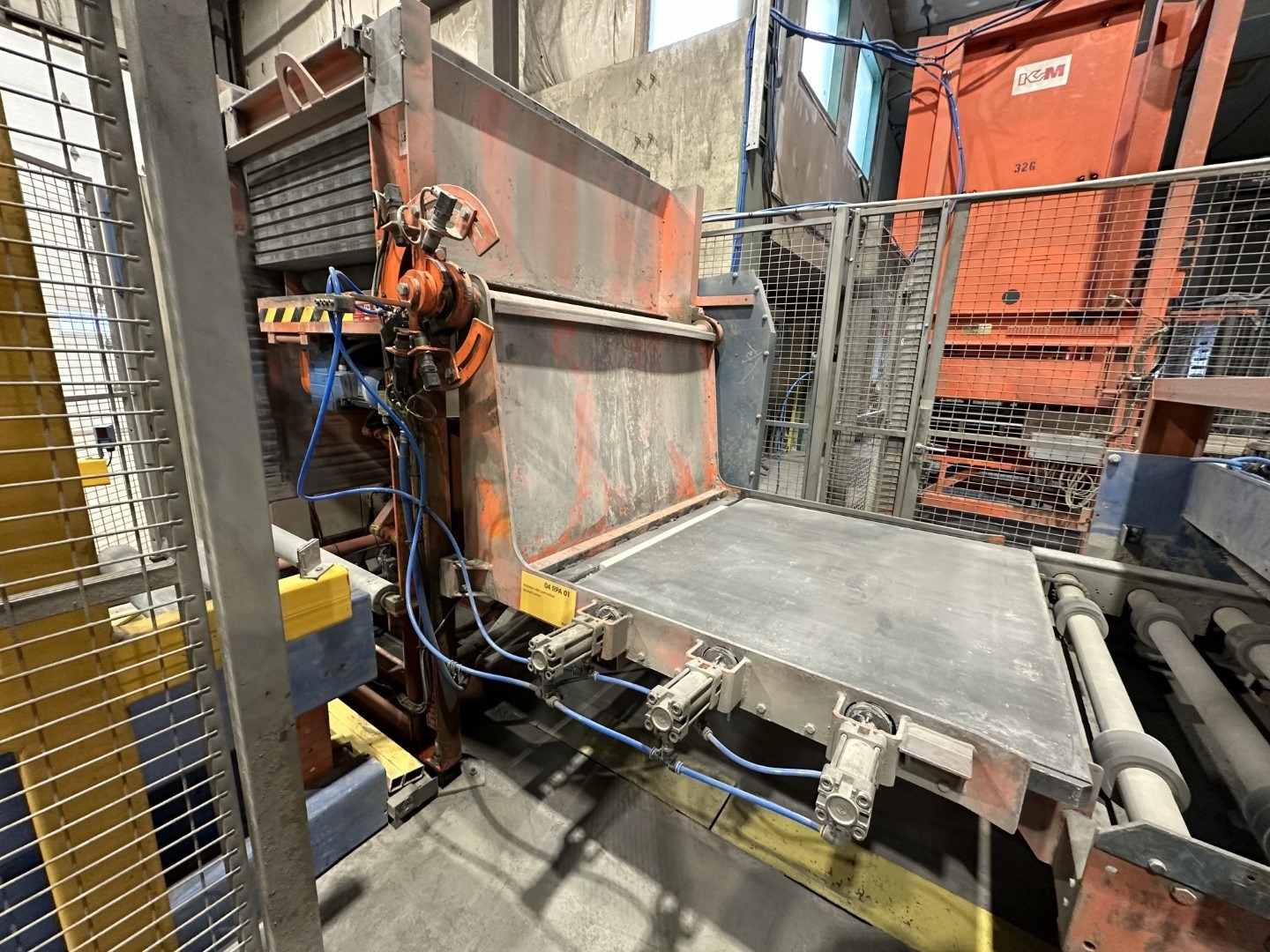

Board flipping station.

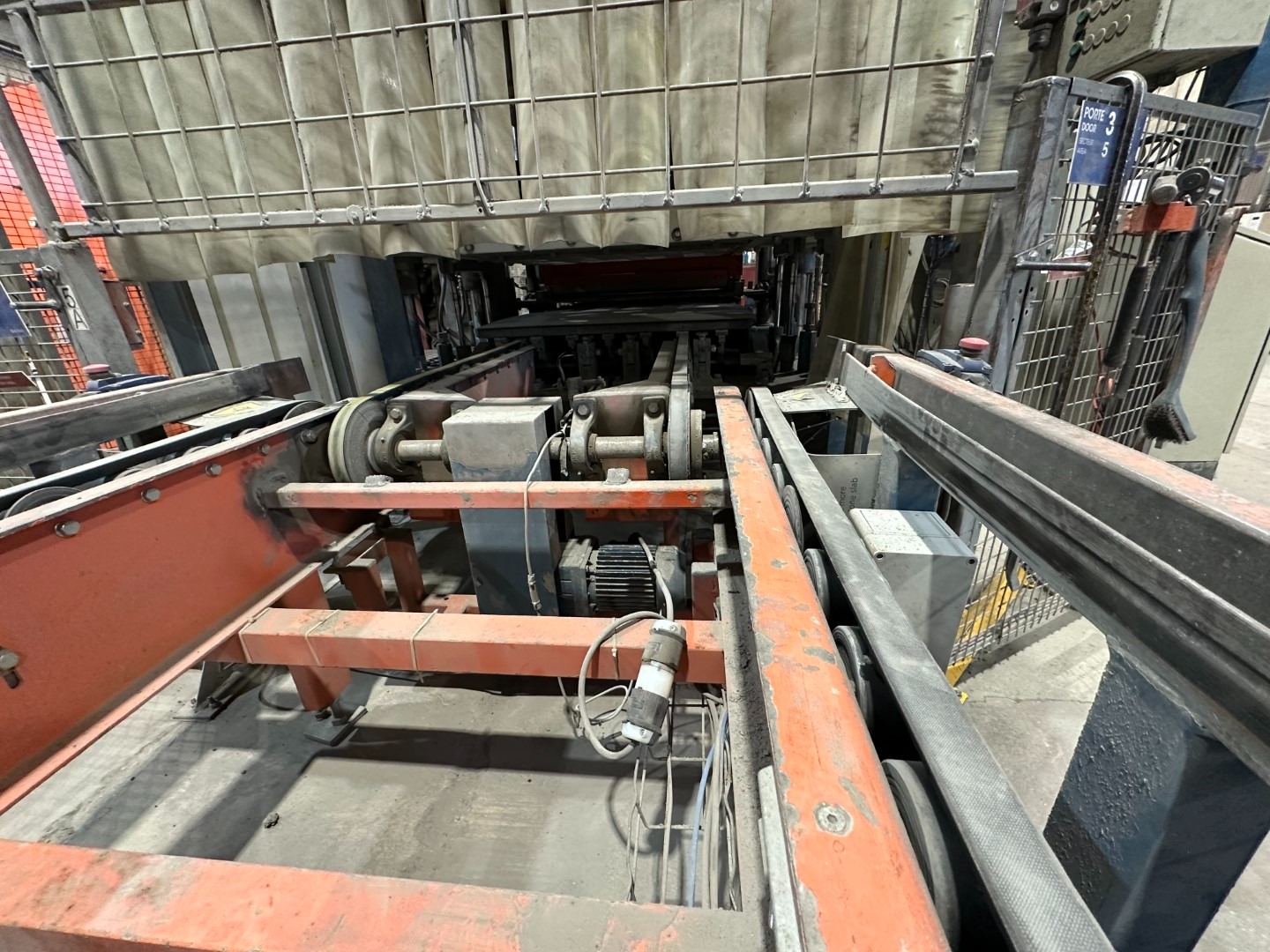

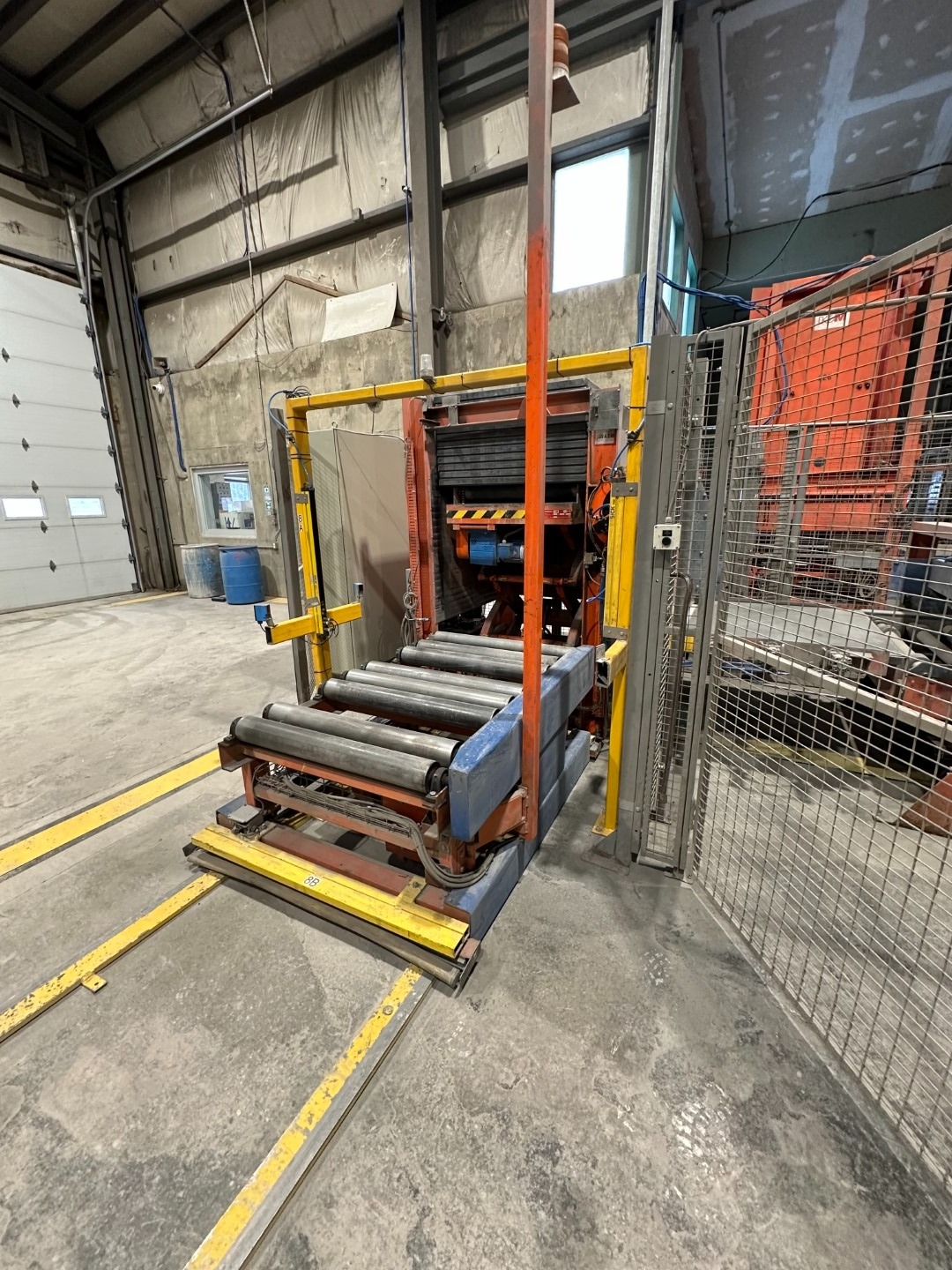

Automatic pallet dolly on rail to transfer empty Wasa boards to KVM press.

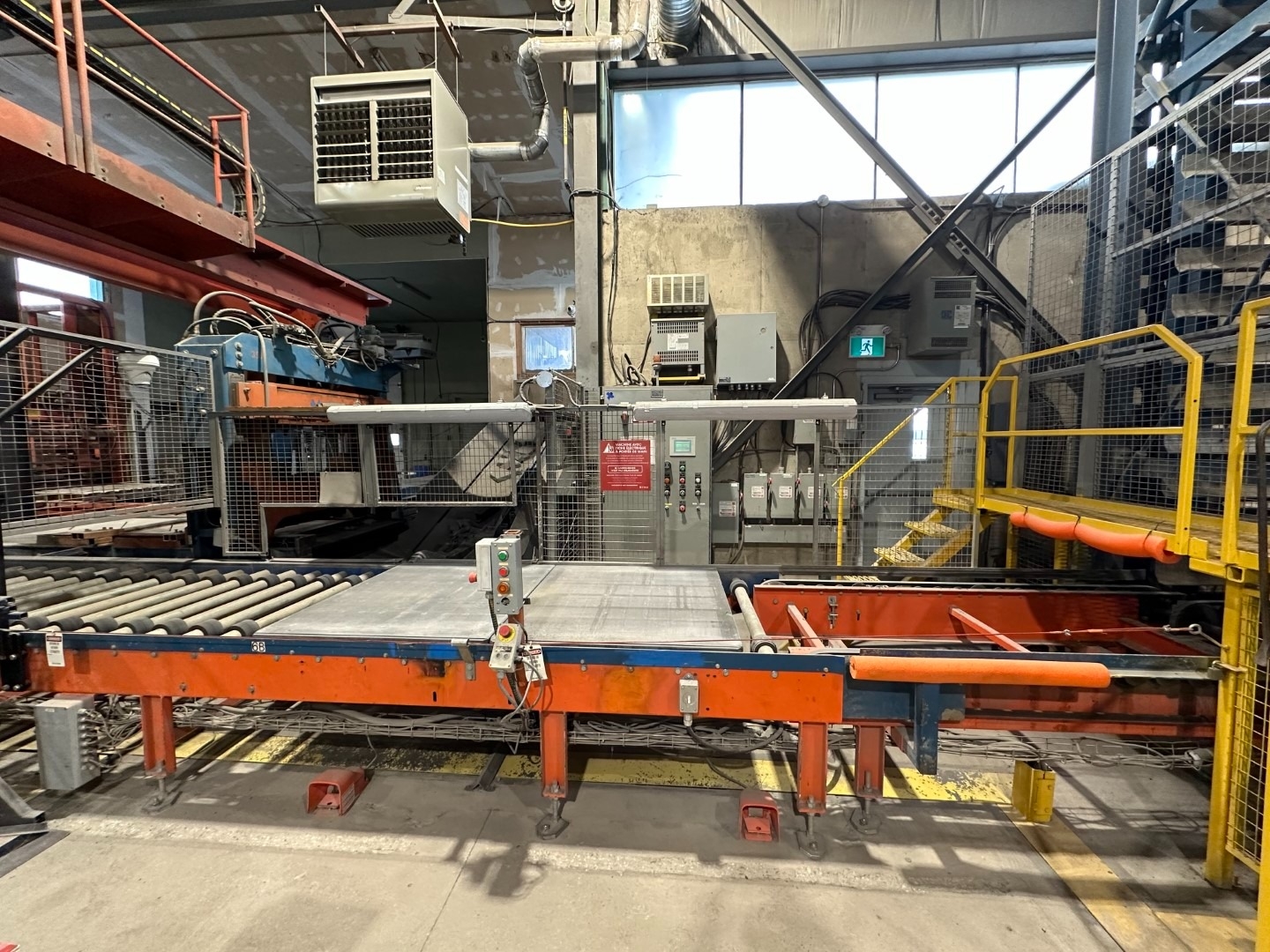

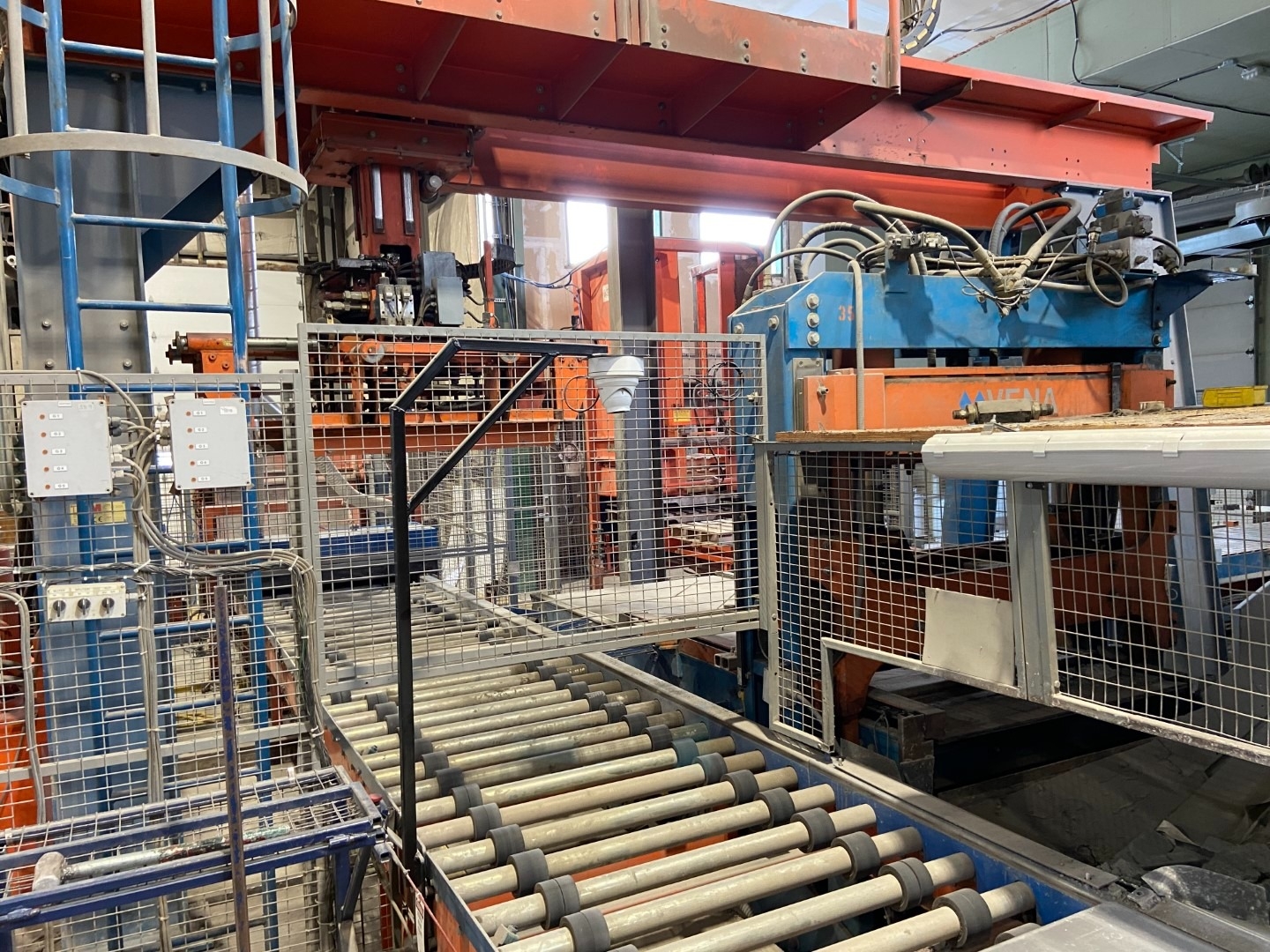

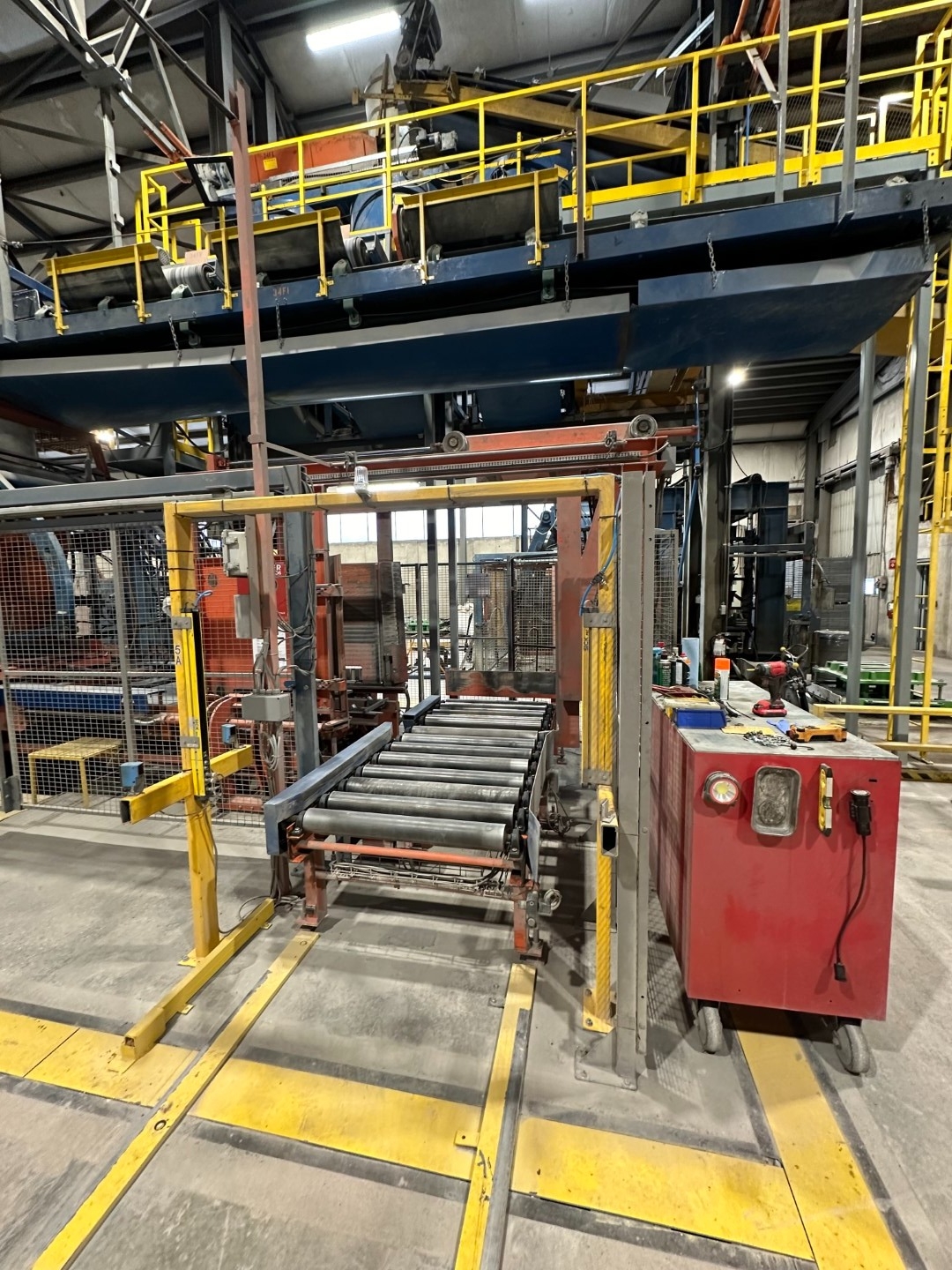

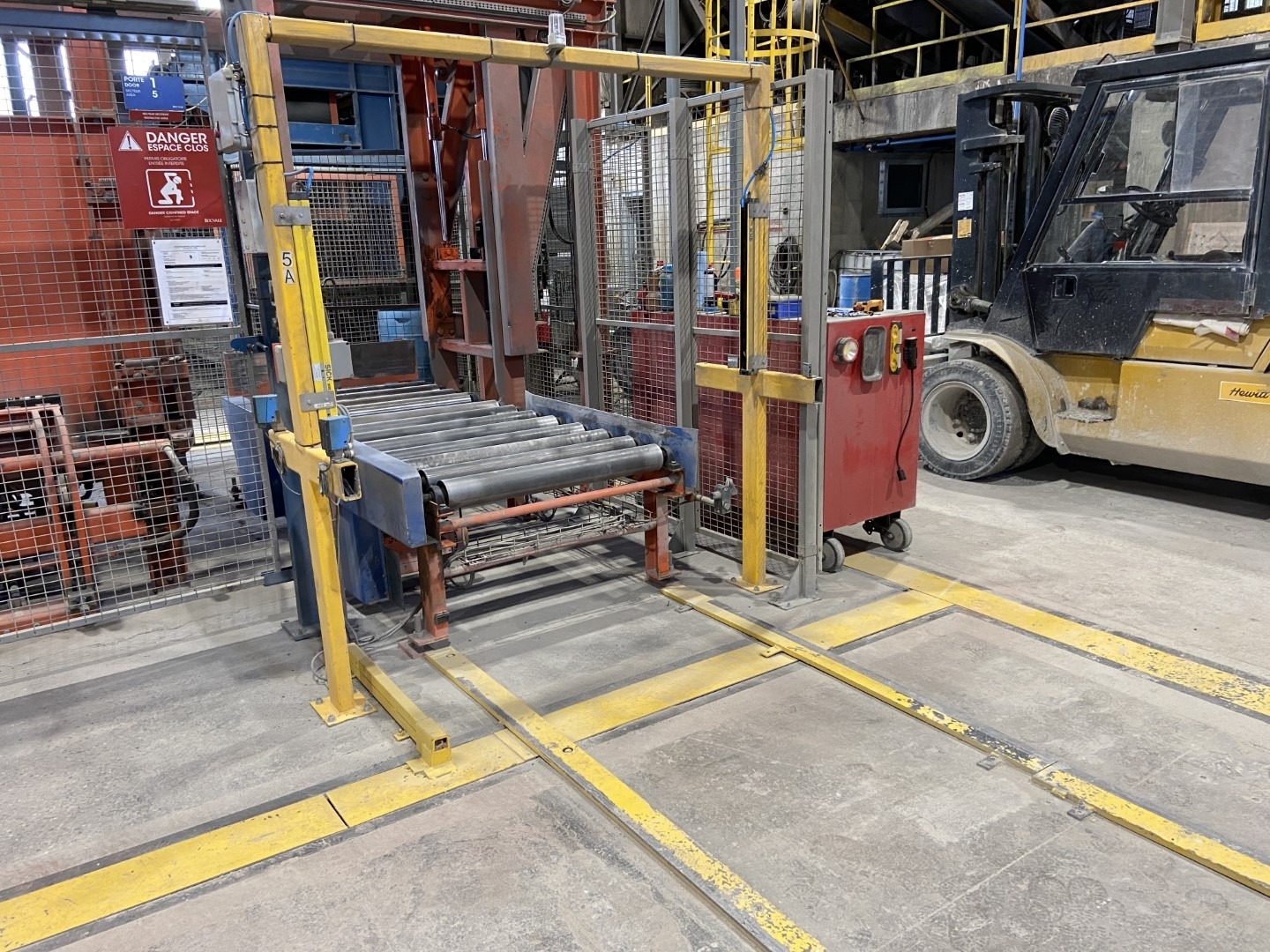

Motorized conveyors.

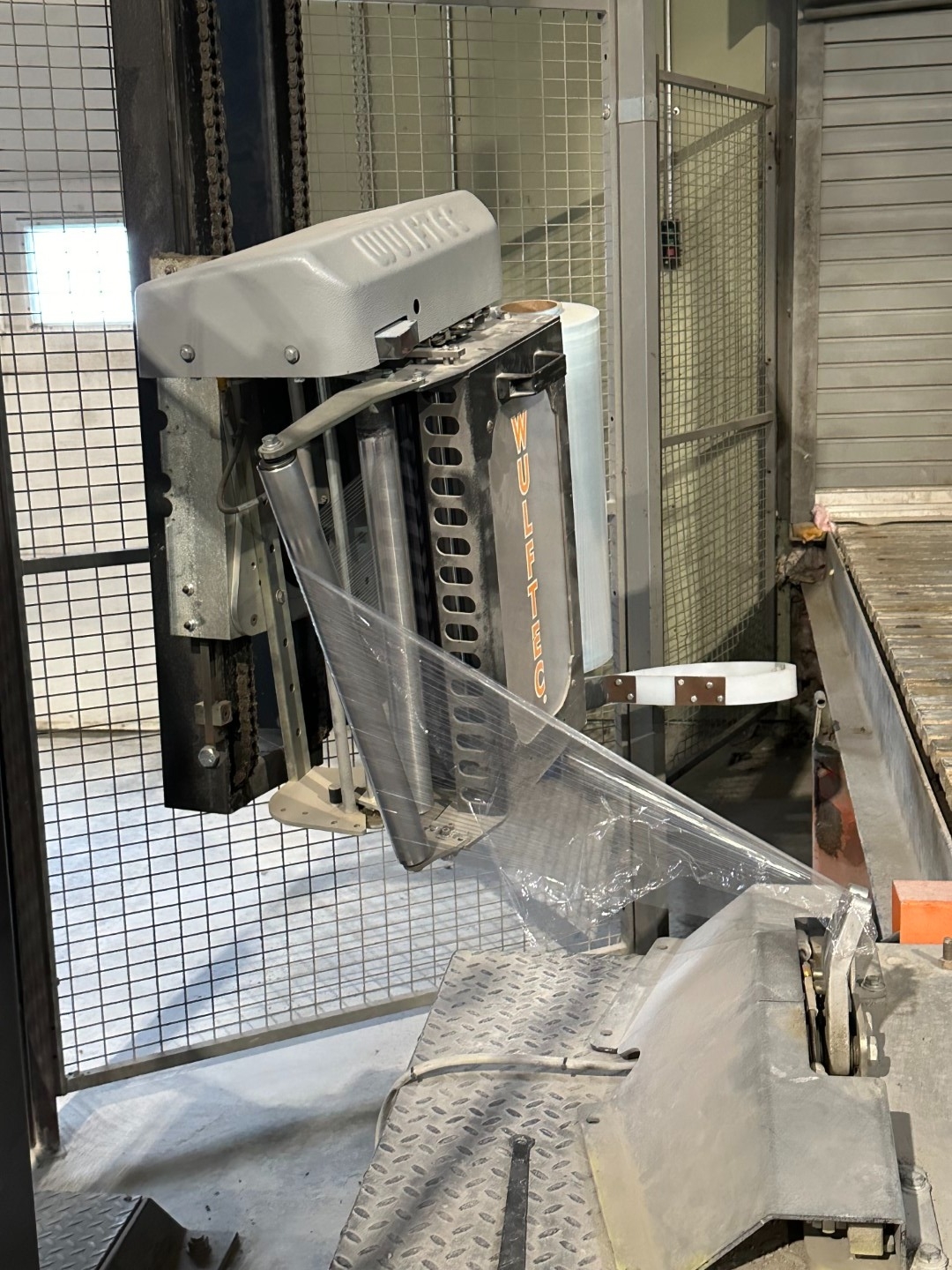

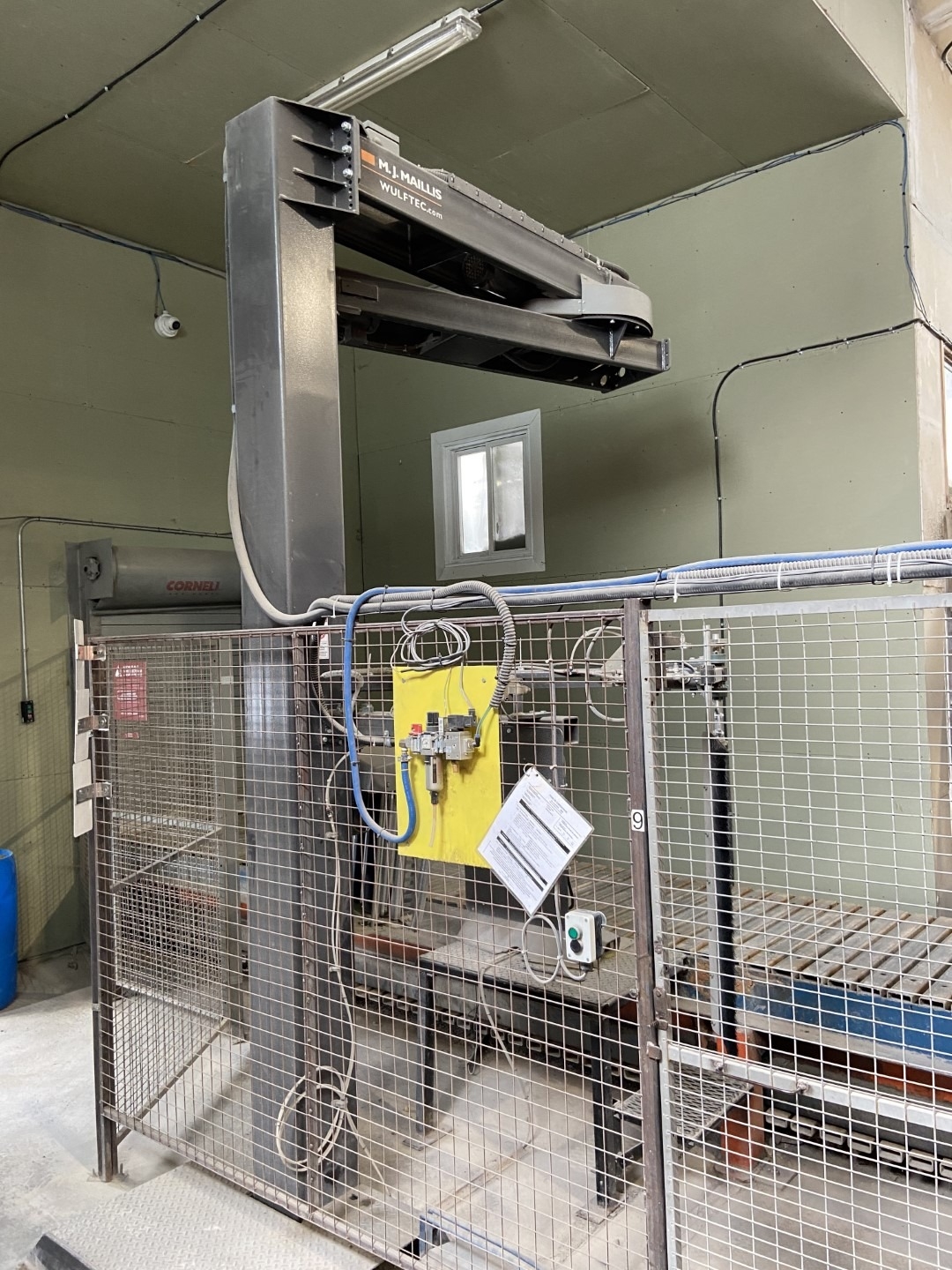

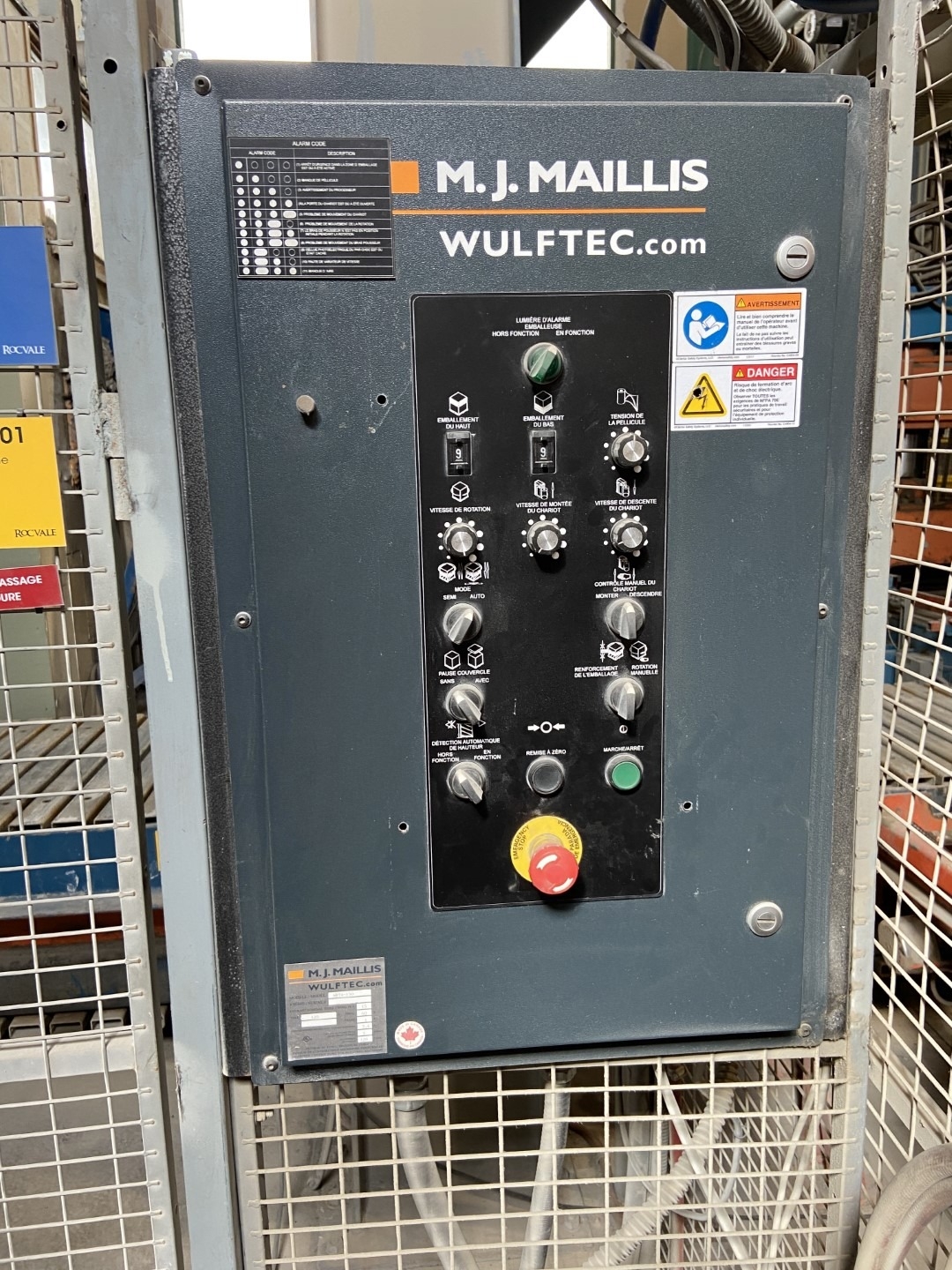

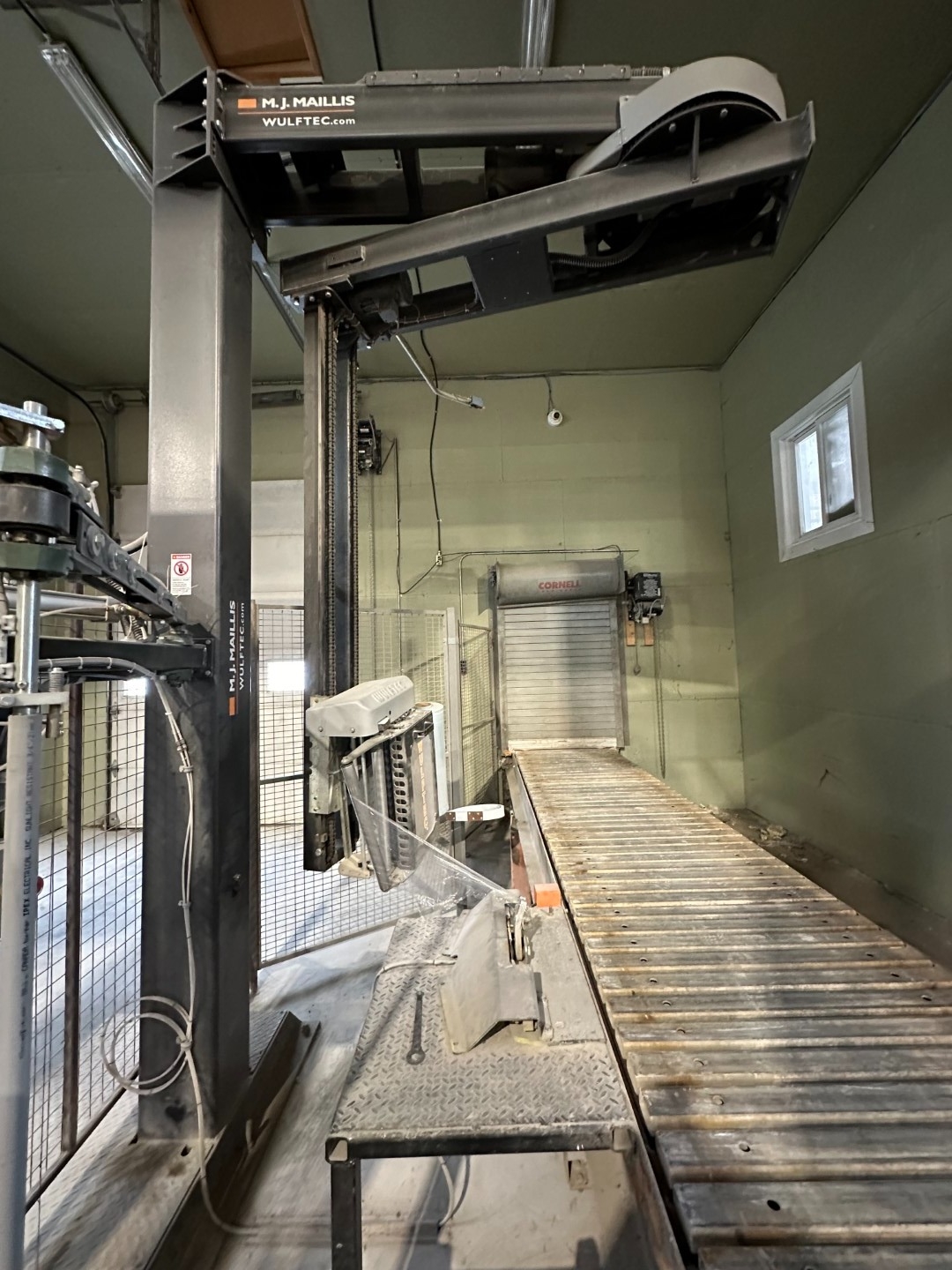

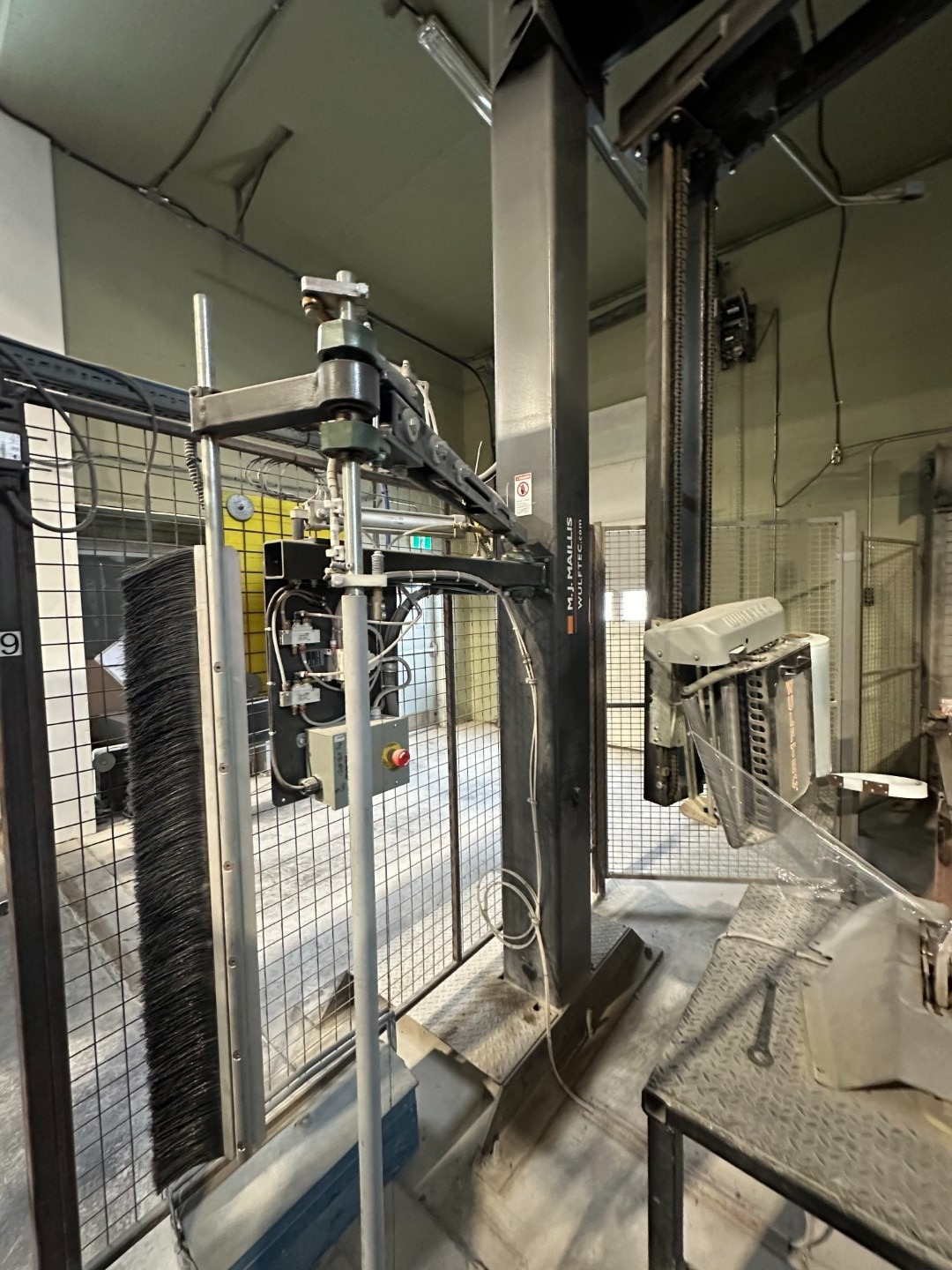

Wulftec horizontal stretch wrapper model WRTA-150. Plastic film, average time 13.6sec./cycle.

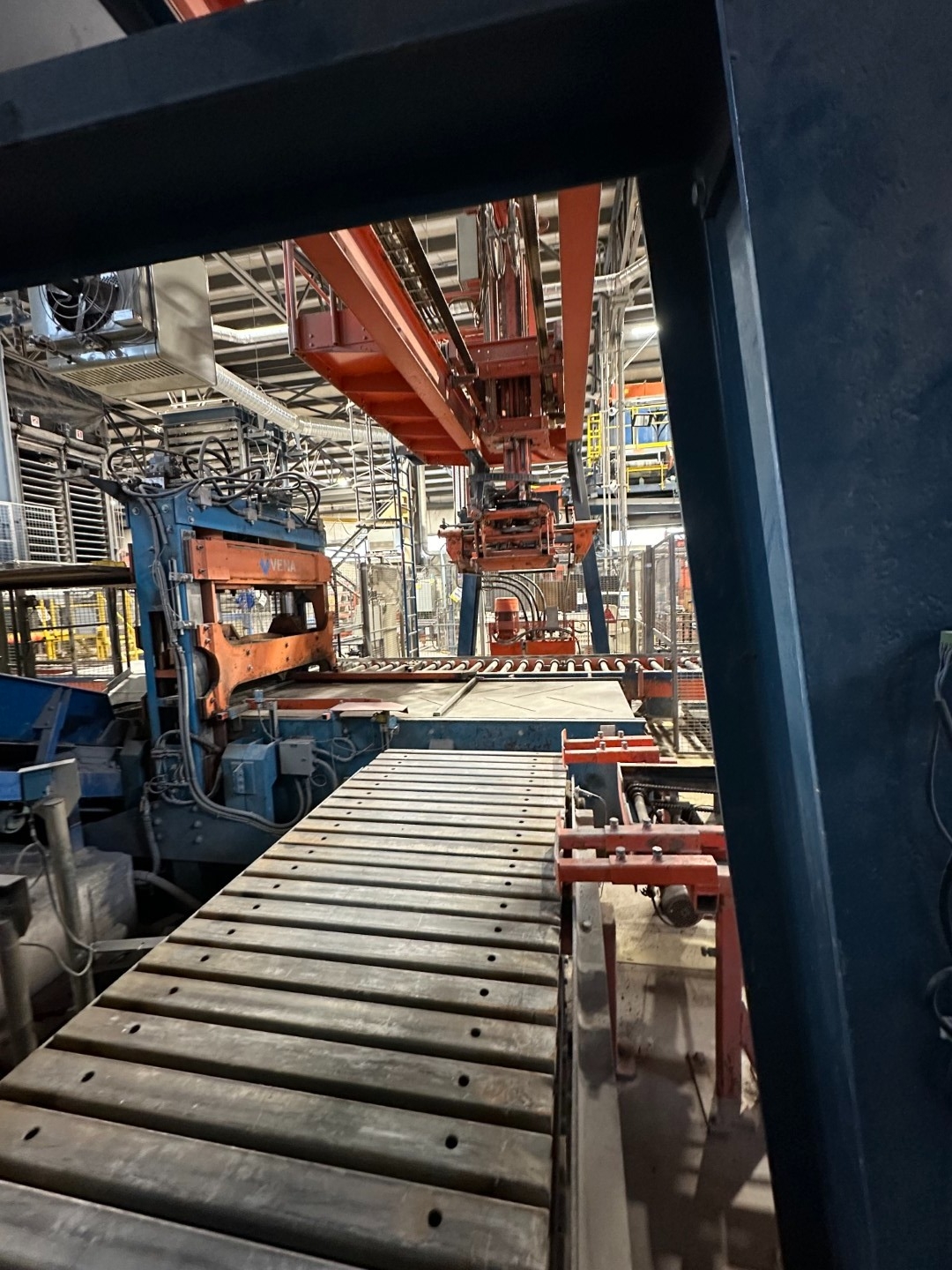

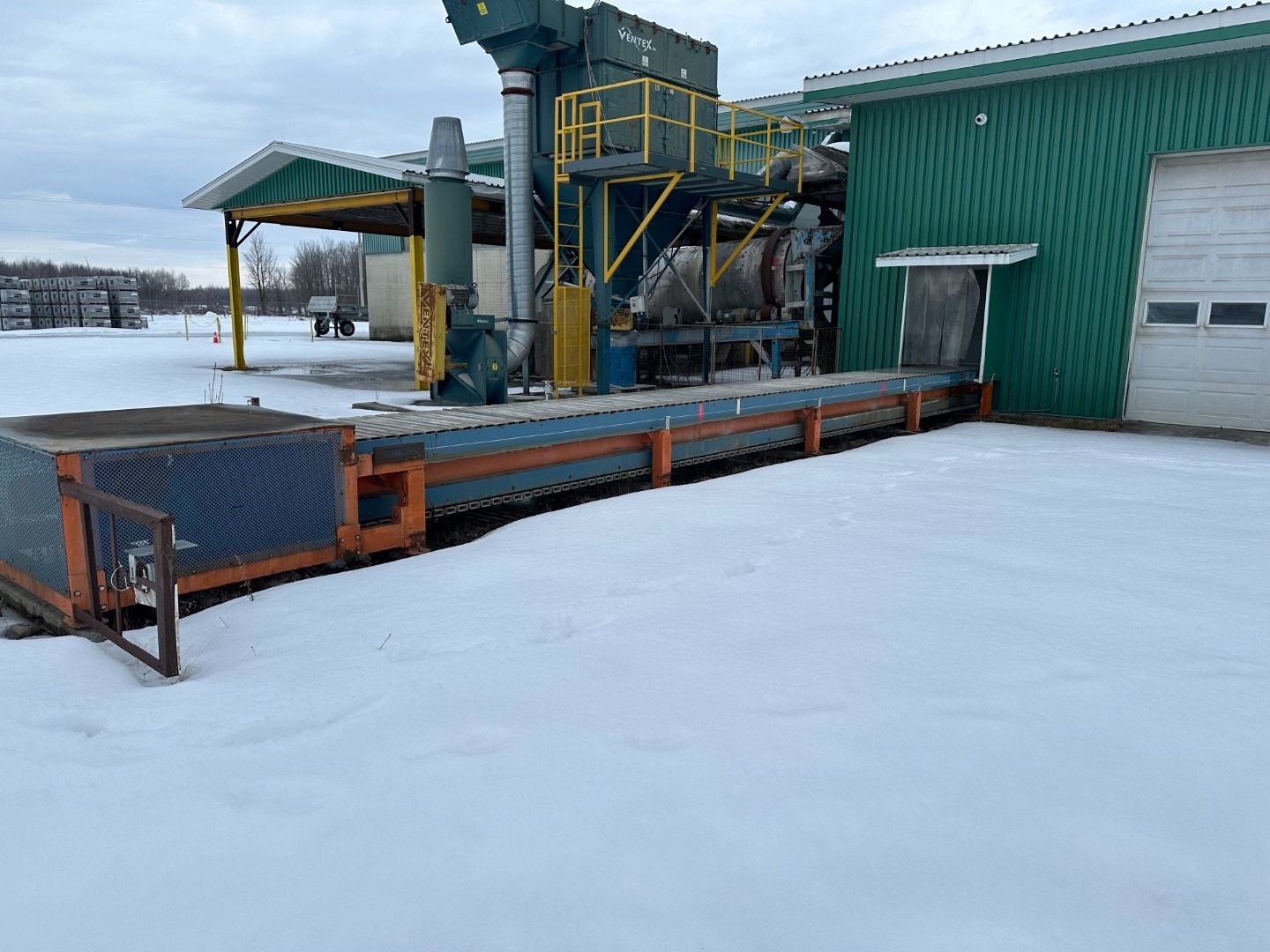

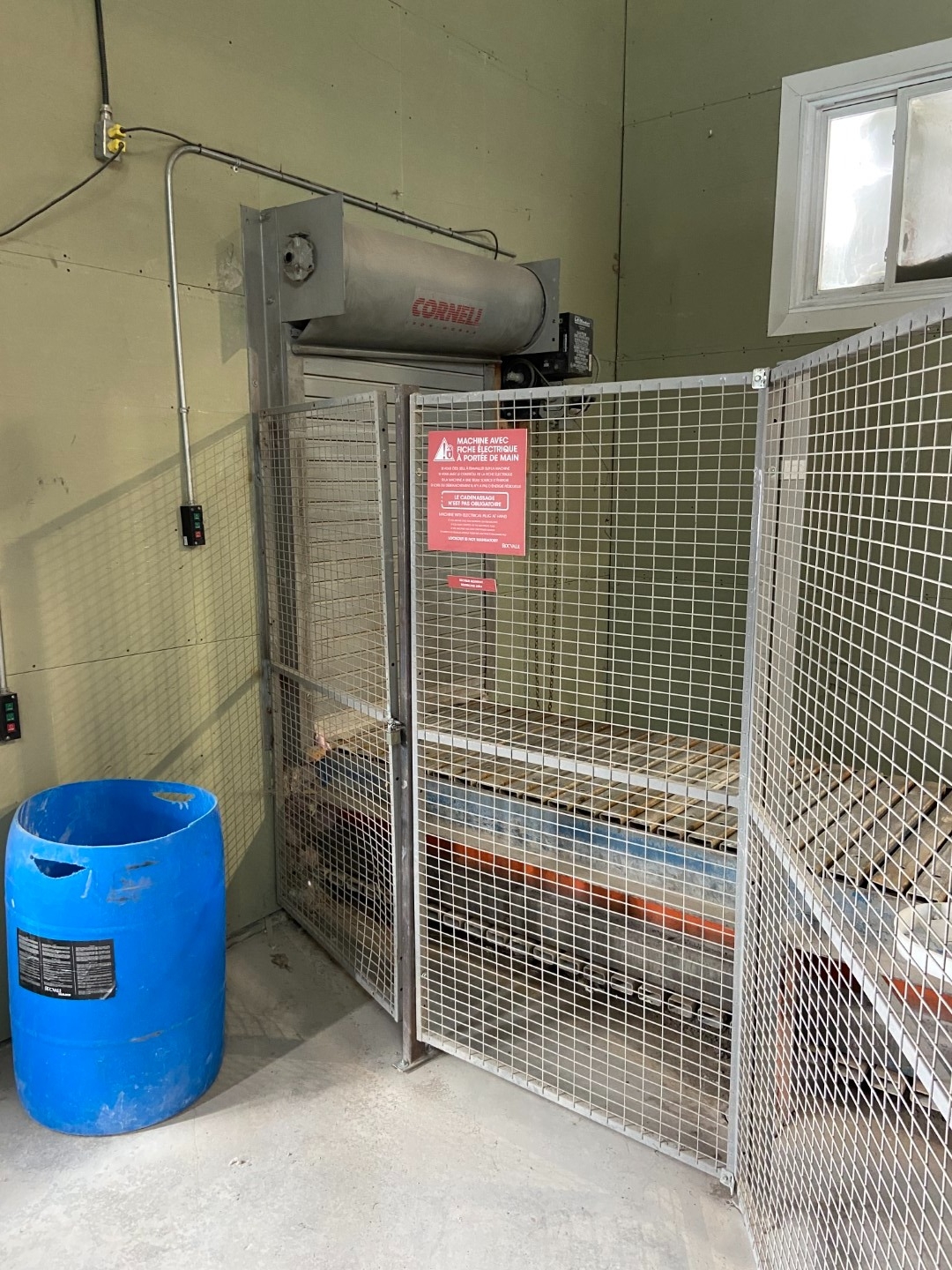

Long slat exit conveyor with Cornell building exit door system.

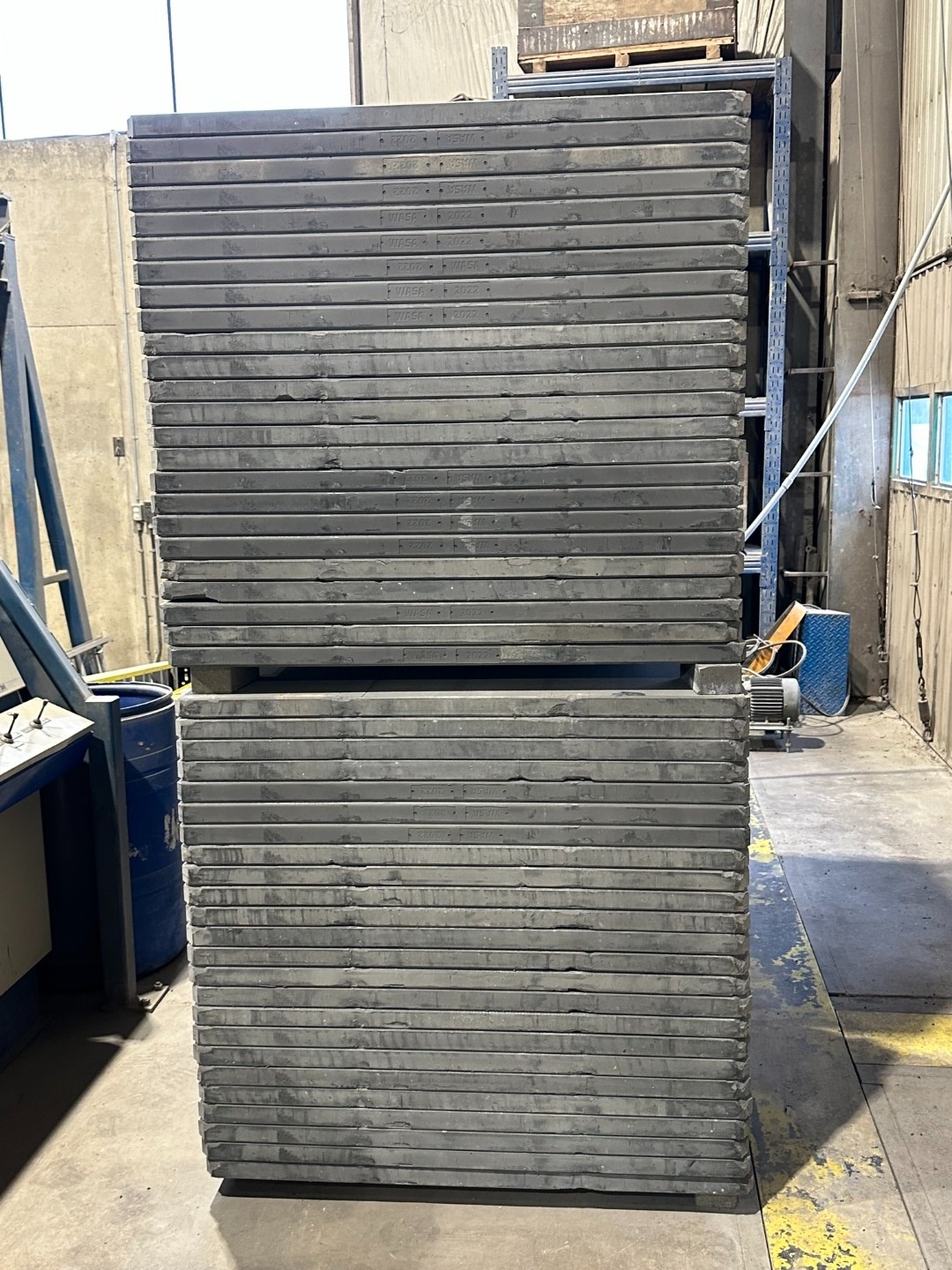

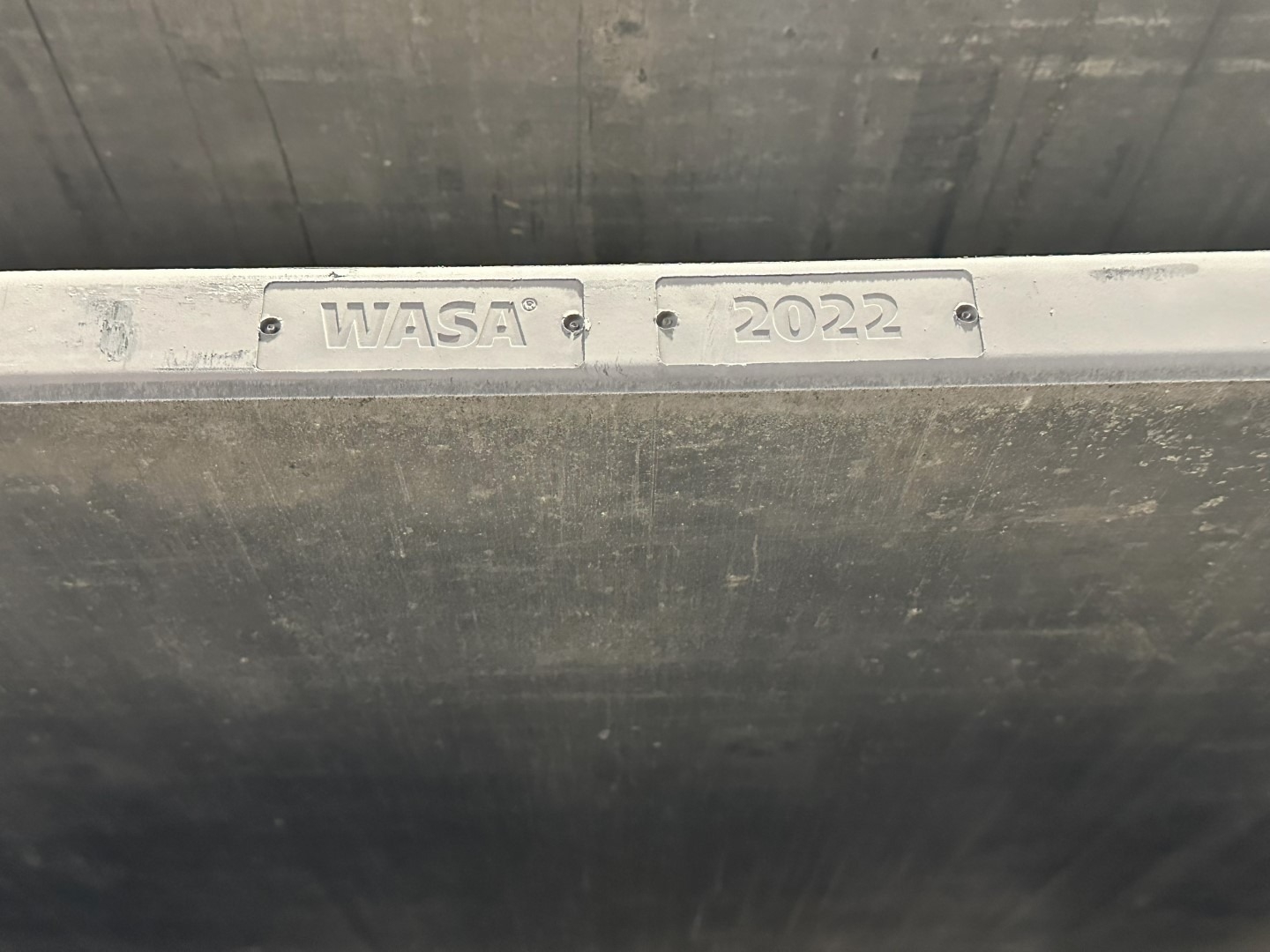

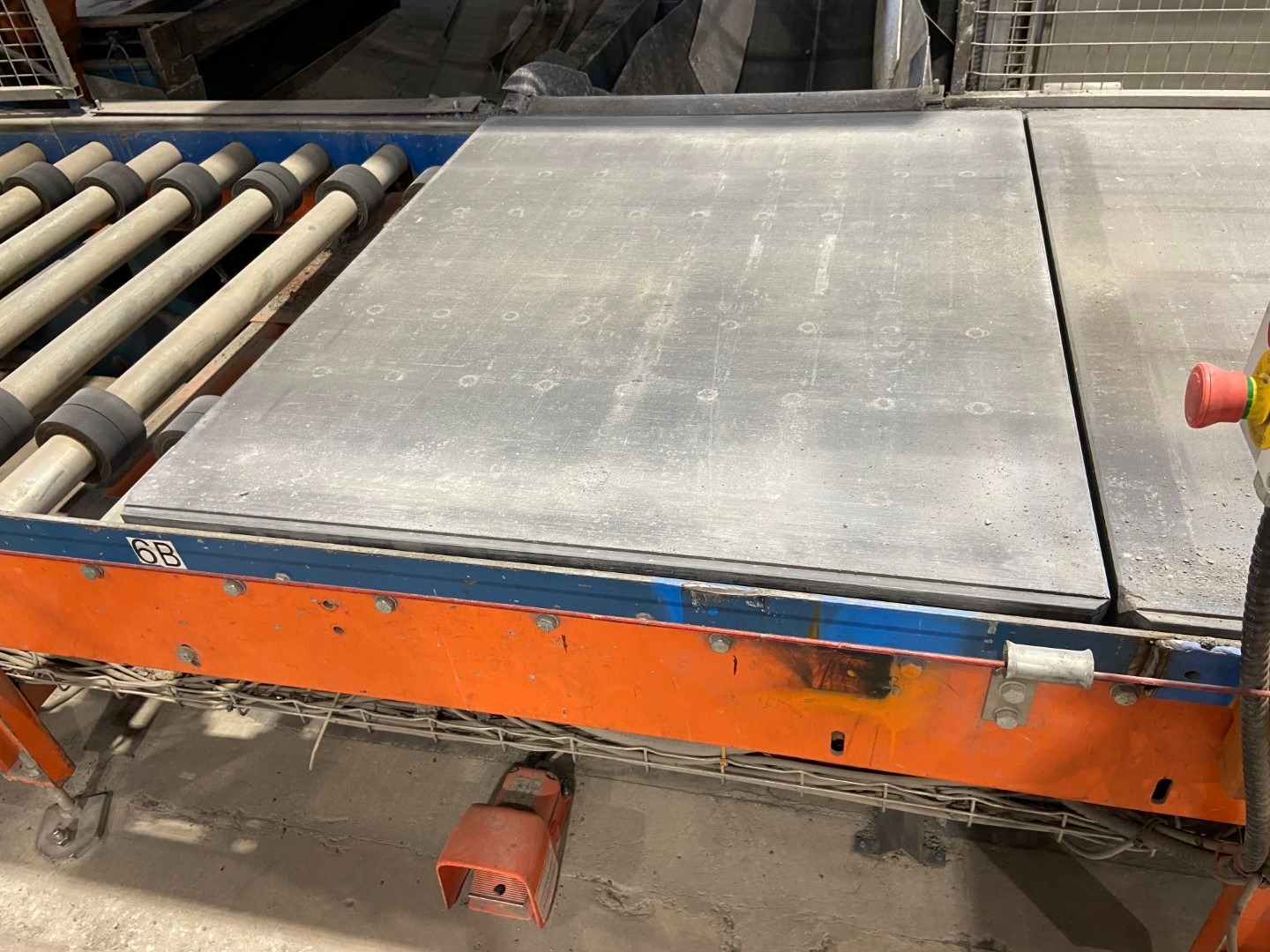

Approximately 1670 1200x1000x45 mm Wasa composite boards. Very good condition. Used on both sides. (600 new from 2022)

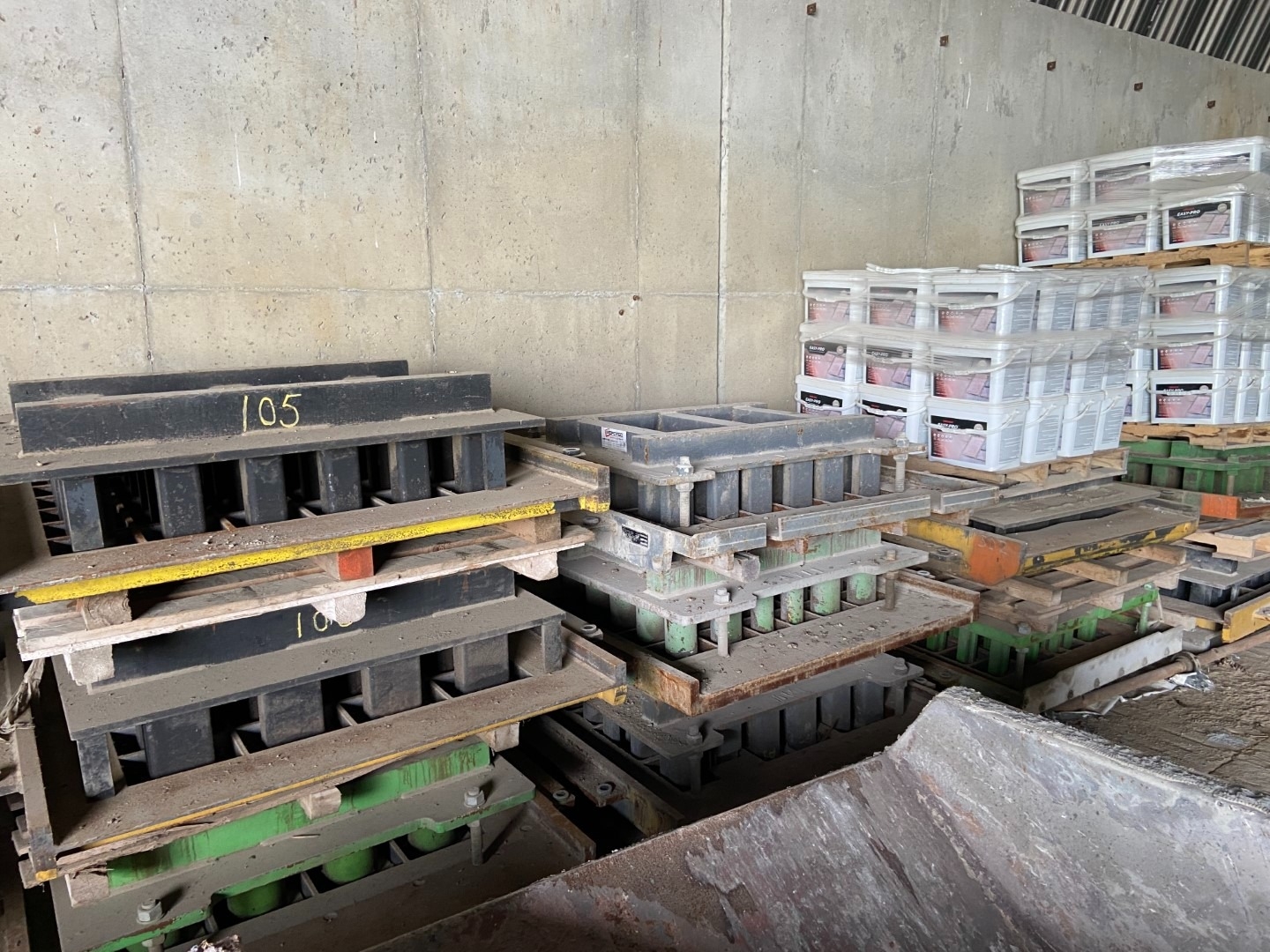

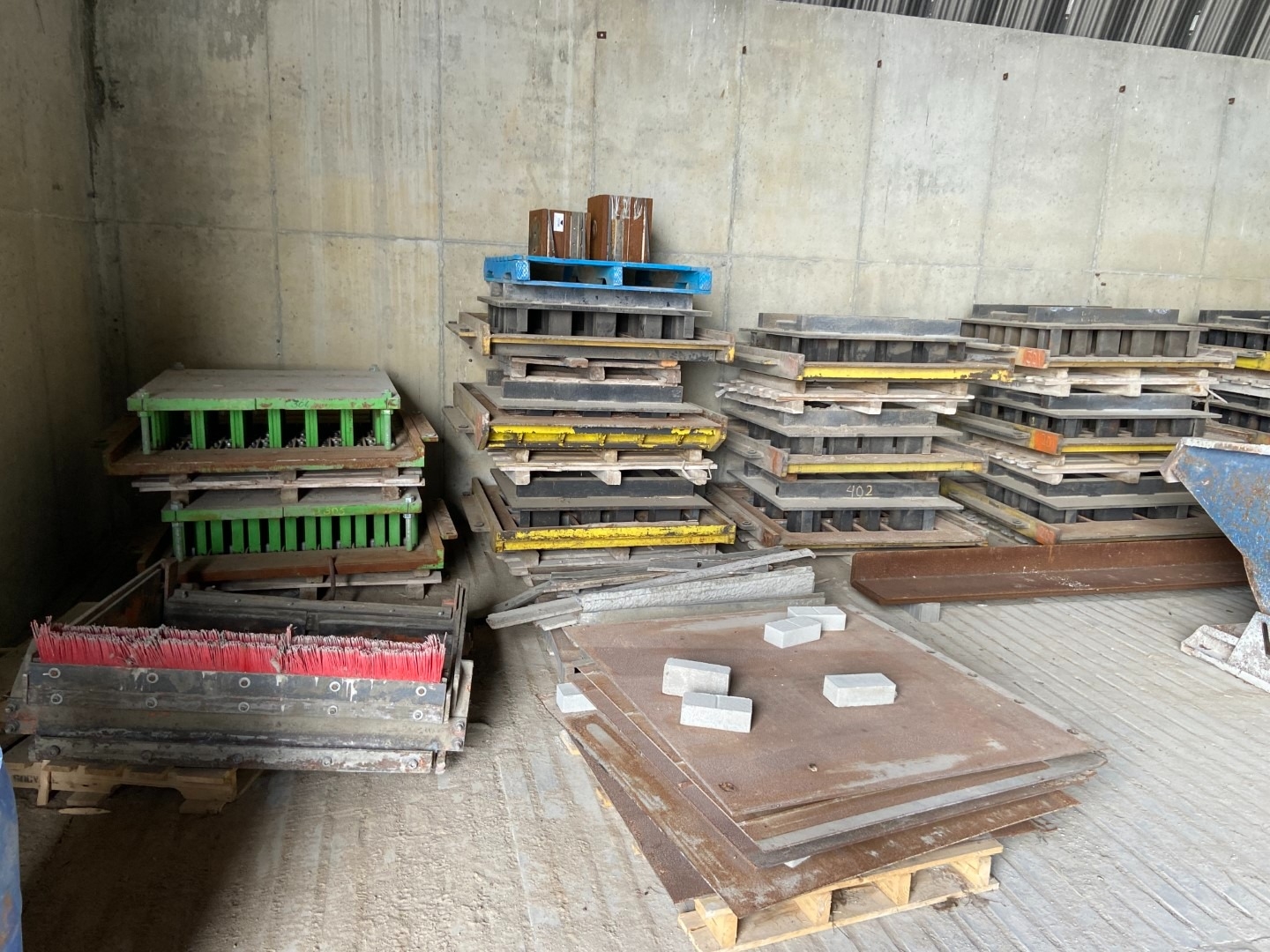

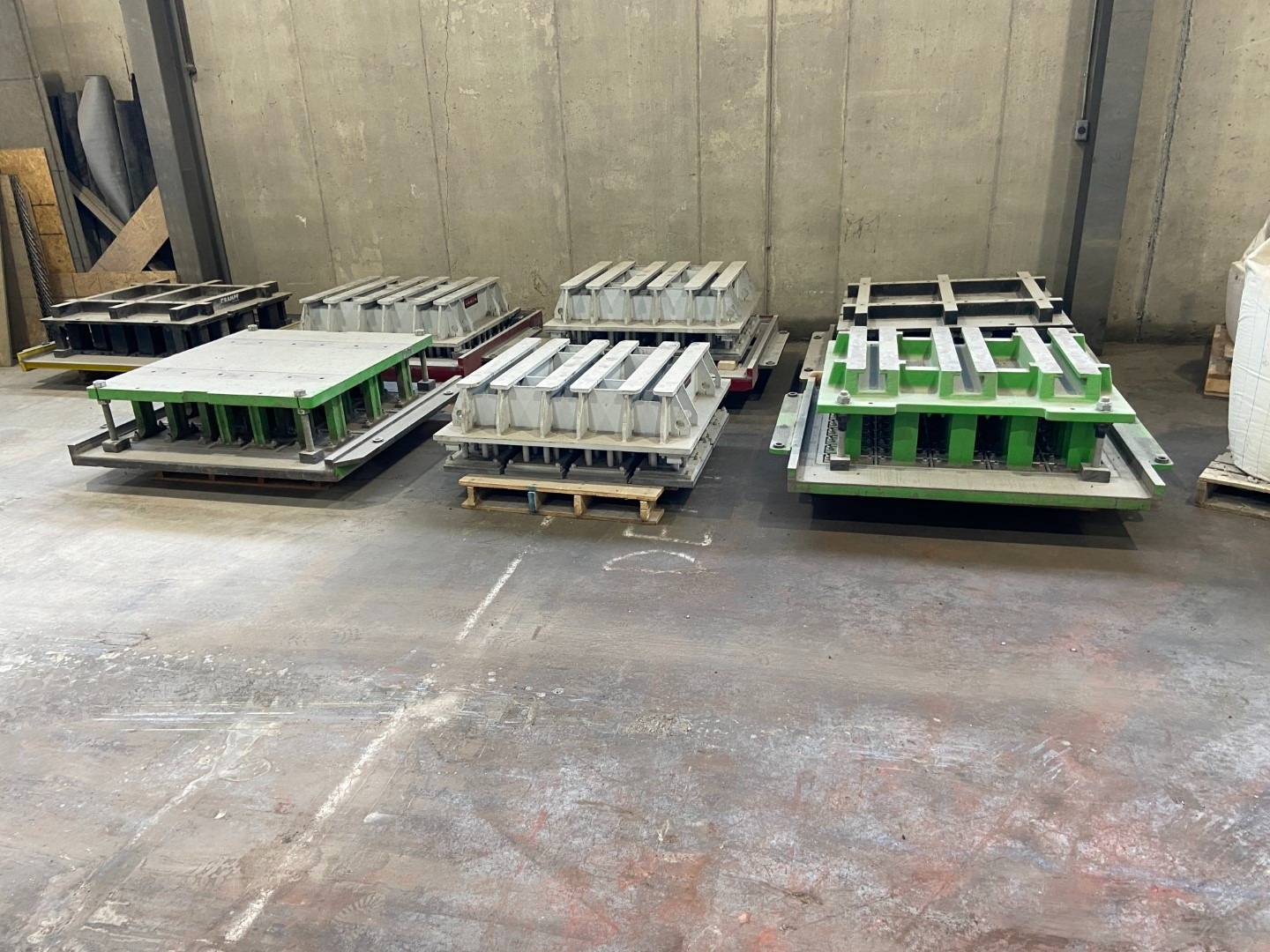

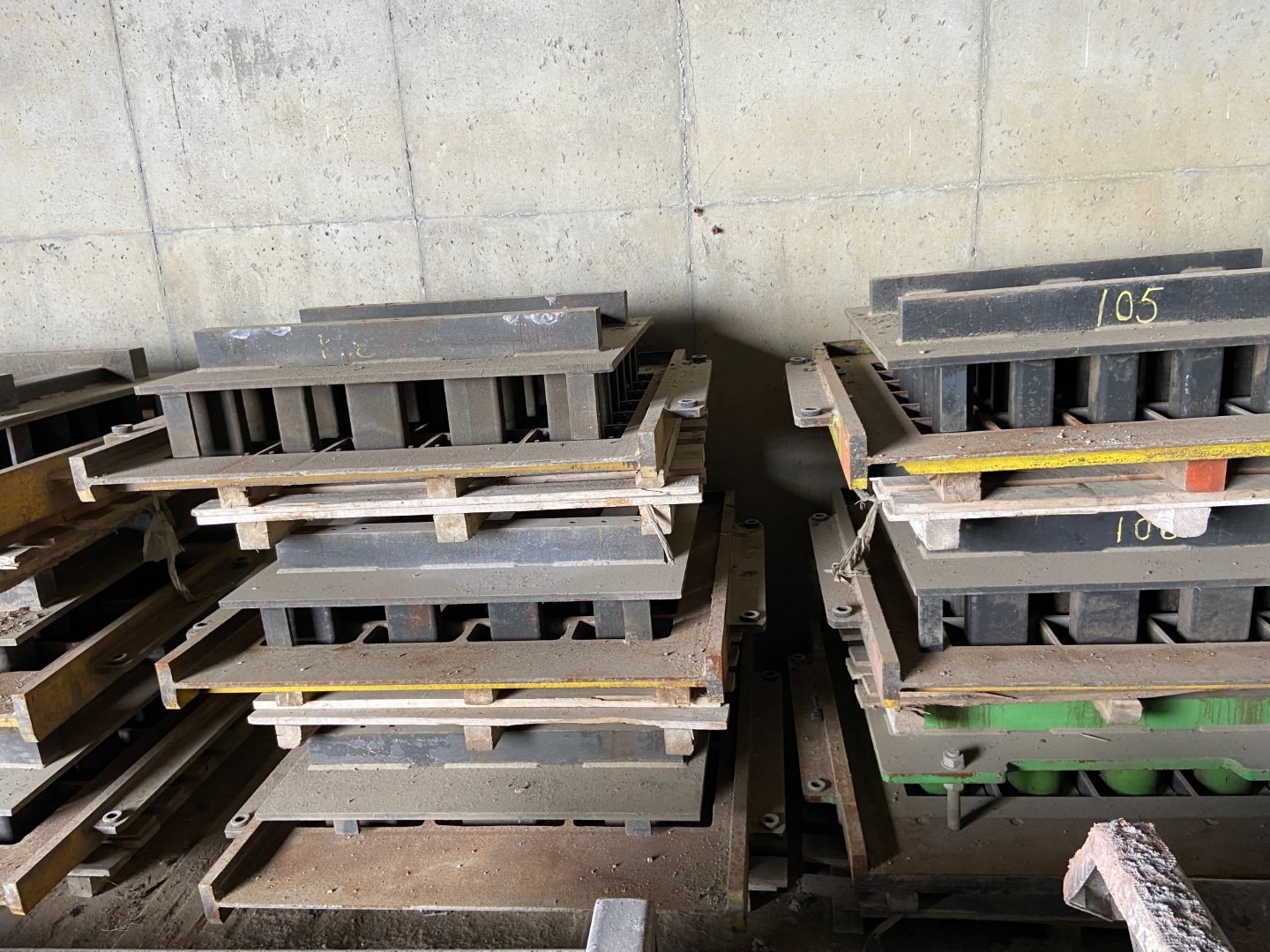

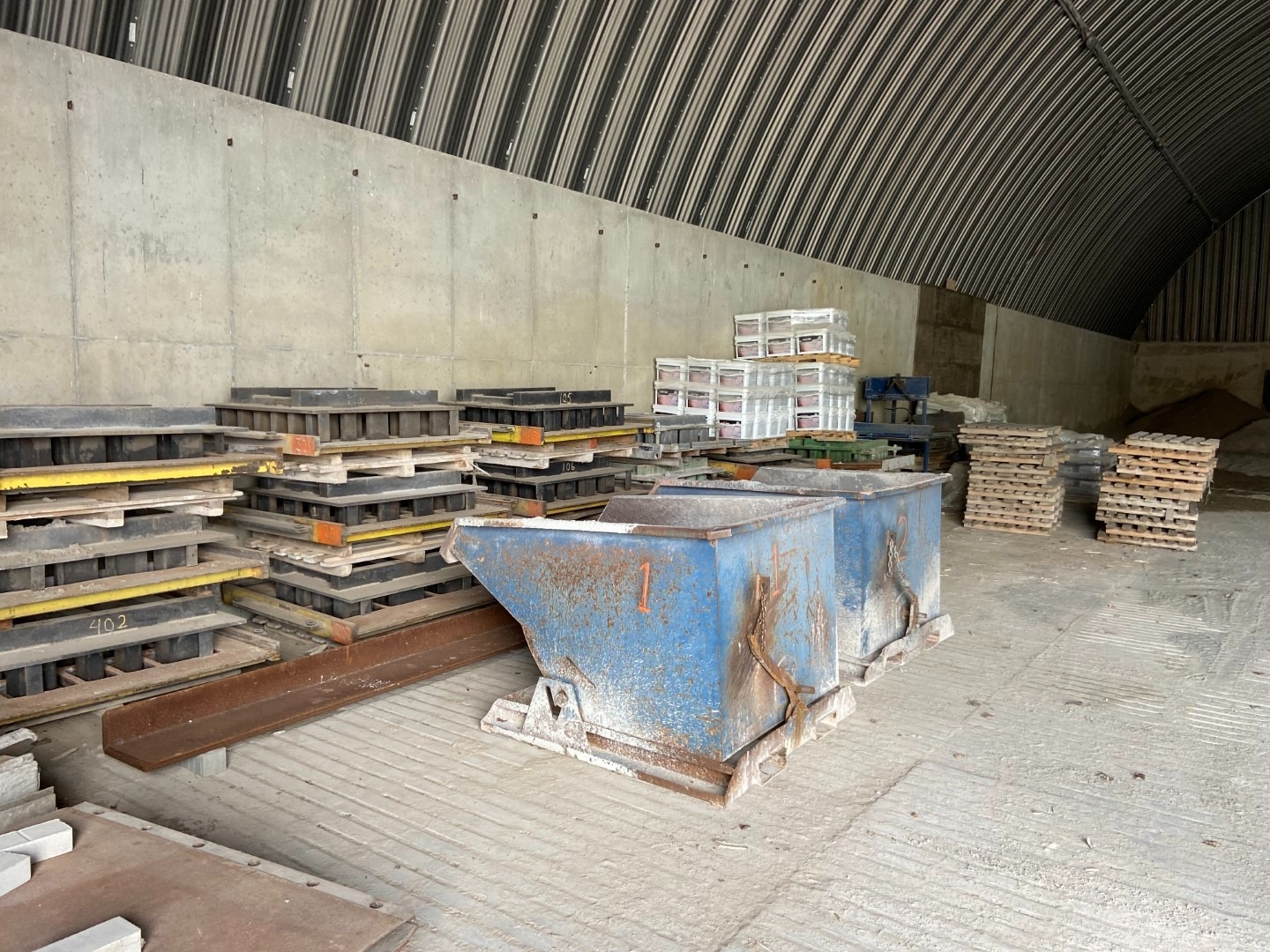

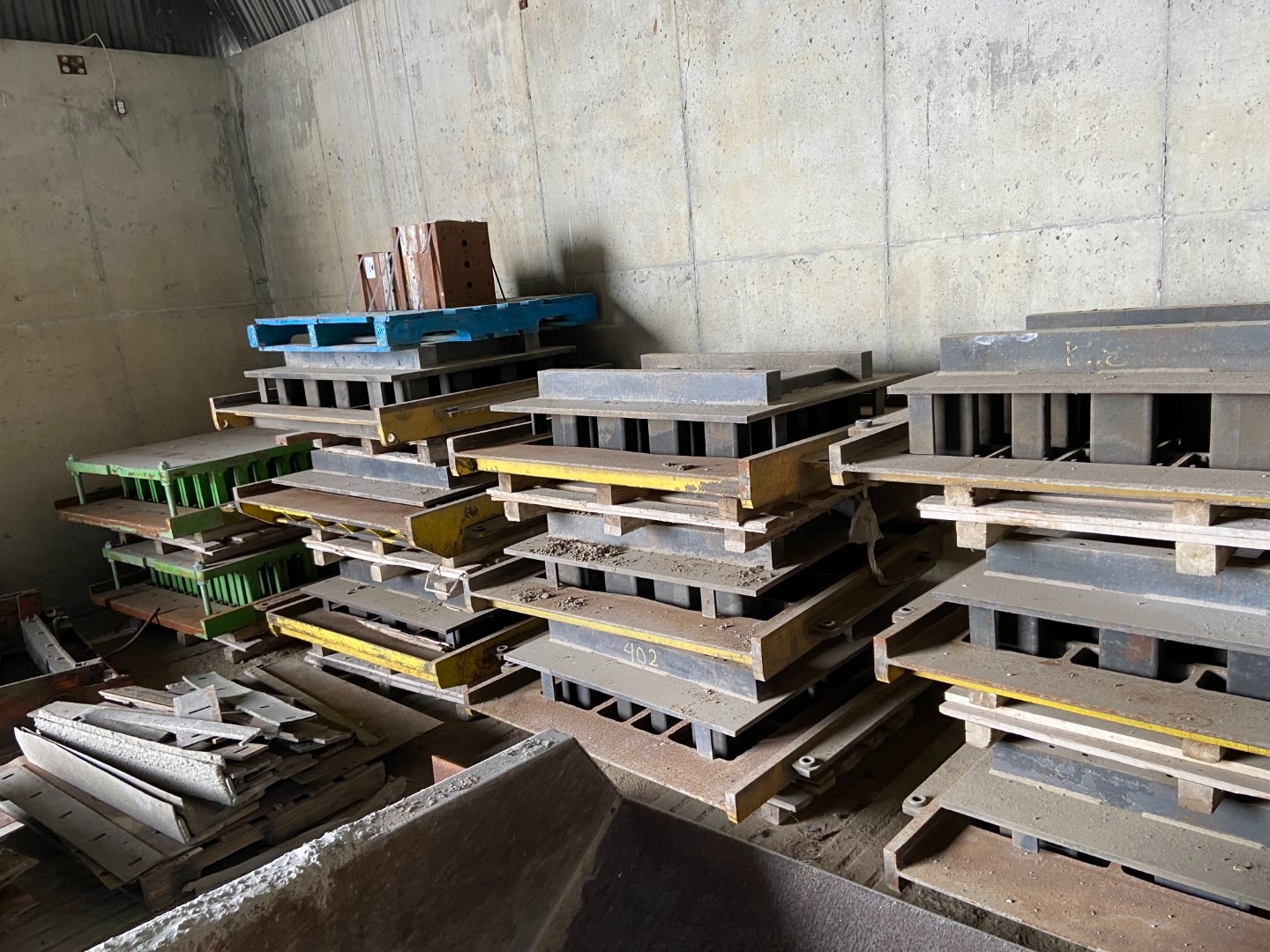

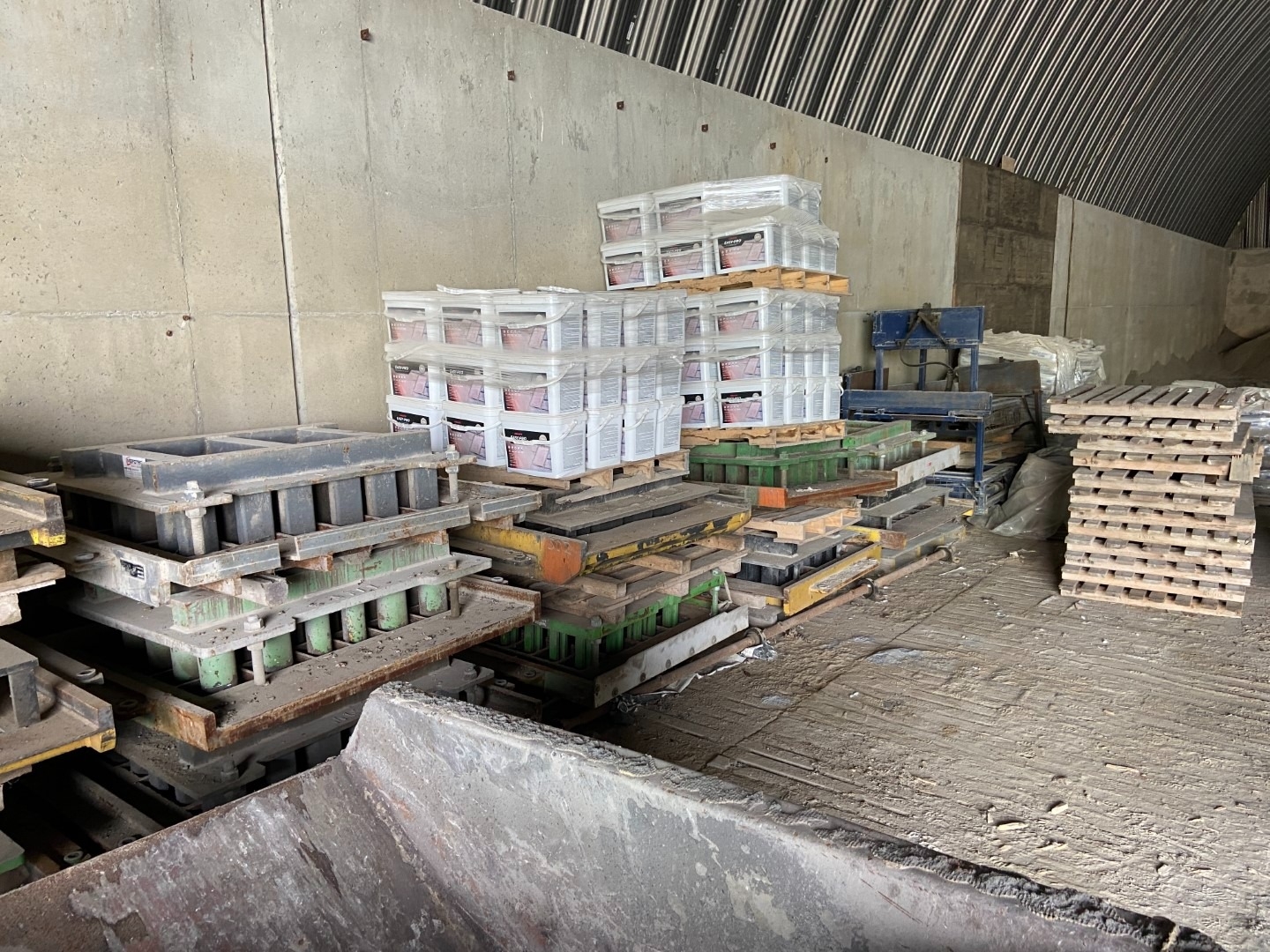

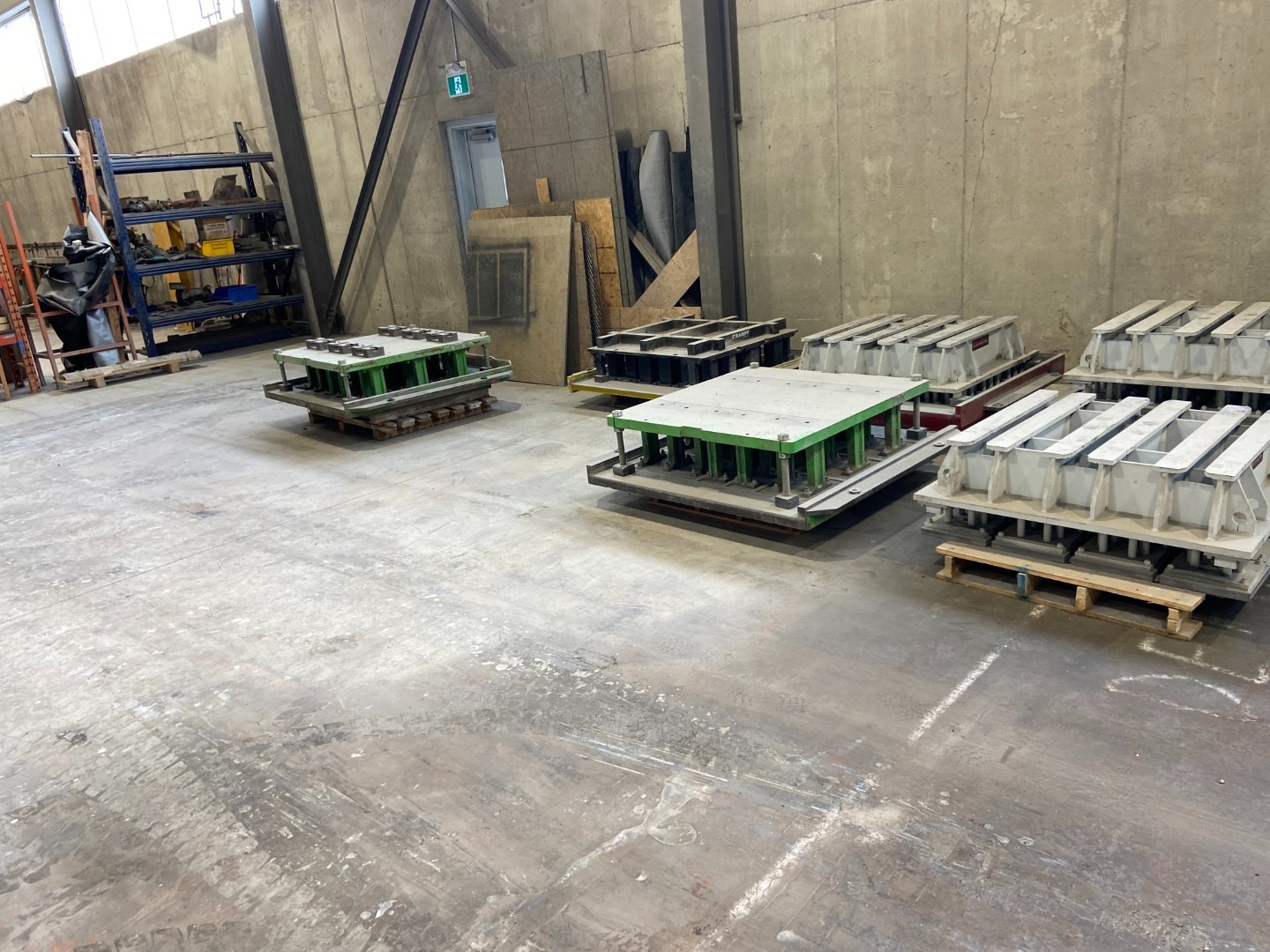

Approximately 10 molds from various manufacturers (KVM, Rampf, Kobra, etc …)
Used Vena 48 inch splitter. Comes with ACP bar feeding system, plc controls and hydraulic unit

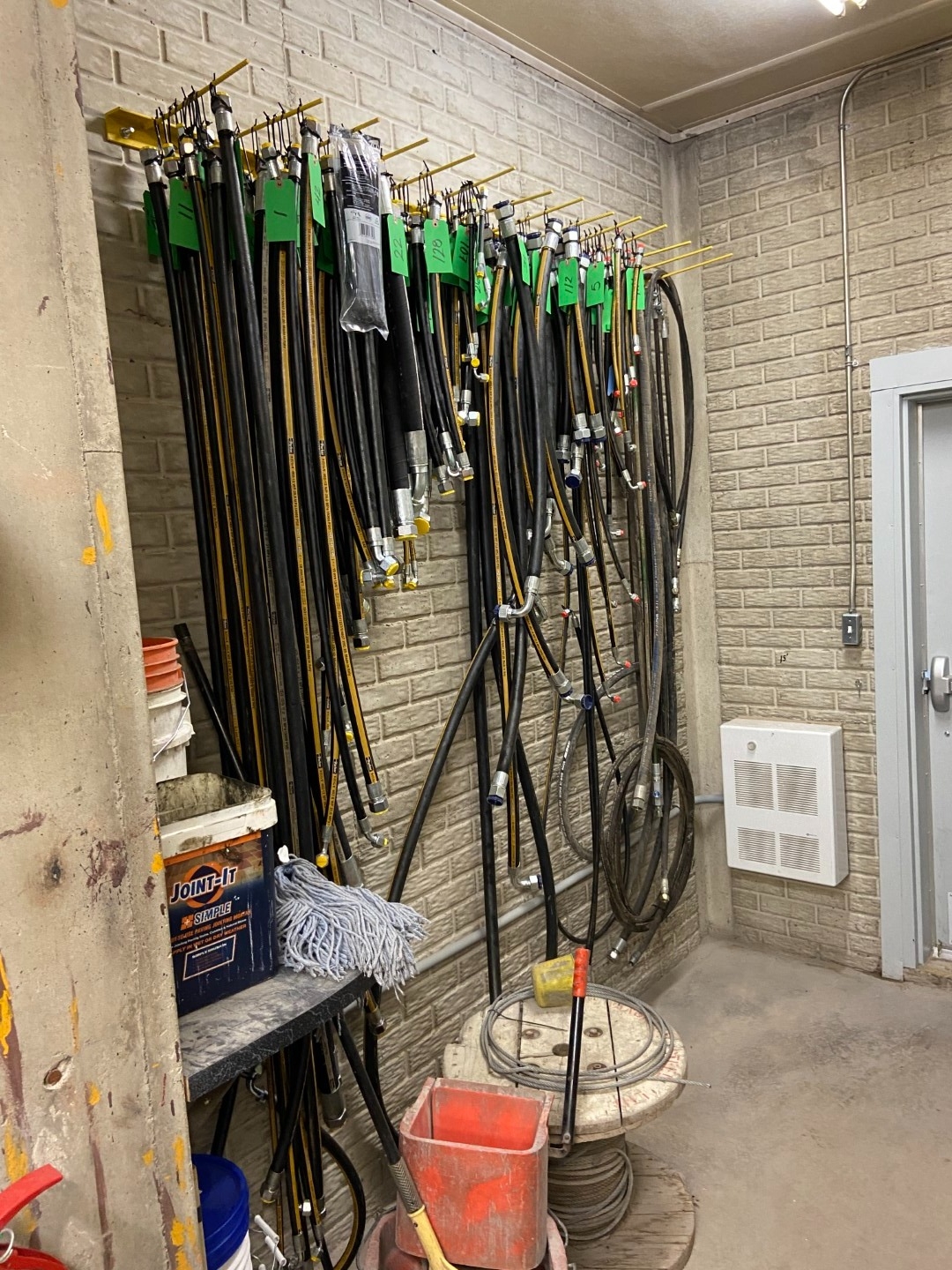

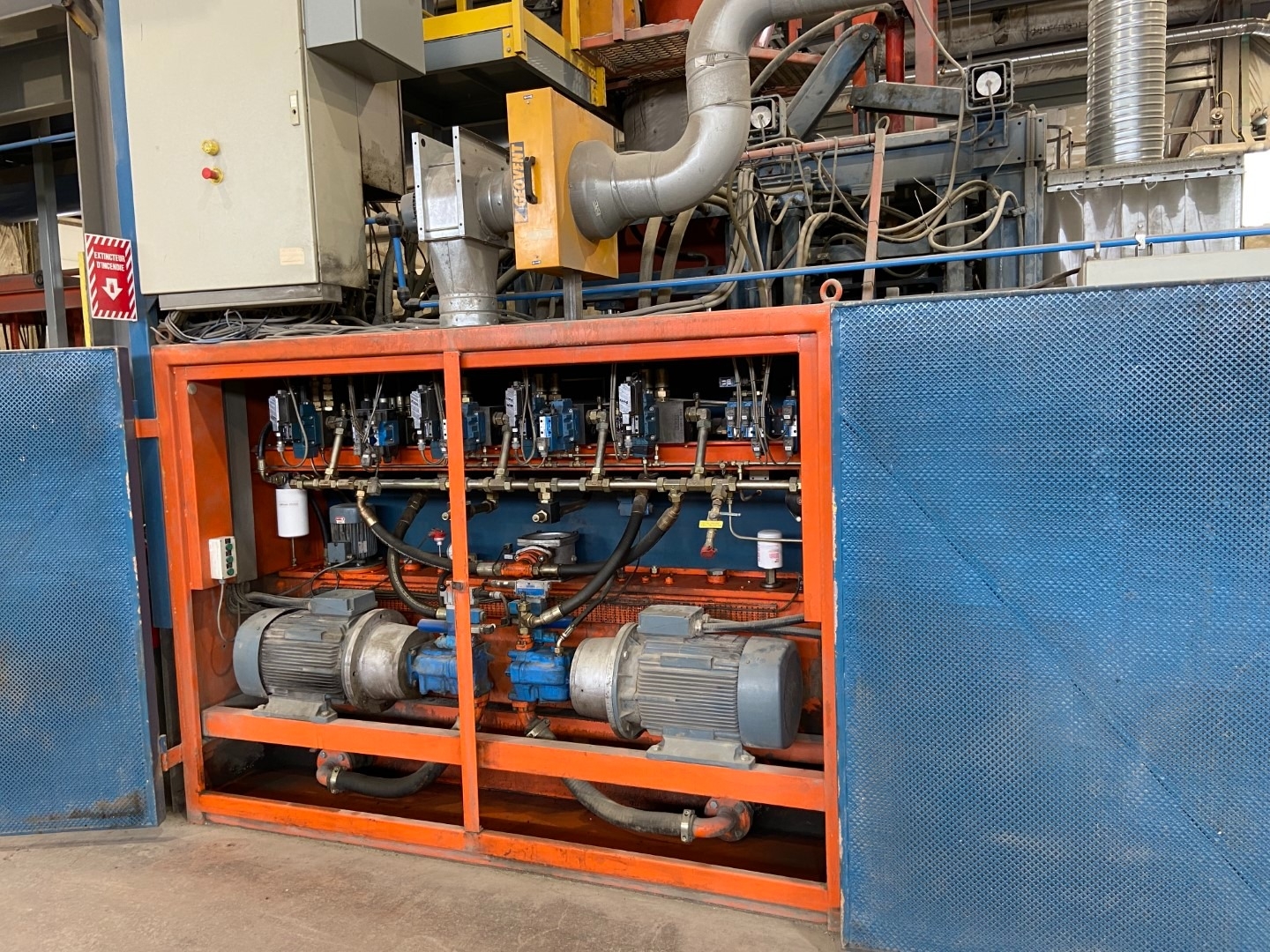

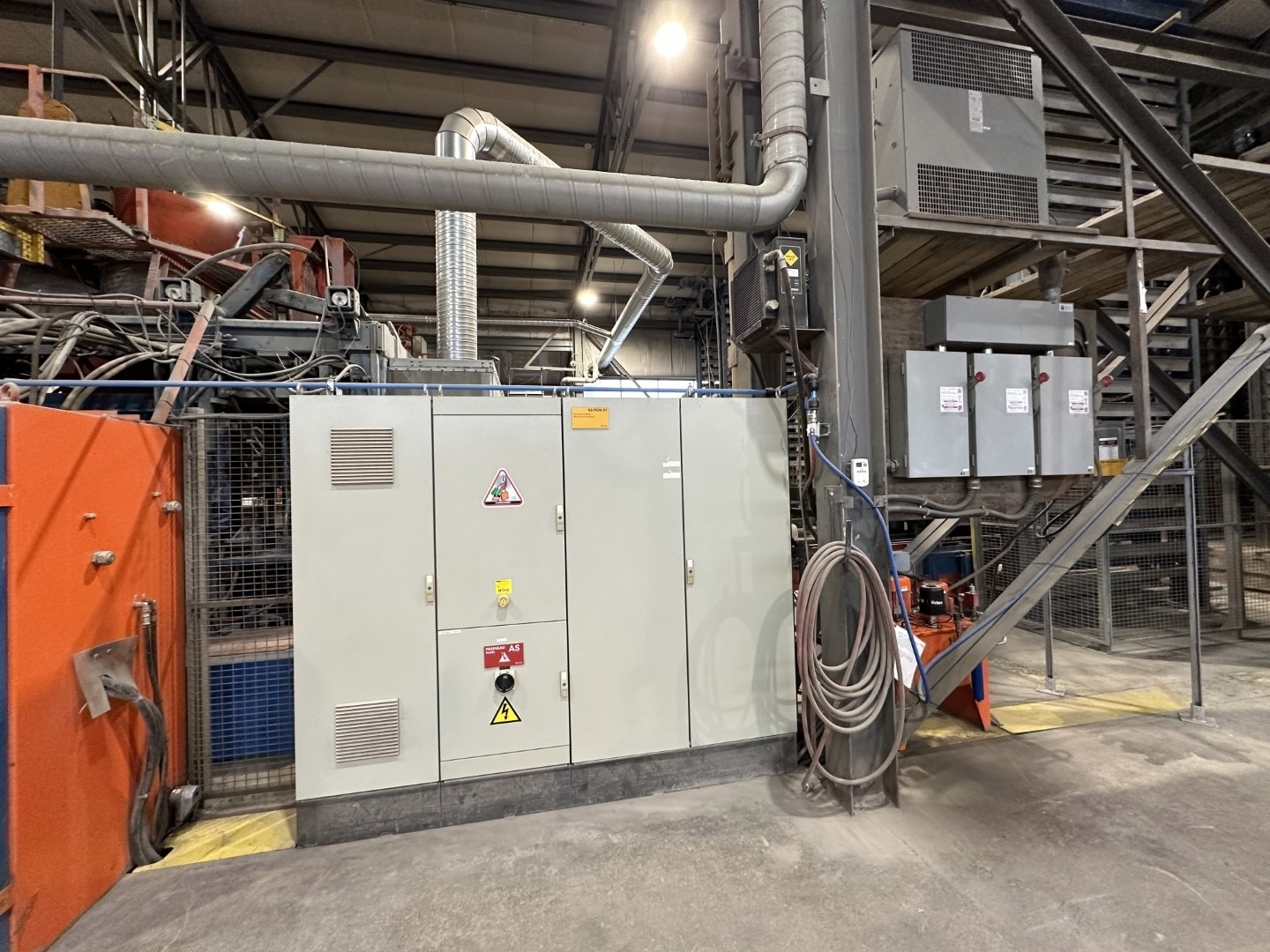

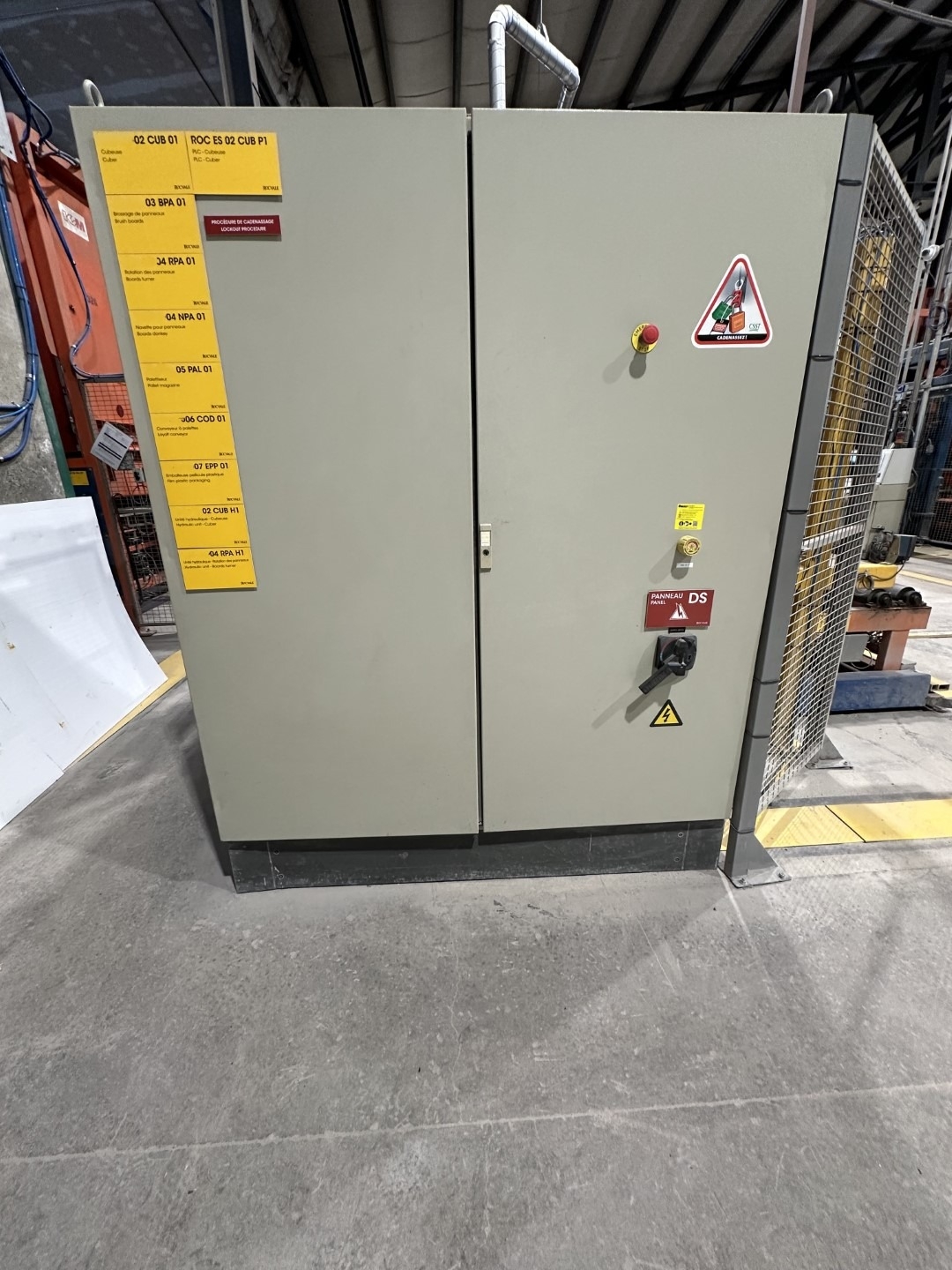

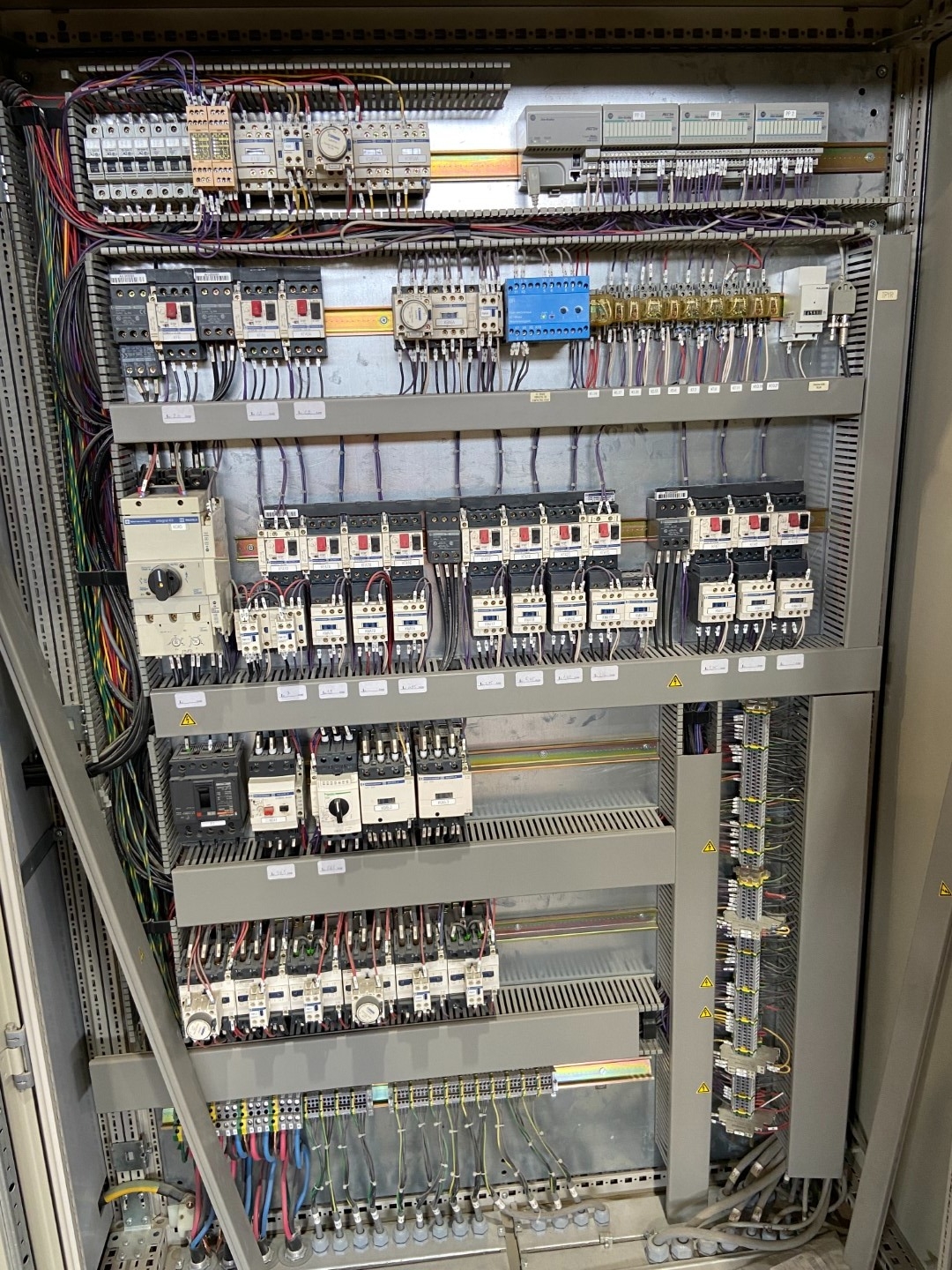

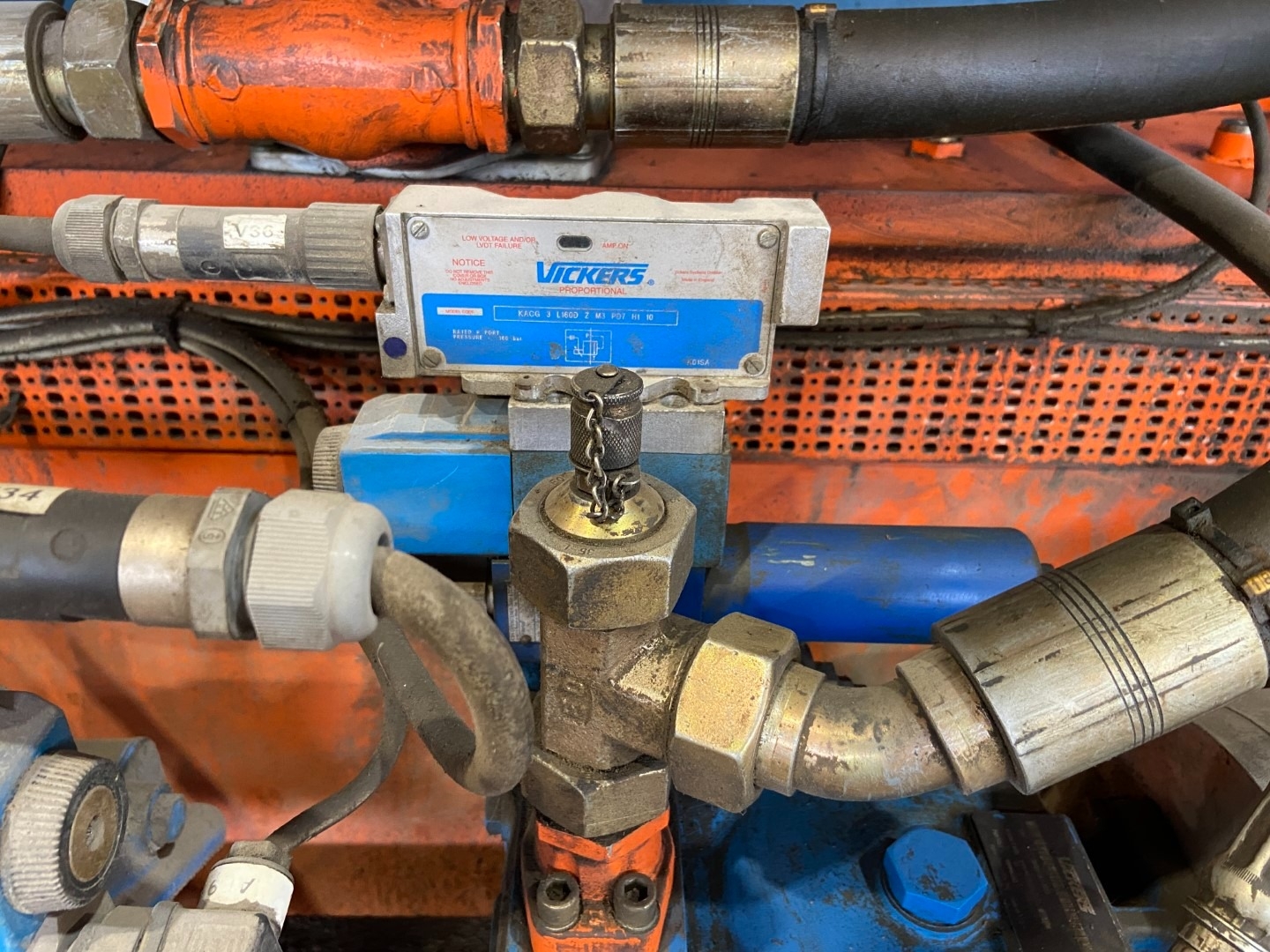

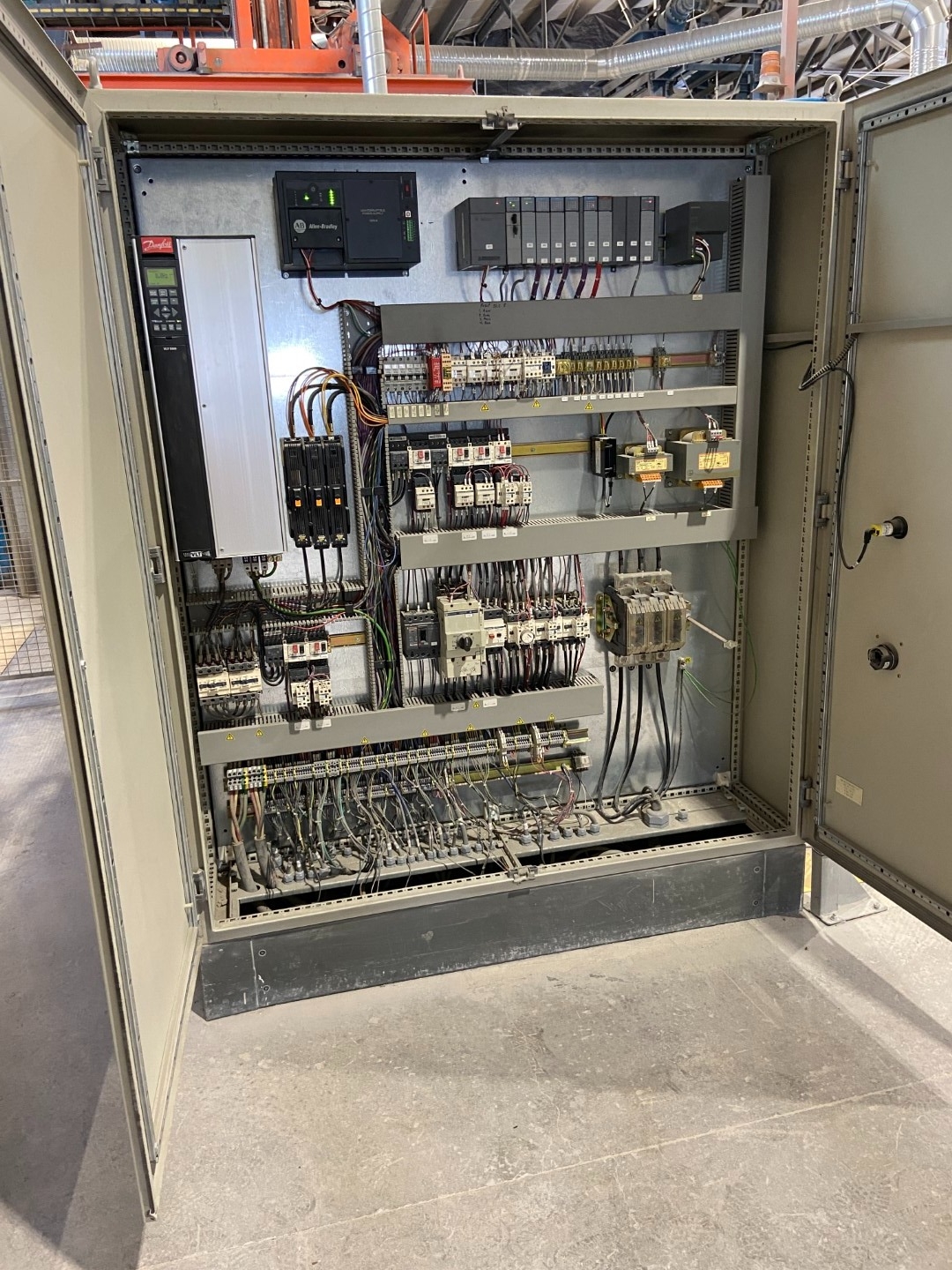

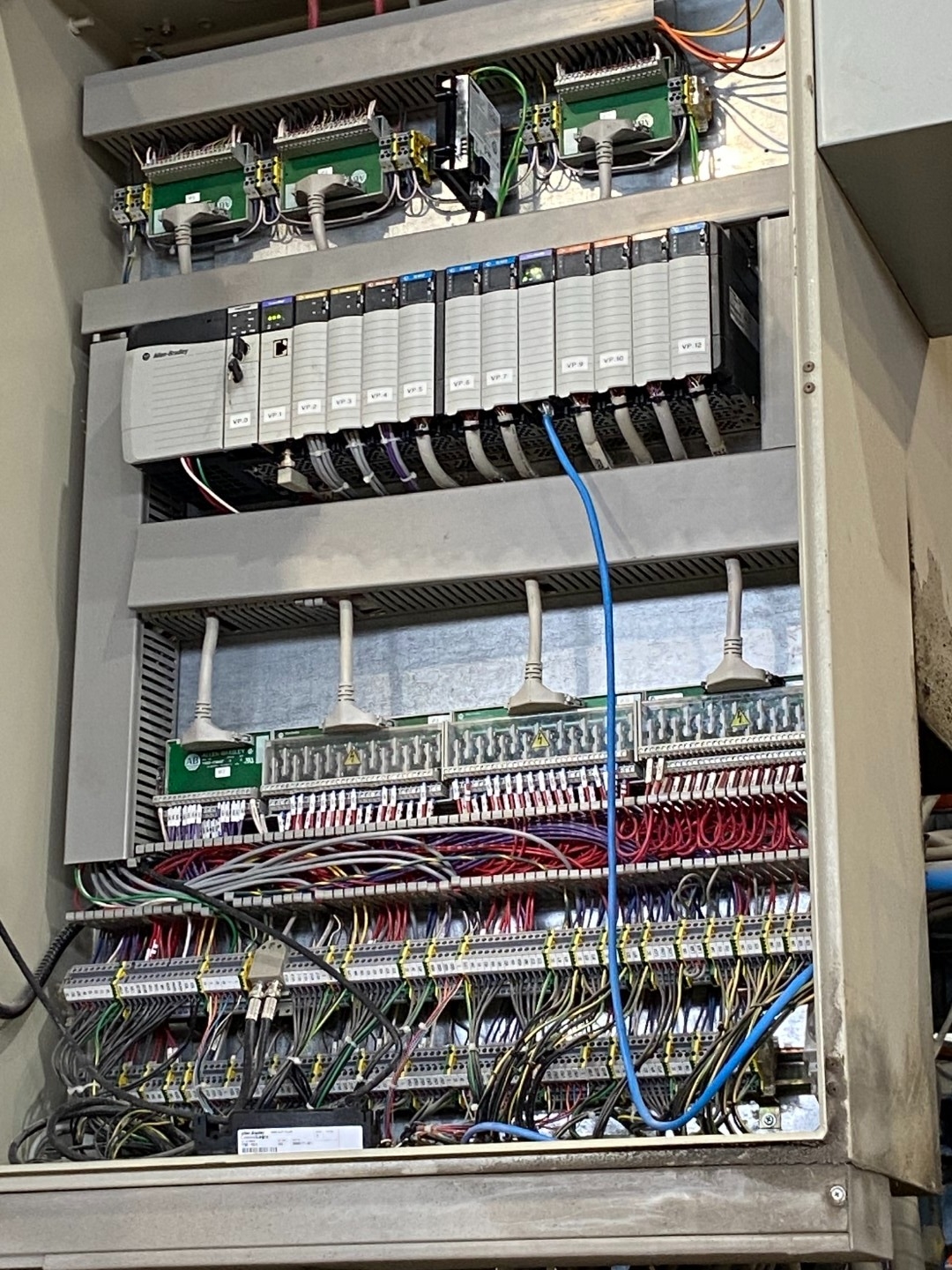

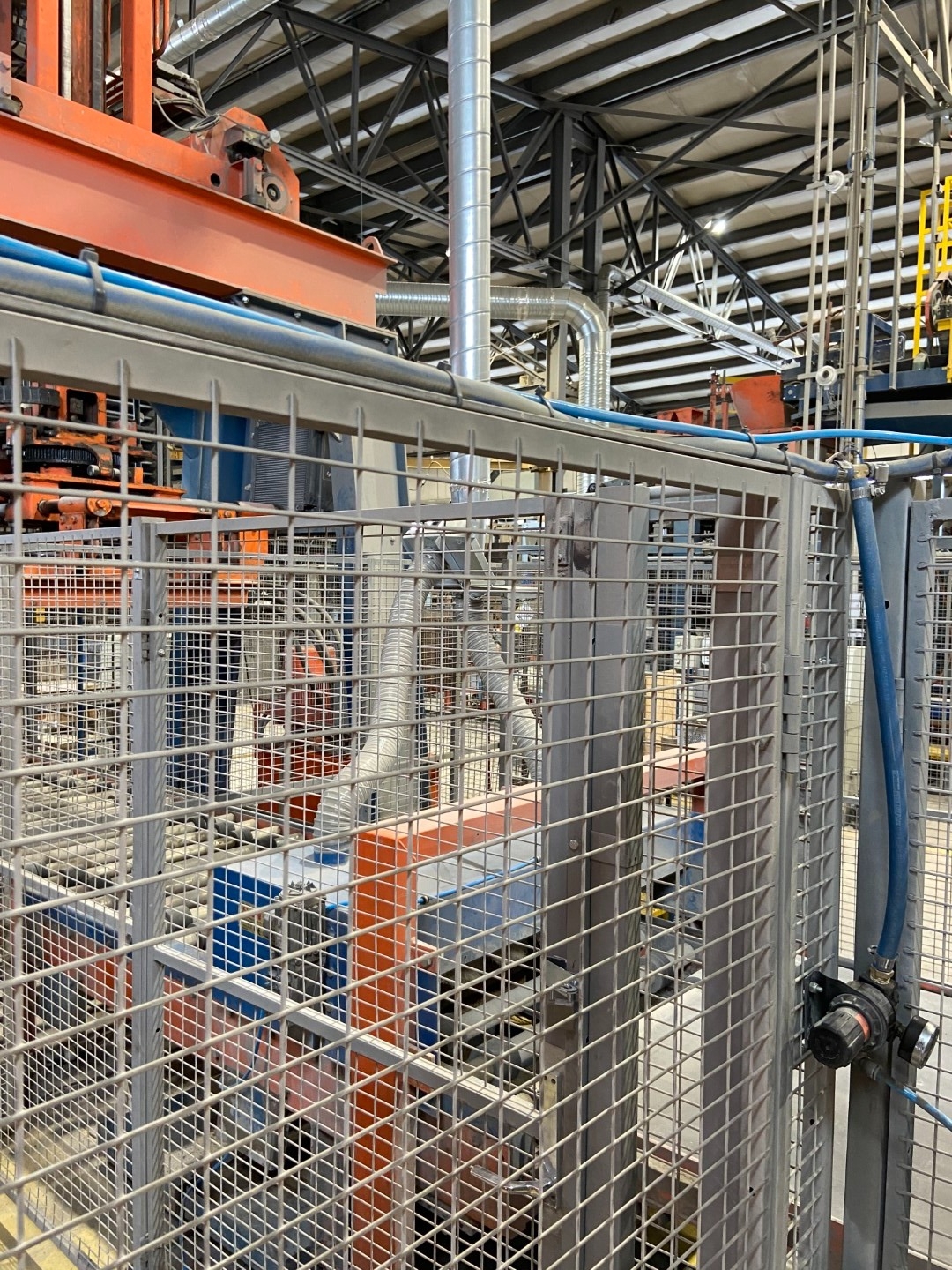

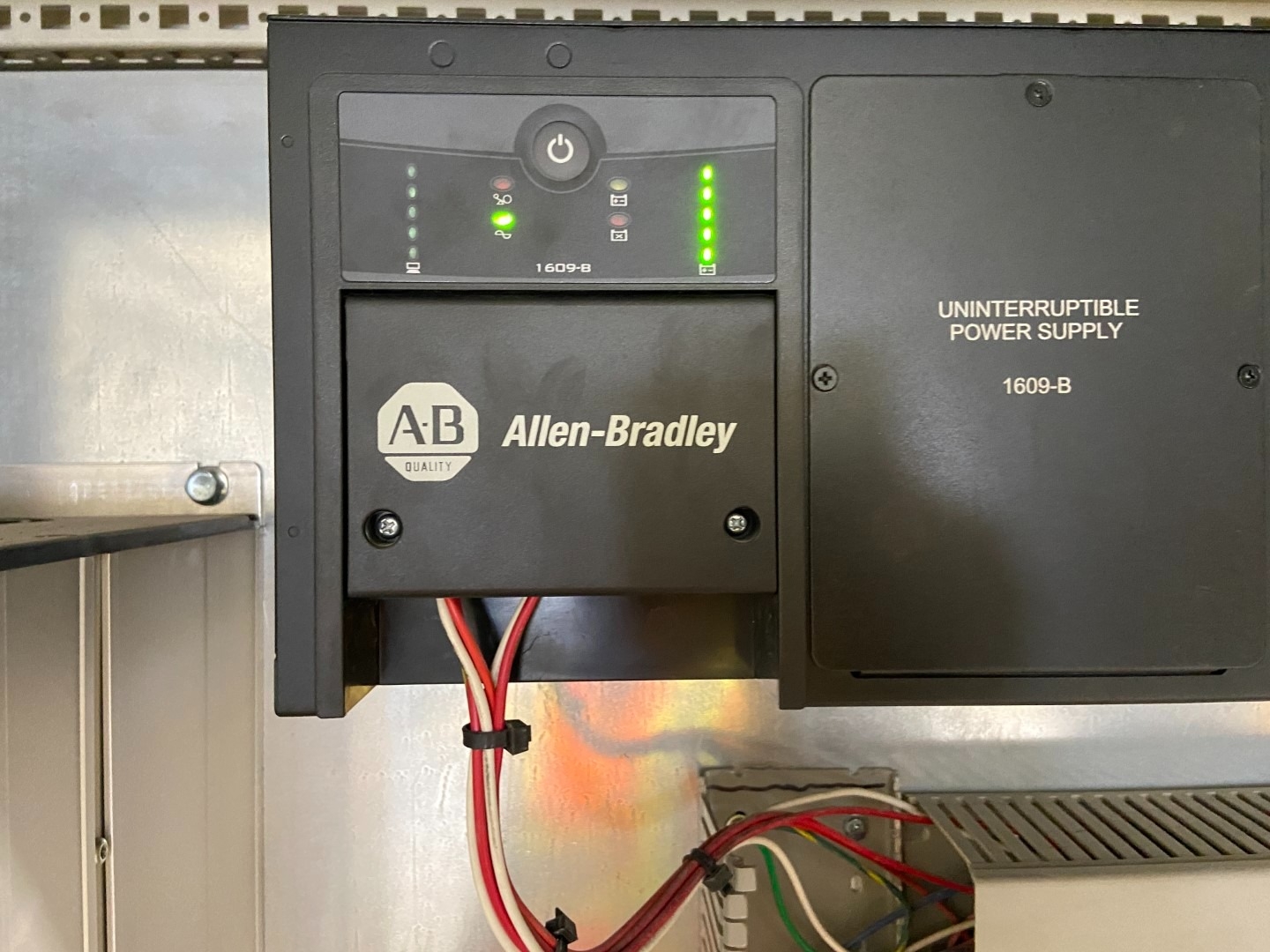

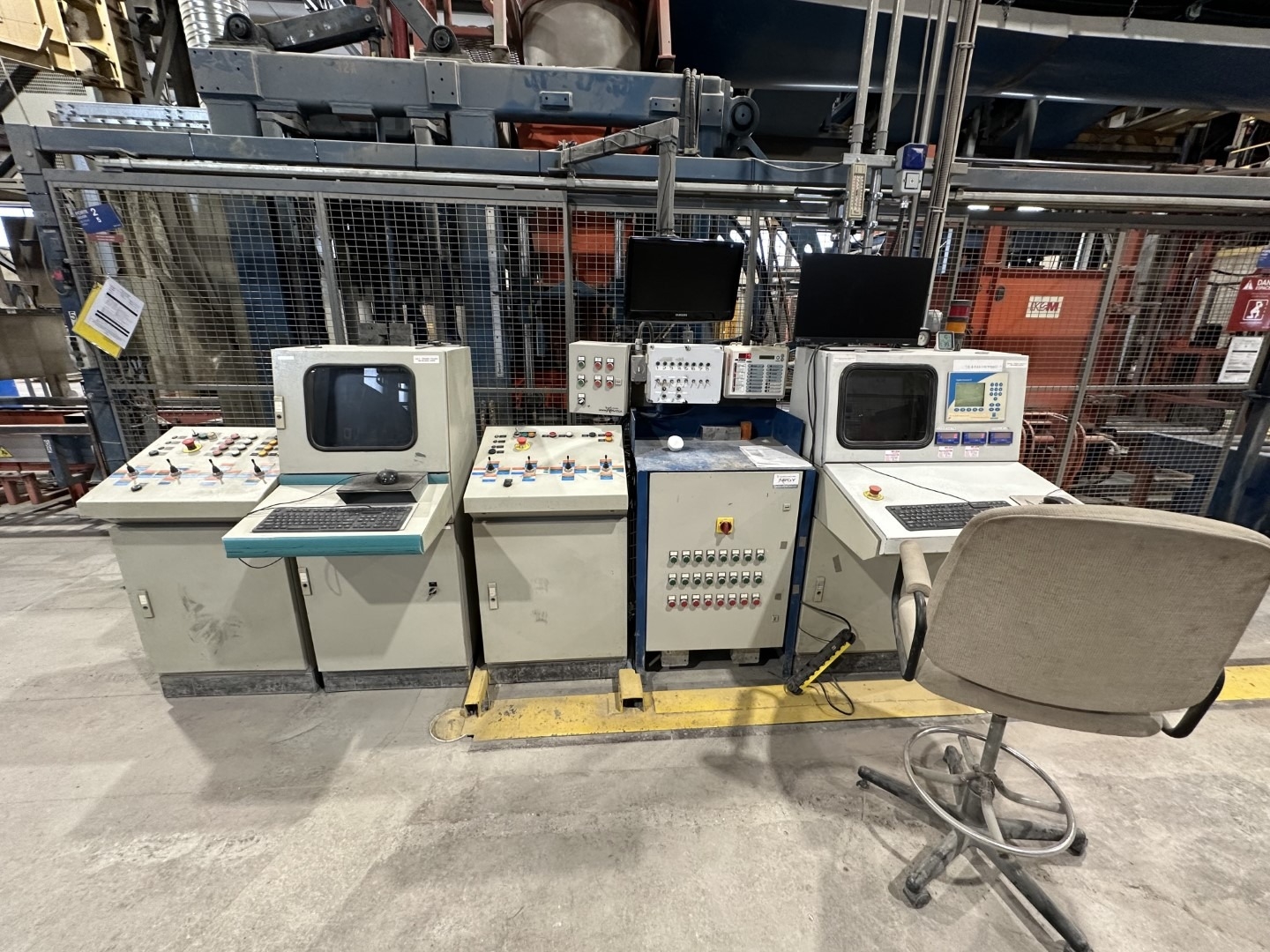

Related Hydraulic power packs, Electrical cabinets, PLC controls, security fencing.

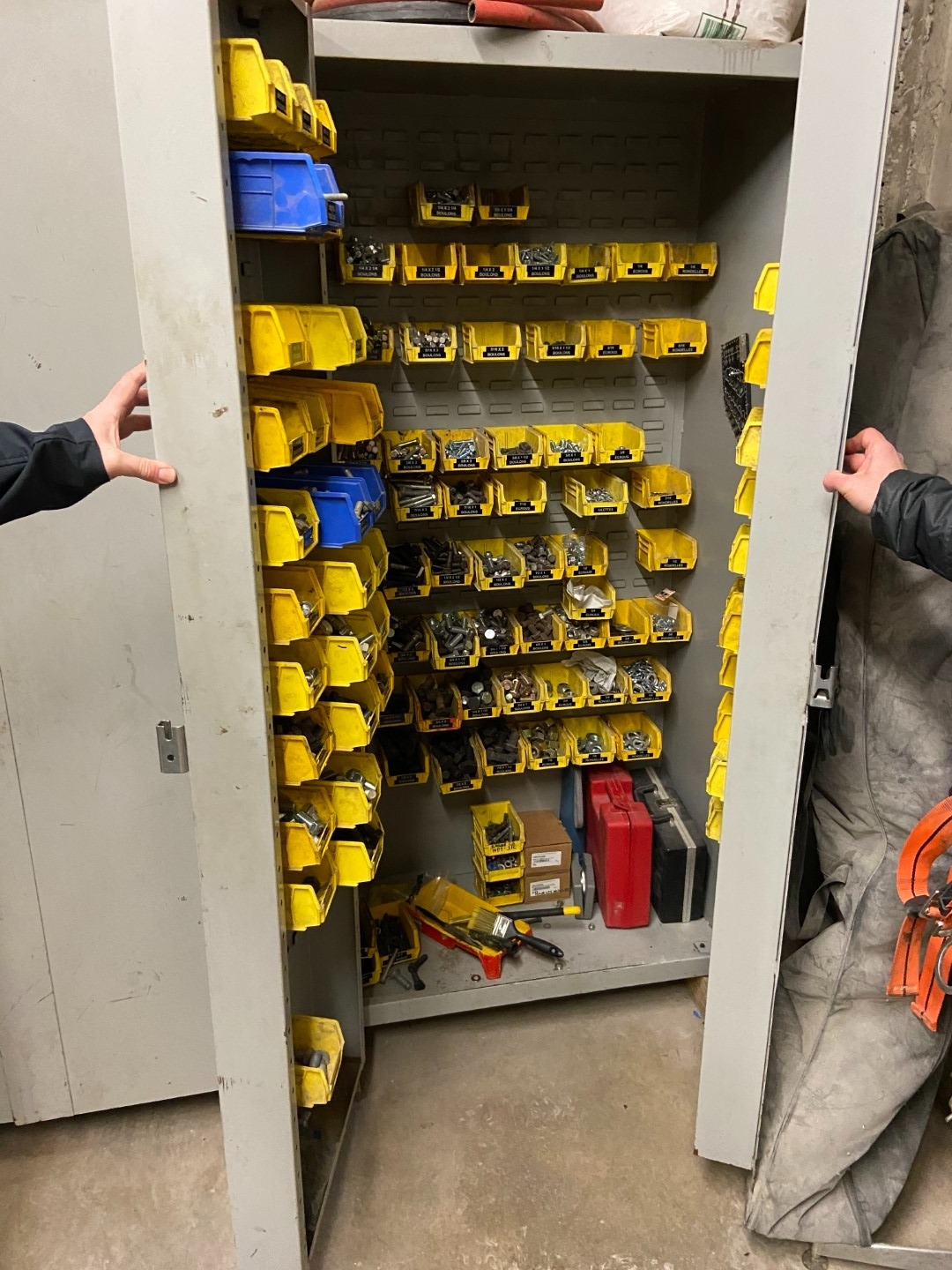

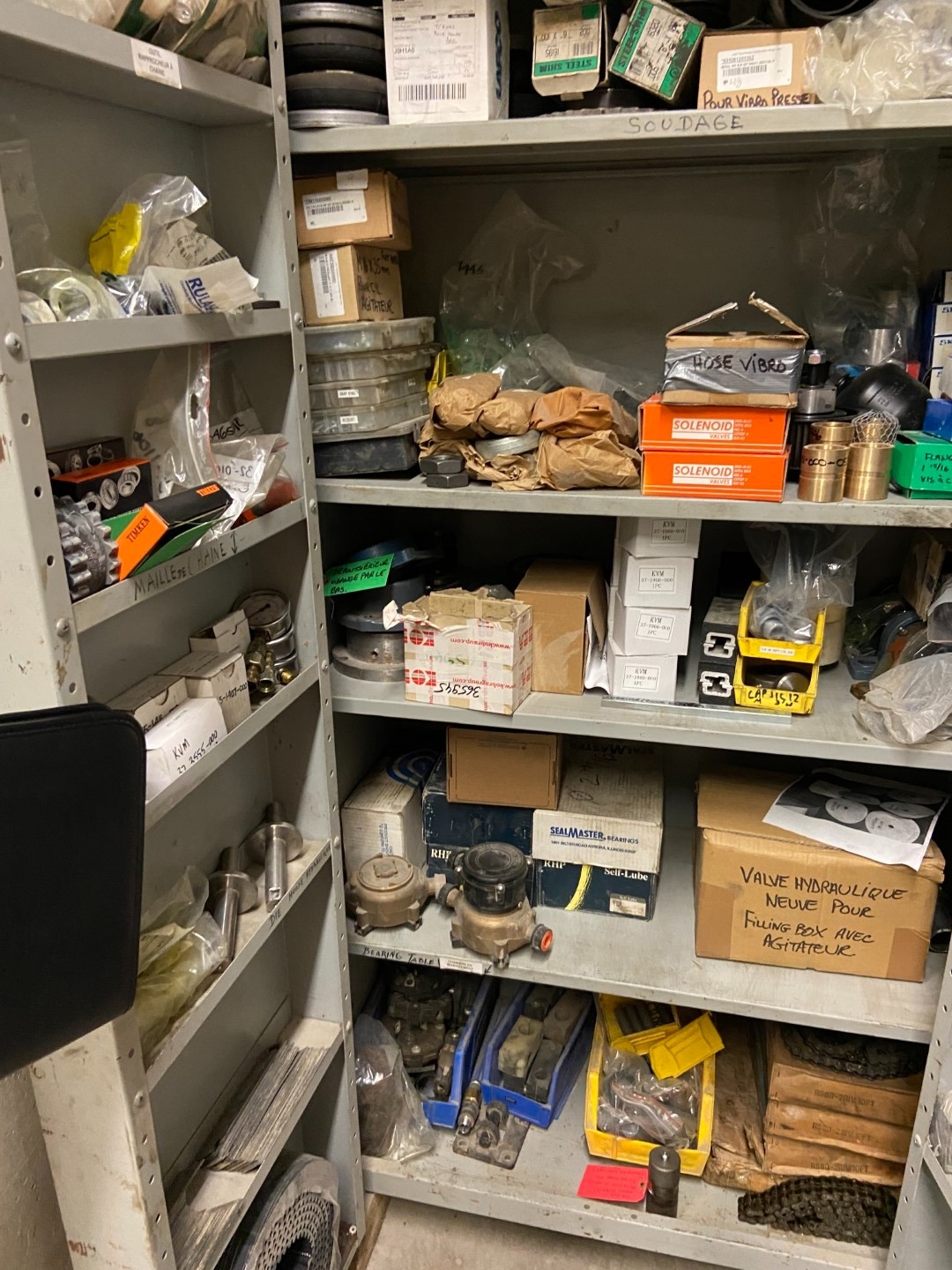

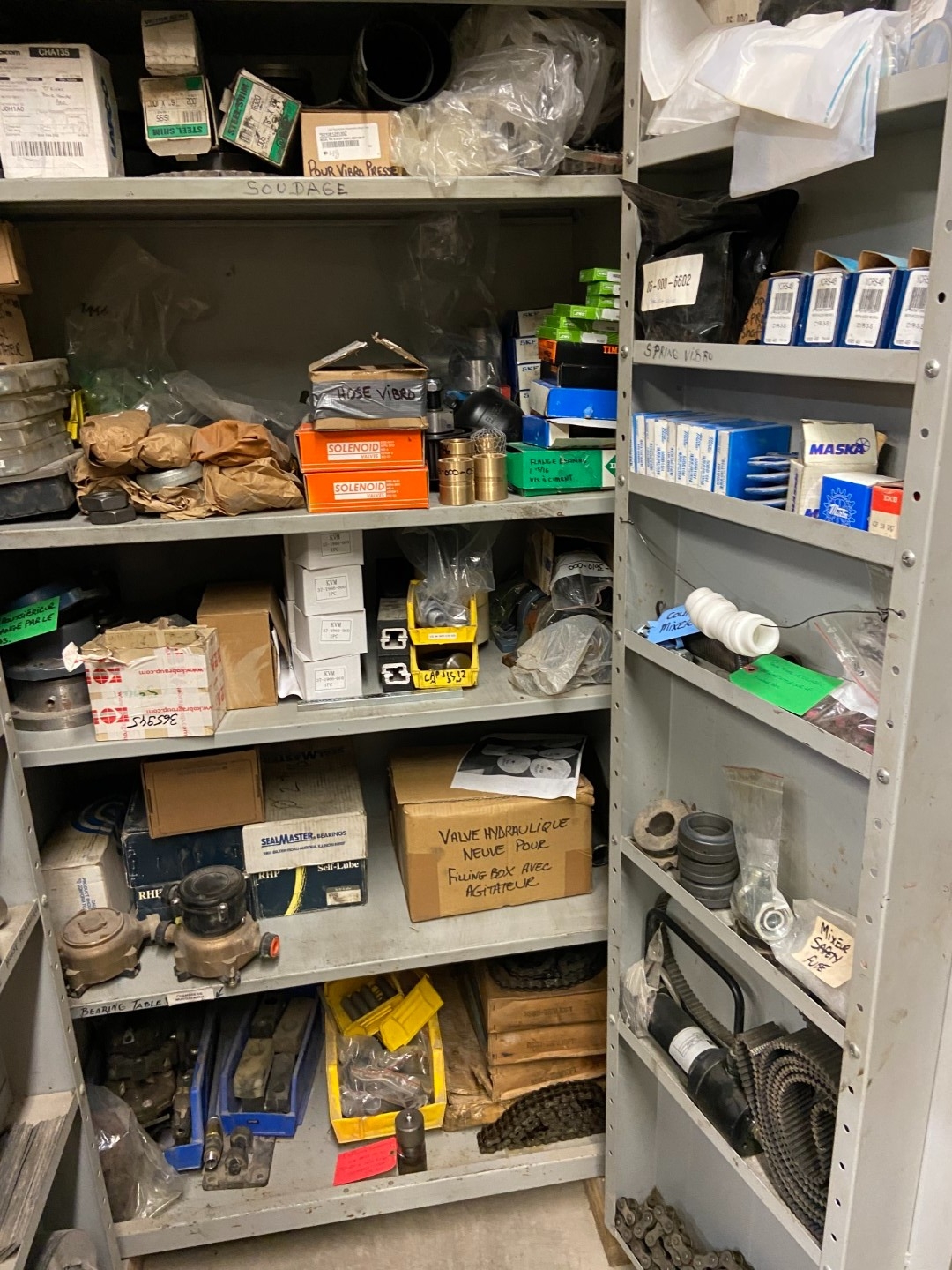

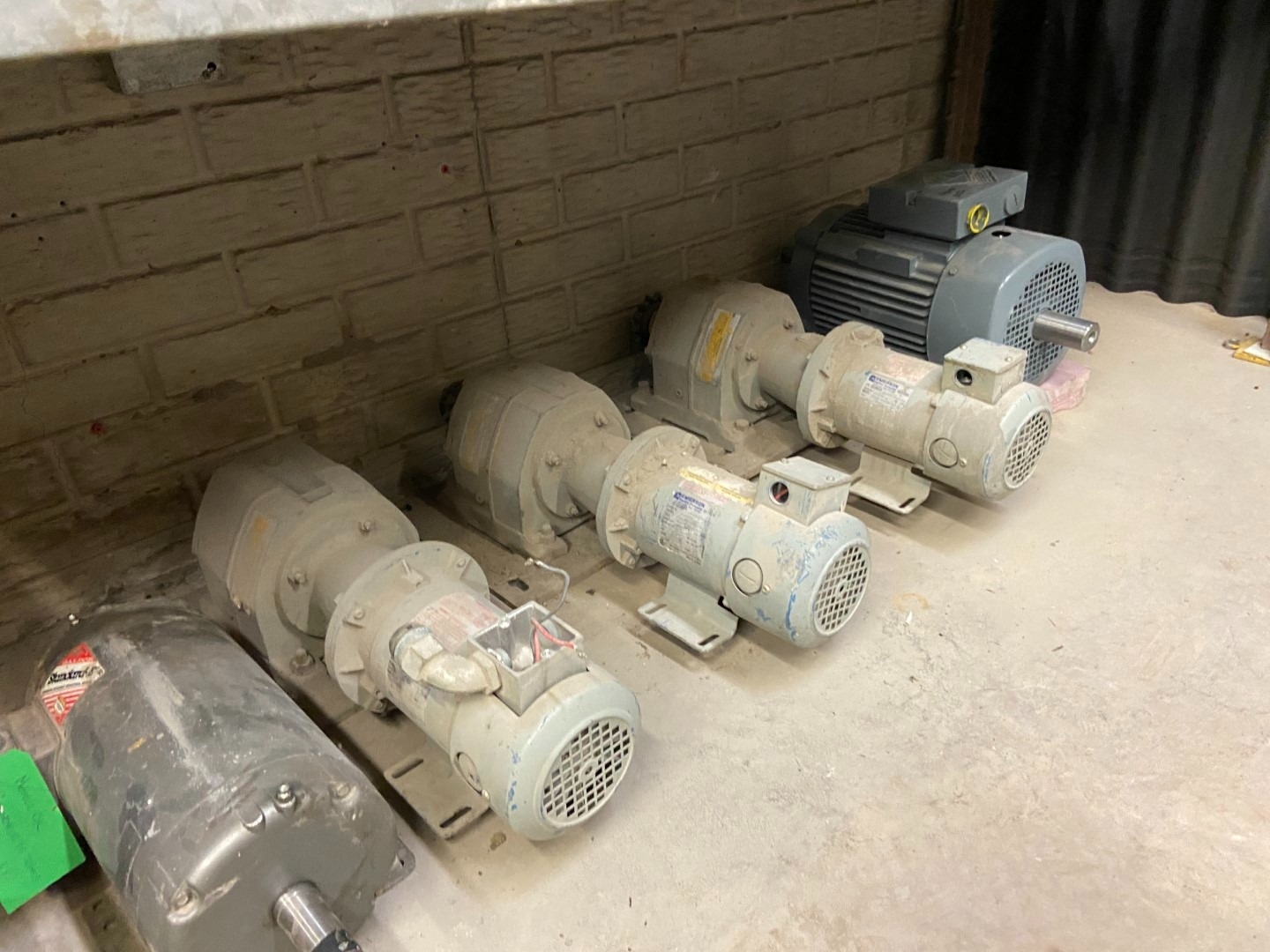

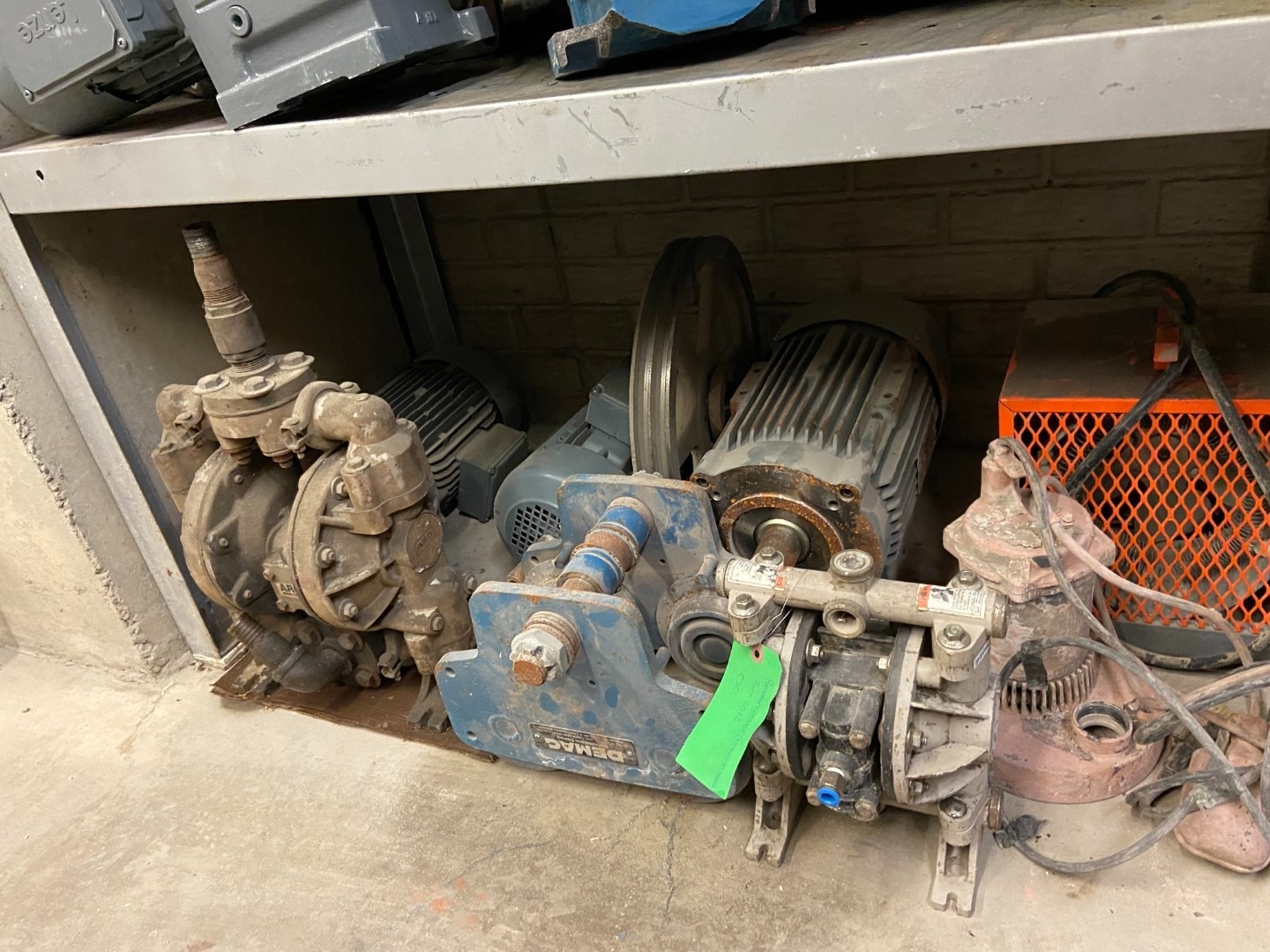

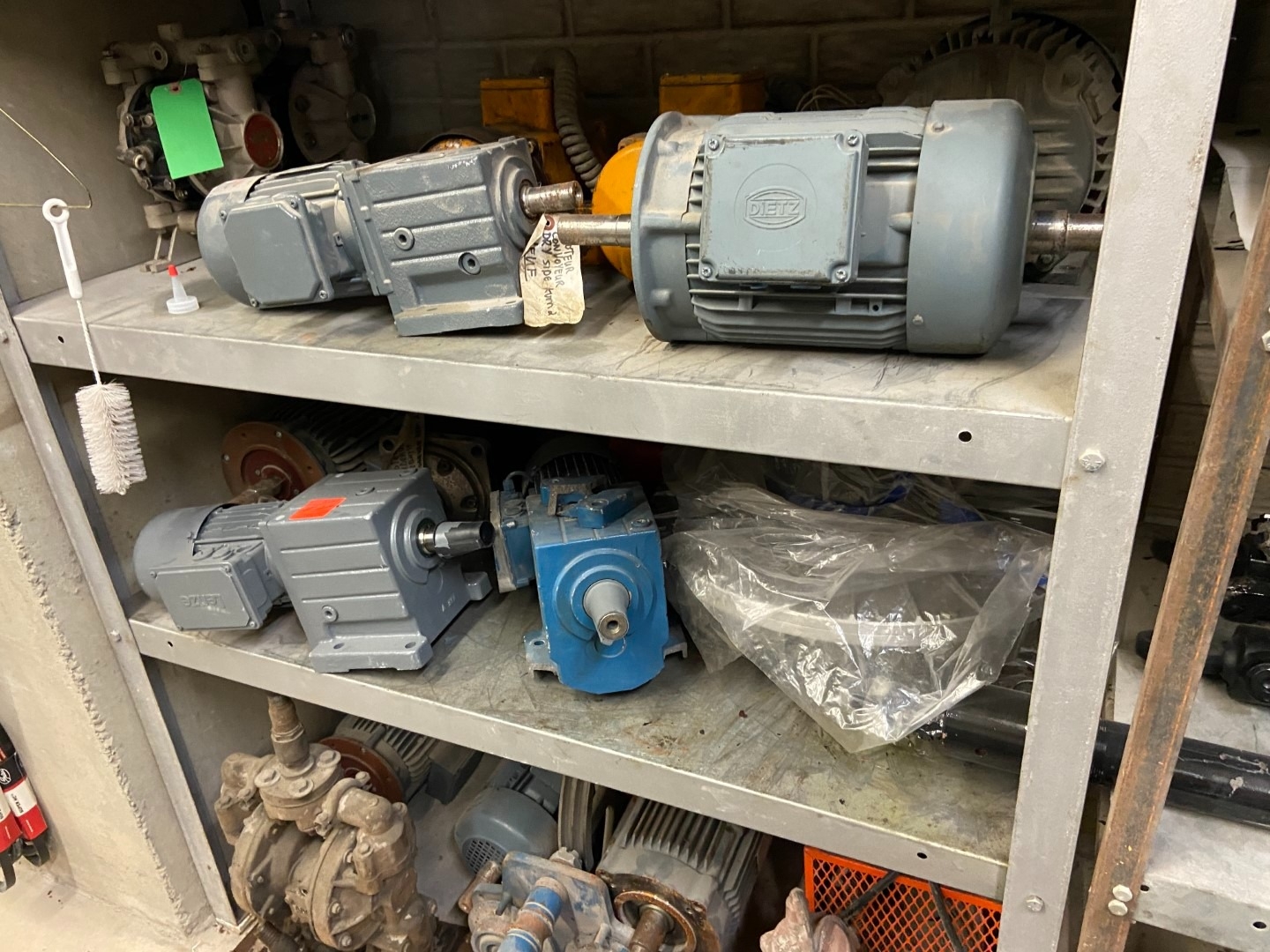

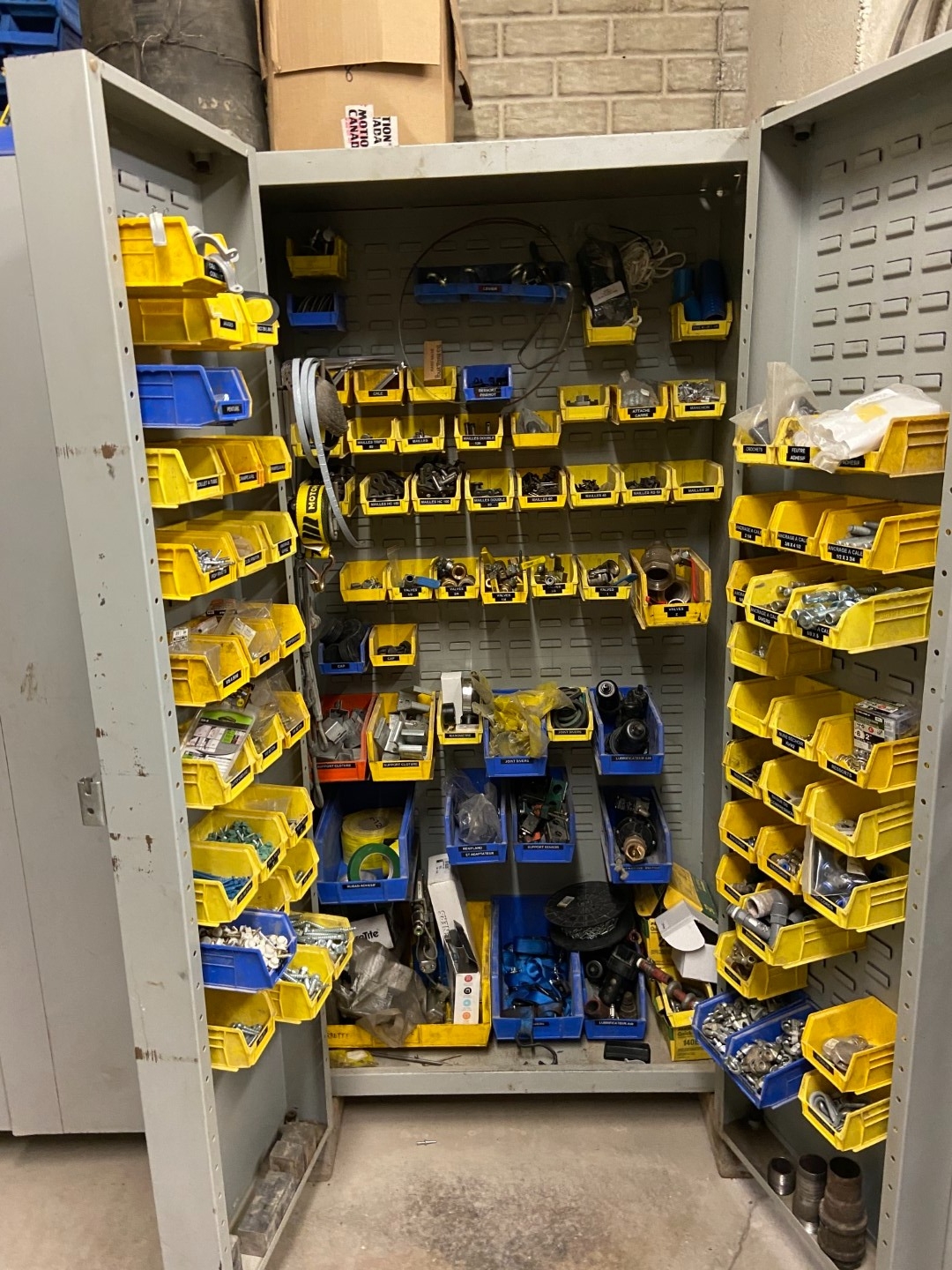

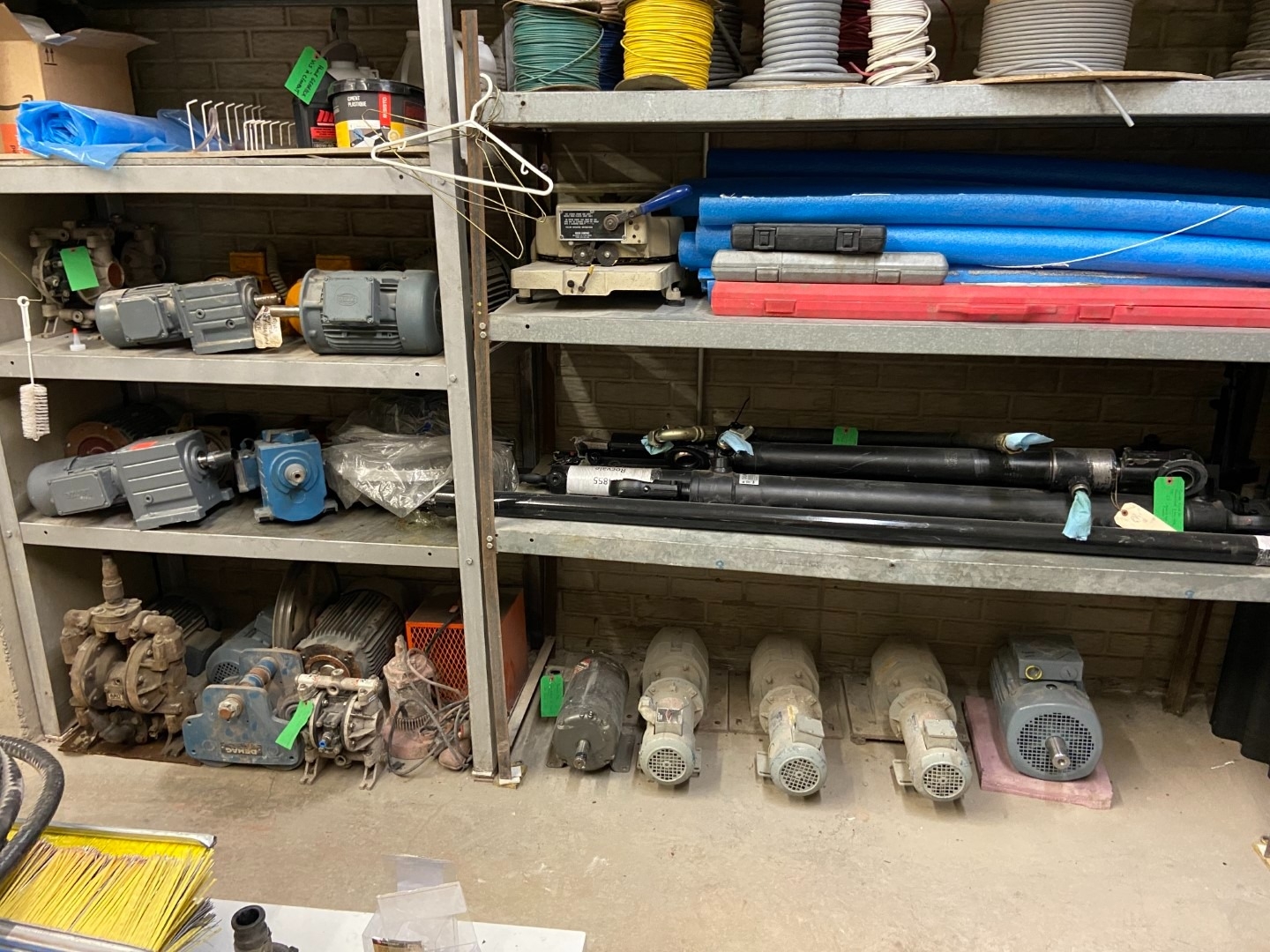

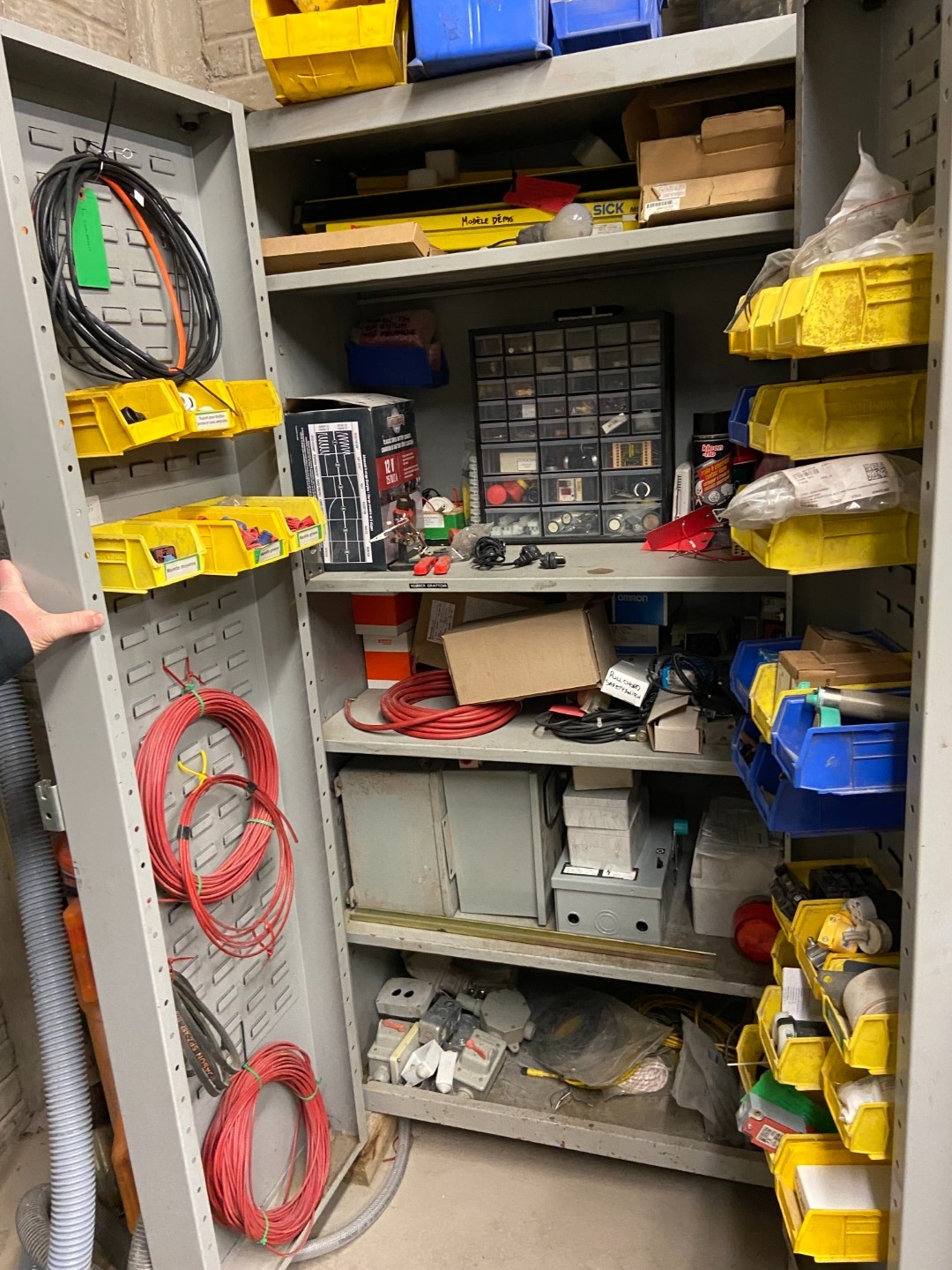

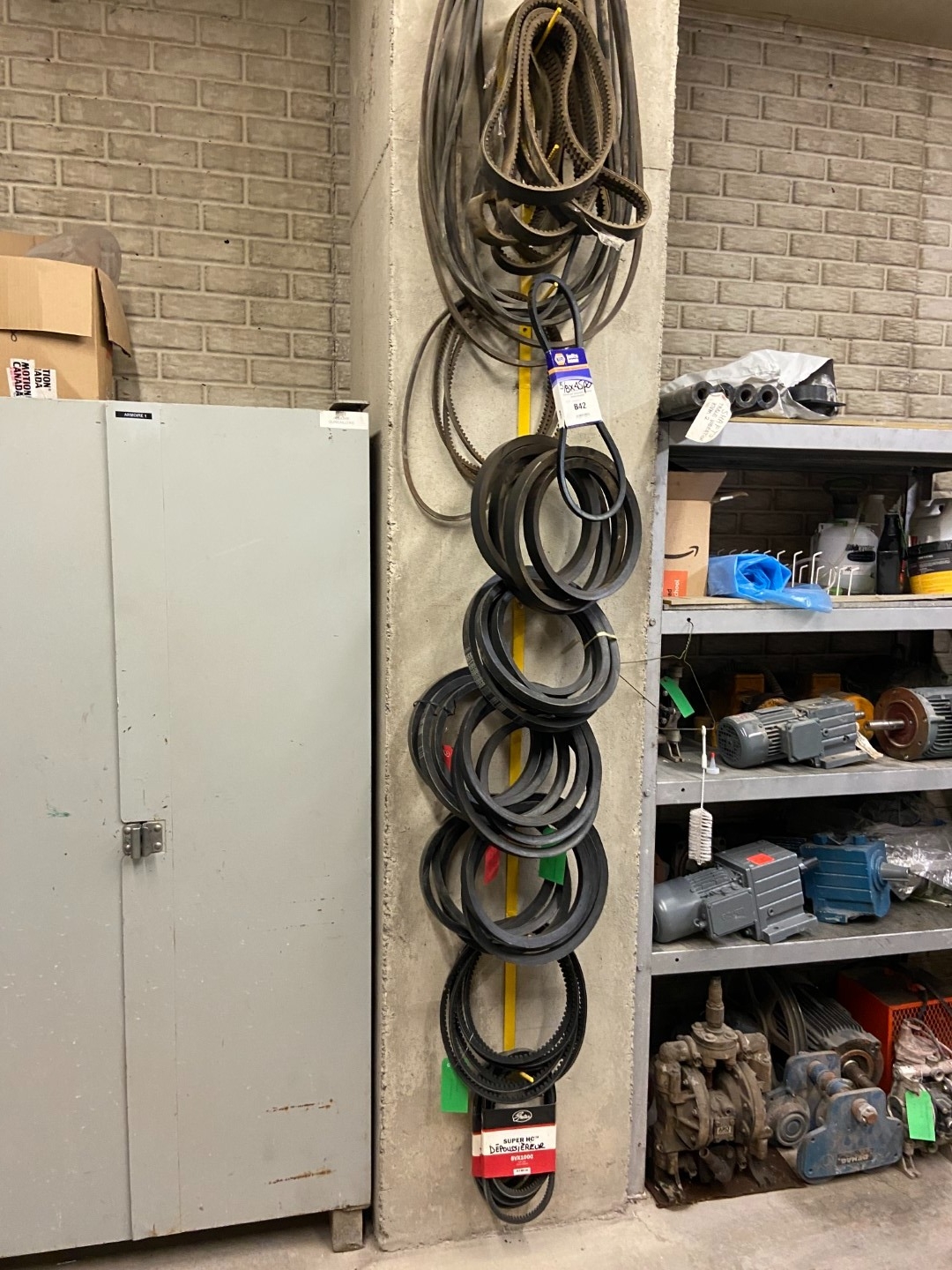

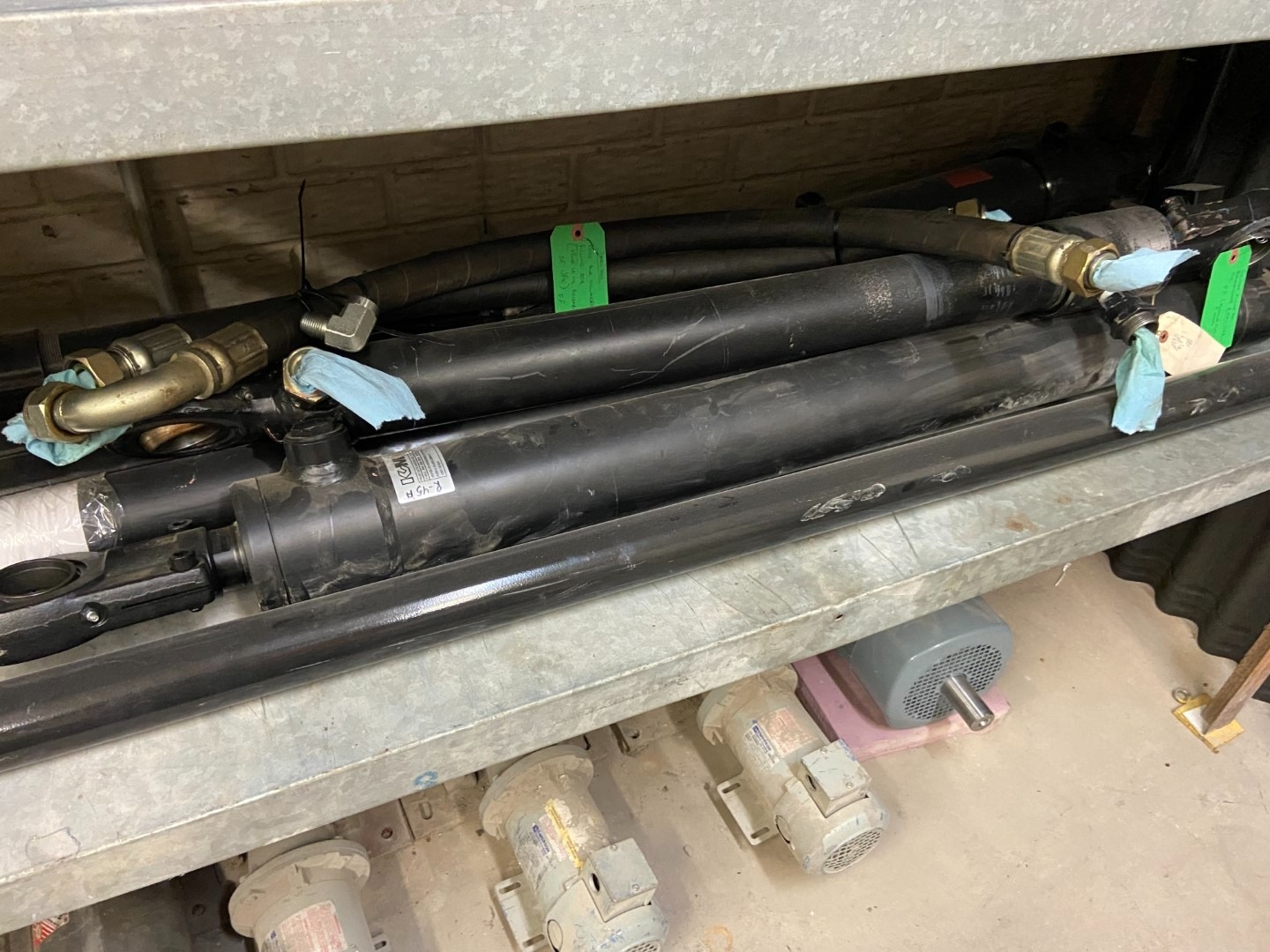

Related spare parts.

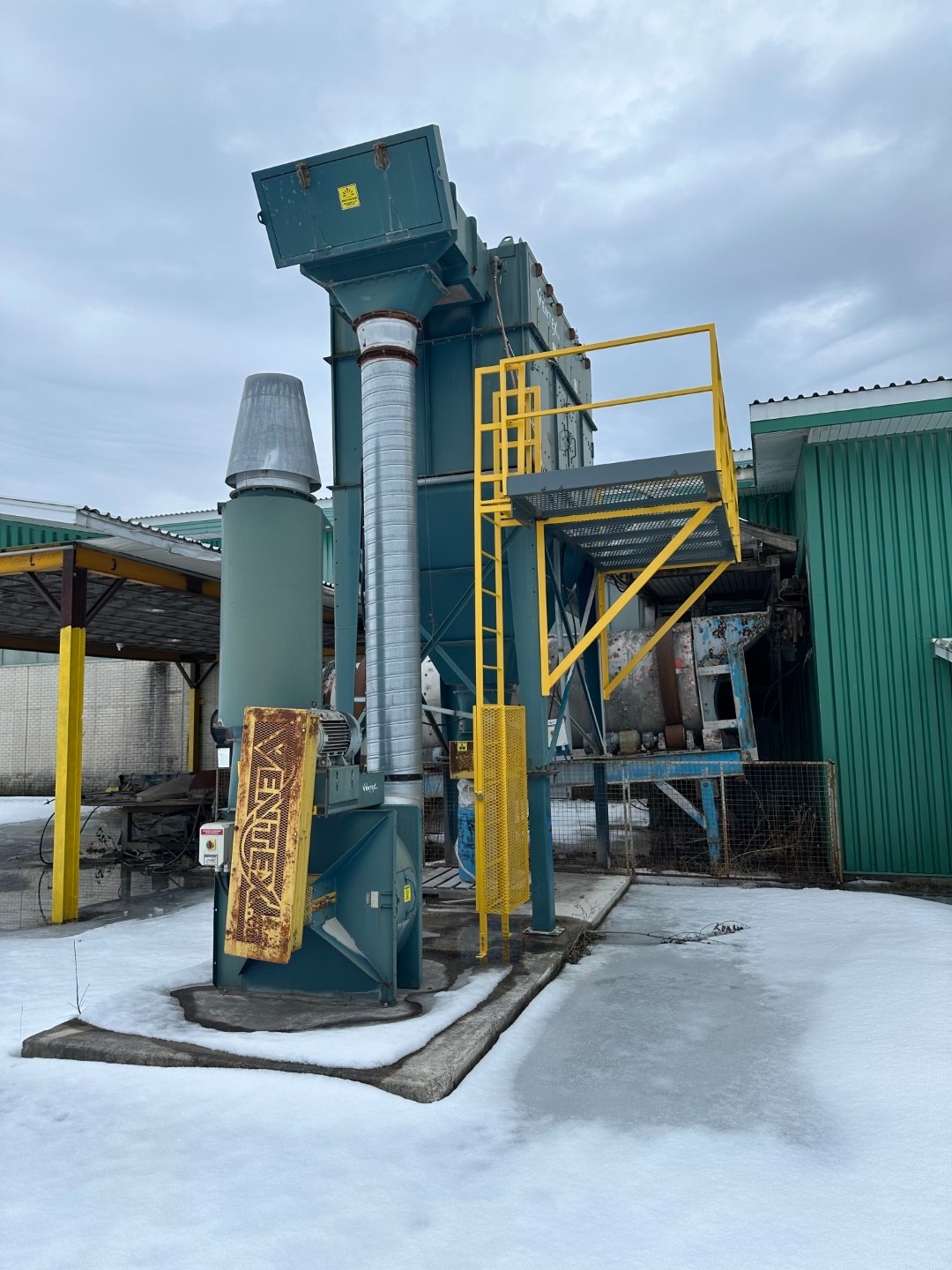

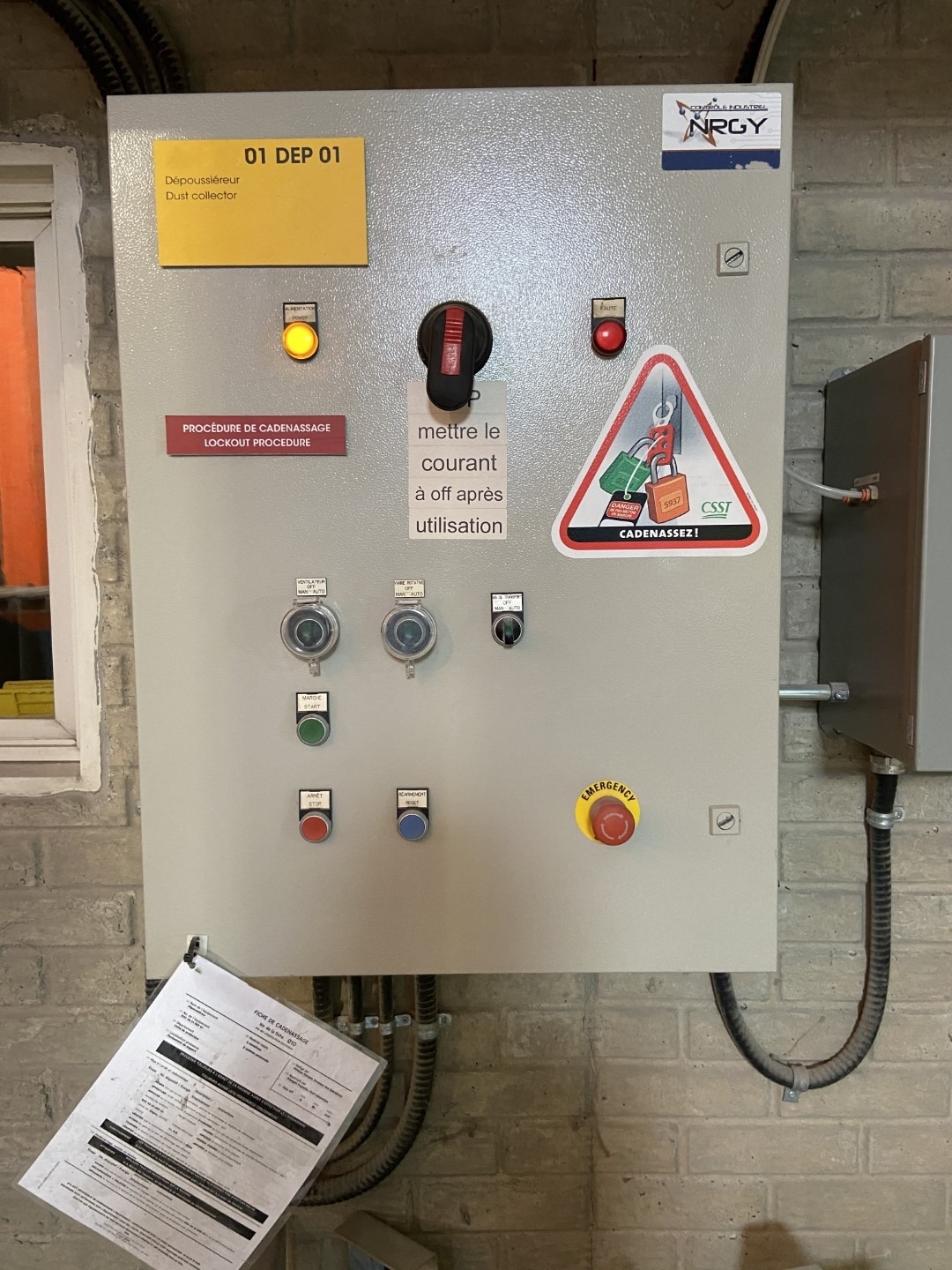

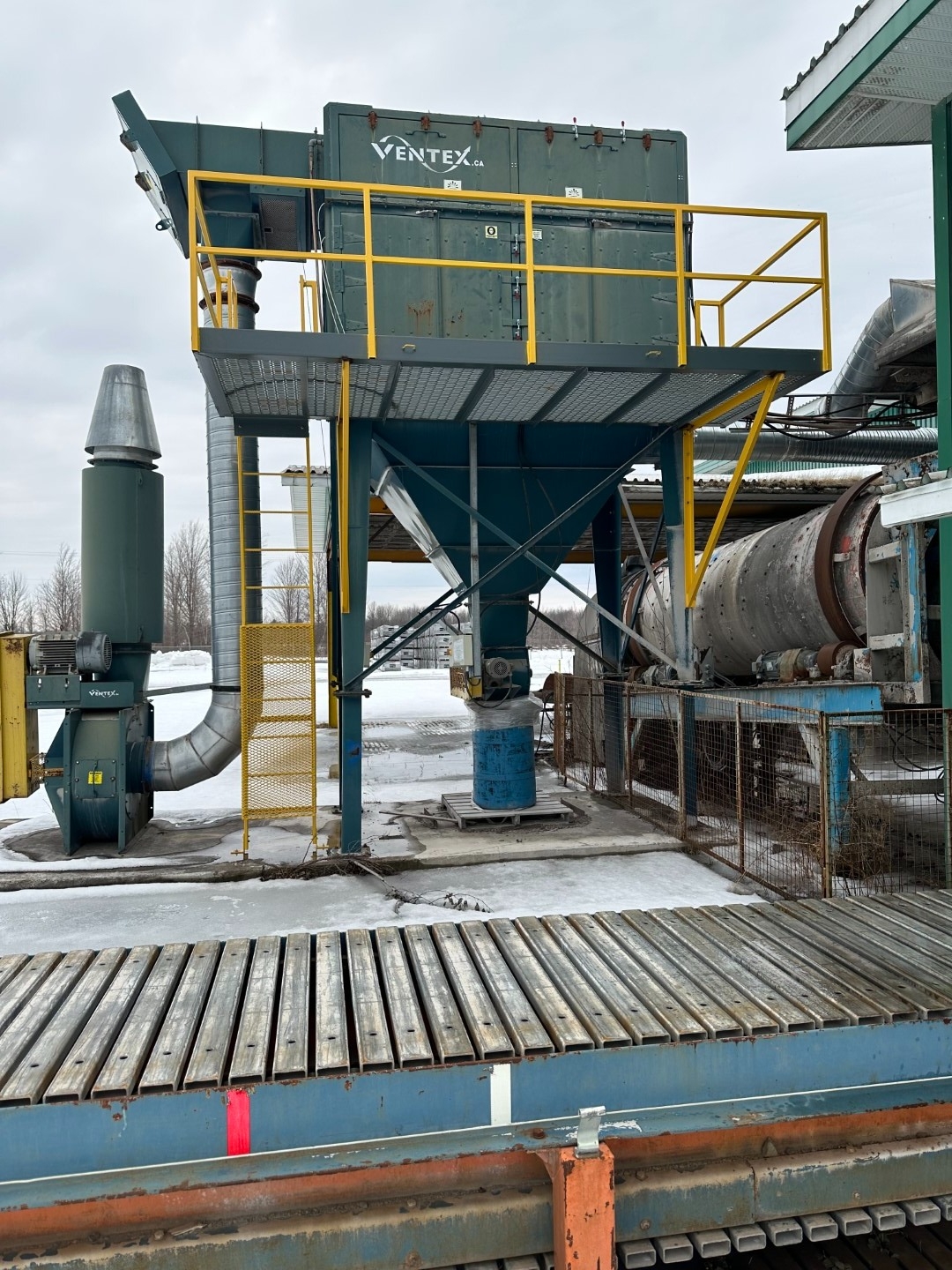

Ventex 8,000 CFM Dust Collector model KG2 for dust collection of concrete press and board brushing station. Has extra capacity to handle other dust collection requirements.
Cement silo 60 Ton, Aggregate bins, mixer.
Lift trucks
Multiple buildings incluuding office, aggregate and sand storage
Show room
