2014

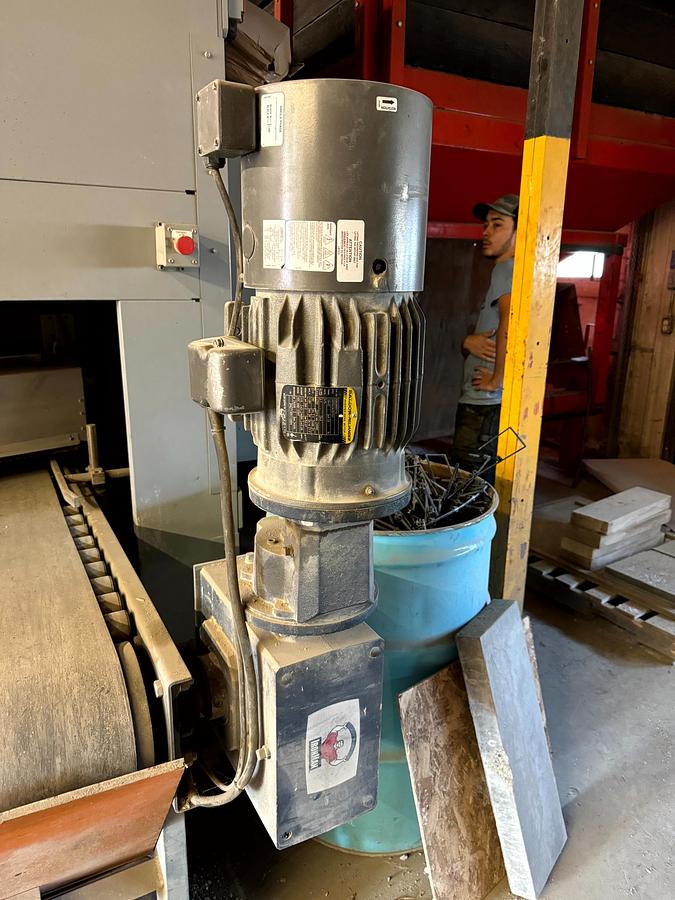

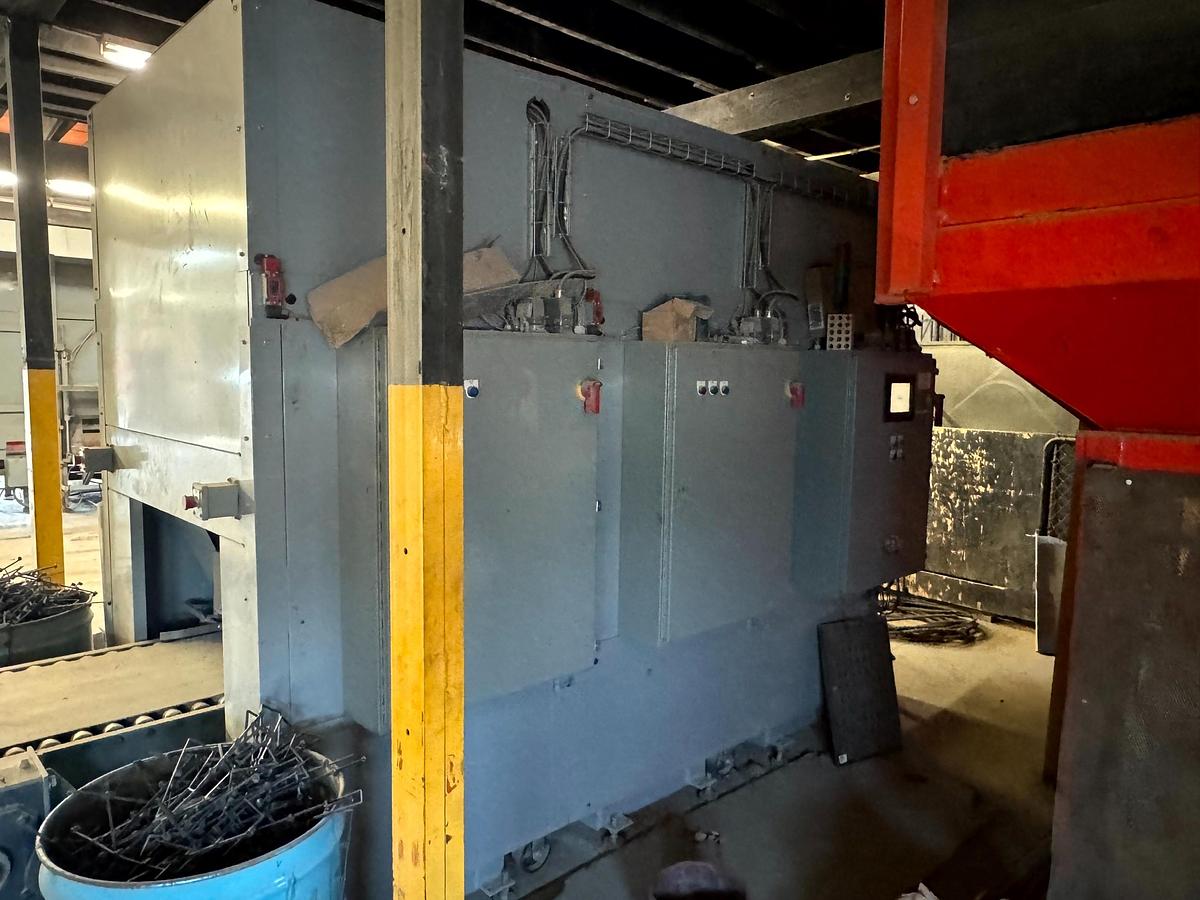

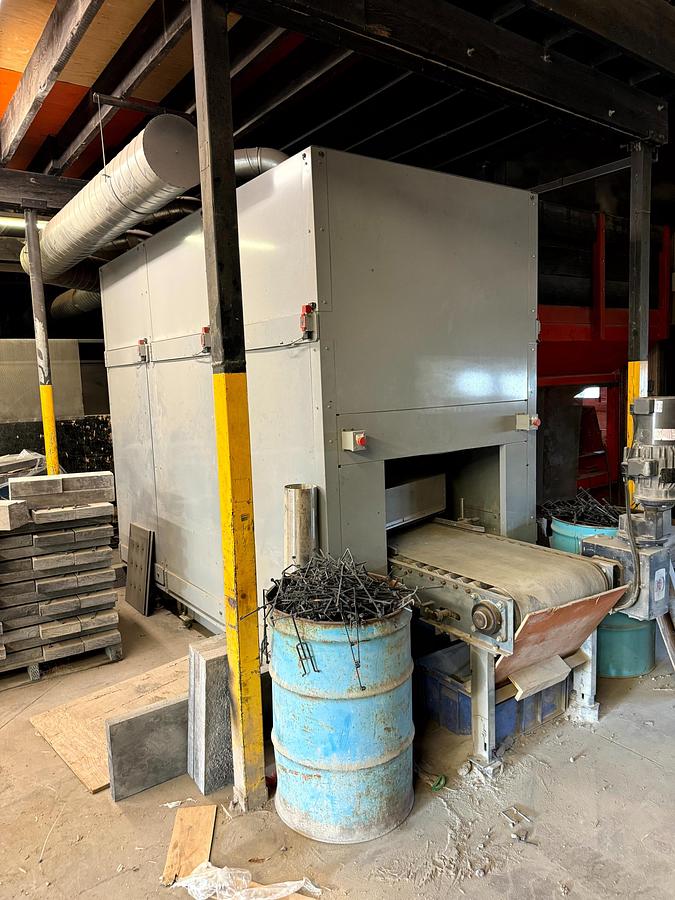

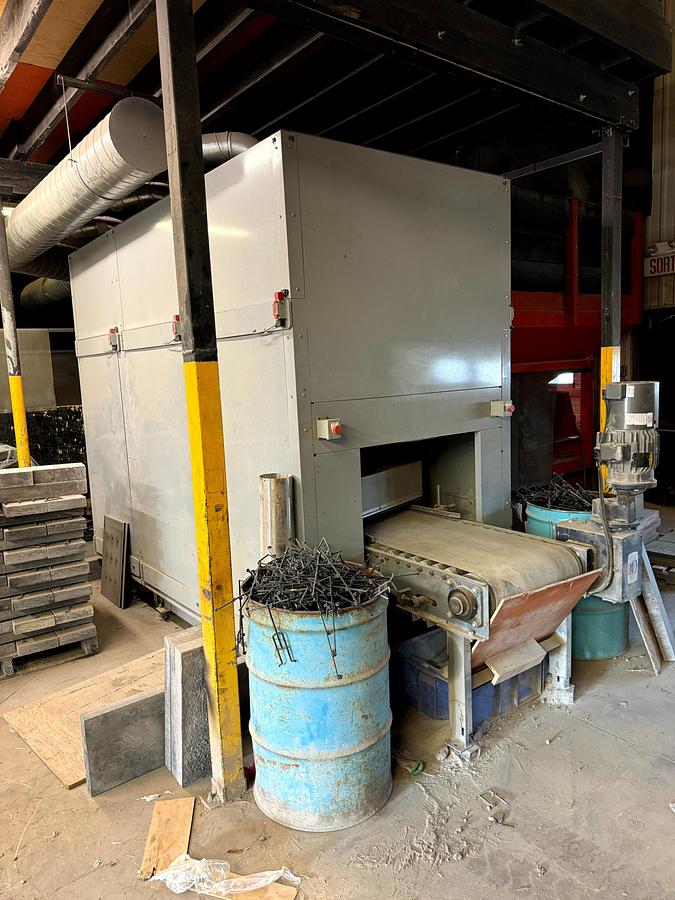

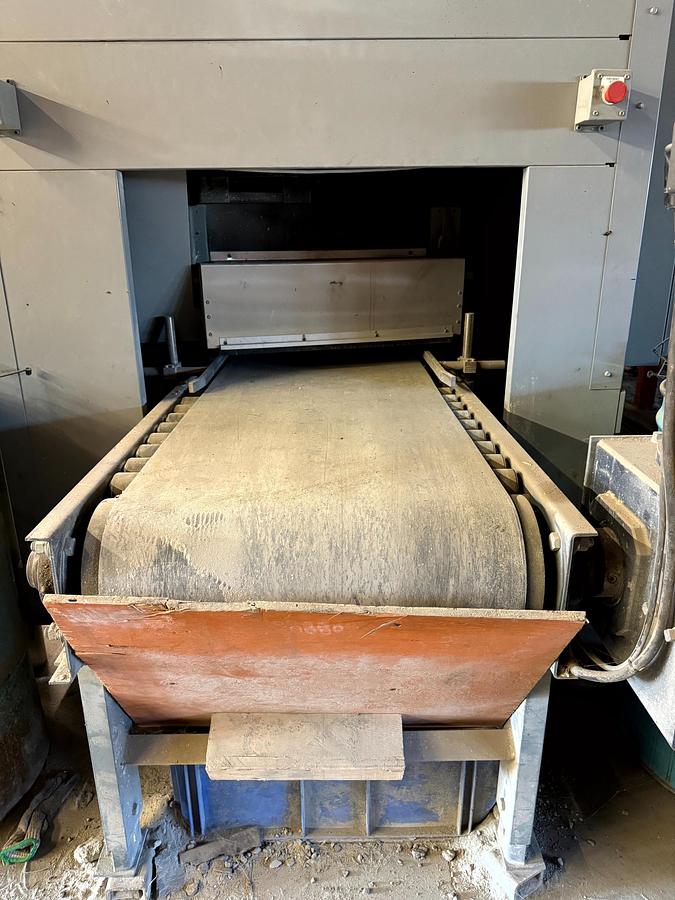

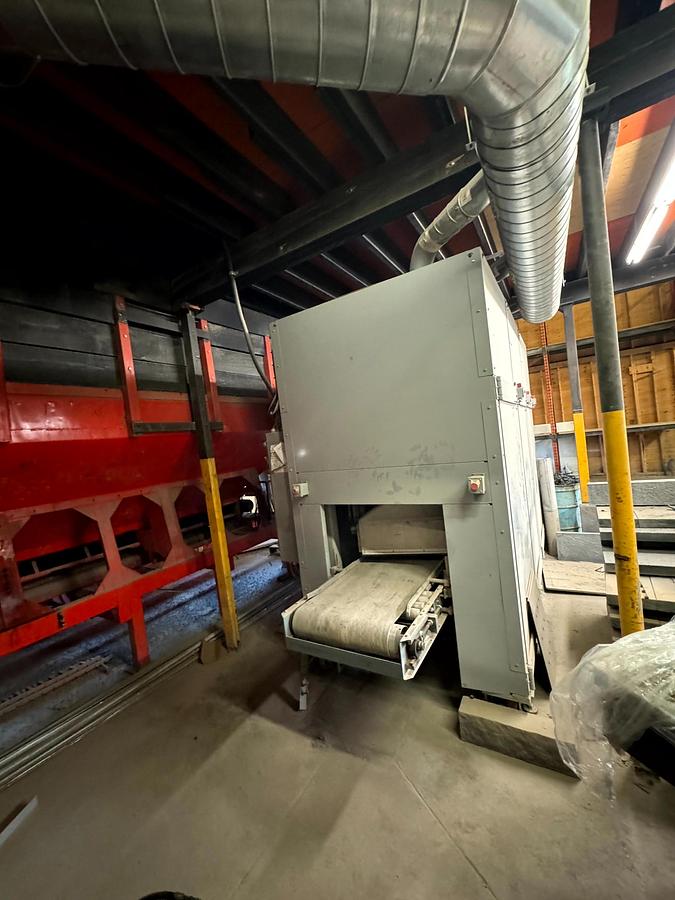

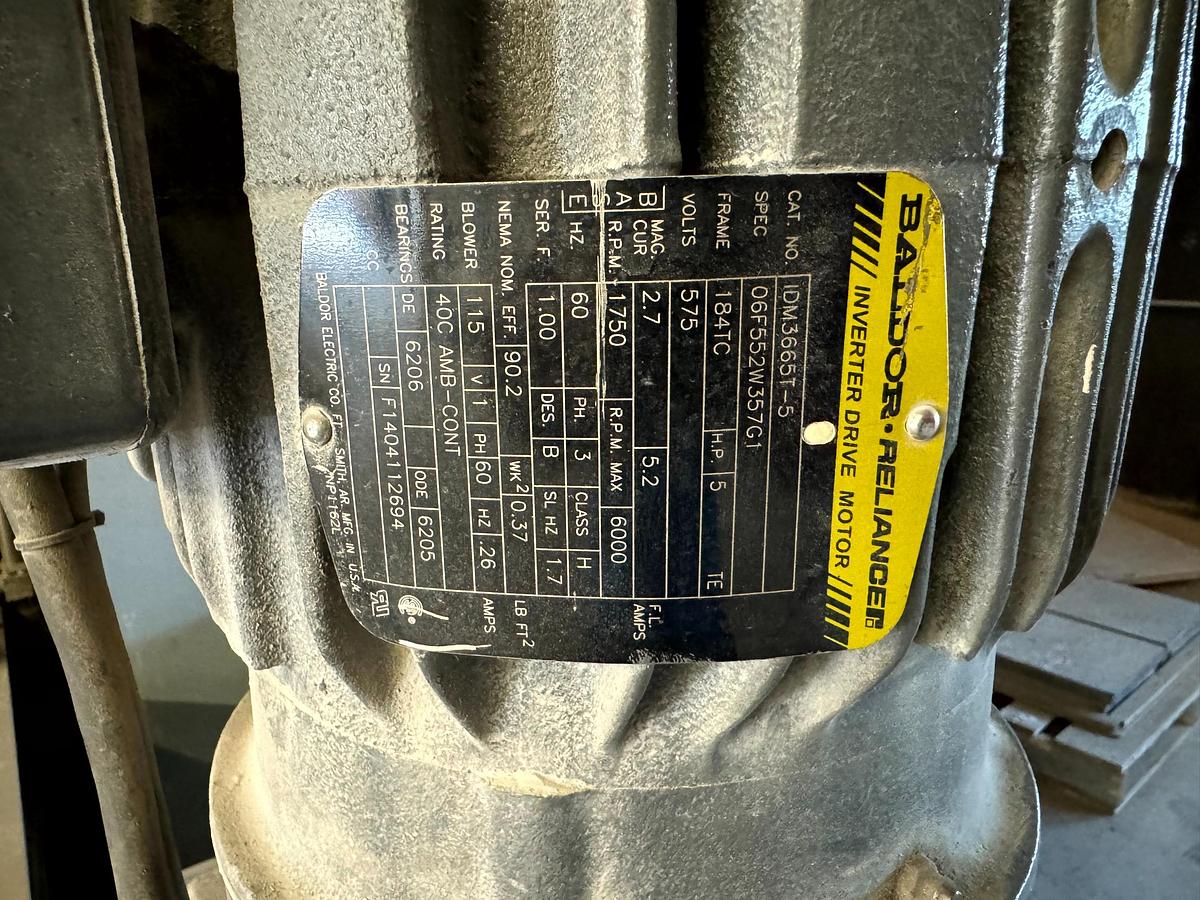

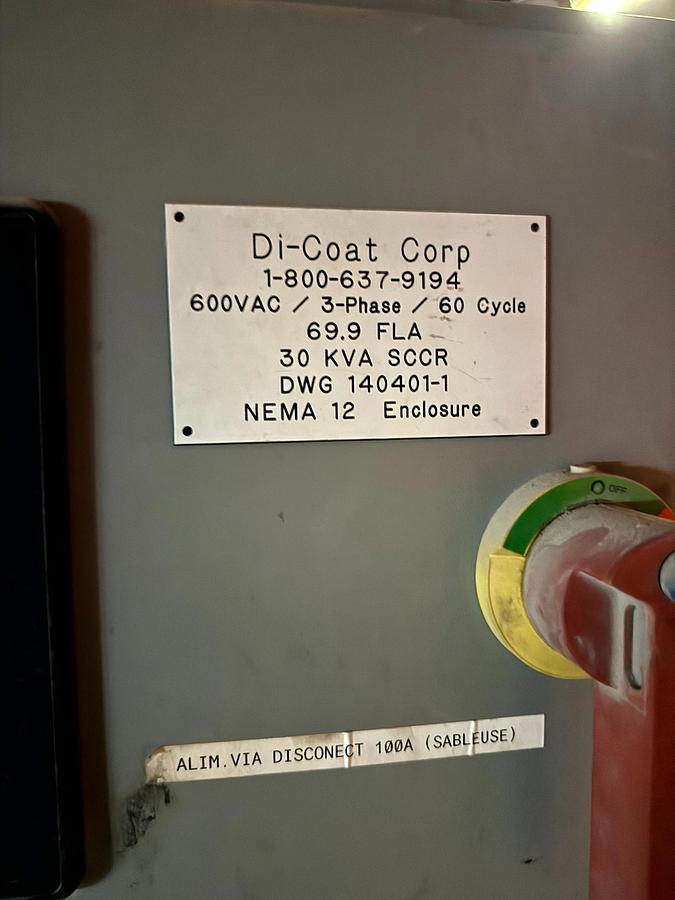

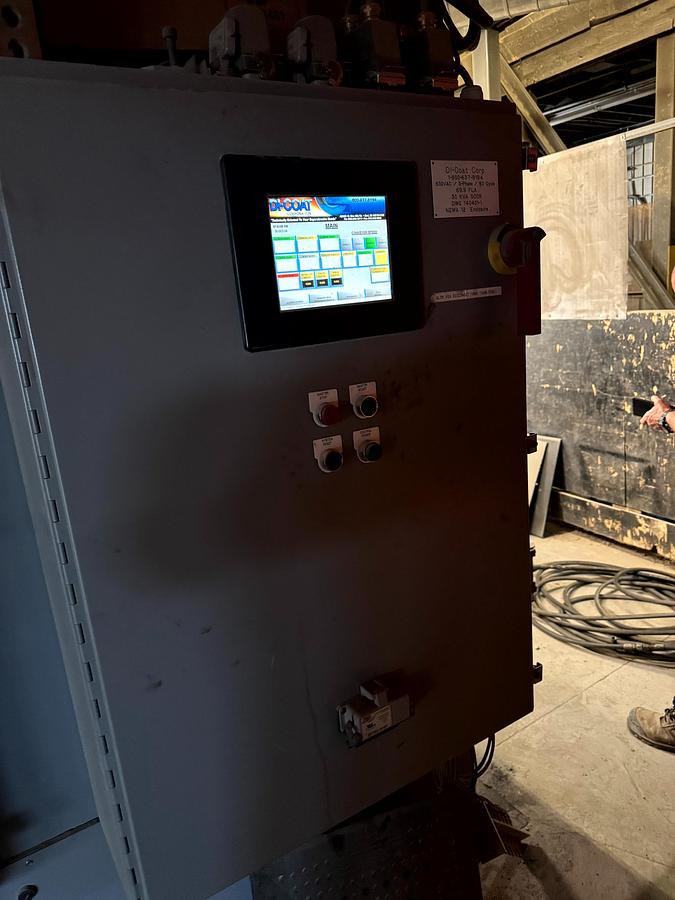

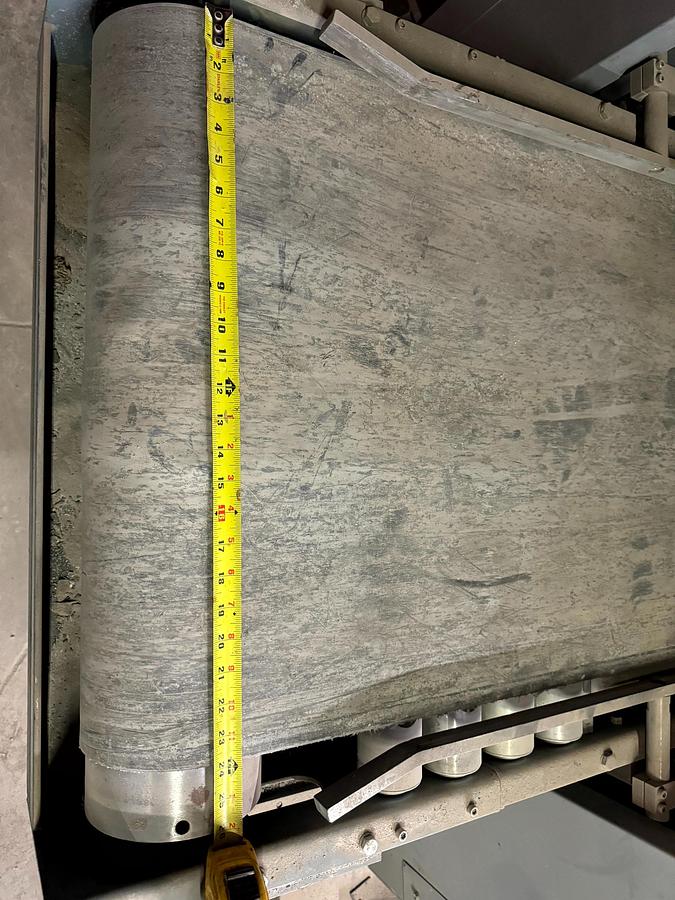

Used 2014 Di-Coat Corporation concrete product 3 head grinder The DCC-Z500 Masonry Block Grinder is a heavy- duty machine designed for high production face grinding of CMU’s using “Di-Coated” Diamond Drums and / or vertical spindle wheels. The modular grinding station setup offers the rapid stock removal of diamond drums and the excellent finish of a vertical spindle diamond disc.  Sequential power-up of motors helps cut power cost and prevents power surge.   Dimensions: Machine: 5′ wide x 16′ long x 10′ high Electrical Control Box (Free-Standing): 1′ wide x 6′ long x 5′ high Weight: 18,000 lbs Motor: Roughing Station (Drum): 30 HP Severe-Duty Semi-Finishing Station (Drum): 30 HP Severe-Duty Finishing Station (Drum): 15 HP Severe-Duty Extra Fine Finishing Station (Disc): 15 HP Severe-Duty 480 Volt – 3 Phase Optional: (240 Volts) Coolant Requirement: 10-12 gal./min./station Coolant Delivery/Cleaning Manifolds Thru-Spindle Coolant Of Vertical Heads Production Rate: Three Programmable Speeds Producing 12-18 Blocks/minute. 22 Blocks/minute maximum Machine Features: Rigid, heavy-duty welded construction Belt/Platen multiple speed conveyor system (8-10-12 ft./min.) Modular grinding cell configuration Accommodates up to four stations Head Spindles Diamond Grinding drums skewed for improved finish & extended life Special belt drive system to suppress noise levels Centralized grease fittings Ergonomic design Block Height Adjustment: Microprocessor controlled height adjustment for block size changes Pre-programmed settings for 4, 6, 8, 10, 12″ CMU’s & 16″ specialty blocks Height adjustment of all grinding stations can be lowered uniformly for grinding opposite side of block — at push of a button All heads simultaneously move up & down automatically determined byrestrictor bar position Push-button manual over-ride to change grind depth to non-standards Hand-held “Zero-Out” control for calibrating individual drums & vertical wheels Safety Feature–Automatic block height restrictor bar to prevent crashes Drum Information: Quick & easy diamond drum or disc change-over Drums can be recoated by Di-Coat Corp. using high grade GE Diamond Reconditioned or new drums supplied ready to mount with pre-installed pillow block bearings Control Panel: Free-standing control panel permits ease of operation & floor space optimization Display prompts operator of required action Single command to select 1st, or 2nd, side grind height Digital display of fine adjustment of grinding heads Each grind station may be individually active or off-line Analog display of amperage draw for each grind station Pause mode stops conveyor but leaves grinding heads running Programmable stock removal setting for each station On-screen programming
