Block Plants (American type)

Equipment Number 24047
Year of Manufacturing 1996
Model Dynapac Mk-3
Manufacturer Besser
Category Block Plants (American type)
Condition Very good

Description

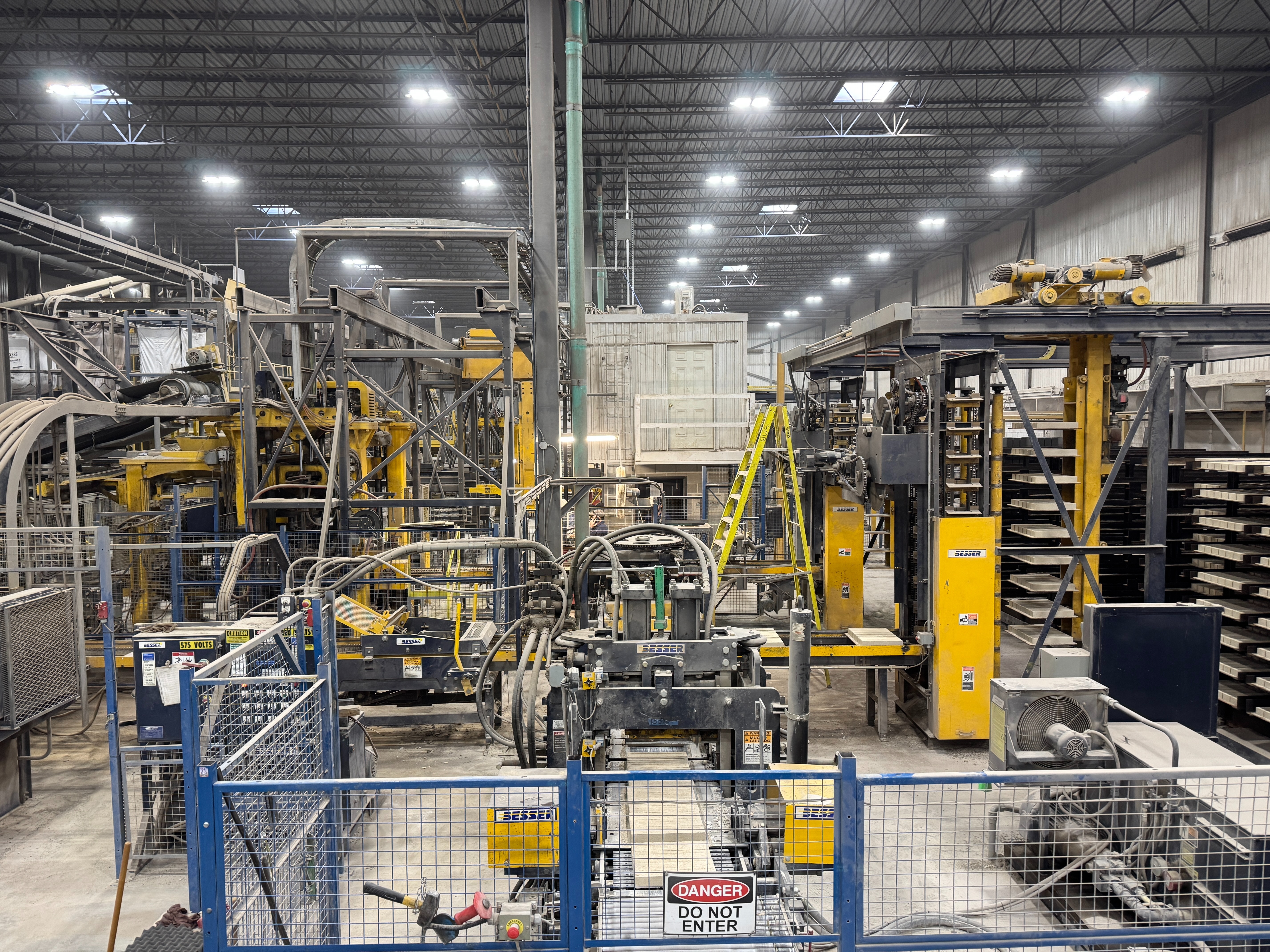

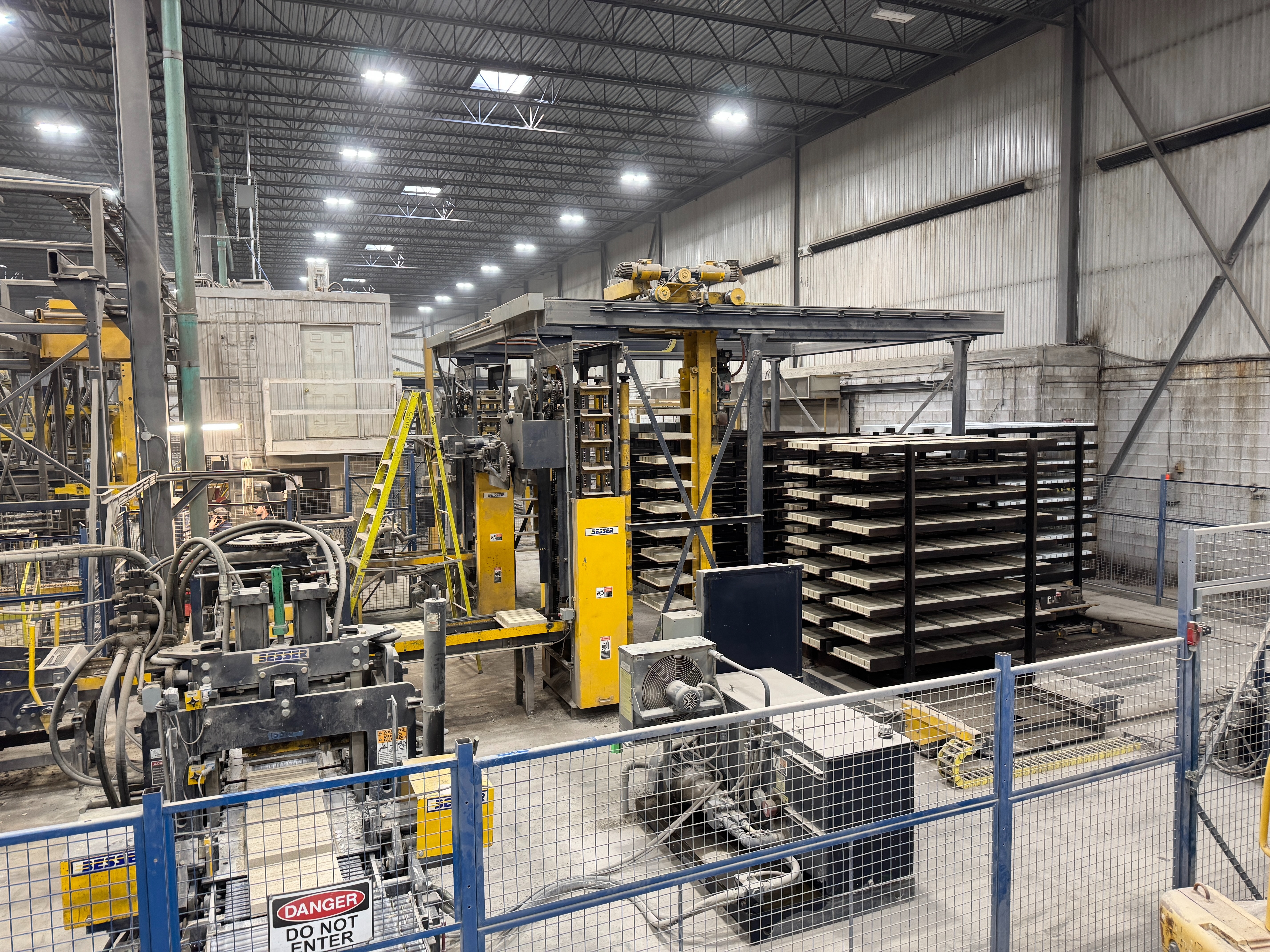

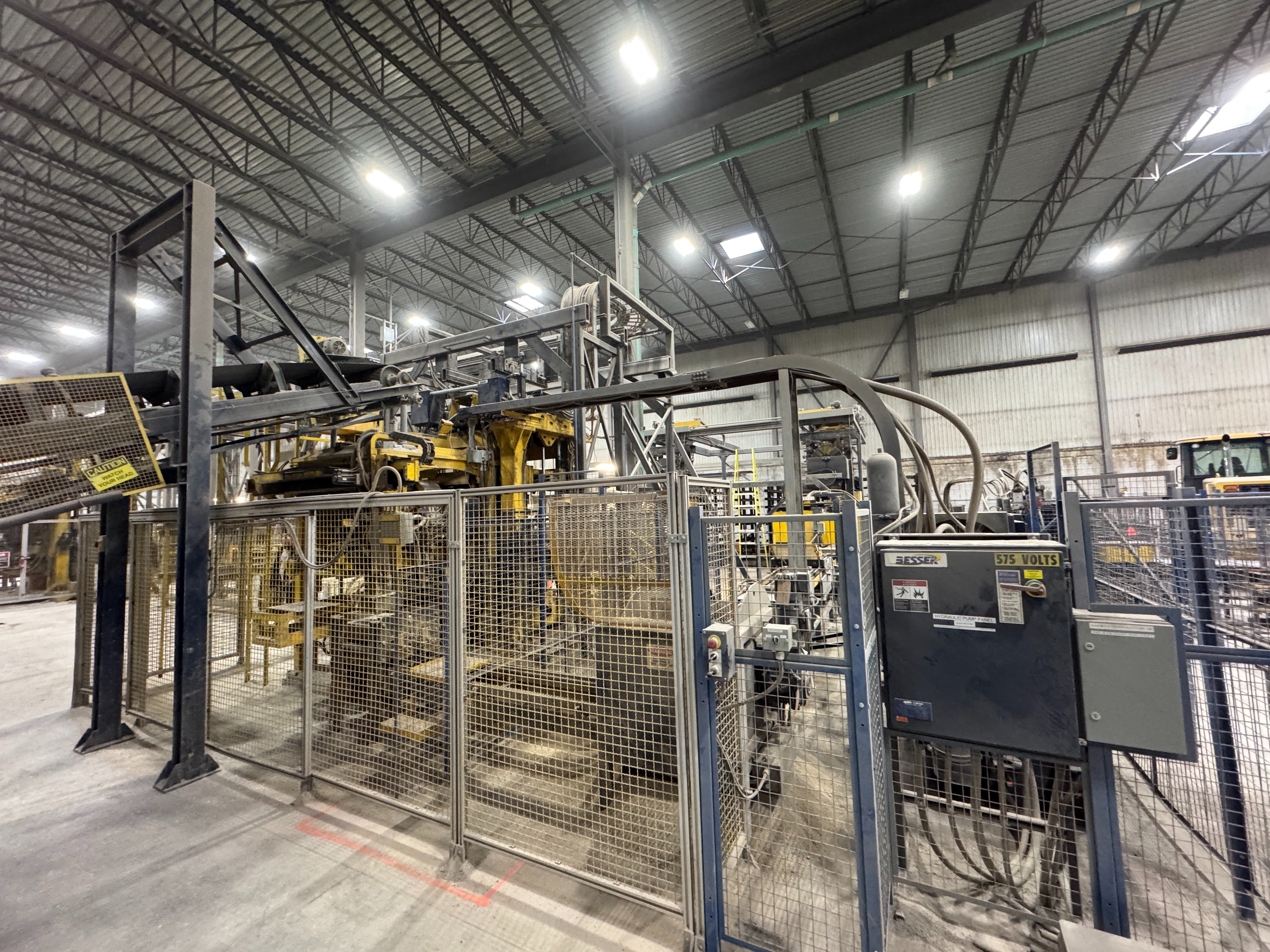

Used Besser Dynapac Fully automatic Block Plant



Including:

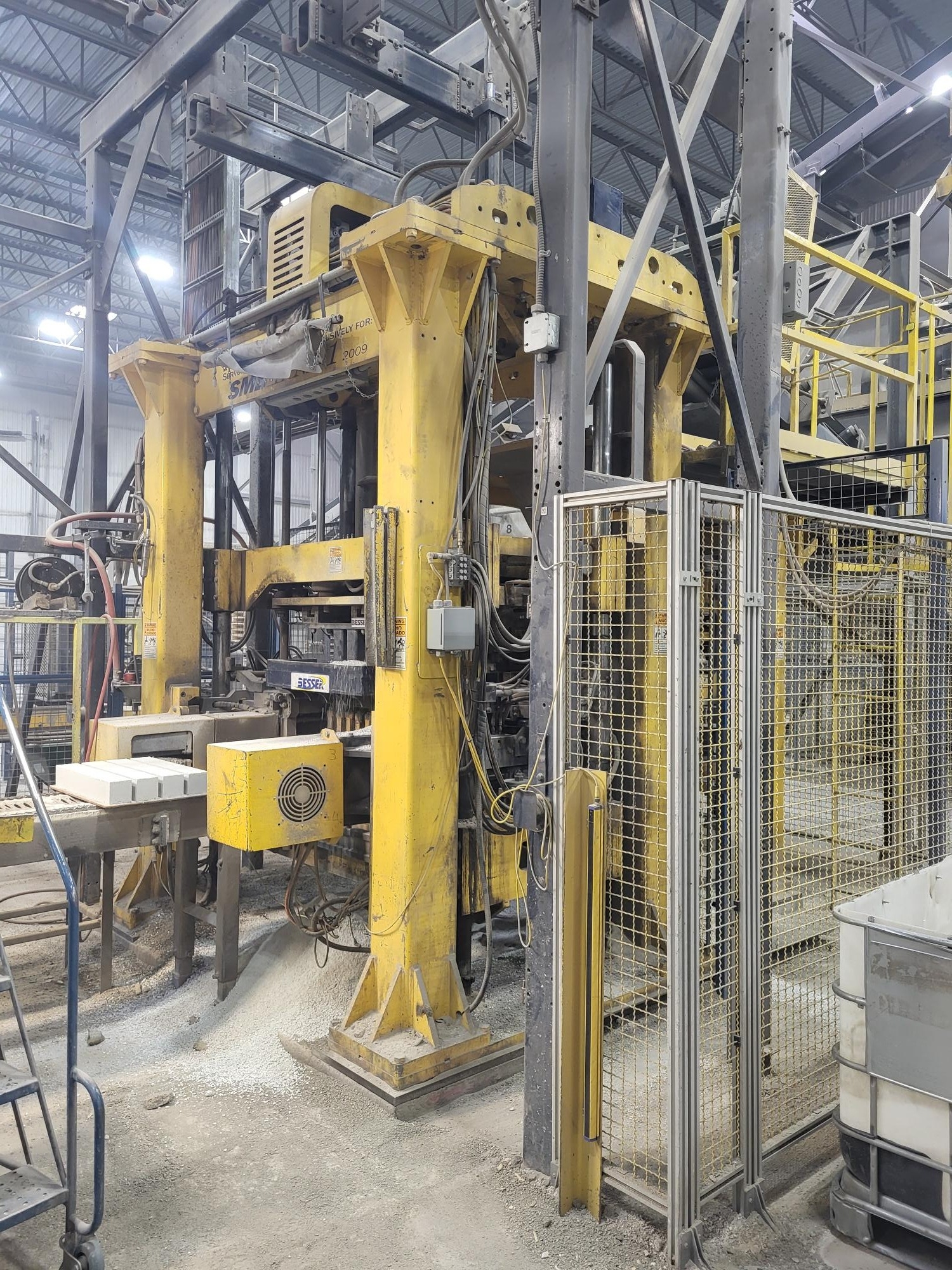

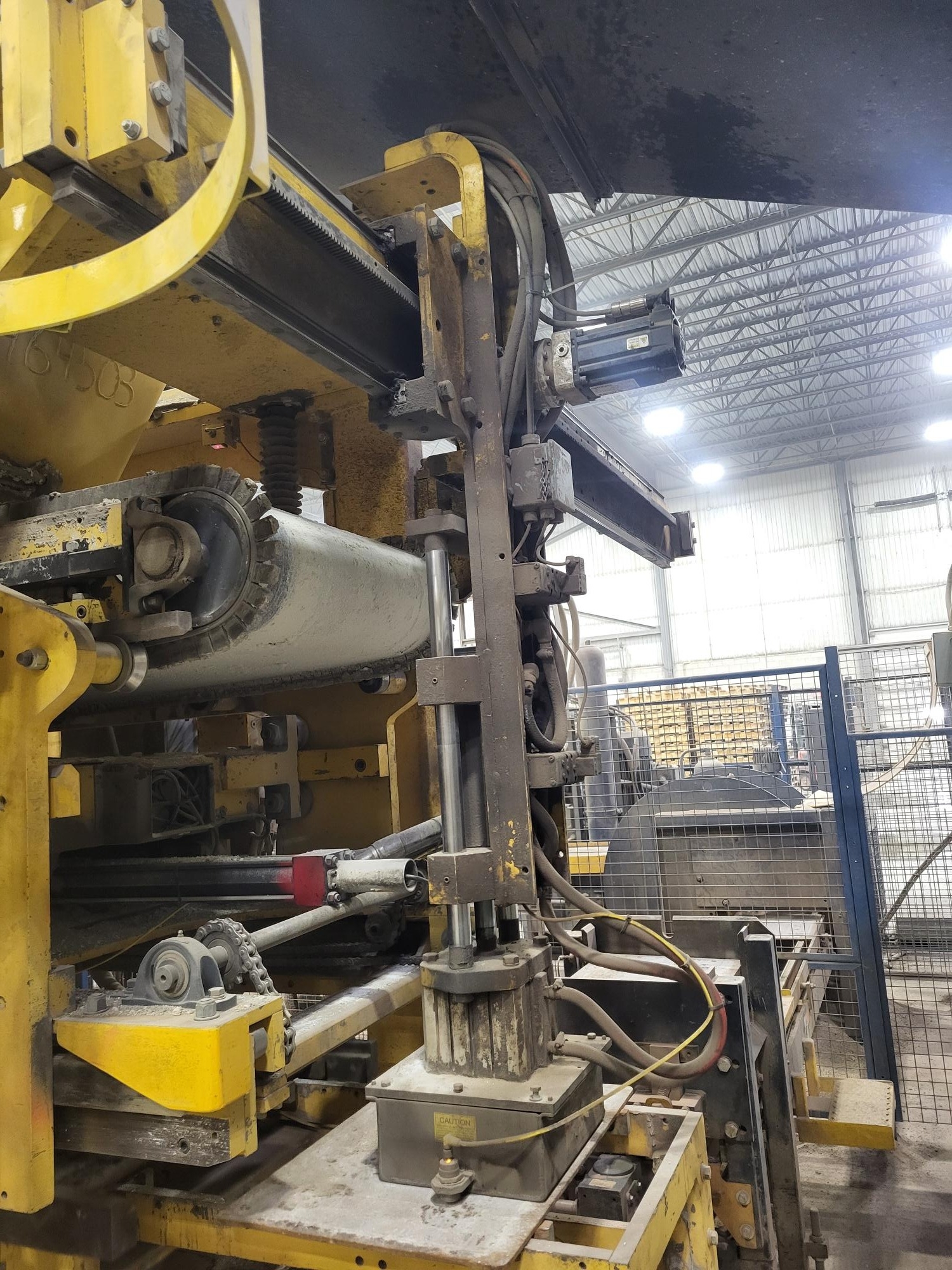

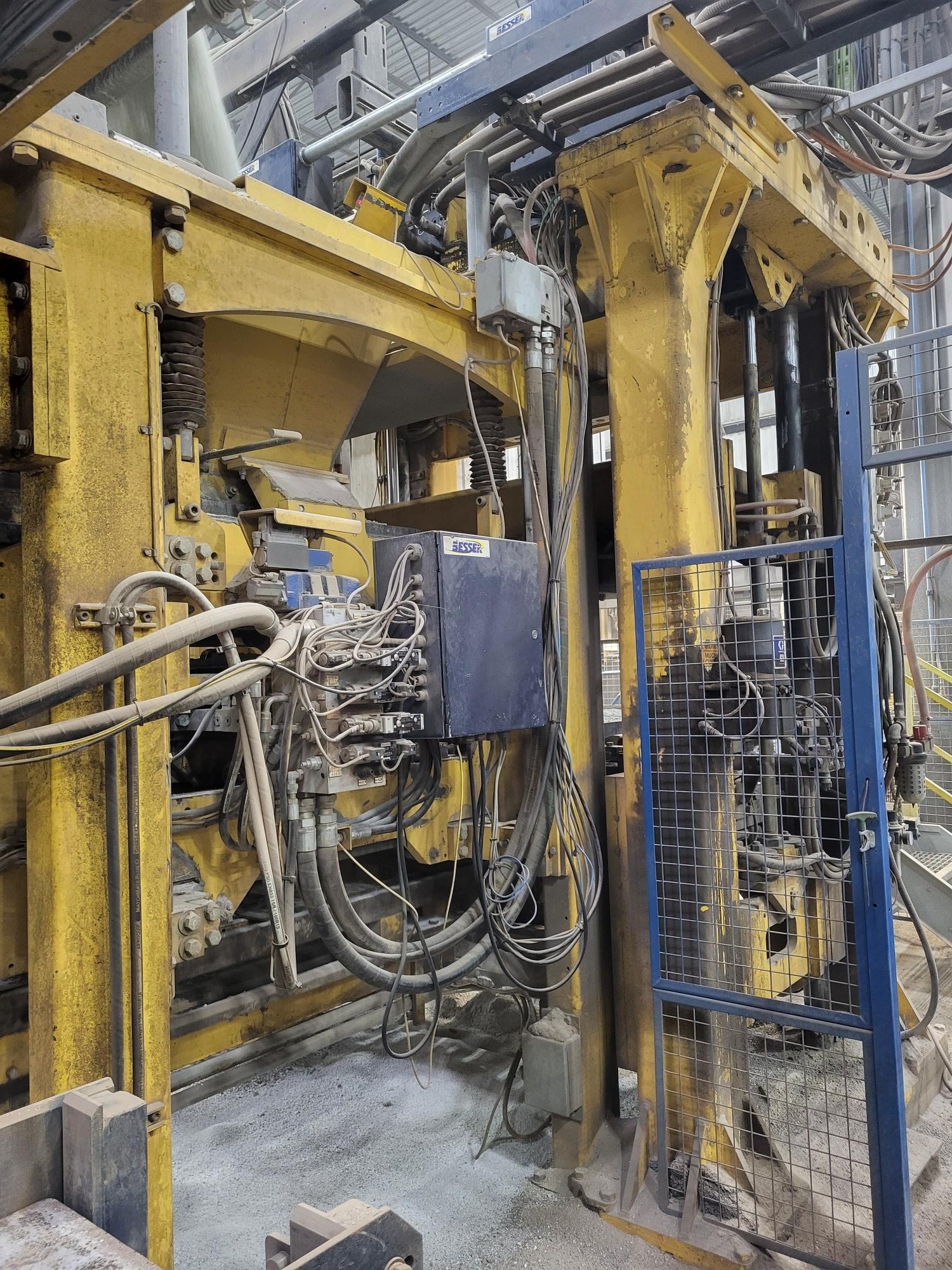

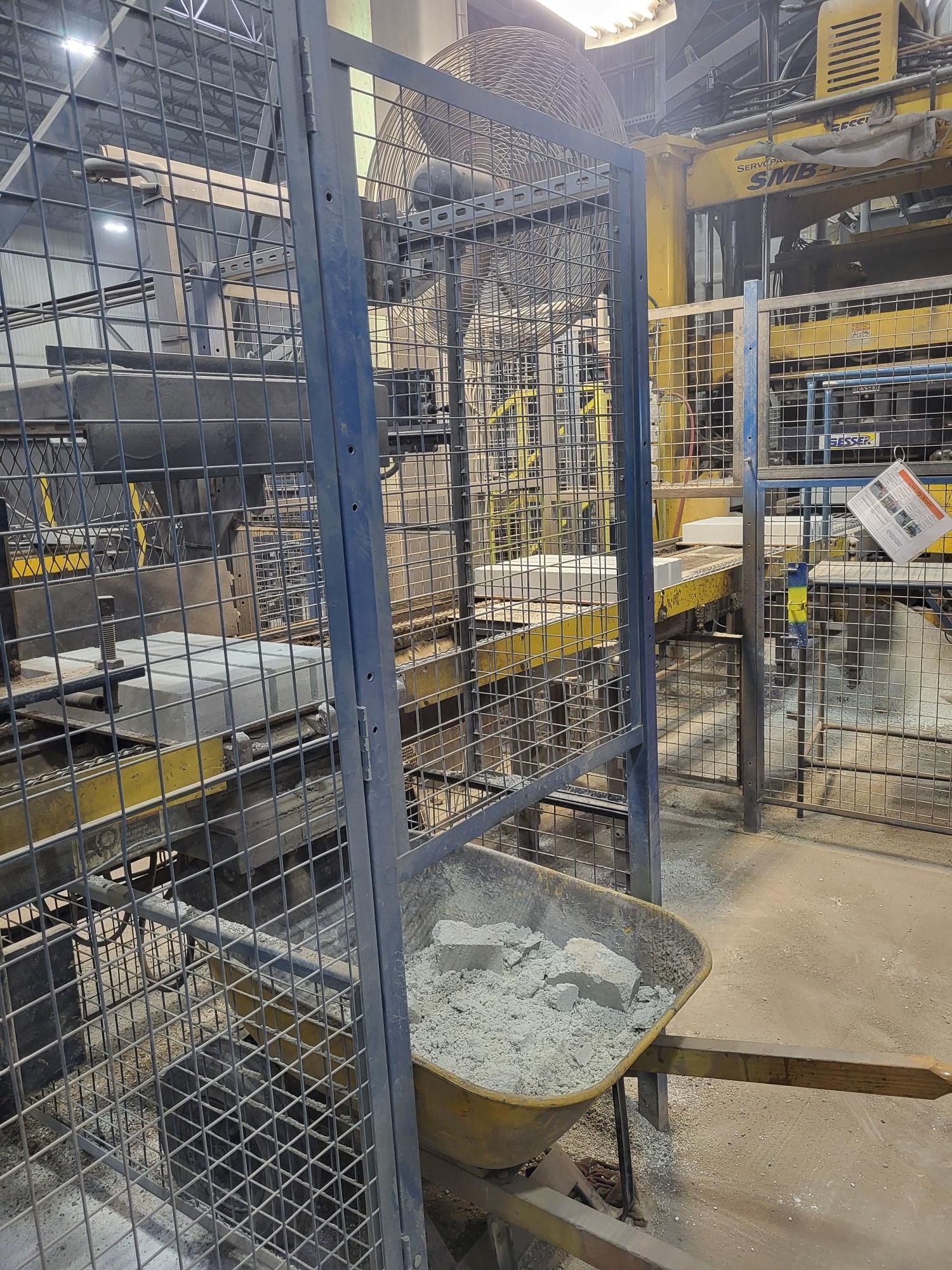

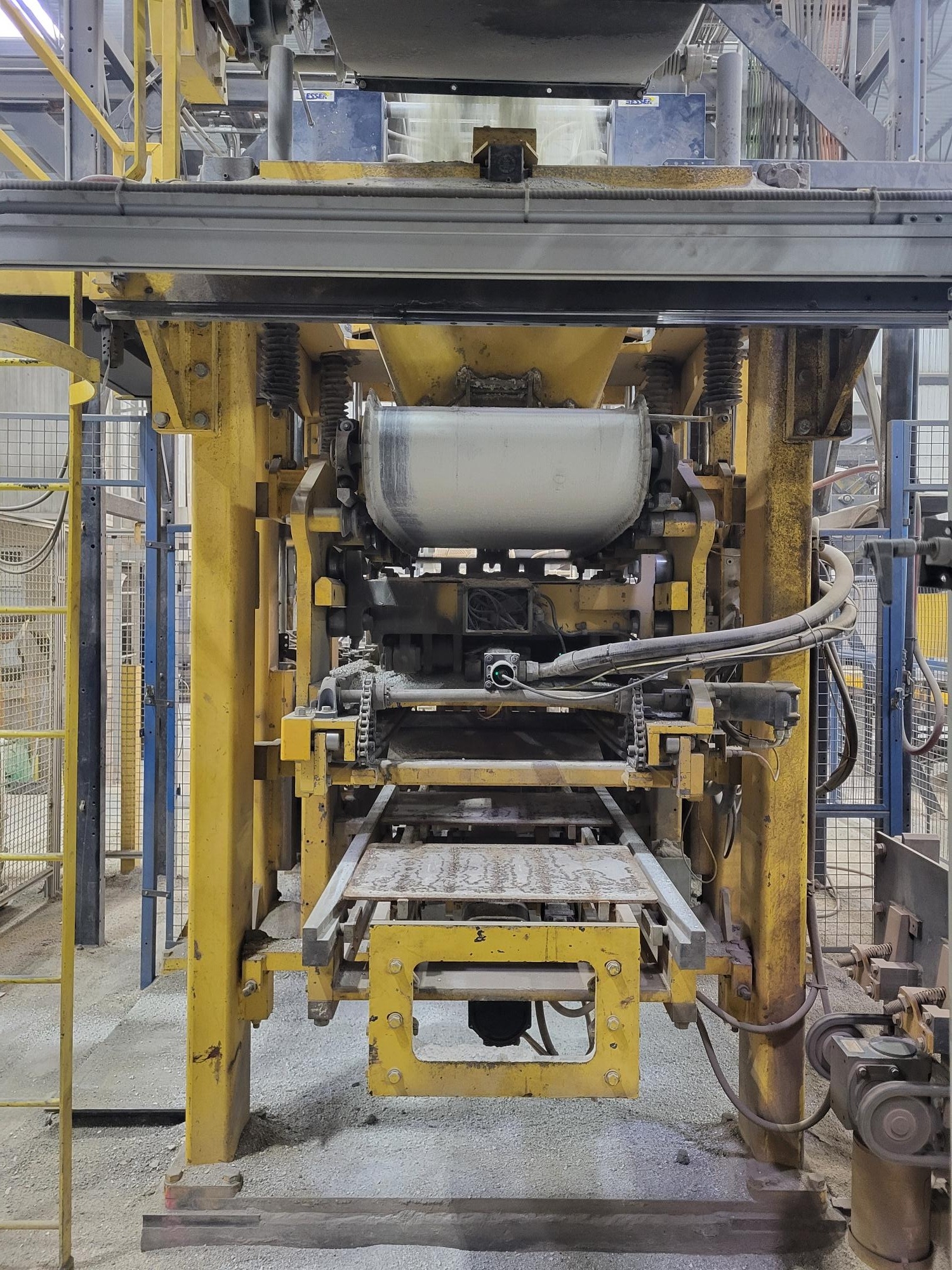

Besser Block Machine, Model Dynapac MK-3, S/N: 1025, (1996),

Plain Pallet Stripper, Tear Pallet Feed w/ Motors to Operate Automatically, @ Speeds up to 10 Cycles per Minute, Pallet Size 26"x 18-1/2" x5/16", 1800 Blacks per Hour, Xycon PLC W/ Dell Monitor



PACO Model 800 Automatic Rack Transporter (Crawler) System for 18-1/2" X 26" x 5/16" Pallet, 3 @a Time Black Machine (3A) 8" High Product, including:

PACO Spade Loader/Unloader for 450 Block Rack

(10 Shelves High-3 Bay Wide-5 Pallets Deep

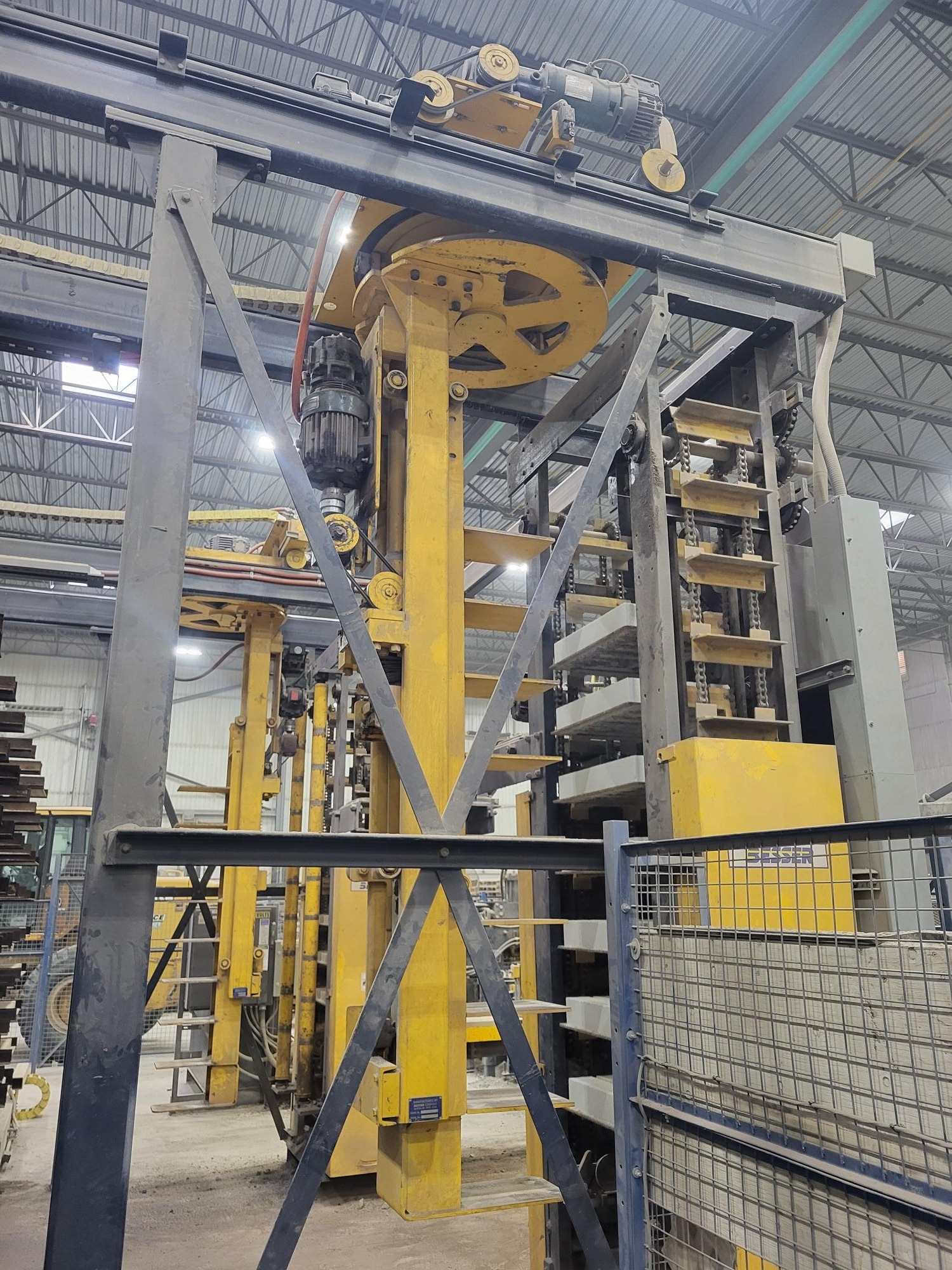

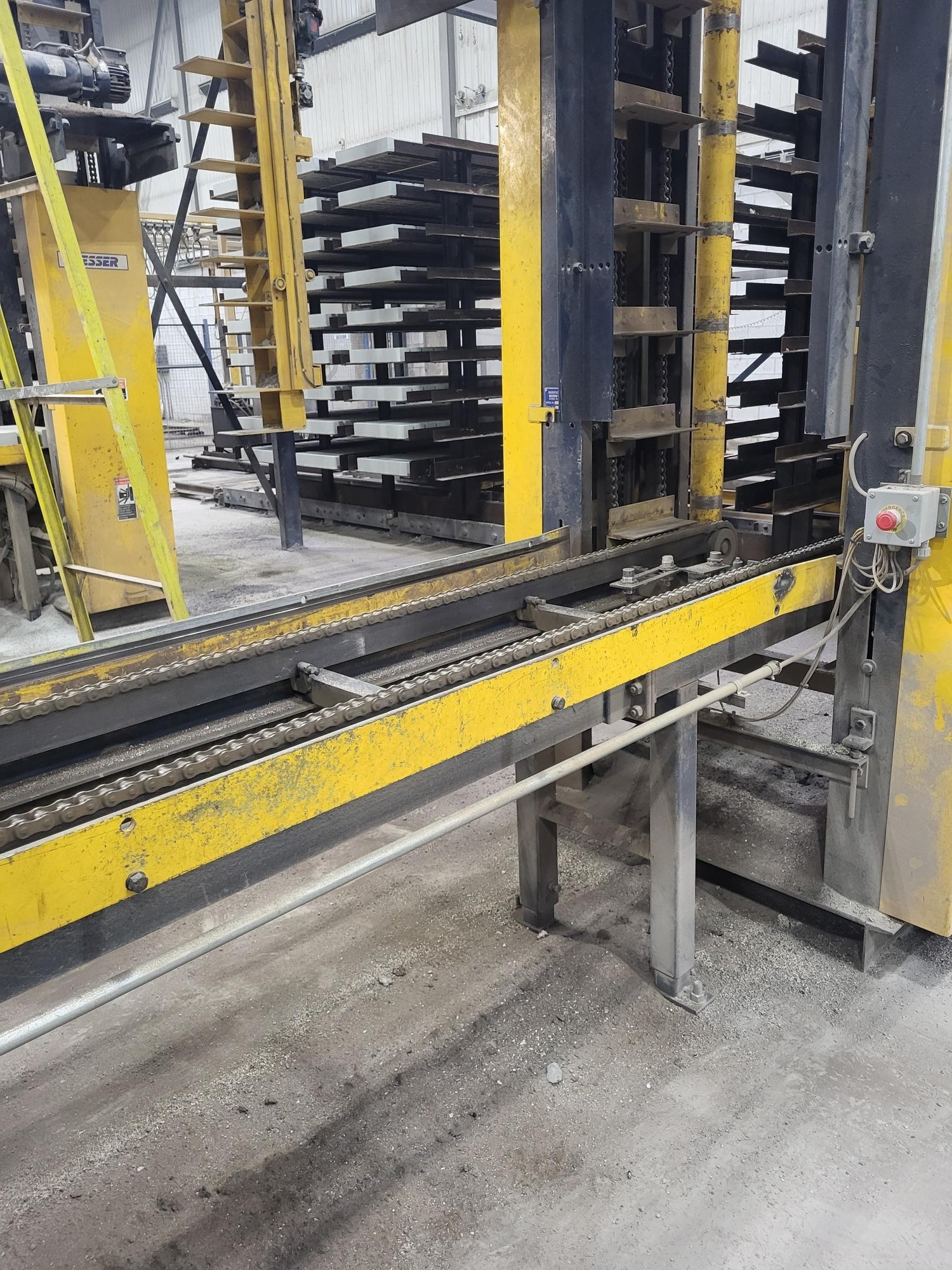

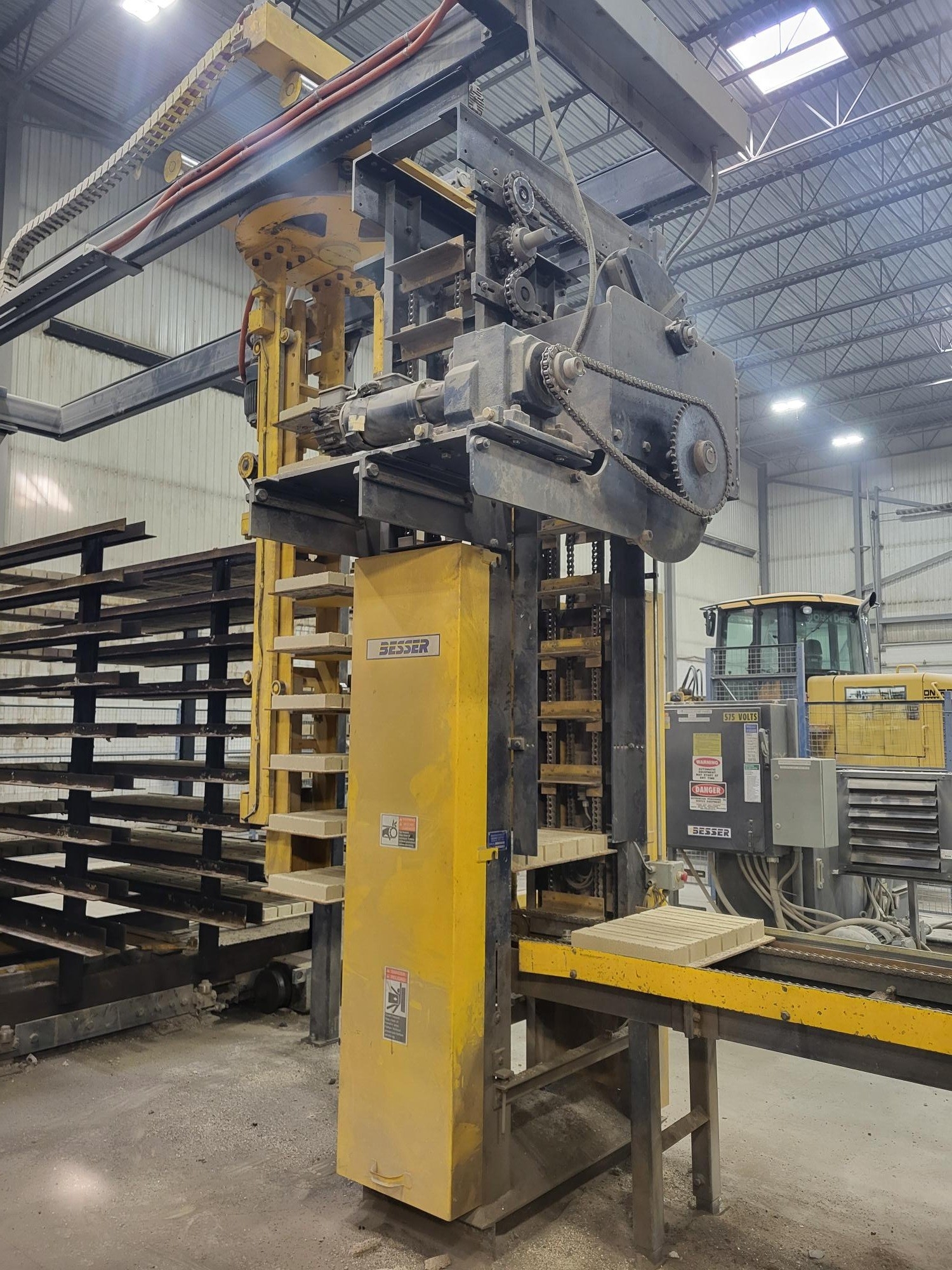

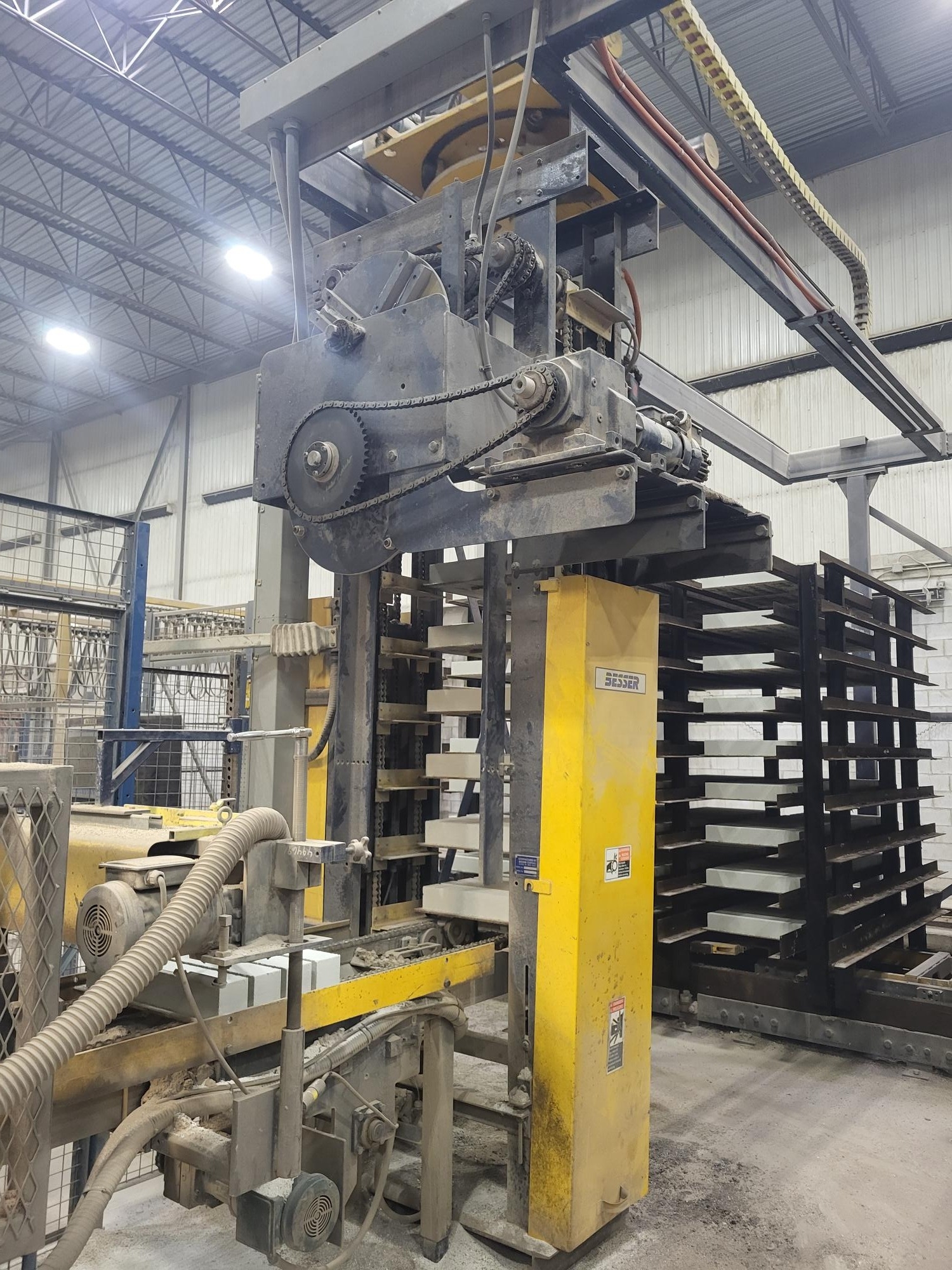

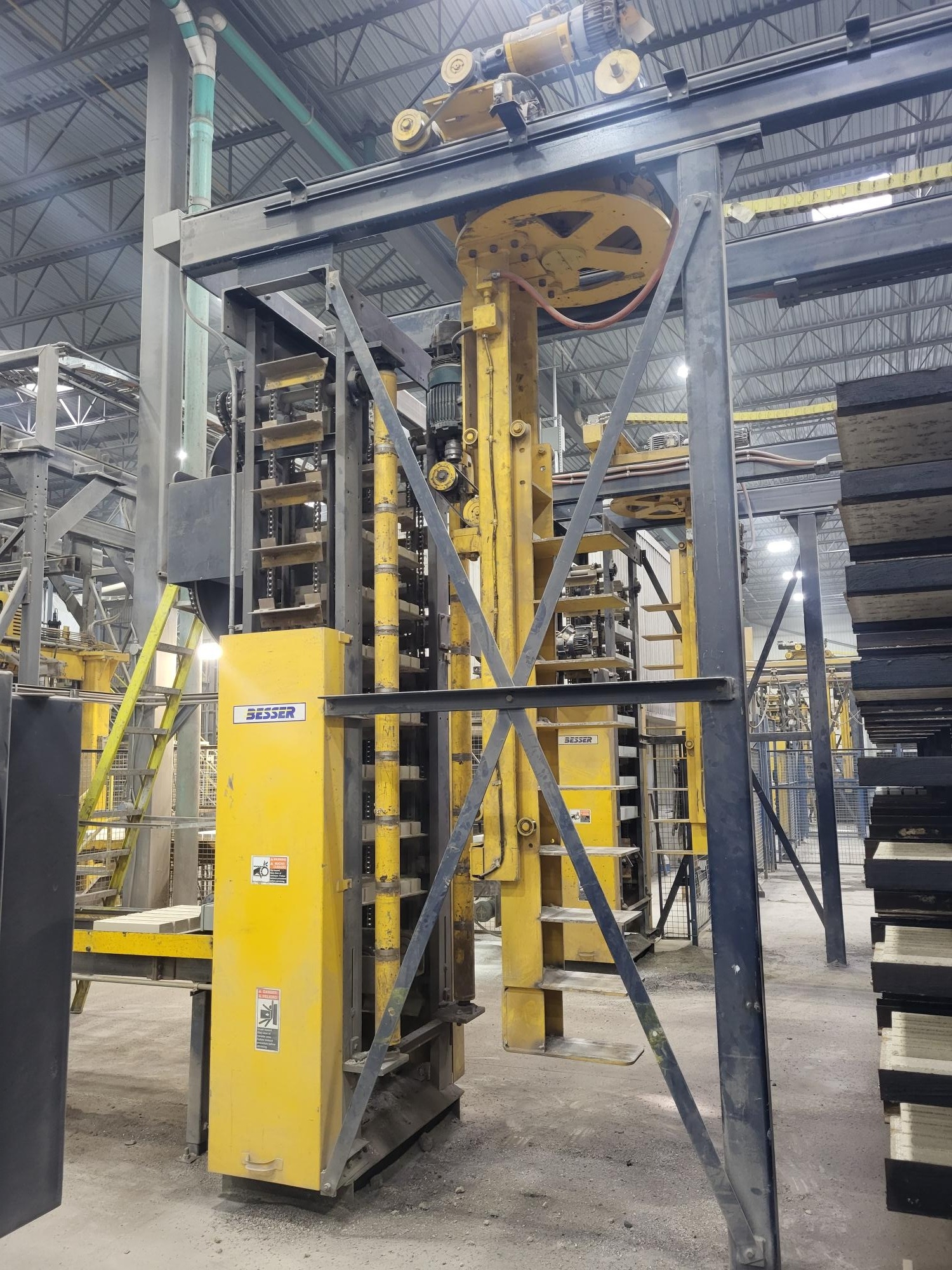

Green and Dry Block Elevator Driven by Geneva Drive

Green and Dry Black Transfer, Carriage and Overhead Track to Accommodate Appropriate Block Rack-including Cat Track

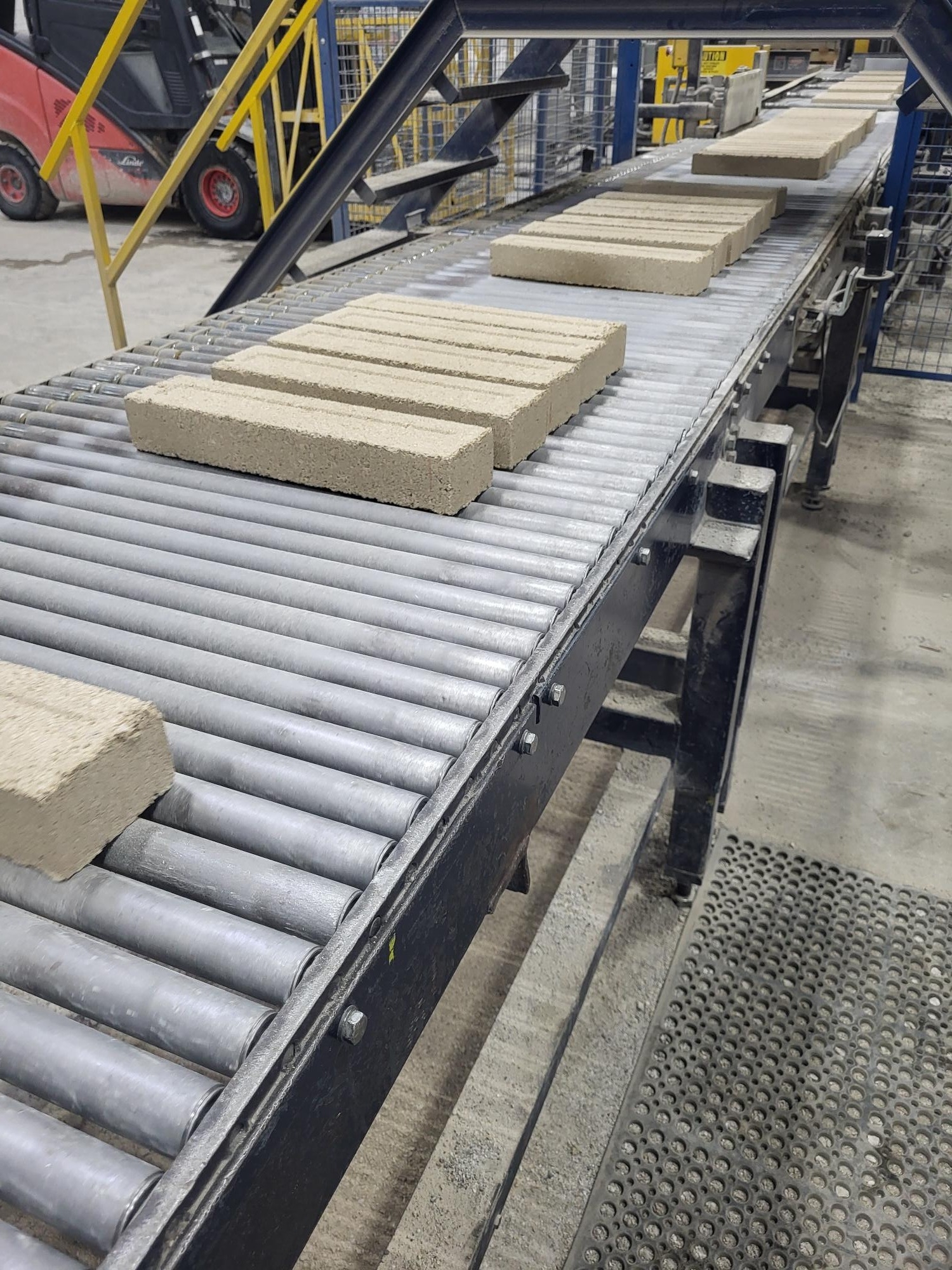

Heavy Duty Roller Rack Conveyor to Receive Four of 3 Bay Rack-450 Block

Rack Conveyor Side Shift Complete w/ Roller and Track Section to Receive Loaded Rack and Crawler, Side Shift is Complete w/ Hydraulic Power and Required Track. There is Extra Section of Rollers for 5th Rack-Additional Rail is necessary for Complete Operation

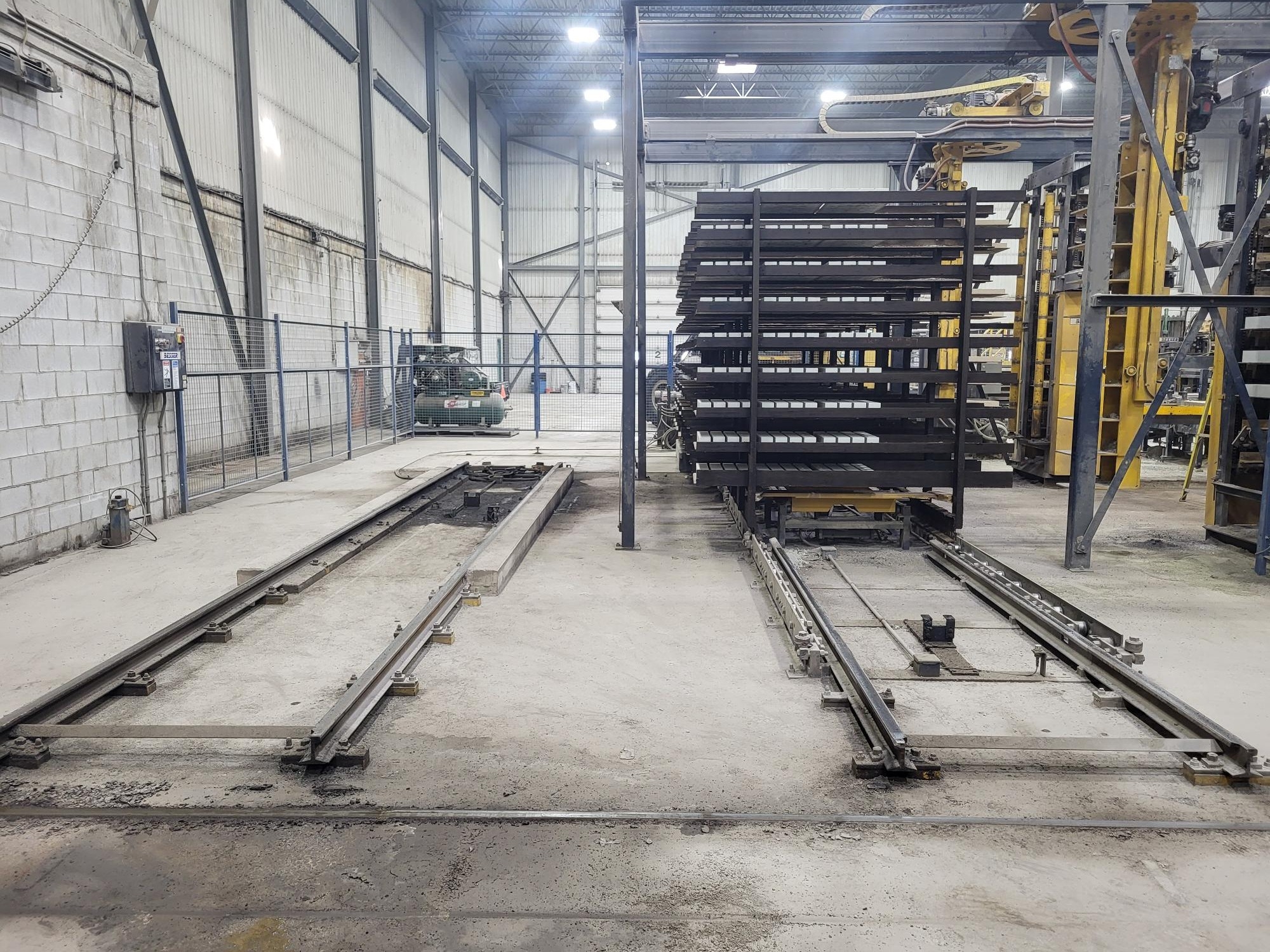

Steel Side Track to Enable Crawler to Travel to Side Shift from Platform

Paco Green Block Conveyor Approximately 18' Long

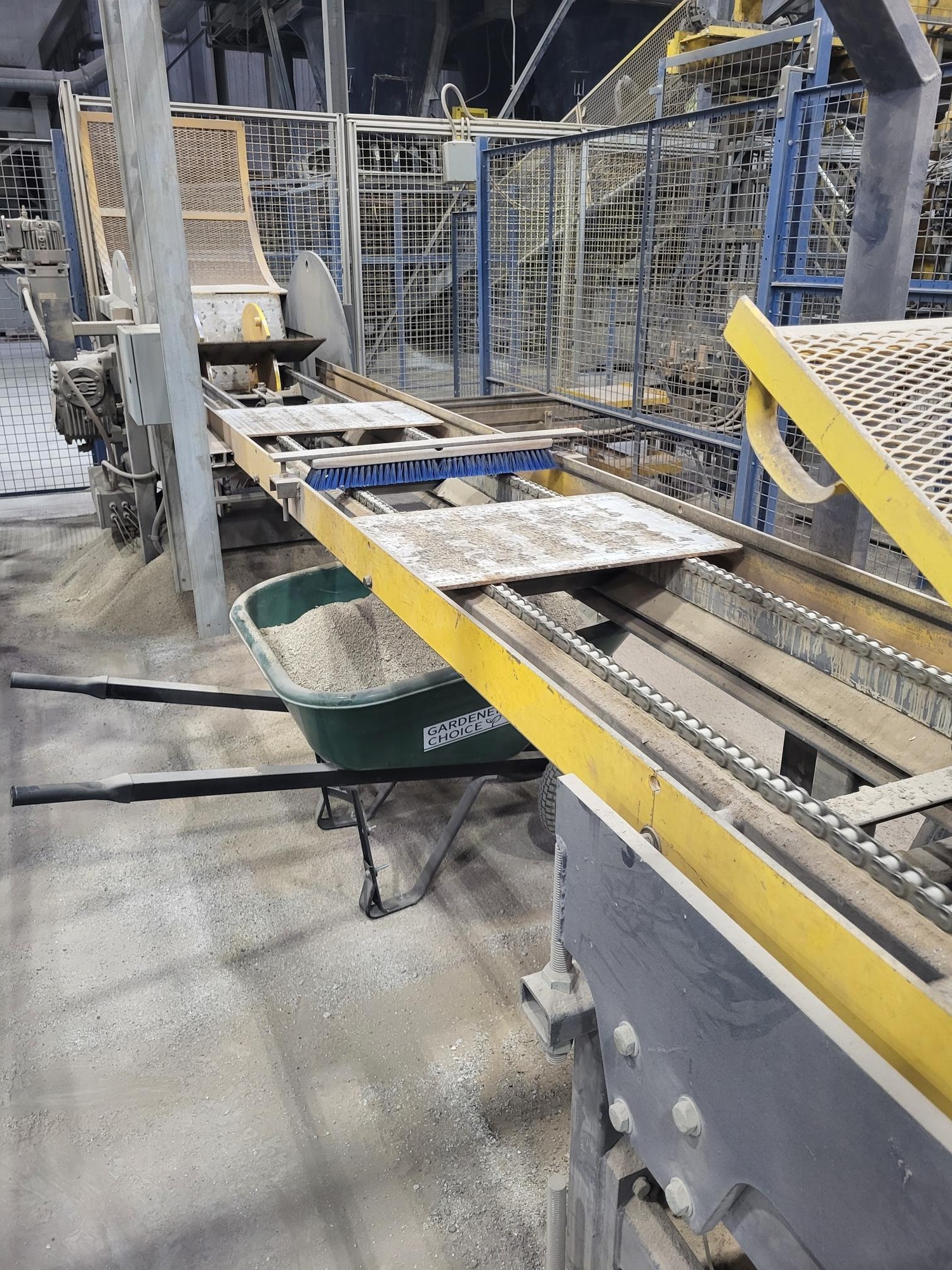

Green Block Crumb Brush

Paco Dry Block Conveyor

Depalleter w/ Flip Gate and Motorized Conveyor Stations to Control Flow af Pallets, w/ Turn Table Pallet Return Conveyor to Complete Pallet Cycle to Block Machine.

Paco Chain Conveyors are Built w/ 6." Channel Frame and ASA No. 80 Chain

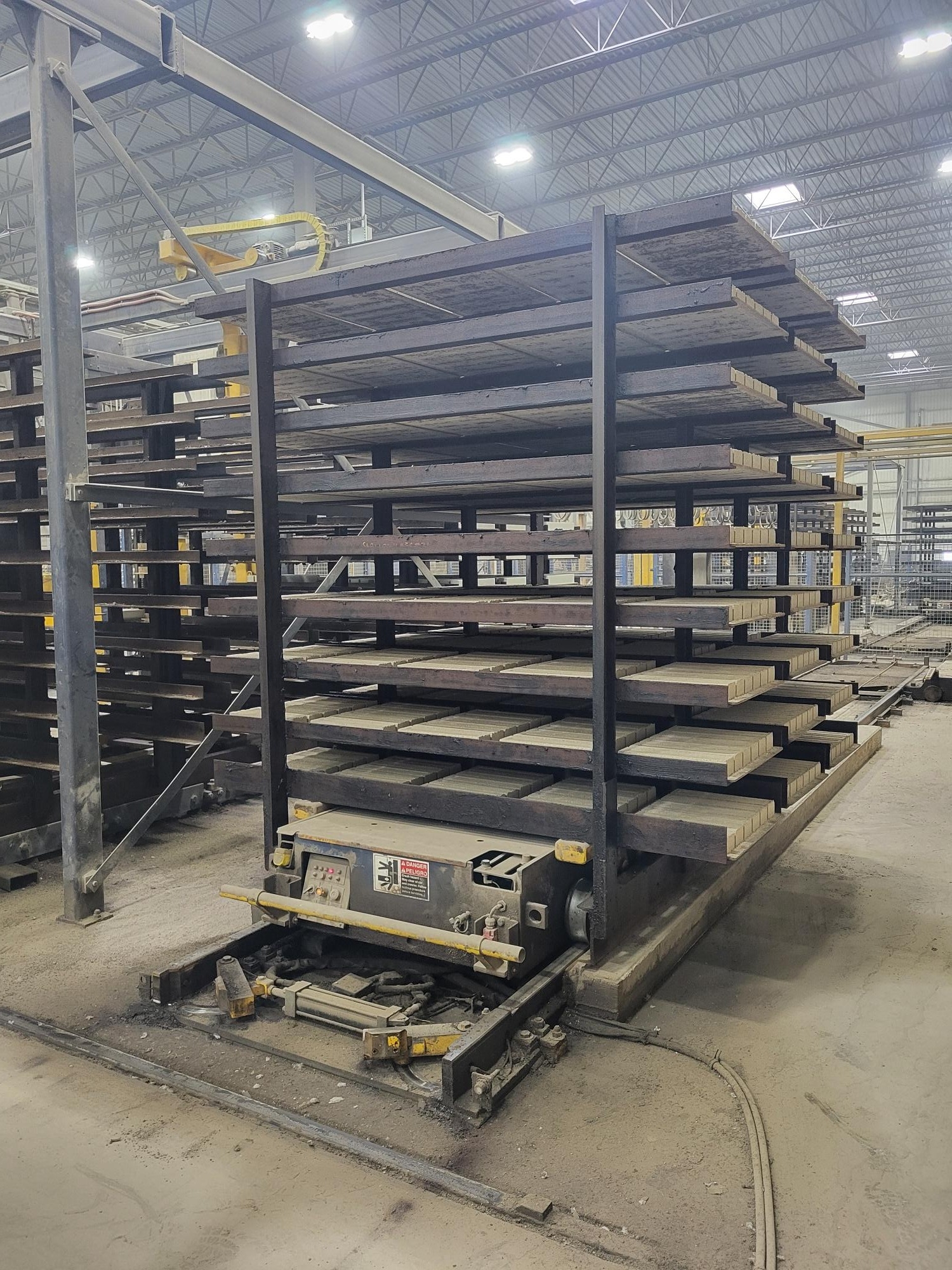

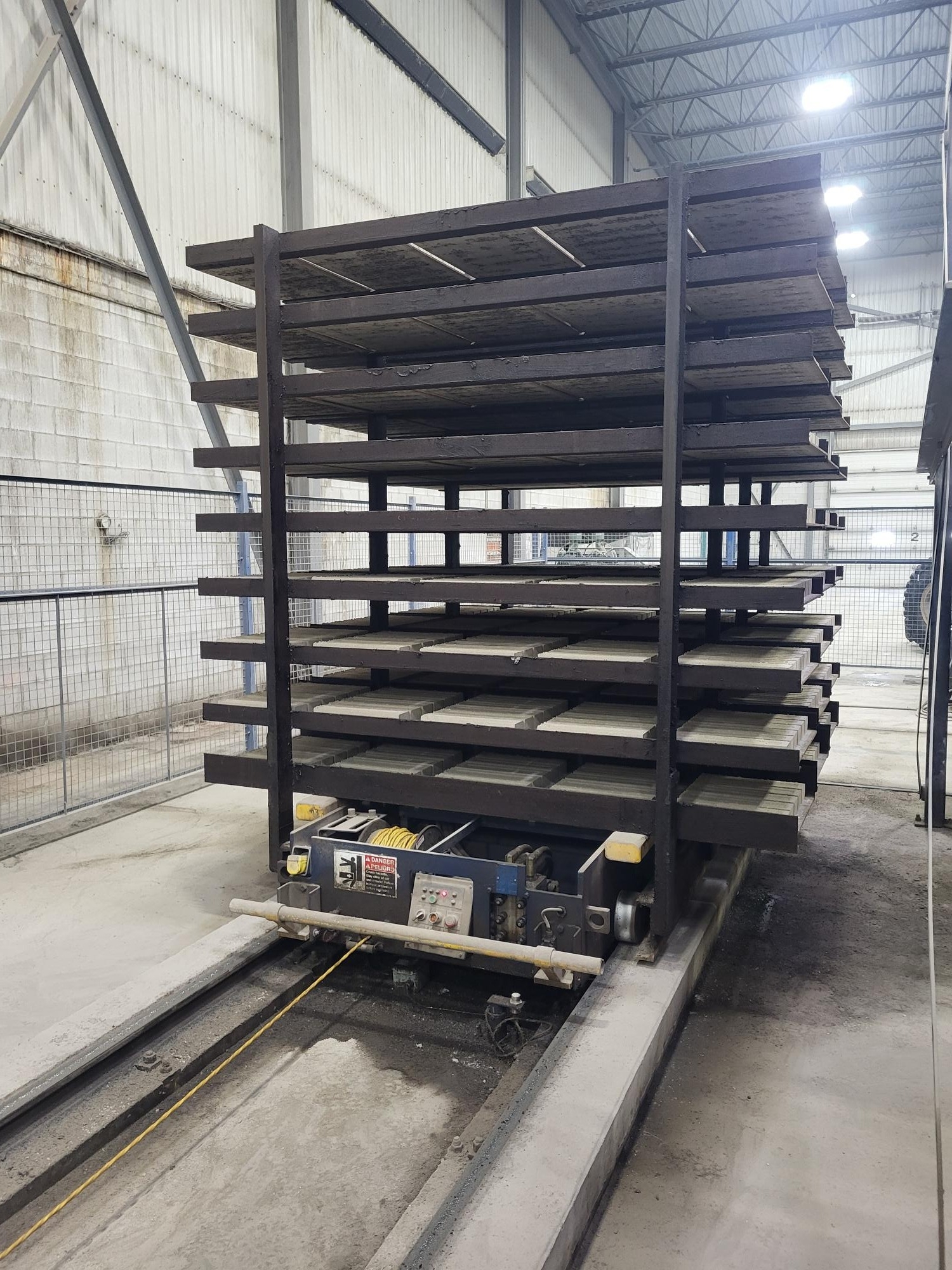

PACO Model Autorack 800 Automatic Platform and Crawler w/ Electrical Cable Coiling Drums and Related Controls. It is Designed w/ 8 Double Sided Trolley Box wil Heavy Duty Wheel and Bearing. The Platform and Crawler has its own Drive Mechanism Utilizing Hydraulic Motors, Each Unit Contains Independent Hydraulic Power Units w/ Automatic Controls



(30) Miscellaneous Mold Boxes Including But Not Limited to:

3" Solld Bricks

4" Solld (Used for 2" Solid) Bricks

4" Hollow (Used for all 4* Block) Bricks

6" Solld (Used for all 6" Block) Bricks

6" Hollow Bricks

8" Hollow Bricks

8" Solld (Used for 4" Splitaca) Bricks

8" Bullnose (Used for all 8* Block) Bricies

8" Single Score Bricks 8-3/4" Solid Bricks

8" Half High (4x4x16, 12" Half High) Bricks

8" Half High Splltace Bricks

8" Splitface Comer Bricks

8" Splitface Fluted Bricks

8" Splitface (84 Hollow Bottom Boned Beam) Bricks

8" HL" Block Brick

10" Hollow (Used for all 12" Blocks) Brick

10" Retum Comer Bricks

12" Hollow Bricks 12" Hollow Half (used for all 12" Block) Bricks

12" Splitface Bricks

12" Retum Comer Bricks

14" Hollow Bricks 12 x 8 Chimney Block Bricks 8x8 Chimney Block (used for all 16" Hollow) Bricks (4) Smart Pac Standard Length Vibrators (2) Smart Pac Extended Length Vibrators



(2) WP Hilts Mud Hoppersw/ Support, Each Mud Hopper is Based on Besser Company Drawing for V3-12, Each Hopper is 8'X8' W/ Legs to Grade, (1) New, Ons in Storage-Outside



WP Hists 30" Mud Metering Conveyor To Block Machine #1, 30" Wide, 8' Channel Frame Construction w/ Channel iron Spreaders and Angle iron Bracing, 10 HP TEFC 440V Motor w/ V-Belts to Tapered Speed Reducer (Dodge) w/ Beit Guard, 16" Lagged Head Pulley w/ Shaft, 12* Curved Crowned Tall Pulley w/ Shaft, Dodge Pillow Block Bearings for Head and Tall Pulley, 18" Screw Take-up, Head and Tall Pulley Guards, (3) 20° Traughing Idlers on l' Centers, Return Idlers on 10' Centers, 2-Ply 220-lb Conveyor Belt w/ 3/16" x 1/16" Covers, 4' Skirt Board, 350 FPM, All Support Frames, Backstop, Emergency Cord, Controls for Conveyor by Others



WP Hills 30" Mud Metering Conveyor To Machine #2 (In Storage Outside), 30" Wide, 8" Channel Frame Construction w/ Channel iron Spreaders and Angle iron Brace, 10 HP TEFC 440V Motor w/ V-Belts to Tapered Shaft Mounted Speed Reducer (Dodge) w/ Belt Guard, 16" Lagged Head Pulley w/ Shaft, 12" Curved Crowned Tall Pulley w/ Shaft, Dodge Pillow Block Bearings for Head and Tall Pulley, 18" Screw Take-up, Head and Tall Pulley Guards, (3) 20° Troughingidiers on 1' Centers @ Loading Plont, 35° Sealed Troughing Idlers on 4' Centers, Retum idiers on 10' Centers, 2-Ply 220-lb Conveyor Belt w/ 3/16" x 1/16" Covers, 4' Skirt Board, 350 FPM, all Support Frames, Backstop, Emergency Pull Cord, Controls for Conveyor by Others



Set of 9 Rail End Locks to Attach to Kiln Rail,

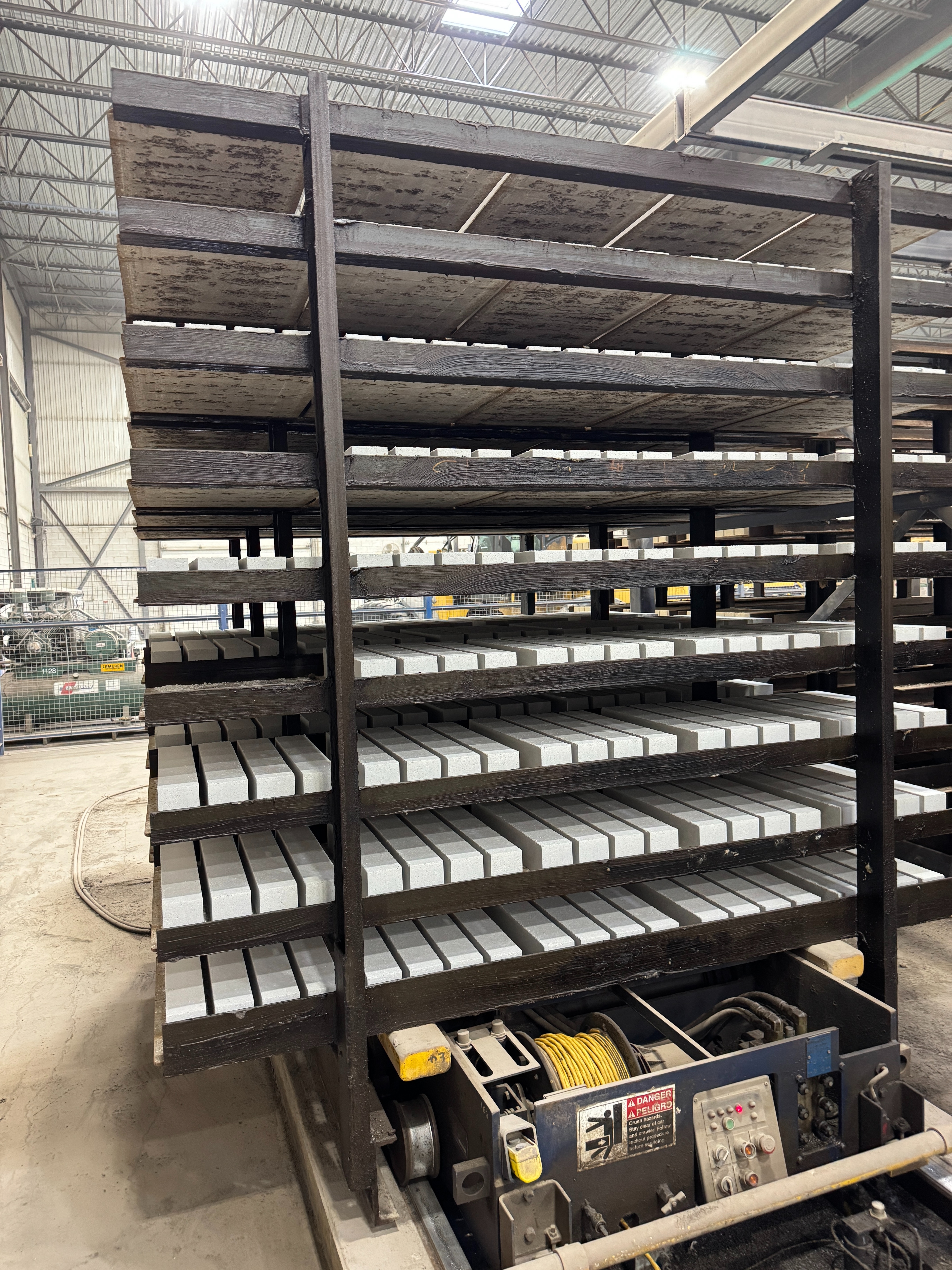

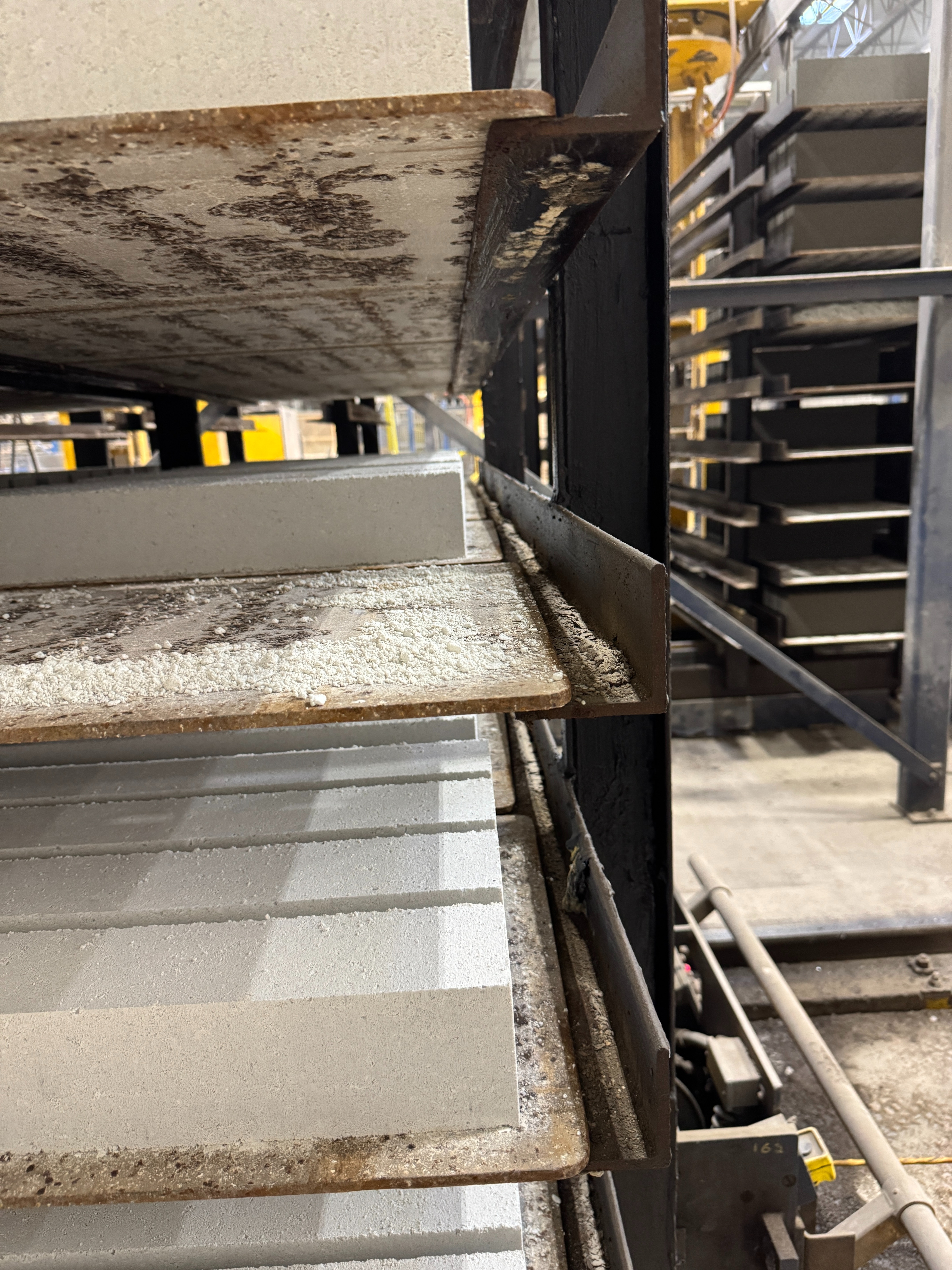

(60) Block Racks, 10'H x 5' D x 3 W W/ 150 Plates Per Racks

(9,000) 18-1/2" X 26" X 5/16" Steel Plates

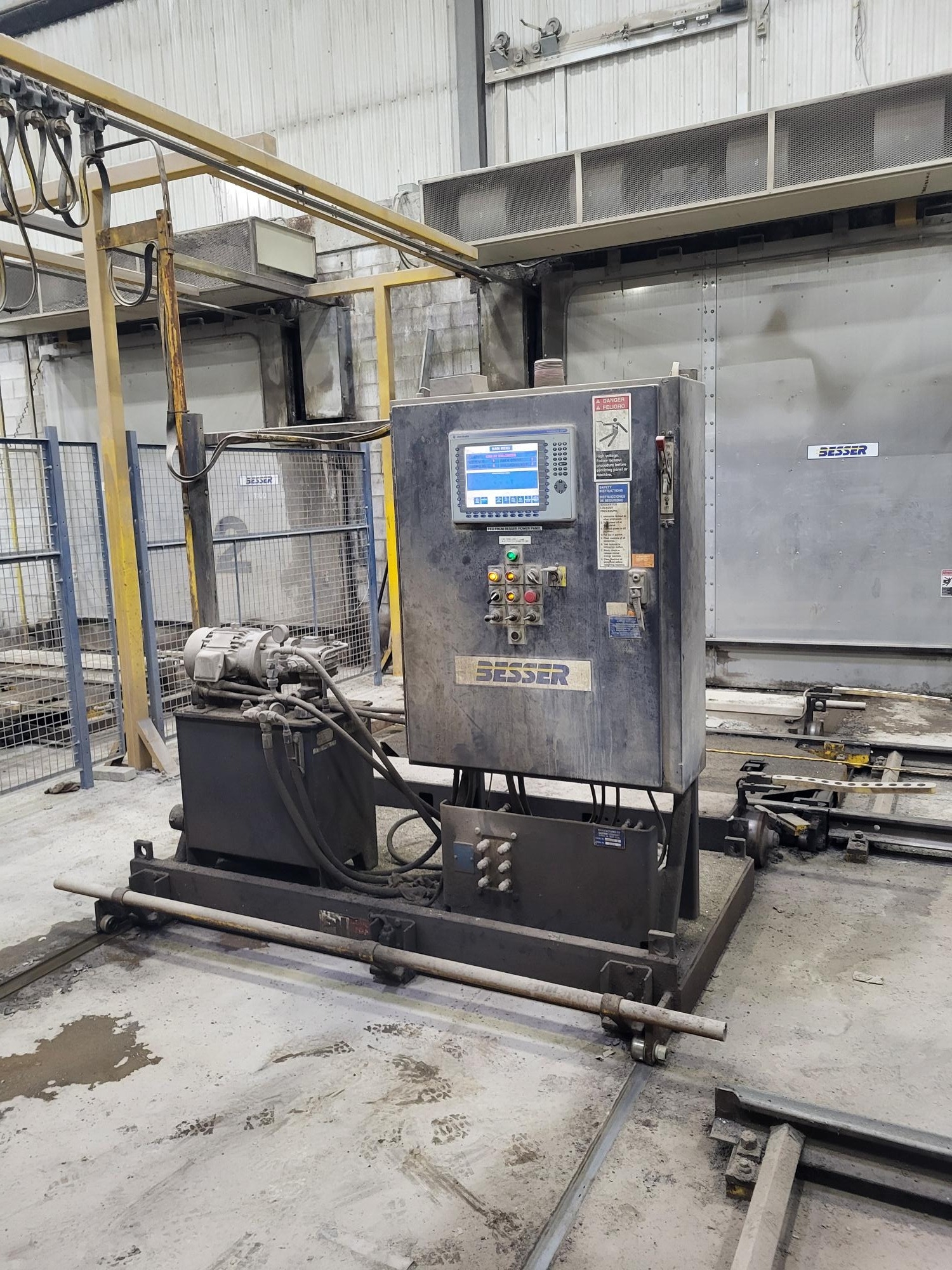

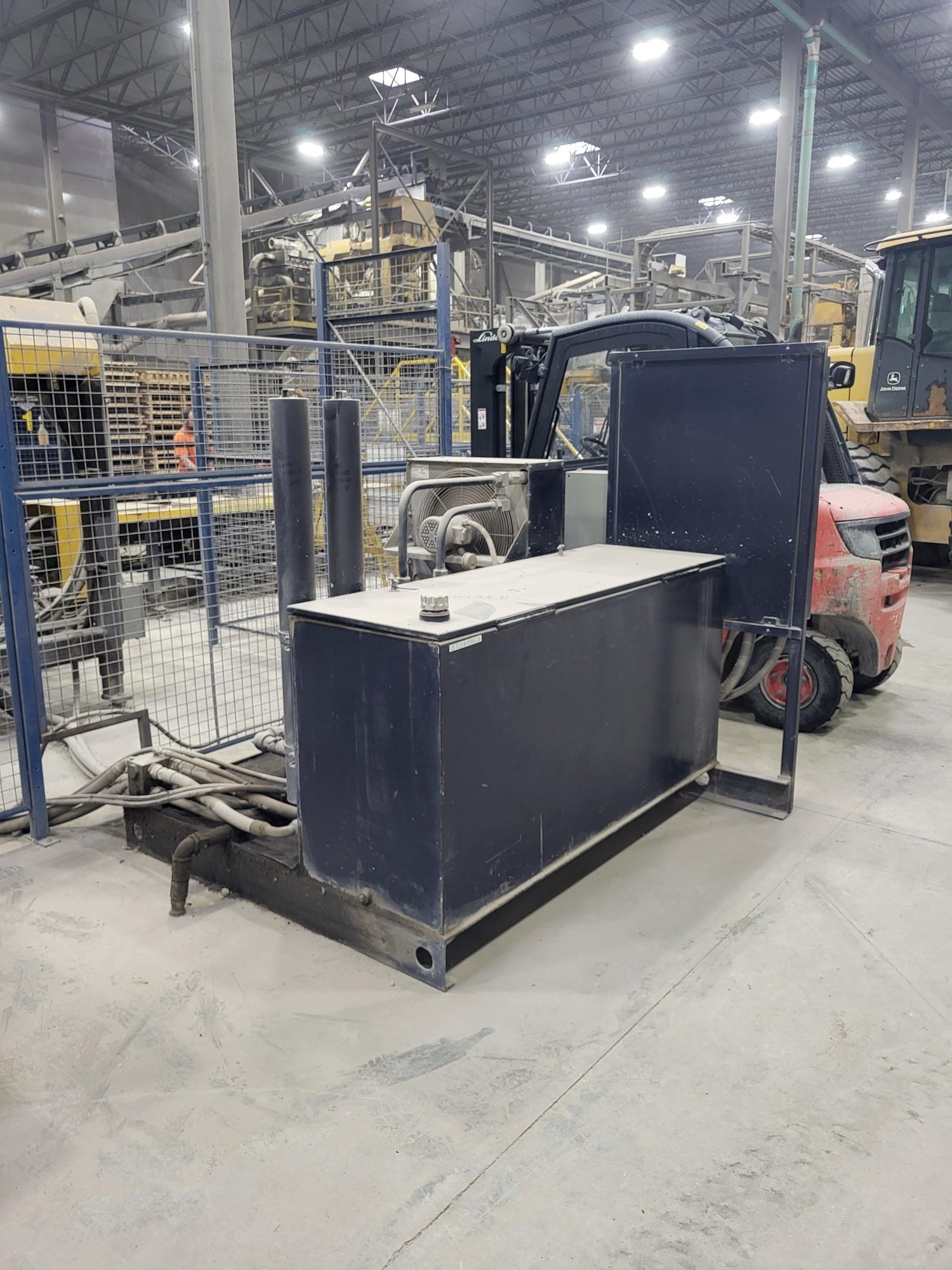

50 GPM 40 HP Motor, Hydraulic Power Unit to Operate Loader/Unloader. This Unit Is Complete w/ Oll Reservoir and Self Contained Electrical Controls

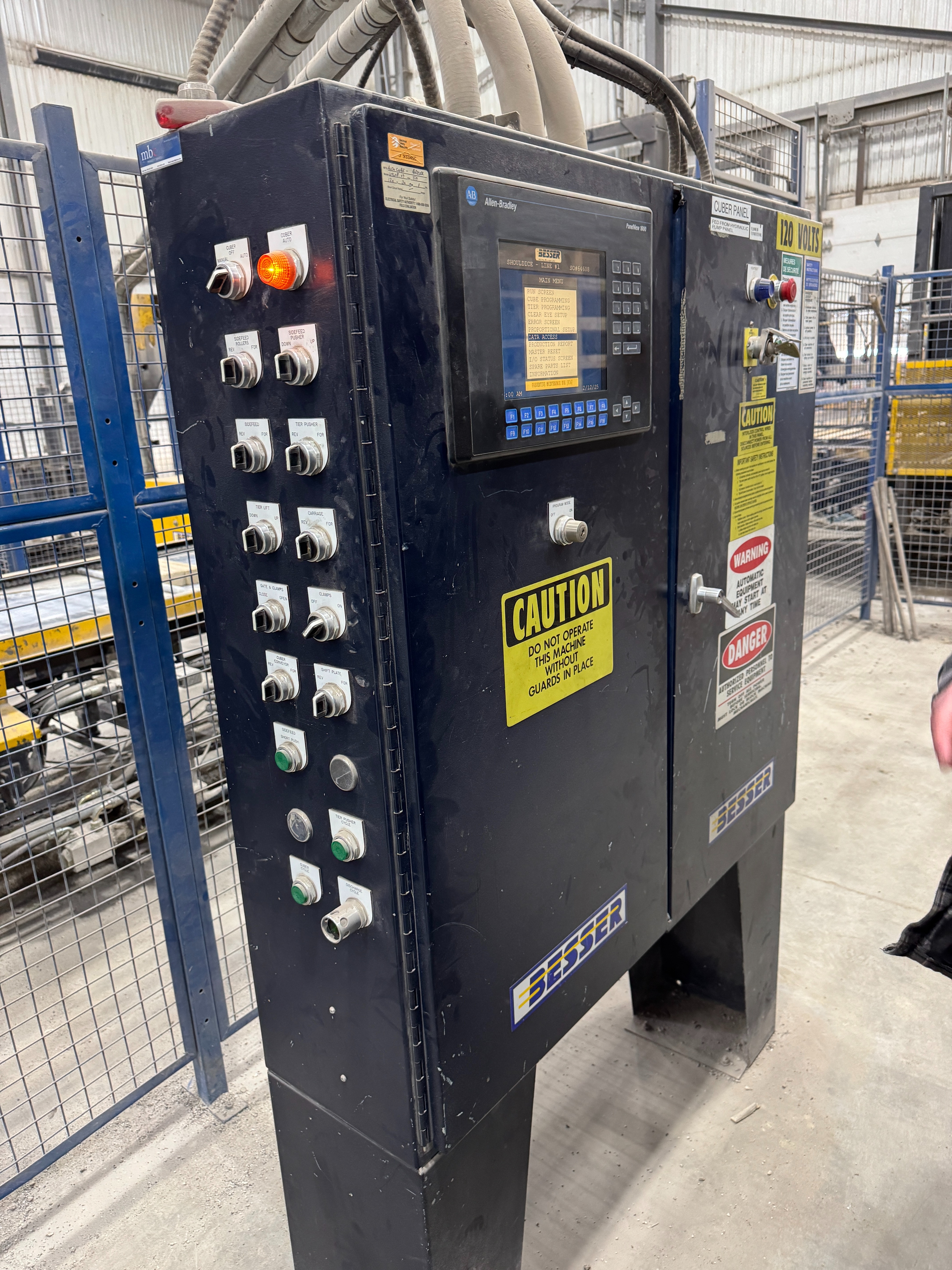

Electrical Control Cabinet Complete w/ Programmable Allen Bradley Control, Single Line Status indicator and all Necessary Motor Starters, Breakers, Push Buttons and Selector Switches for fully Automatic or Manual Operation Control


PACO Green Block Conveyor Approximately 25' Long

Green Block Transfer

Pallet Return Conveyor-Roll-Away Section

Pallet Transfer to Feed Both Block Machine

PanelView Operator Terminal Including: Touch Screen Terminal Model 2711-TC1 Interface, Panelbuilder Development Software, including Modems

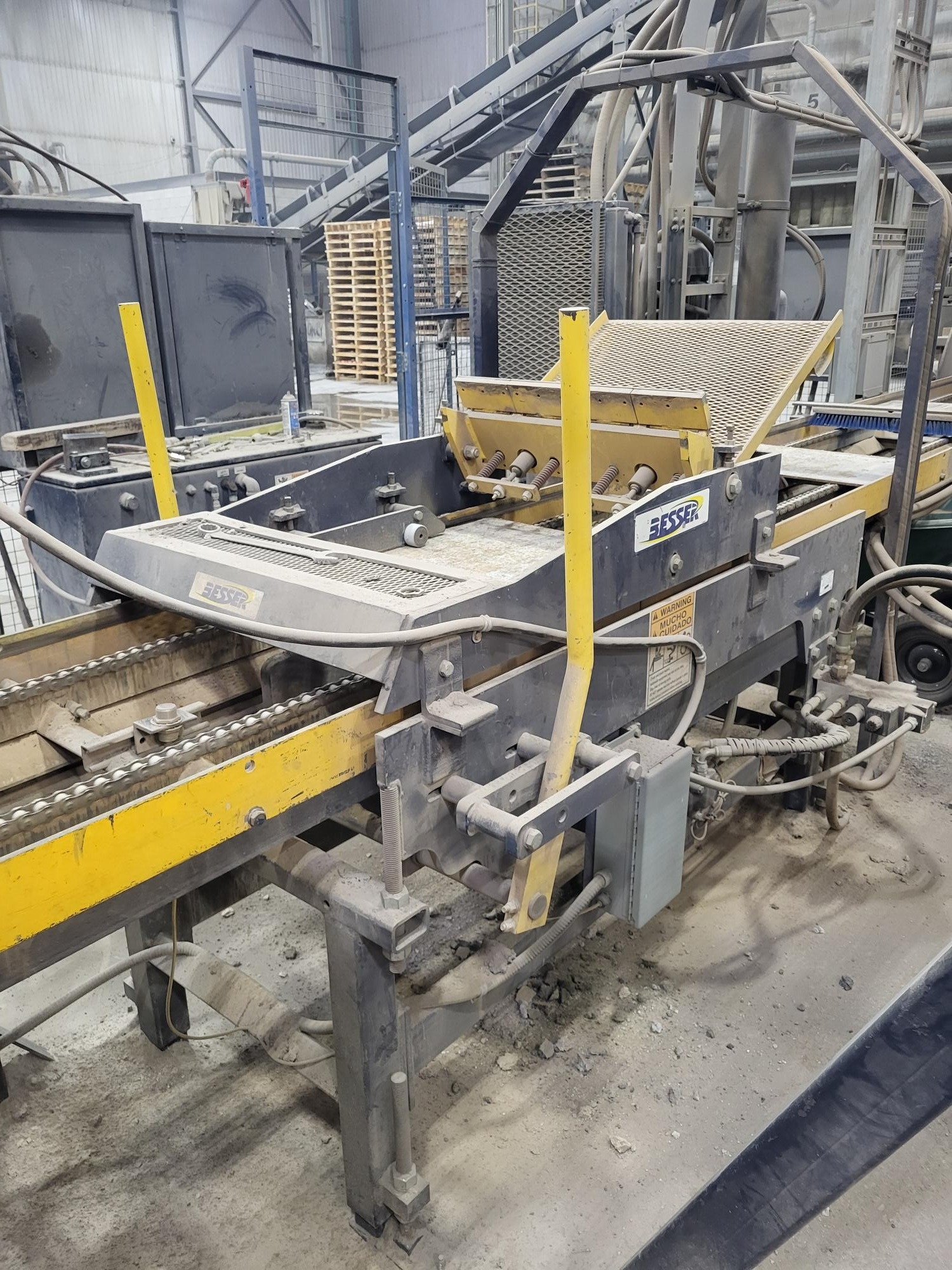

Green Block Cull Ejector to Attach to Green Block Conveyor and Elect Cull Block on a Semi-Auto Cycle

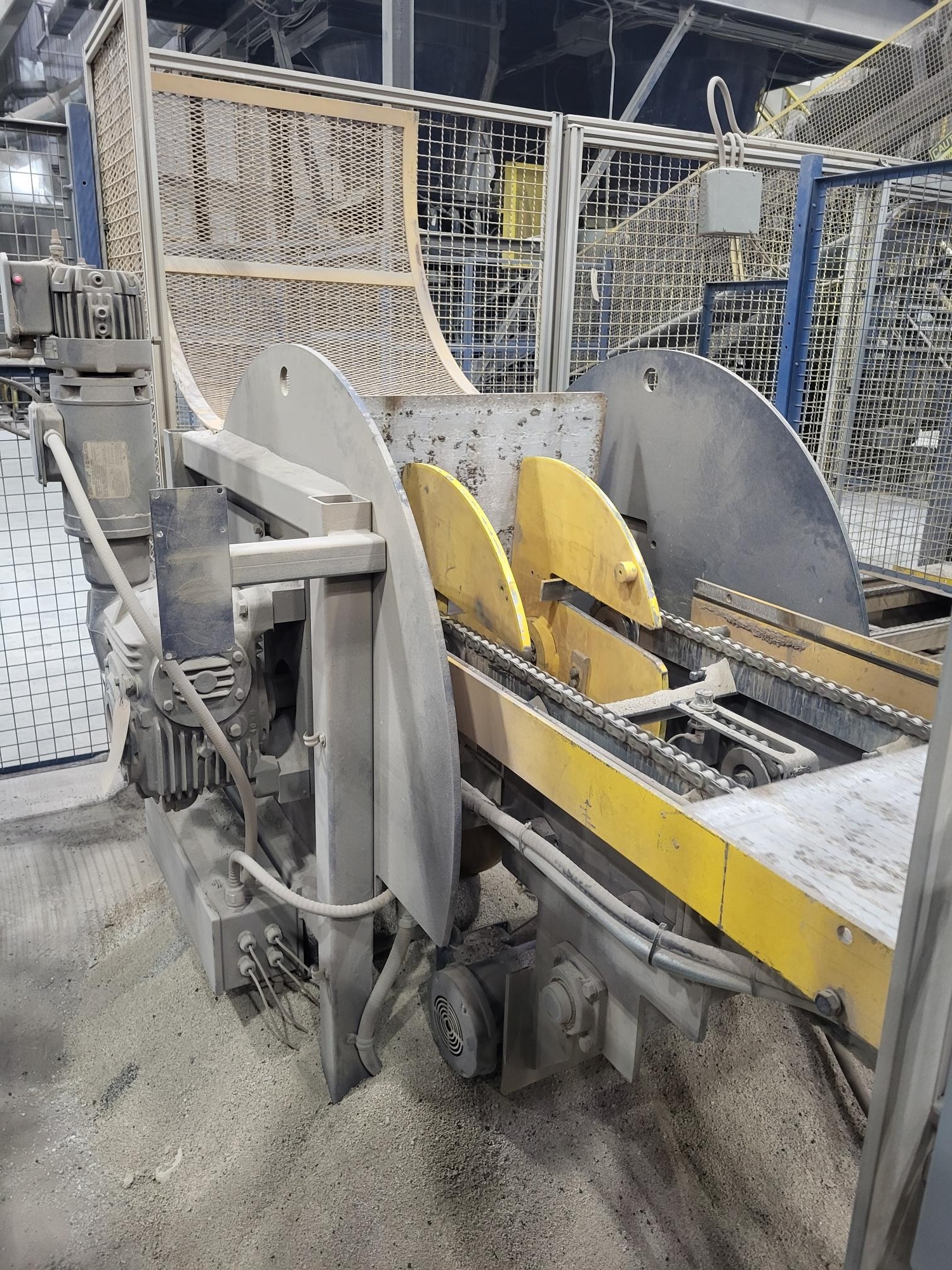

Pallet Tumover to Incorporate into Pallet Return Conveyor w/ Arms Type

(3) Heaters and Thermostat for Hydraulic Pump

(2) Adjustable Height Pivoting Bridge Type Retractable Conveyor for Block Machine Maintenance

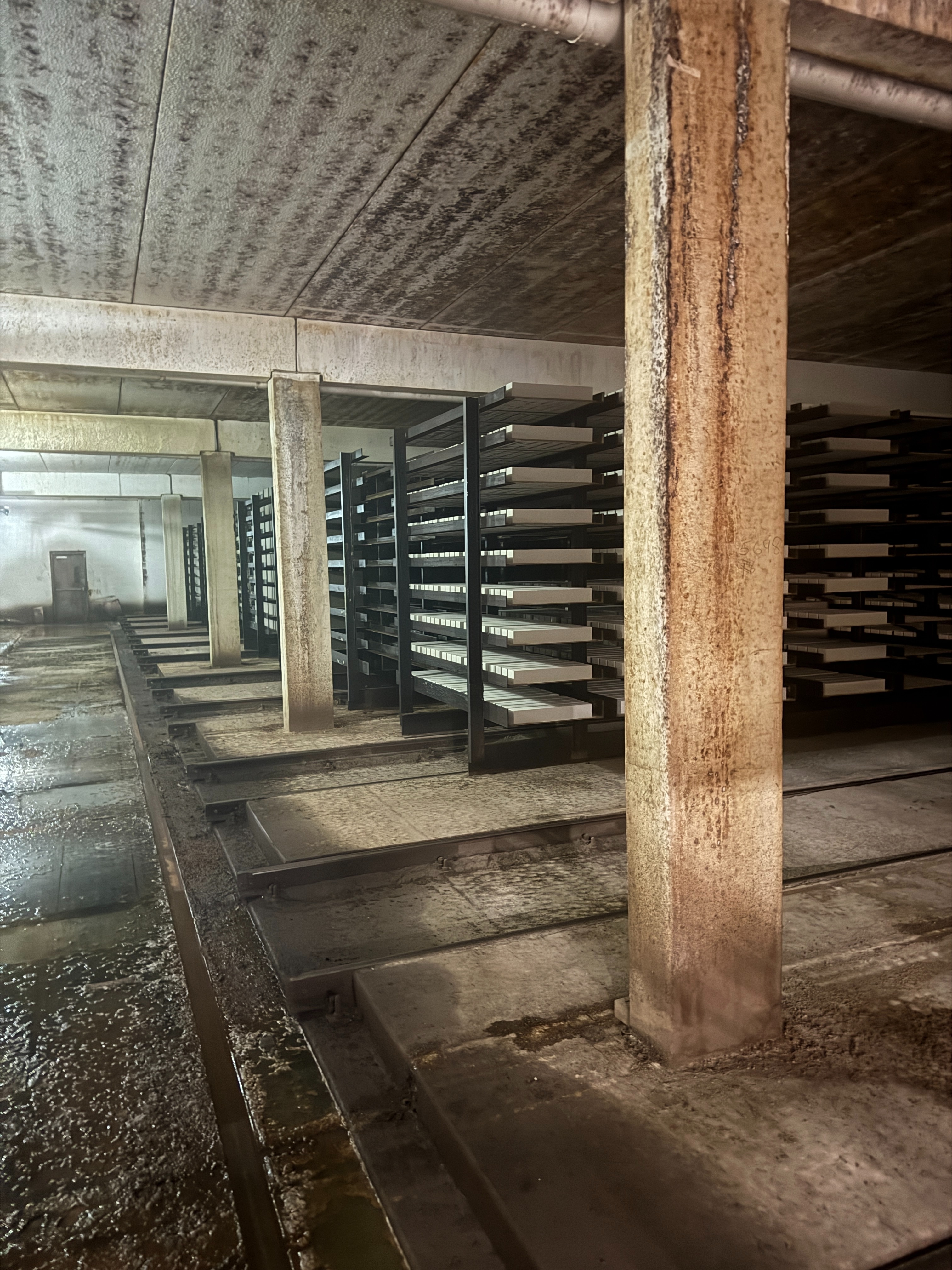

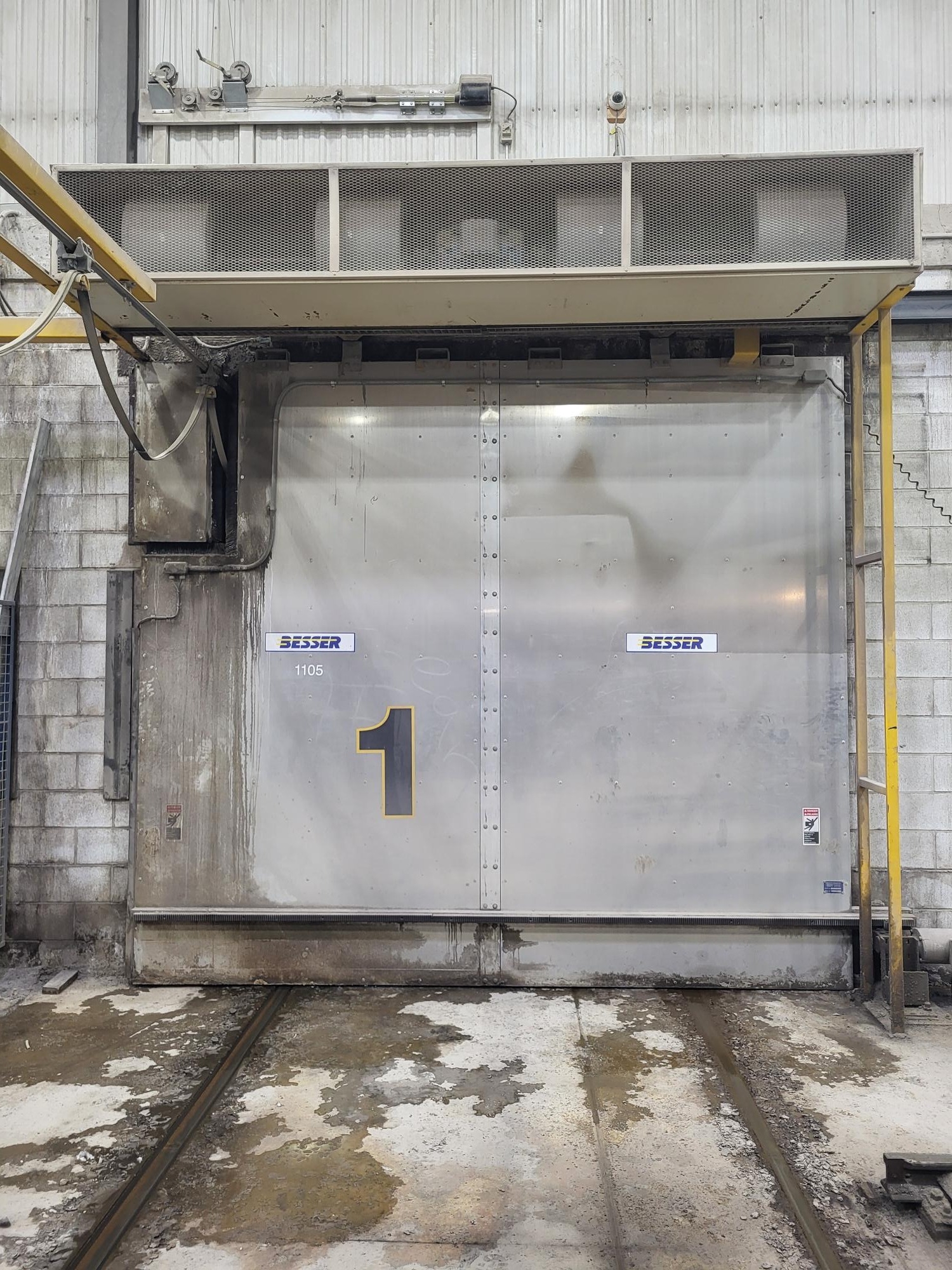

Albany Automatic Roll-Up Kim Door-Complete w/ Drive Motor and Automatic 2-Speed Controls to Regulate Movement of Door, 100°F Curing Capacity, 100% Humidity Capacity

Besser Automatic Splitter, Model #40712-02, S/N: 234, (1997), w/ Vickers 25 HP Hydraulic System, Control Panel w Allen Bradley DTAM Micro PLC, 20 & 14' Beit Conveyor Concrete Scrap Retriever System

Besser High Speed Block Tumover-Handles All Standard Size Block. including: Orbit Motors w/ Speed Control, Infeed Bar Conveyor, High Speed Clamp and Turning Mechanism, Counts Block for Base

Besser Manual Splitter, Model CMGF, S/N: B5133, (1997)

Miterzer 30' Section of Motozled Line Shaft Conveyor to go Between Turnover and Pattern Maker-Includes Drive and Supports

PACO 3' Transfer Roller Conveyor w/ Air Clamps

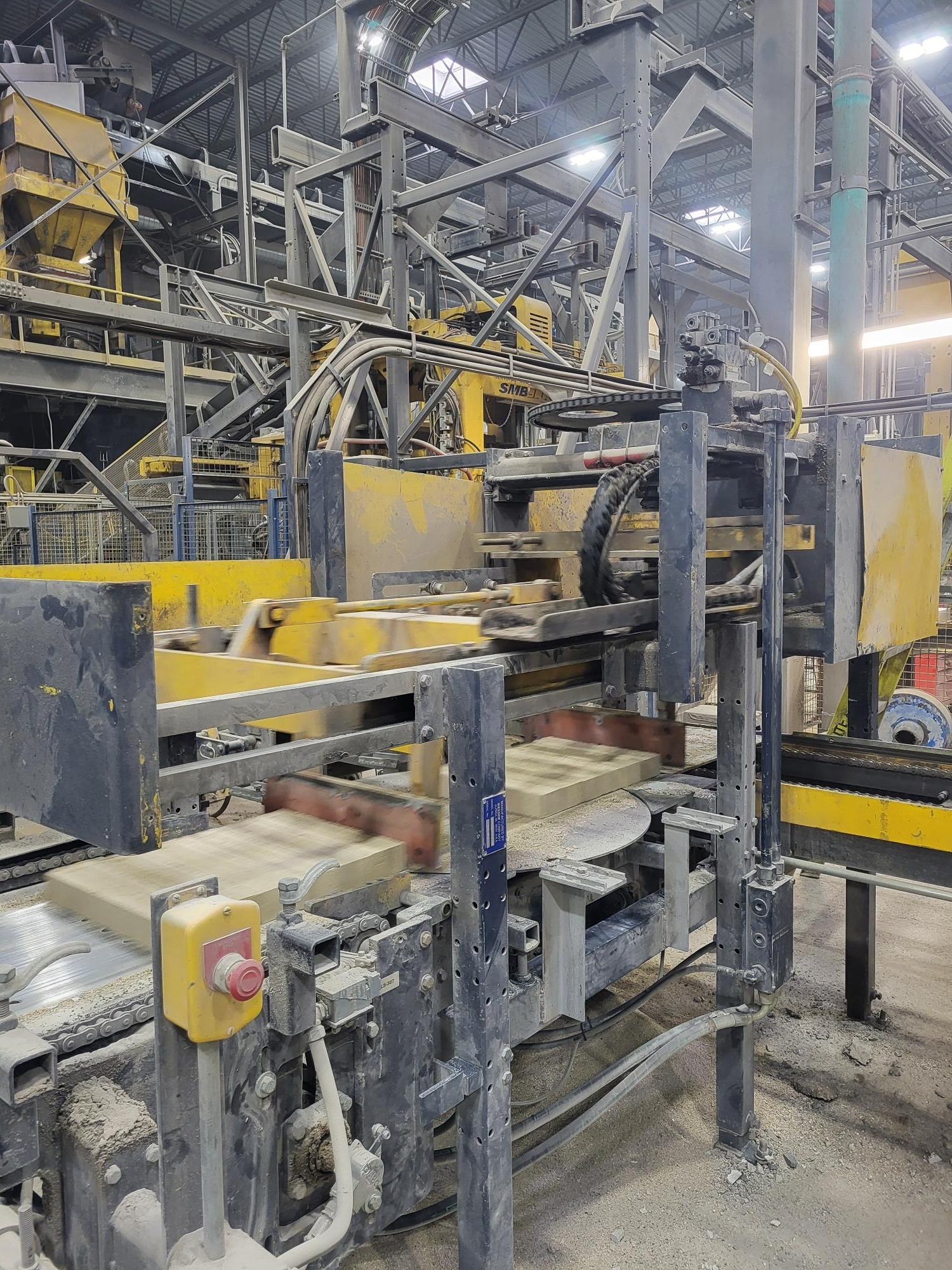

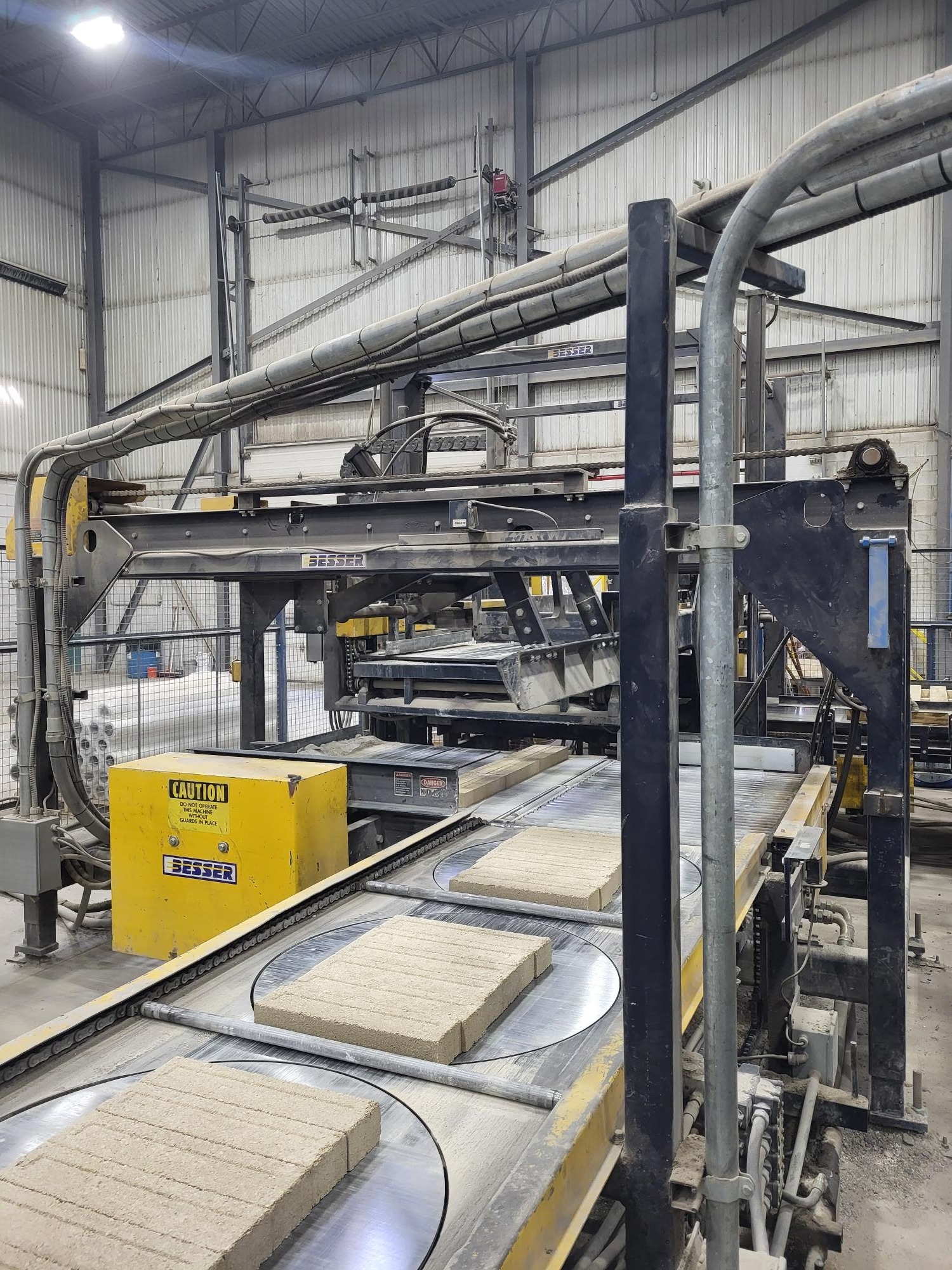

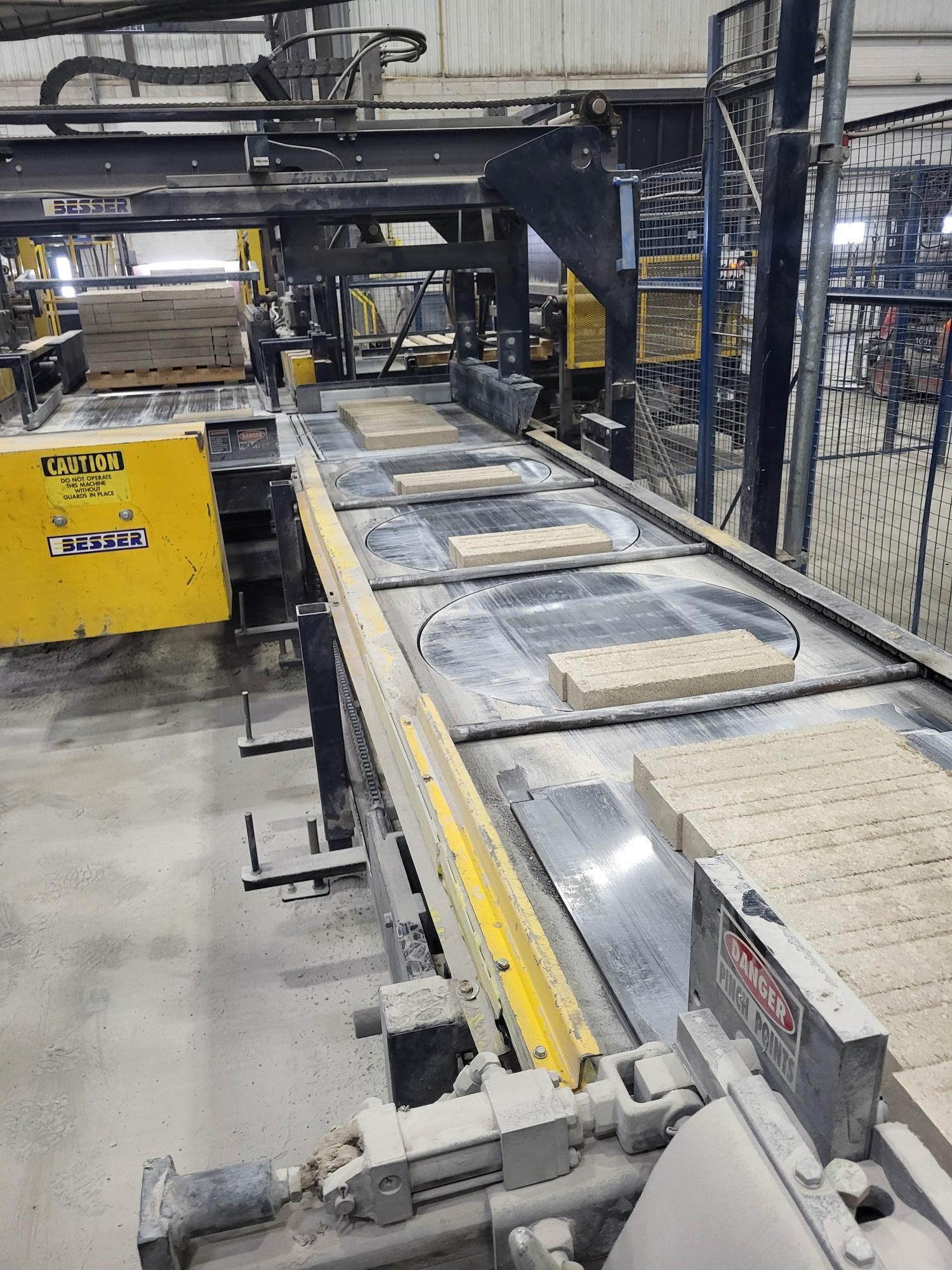

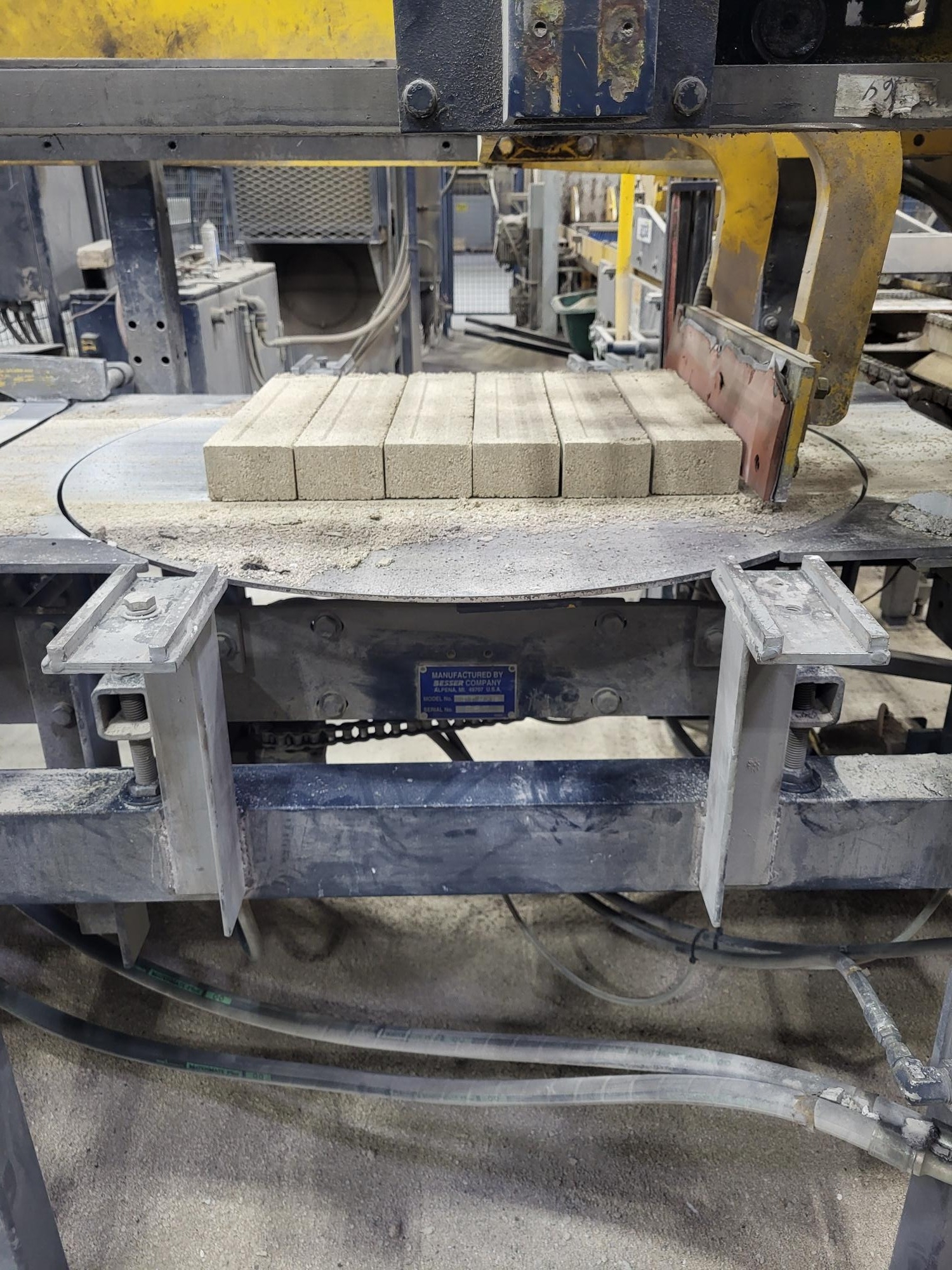

(4) Turntable/Pattern Maker for High Speed Automatic Forming of Cube Patterns including: Pattem Programming Console. Microprocessor Controls w/ Memory Capacity for Cube Pattern, Pattern Maiter Feeder, Ejector Plate, Rear Bar Feed, (4) 31" Diameter Turntables

PACO Low Entry Cuber, Block Cubing Machine w/ Tier Forming Plate, Elevator Carriage and Side Clamps to Handle Load Sizes up to 48" X 64", S/N: CUB-96-483, Includes: Rotating Tler Pusher, Segmented Tier Clamps, Overhead Side Feed, Powered Accumulating Roller in Overhead Side Feed, 26" Gate Clearance, Elevator w/ Counter Weight, 31" Stroke Clamp Cylinder to Clamp 24" Wide Load, 32" Accumulating Table

PACO Block & Pallet Injection System

70 GPM, 40 HP Hydraulic Power Unit to Operate Cuber, Complete w/ Oil Reservoir and Sell-Contained Electrical Controls

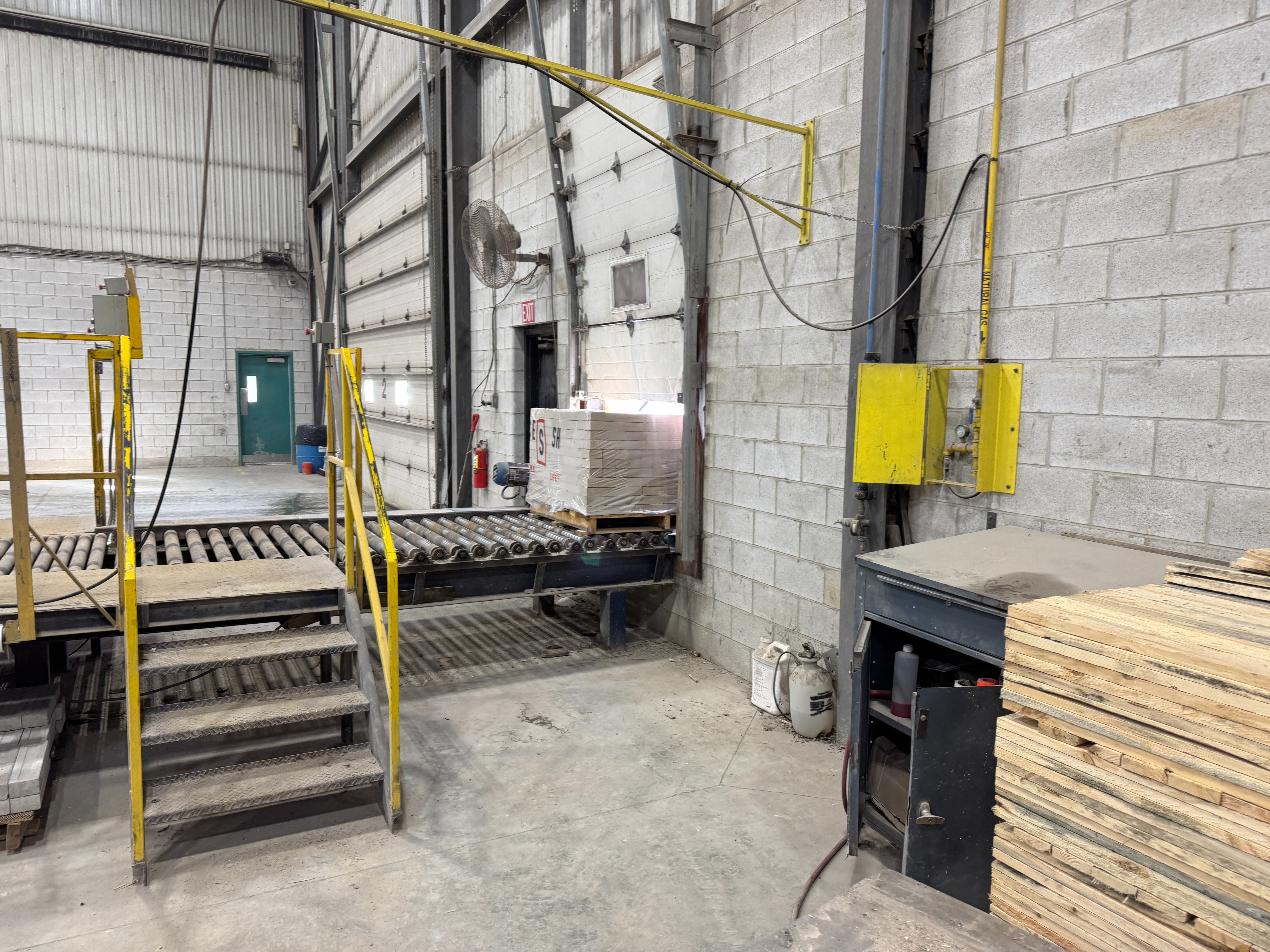

Besser Motorized Cube Turner,LEWCO Gear Driven Rollers,.75 HP Motor, 52" Wide w/ Motorized Unload Conveyor, 52" x 20', 52"x30' Gravity Conveyor

Electrical Control Cabinet w/ Programmable Allen Bradley Controls, Single Line Status Indicator and all Necessary Motor Starters, Breakers, Push Buttons and Selector Switches for Fully Automatic or Manual Operation Control
