Surface Treatment - Grinding

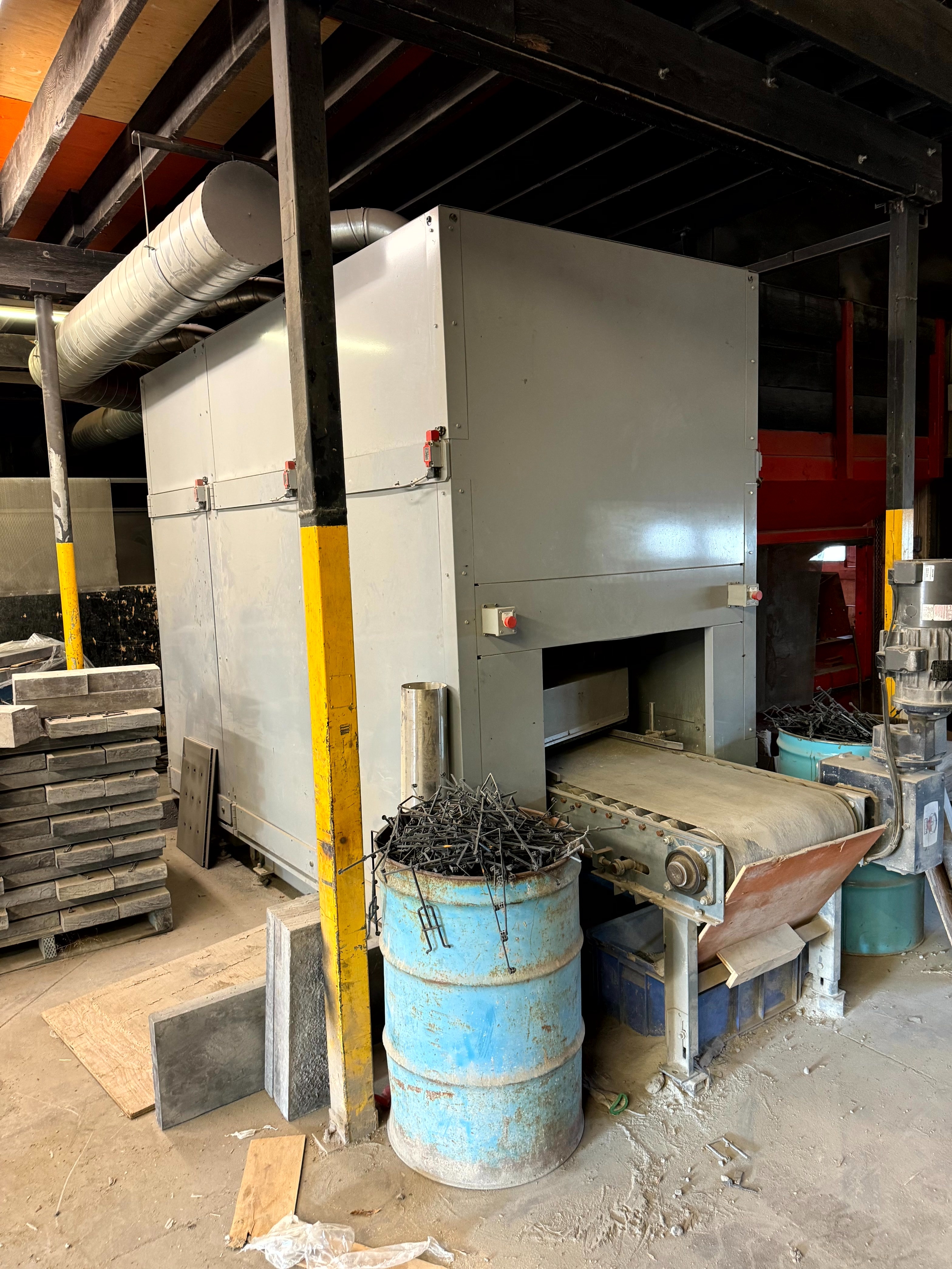

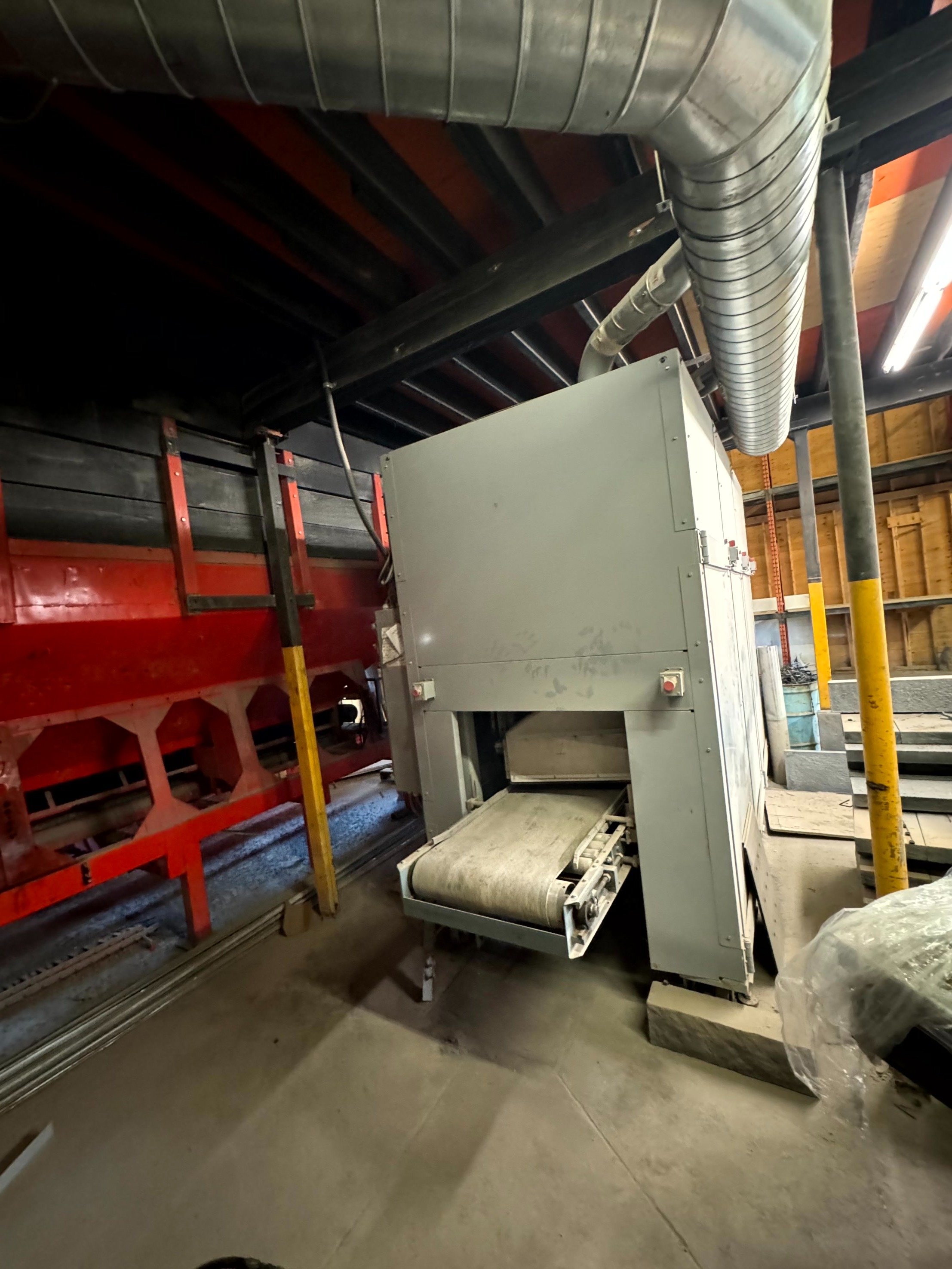

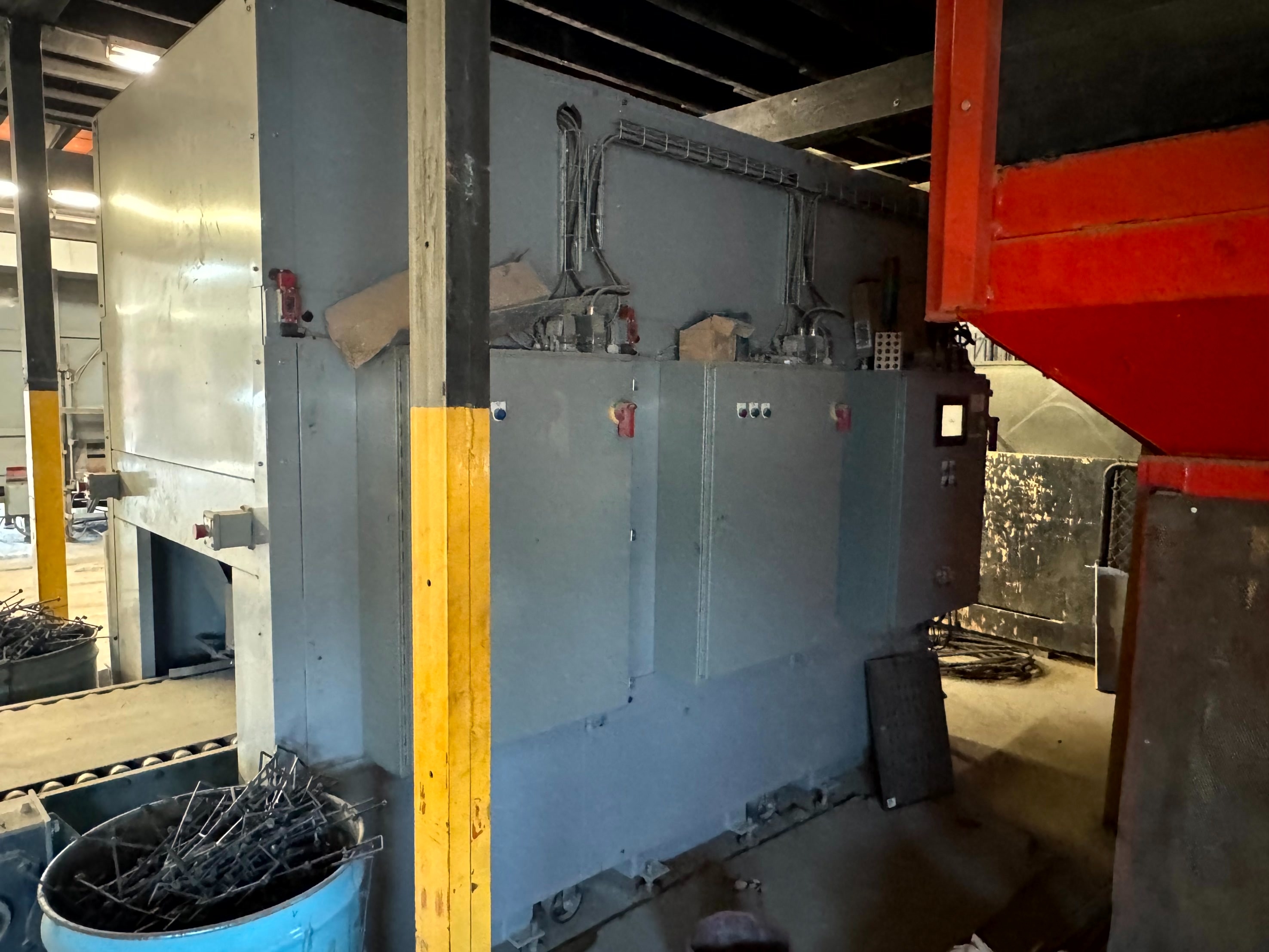

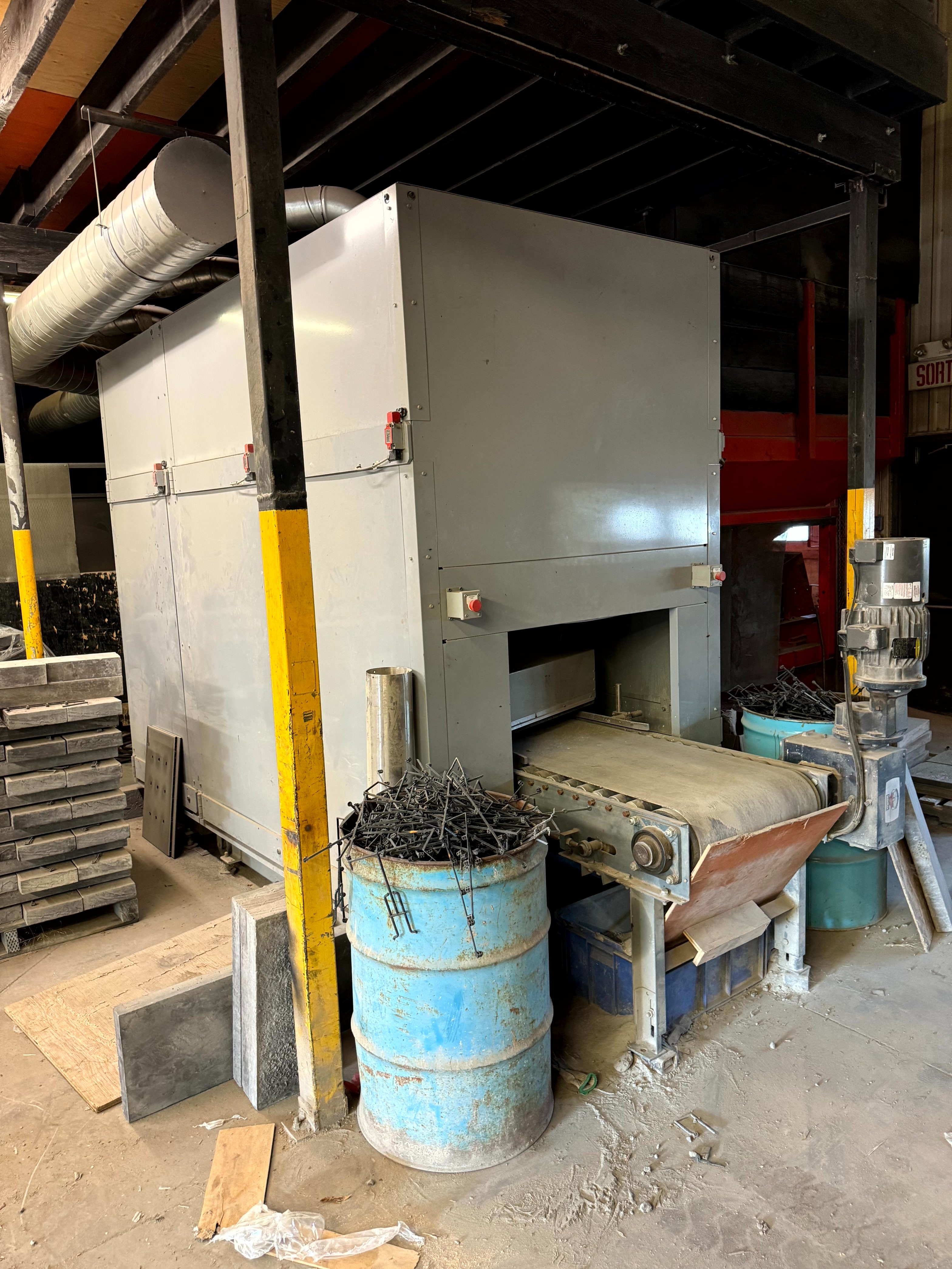

The DCC-Z500 Masonry Block Grinder is a heavy- duty machine designed for high production face grinding of CMU’s using “Di-Coated” Diamond Drums and / or vertical spindle wheels. The modular grinding station setup offers the rapid stock removal of diamond drums and the excellent finish of a vertical spindle diamond disc.  Sequential power-up of motors helps cut power cost and prevents power surge.

Dimensions:

• Machine: 5′ wide x 16′ long x 10′ high
• Electrical Control Box (Free-Standing): 1′ wide x 6′ long x 5′ high

Weight: 18,000 lbs

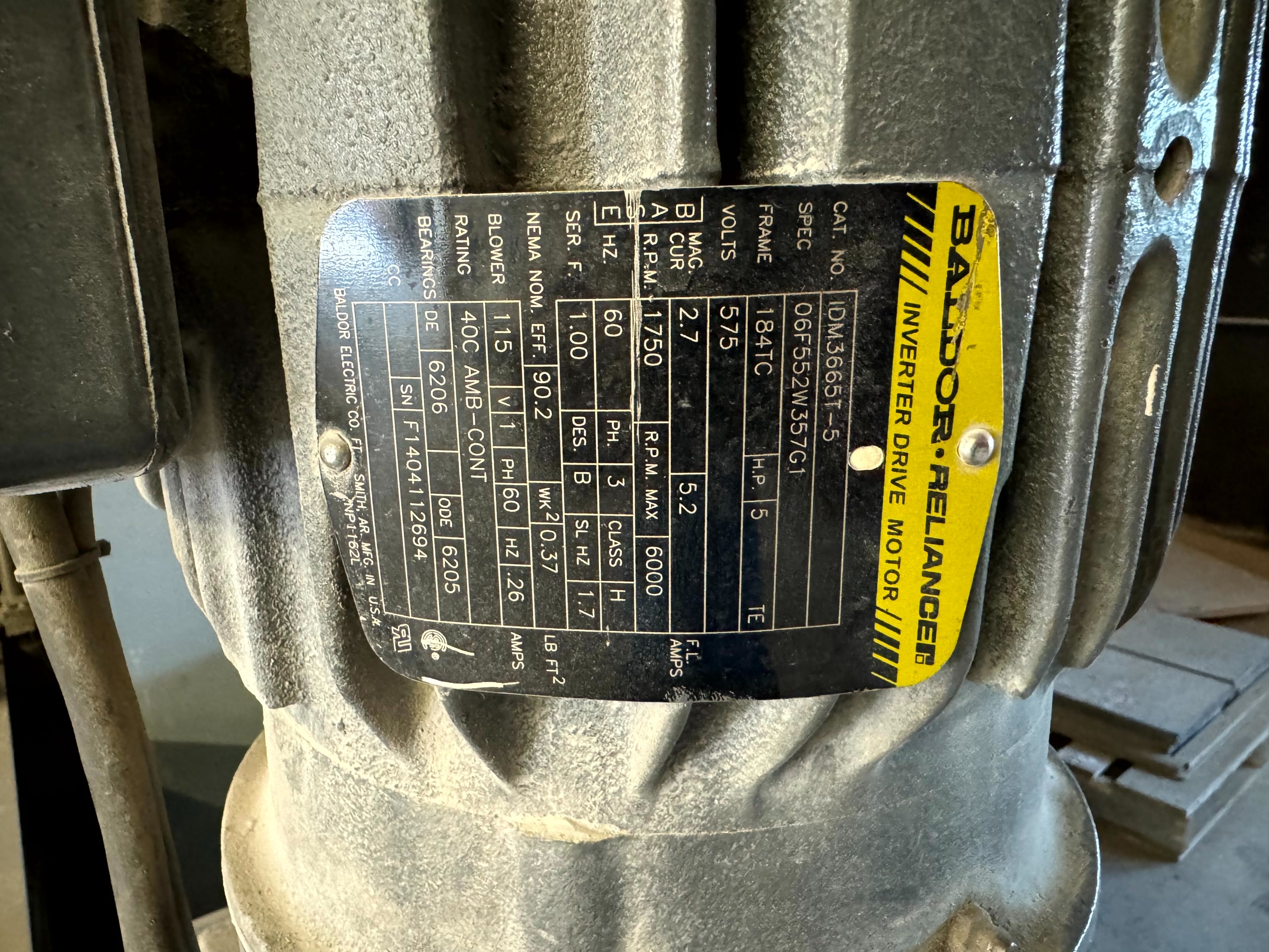

Motor:

• Roughing Station (Drum): 30 HP Severe-Duty
• Semi-Finishing Station (Drum): 30 HP Severe-Duty
• Finishing Station (Drum): 15 HP Severe-Duty

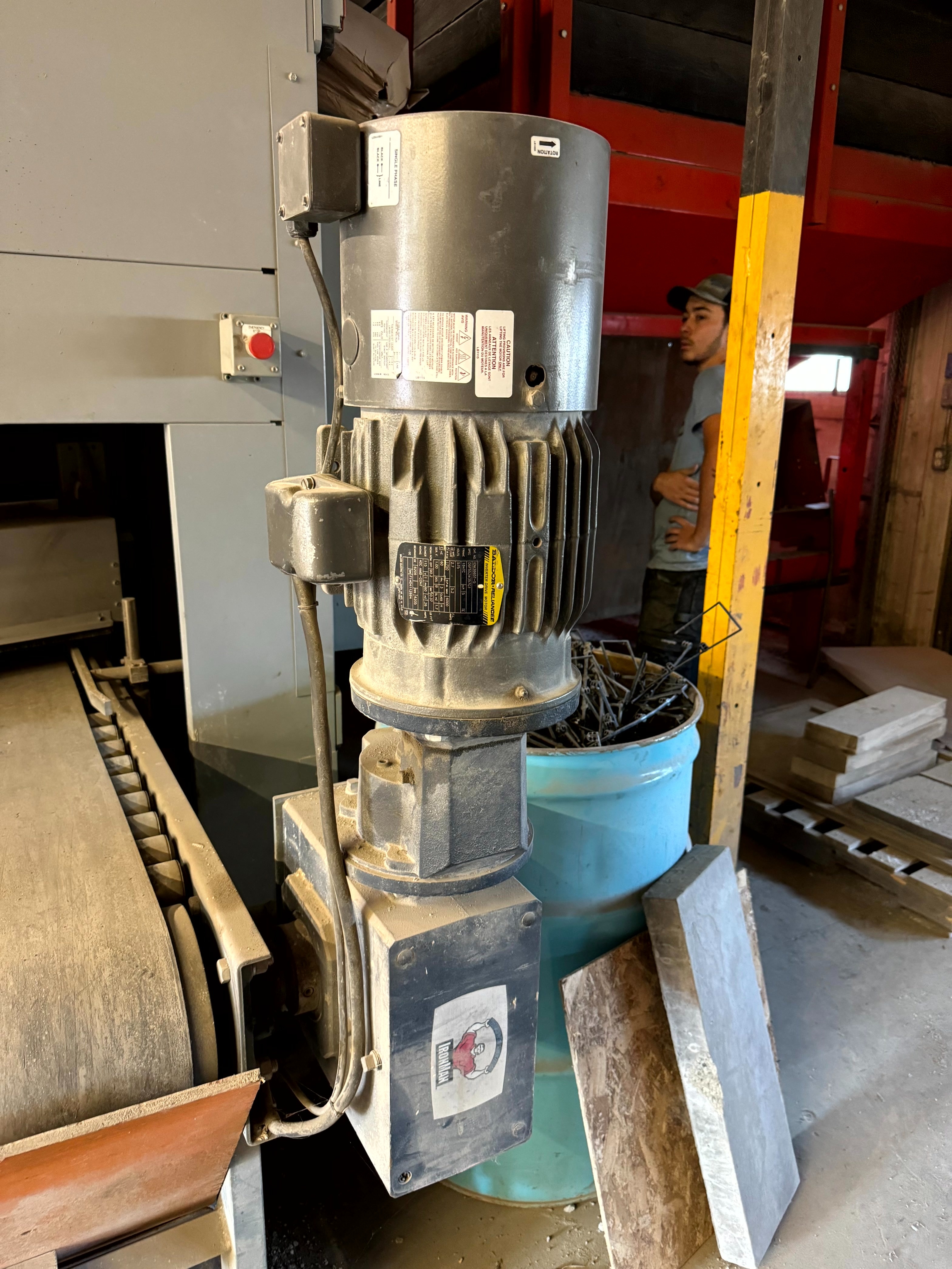

• Extra Fine Finishing Station (Disc): 15 HP Severe-Duty
• 480 Volt – 3 Phase Optional: (240 Volts)

Coolant Requirement:

• 10-12 gal./min./station
• Coolant Delivery/Cleaning Manifolds
• Thru-Spindle Coolant Of Vertical Heads

Production Rate:

• Three Programmable Speeds Producing 12-18 Blocks/minute.
• 22 Blocks/minute maximum

Machine Features:

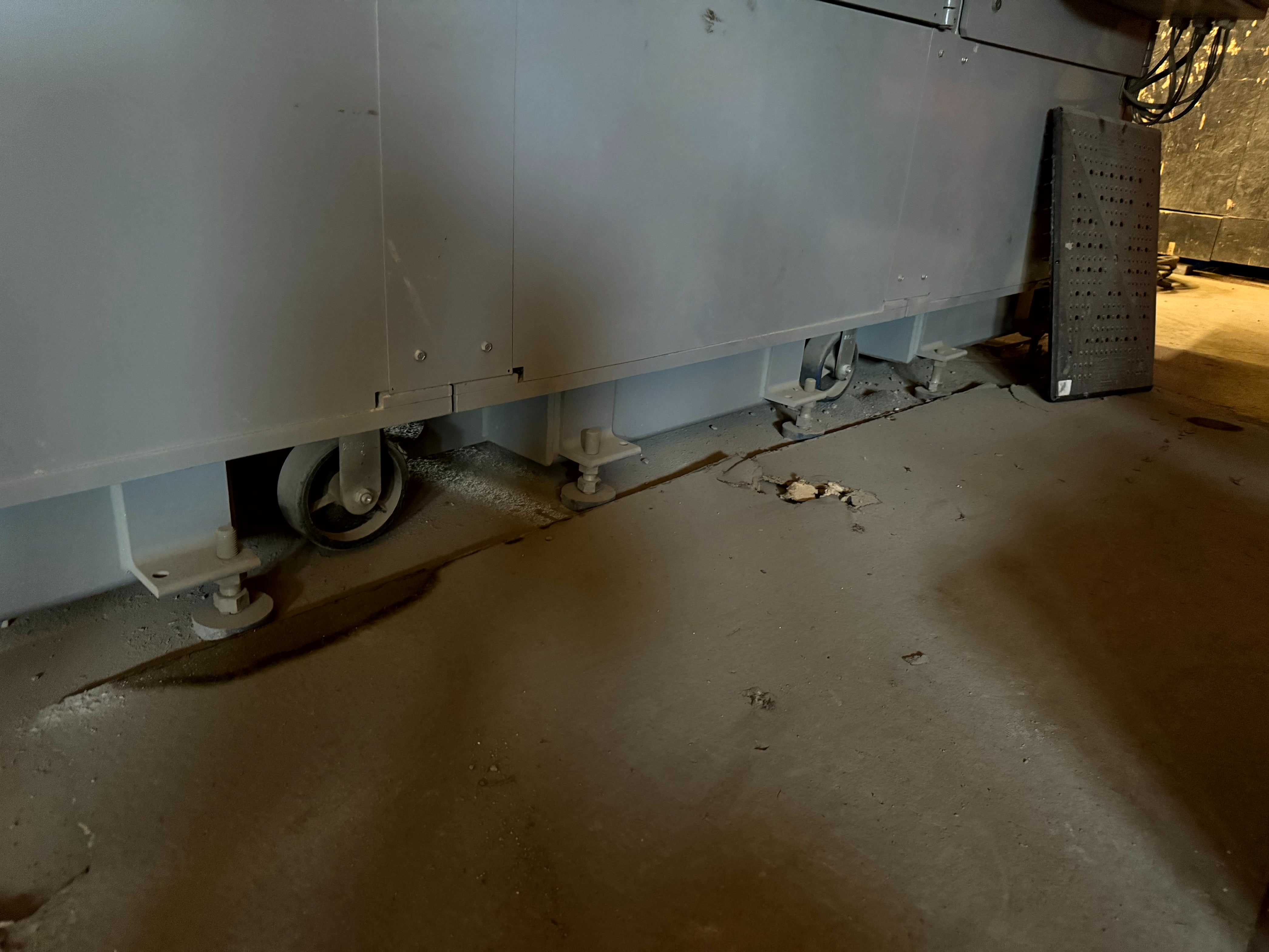

• Rigid, heavy-duty welded construction

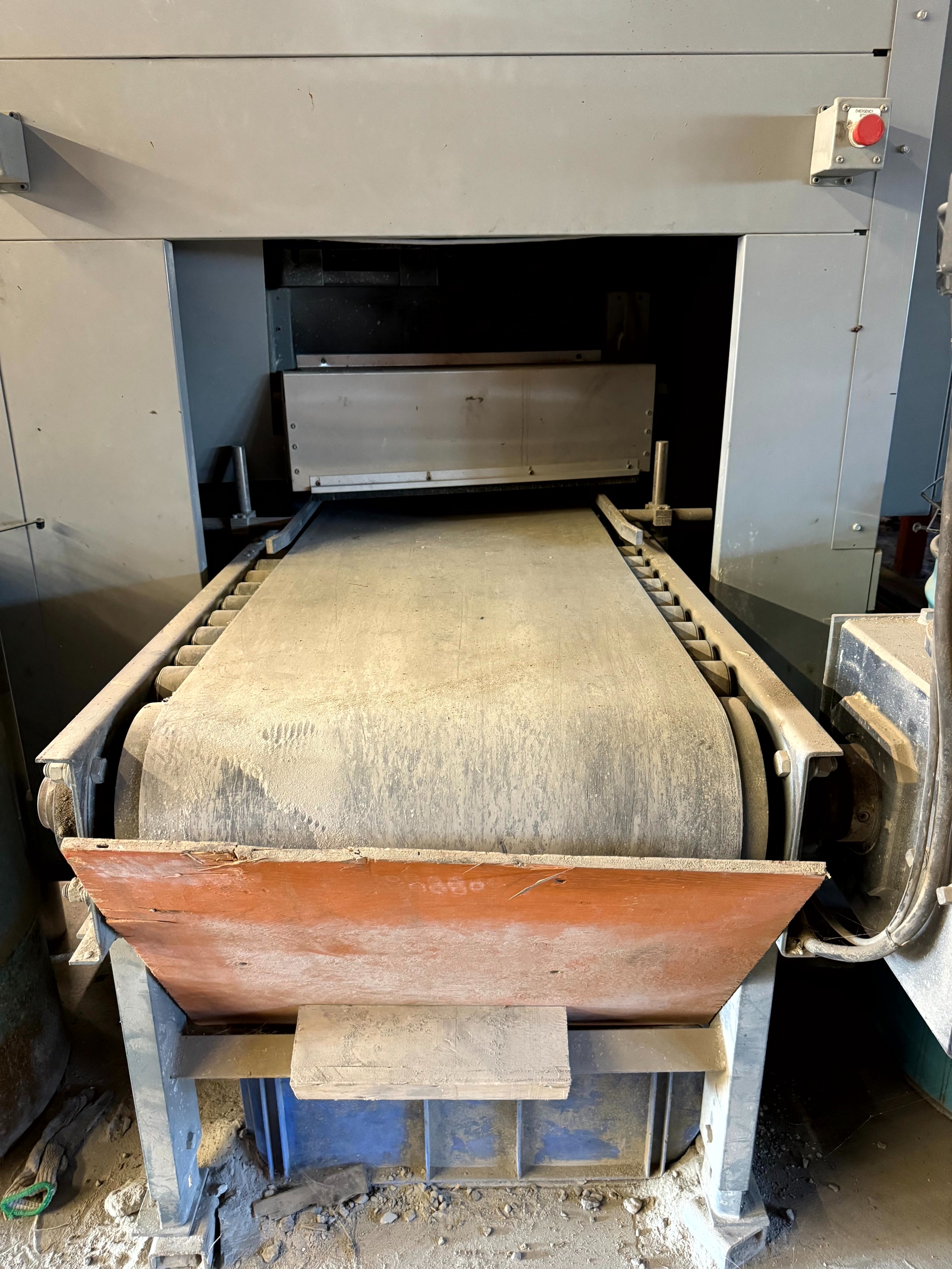

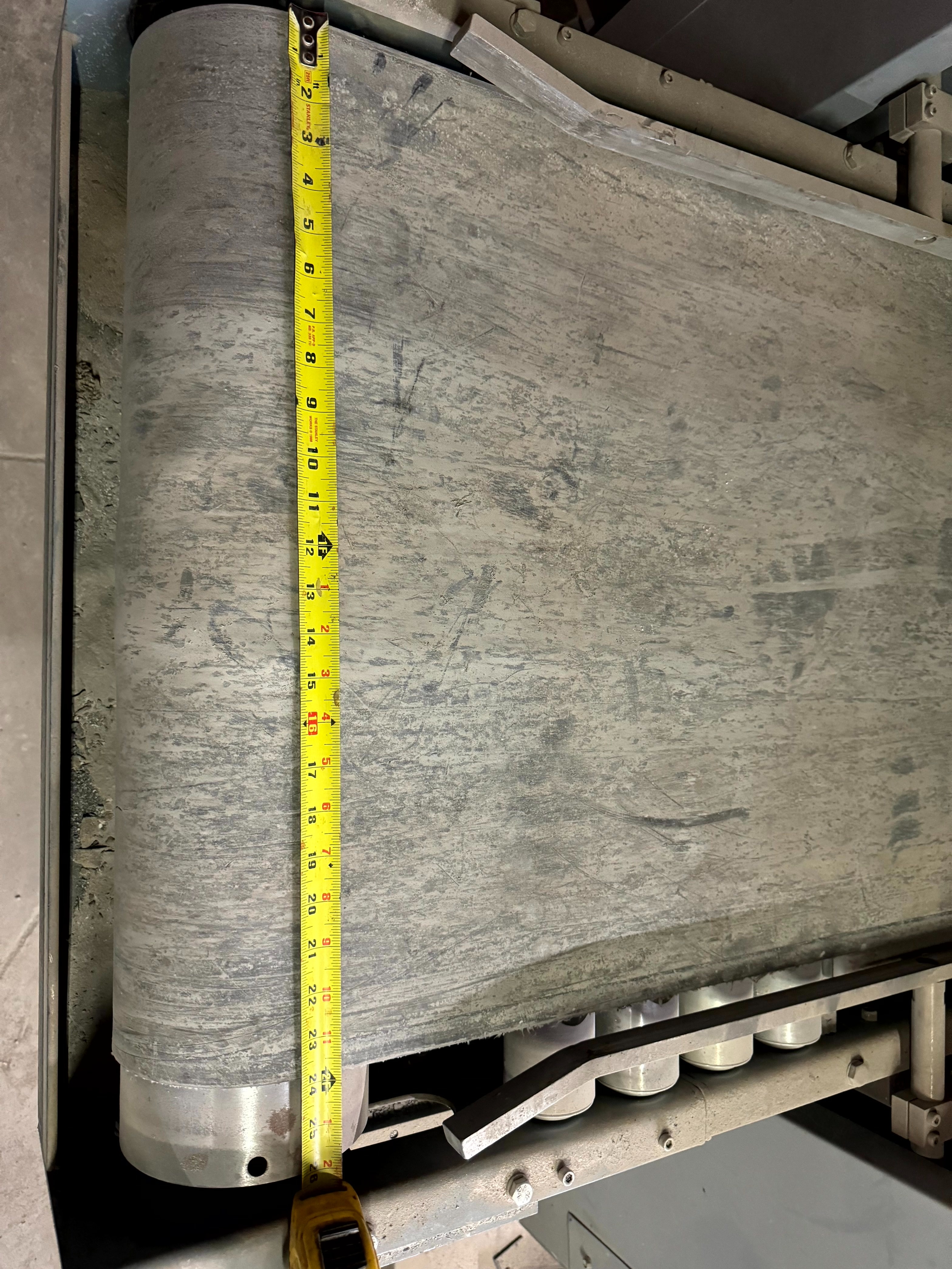

• Belt/Platen multiple speed conveyor system (8-10-12 ft./min.)
• Modular grinding cell configuration Accommodates up to four stations Head Spindles
• Diamond Grinding drums skewed for improved finish & extended life
• Special belt drive system to suppress noise levels
• Centralized grease fittings
• Ergonomic design

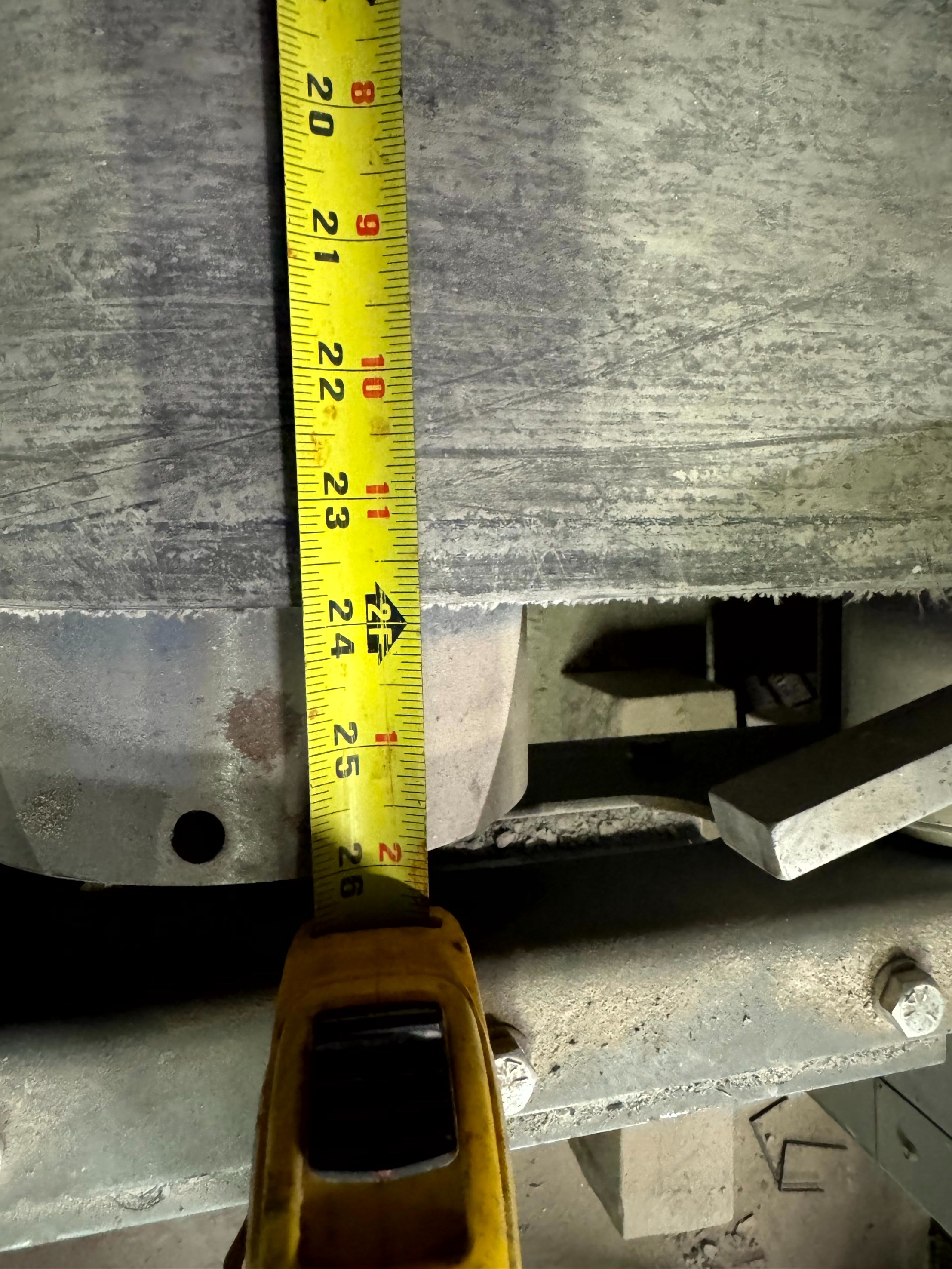

Block Height Adjustment:

• Microprocessor controlled height adjustment for block size changes
• Pre-programmed settings for 4, 6, 8, 10, 12″ CMU’s & 16″ specialty blocks
• Height adjustment of all grinding stations can be lowered uniformly for grinding opposite side of block — at push of a button
• All heads simultaneously move up & down automatically determined by
  restrictor bar position
• Push-button manual over-ride to change grind depth to non-standards
• Hand-held “Zero-Out” control for calibrating individual drums & vertical wheels
• Safety Feature–Automatic block height restrictor bar to prevent crashes

Drum Information:

• Quick & easy diamond drum or disc change-over
• Drums can be recoated by Di-Coat Corp. using high grade GE Diamond
• Reconditioned or new drums supplied ready to mount with pre-installed pillow block bearings

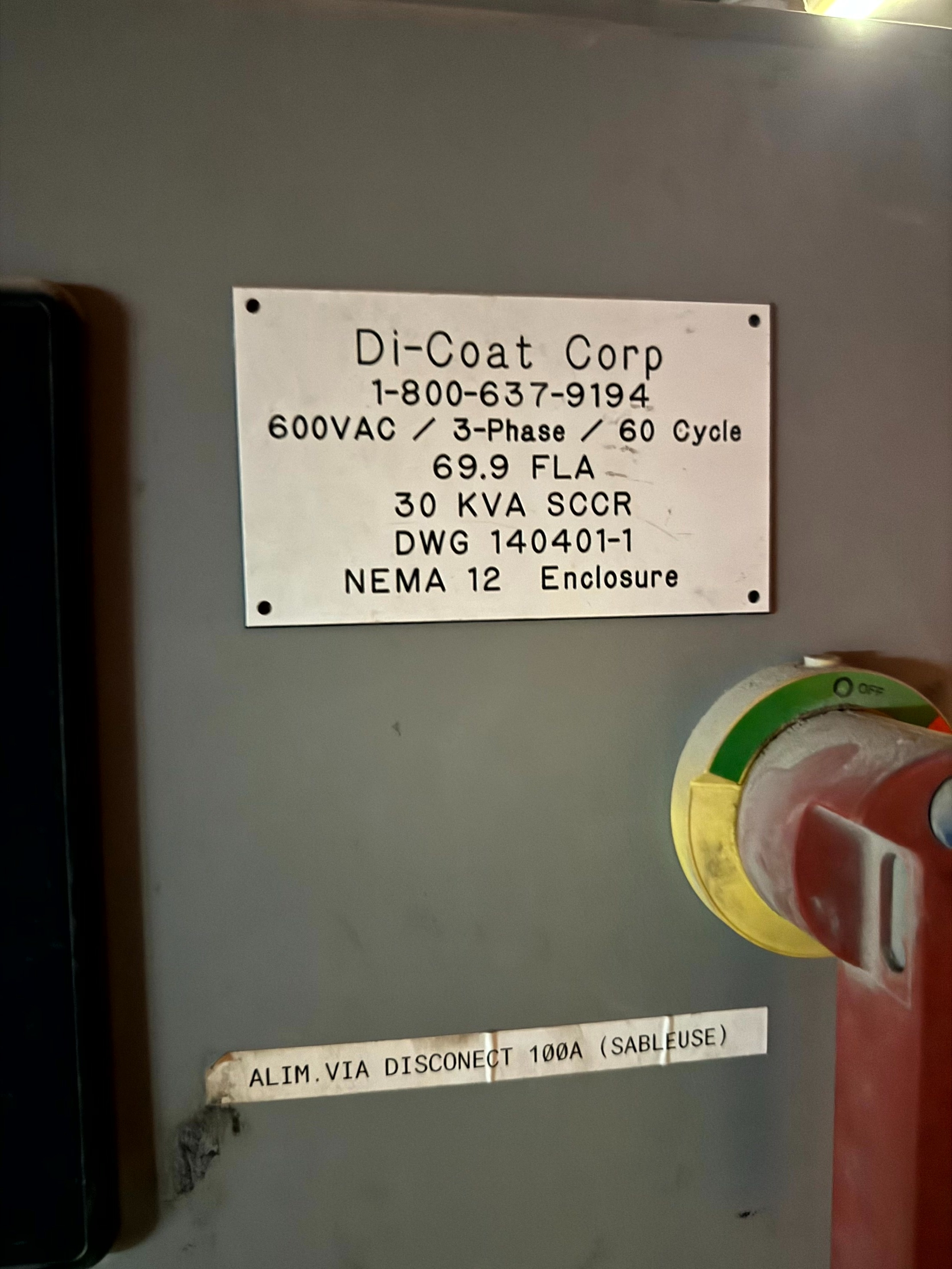

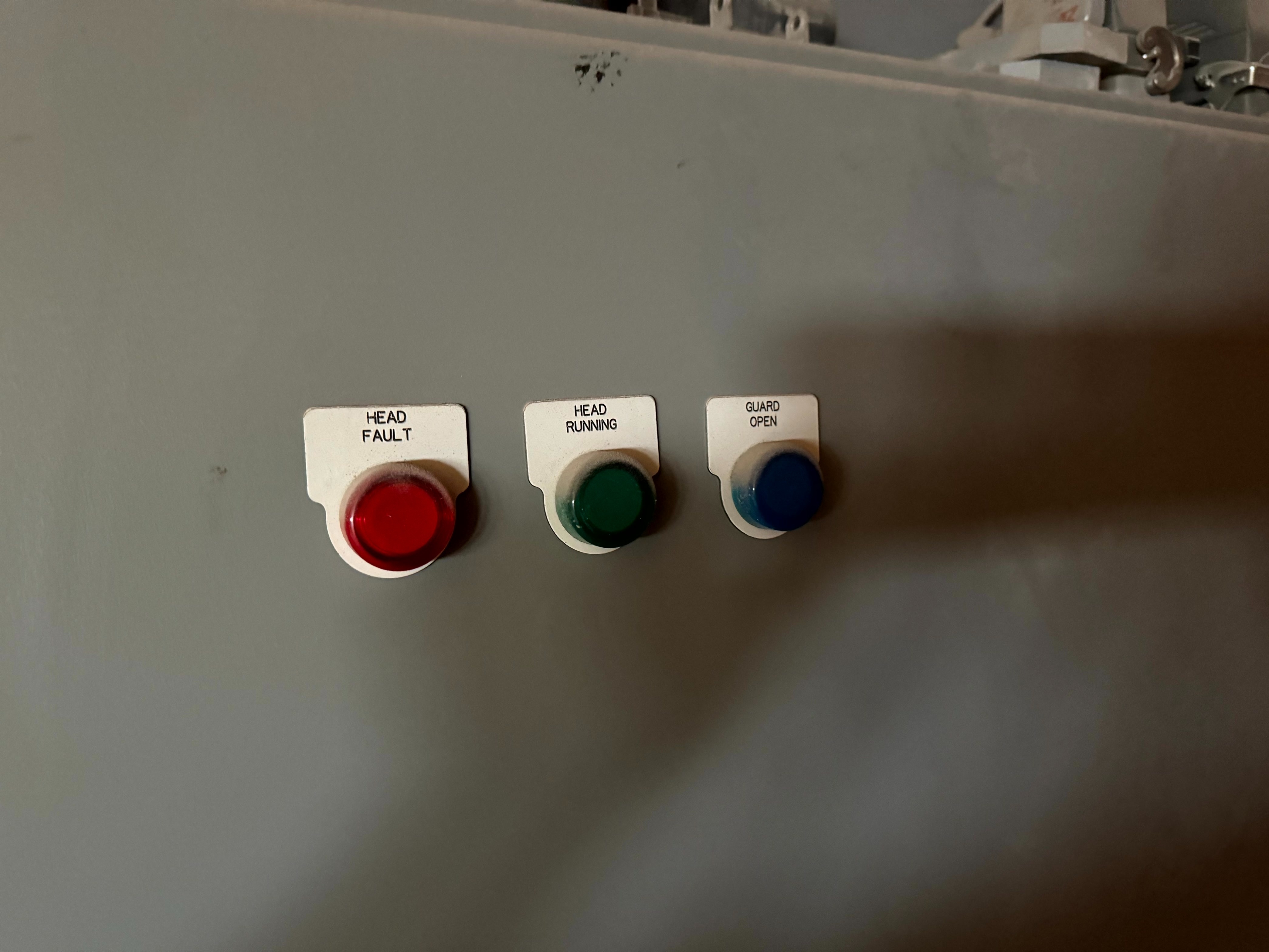

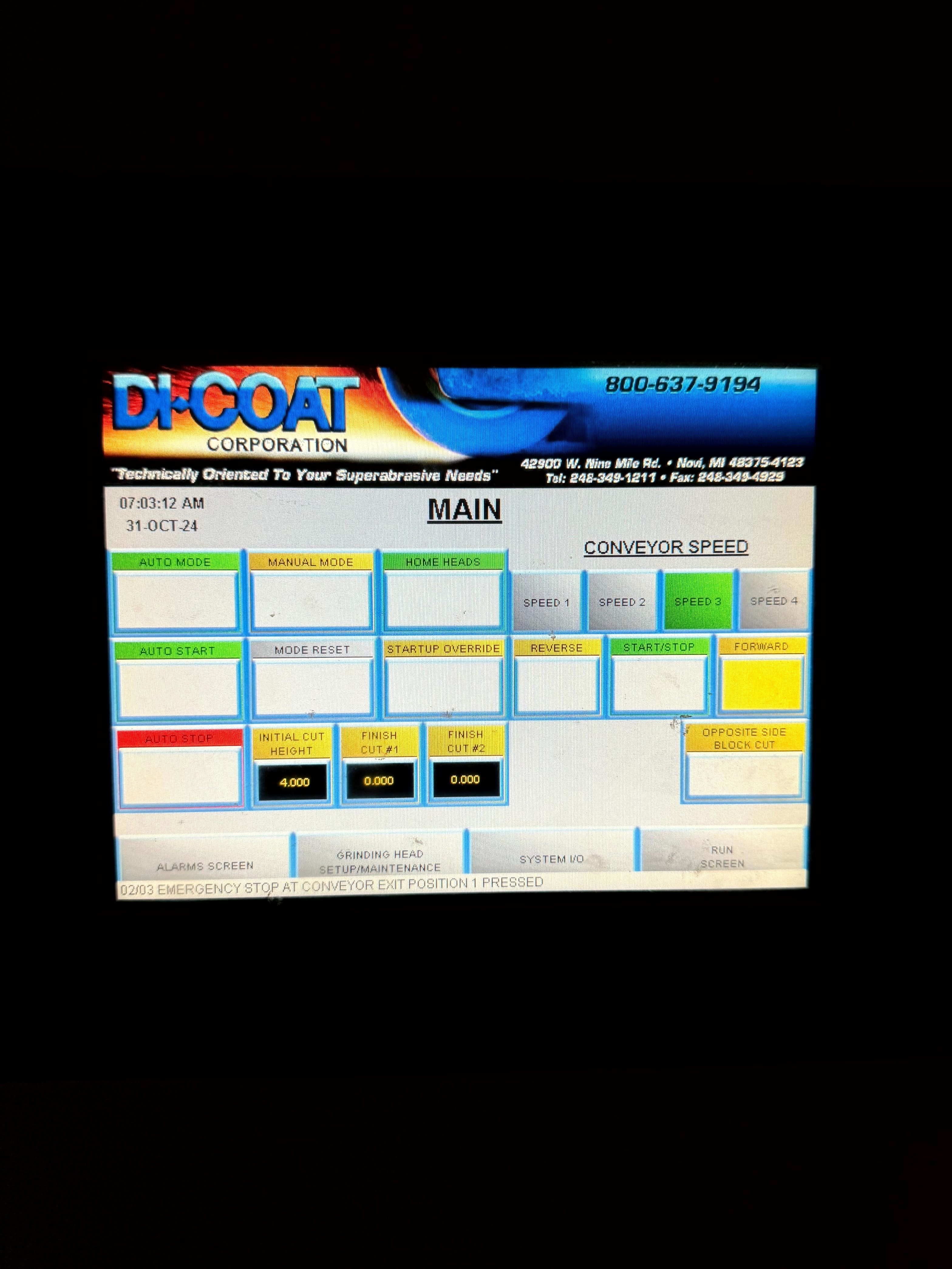

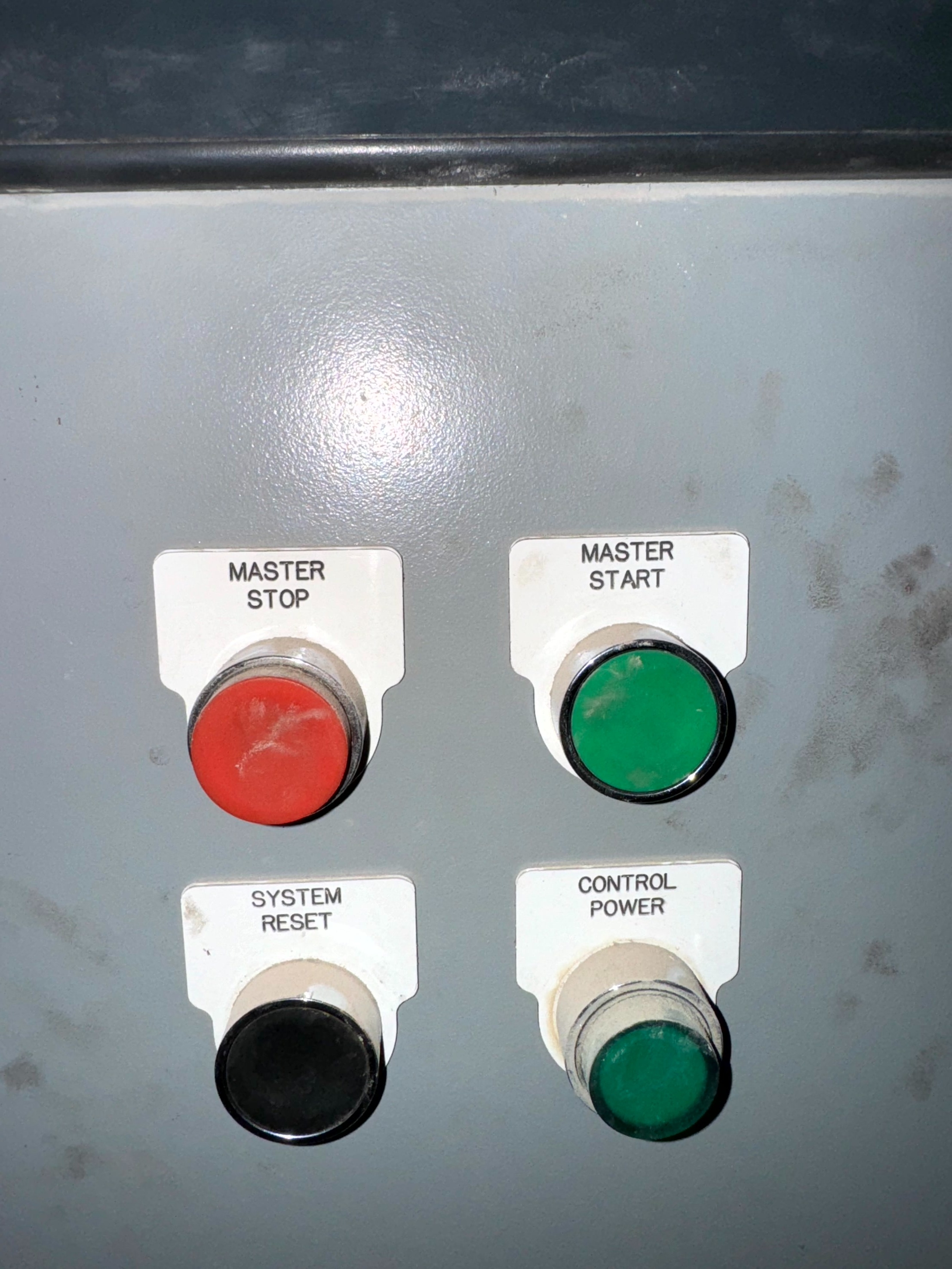

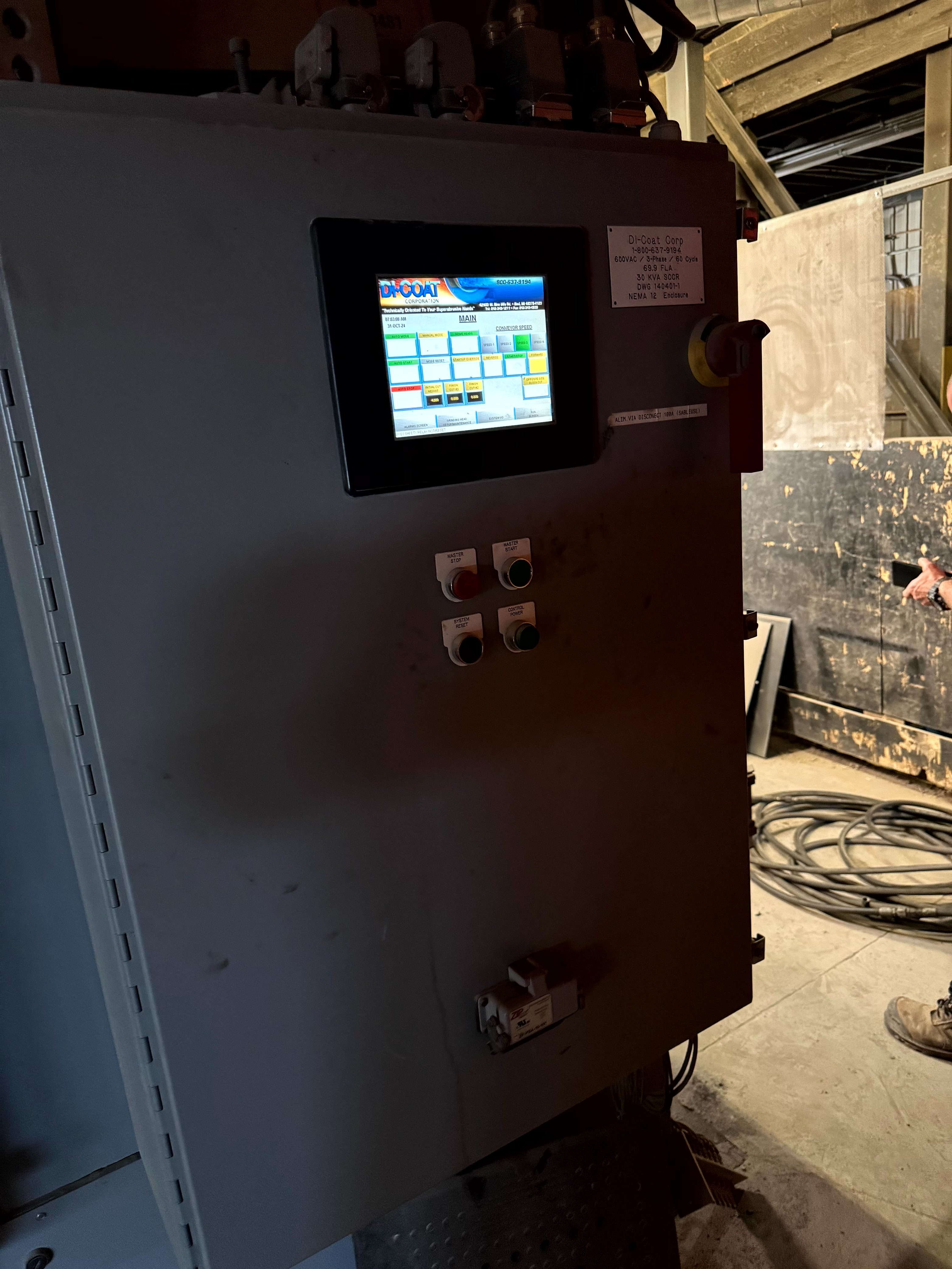

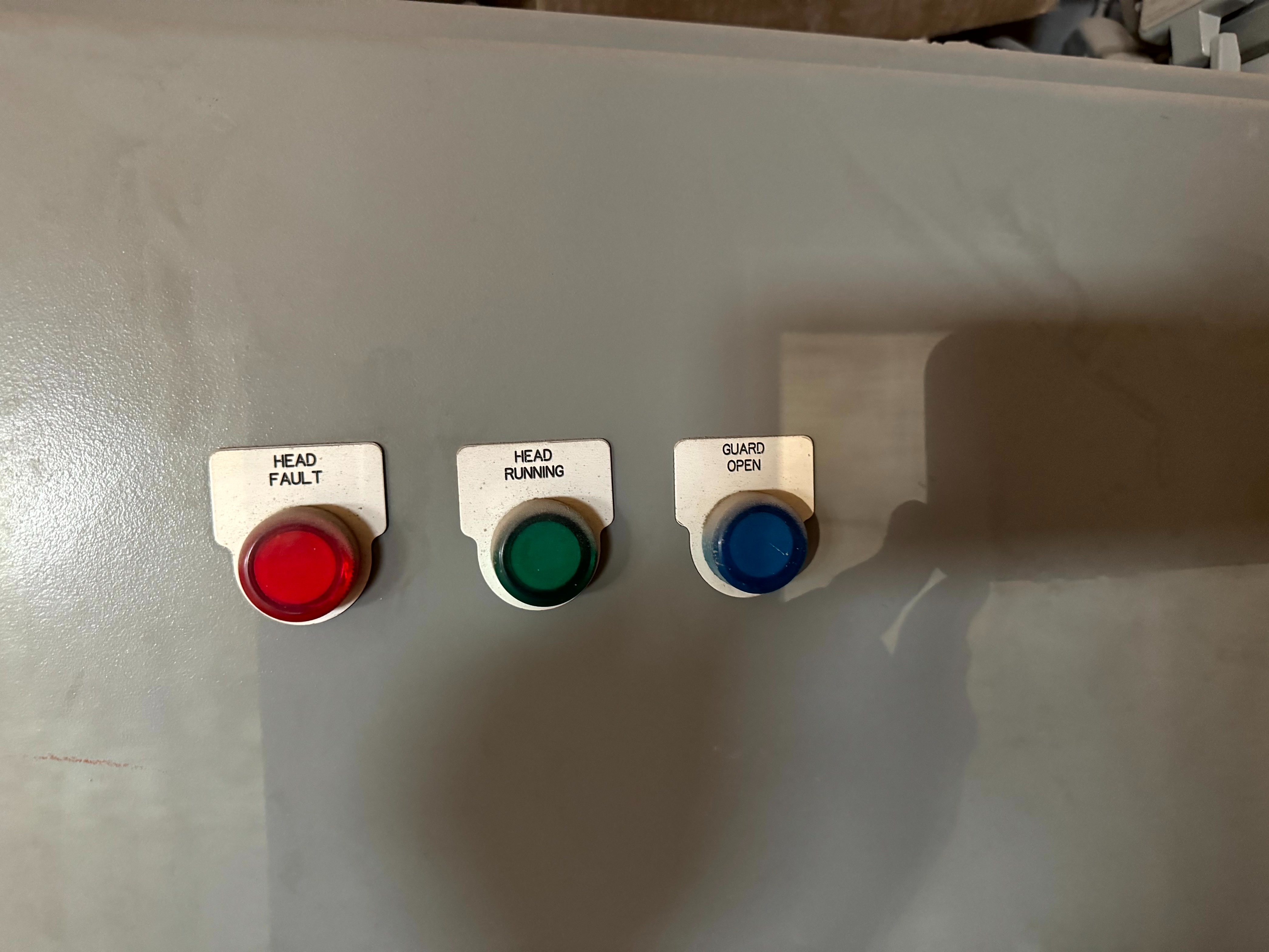

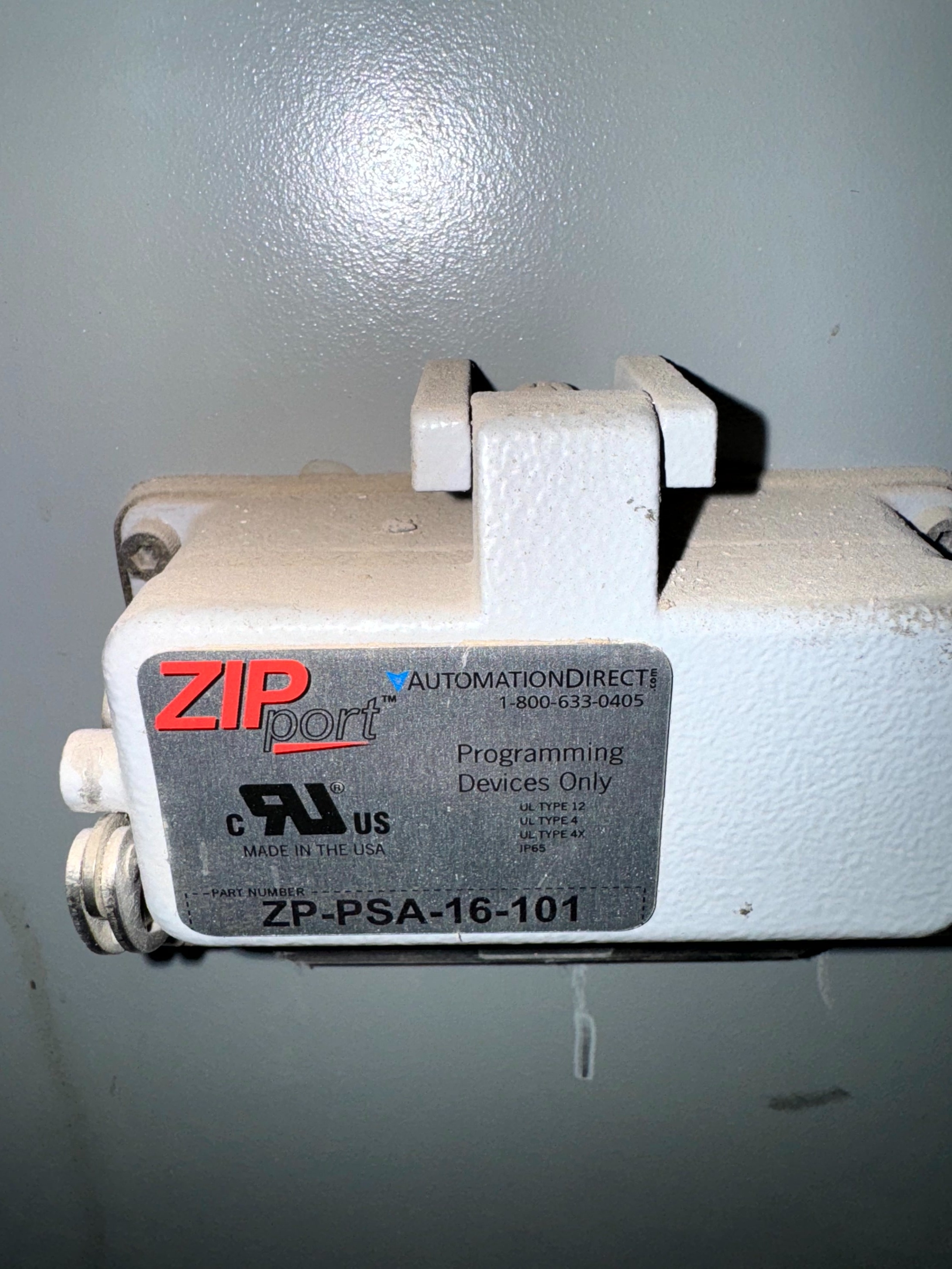

Control Panel:

• Free-standing control panel permits ease of operation & floor space optimization
• Display prompts operator of required action
• Single command to select 1st, or 2nd, side grind height
• Digital display of fine adjustment of grinding heads
• Each grind station may be individually active or off-line
• Analog display of amperage draw for each grind station
• Pause mode stops conveyor but leaves grinding heads running
• Programmable stock removal setting for each station
• On-screen programming
